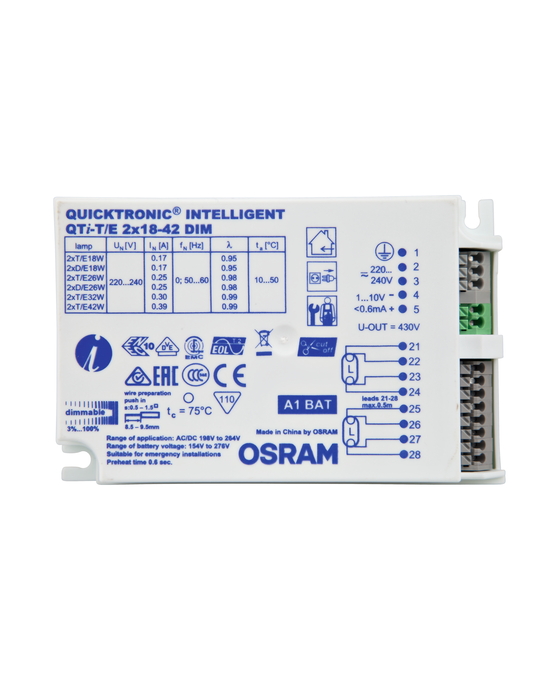

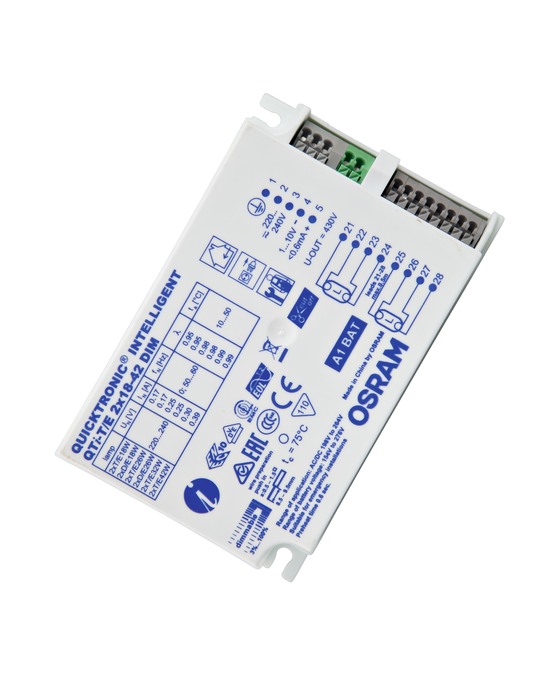

2X18…42 DIM
4008321060846
Product benefits
- Same luminous flux with direct and alternating current
- Perfect lamp start for applications with motion sensors
- Dimming of amalgam lamps without flickering or reduced lifespan
- Very high efficiency thanks to cut-off technology
- Automatic restart after lamp replacement
- ECGs comply with MINERGIE standard due to very low standby consumption
- Configurable emergency power characteristics
- Control via the 1…10 V interface
Areas of application
- Suitable for use in emergency lighting systems as per EN 50172/DIN VDE 0108-100
- Industry
- Open-plan offices, corridors and storage rooms
- Public buildings
- Suitable for luminaires of protection class I
Product features
- Control via 1…10 V interface
- Supply voltage: 220…240 V
- Line frequency: 0 Hz | 50 Hz | 60 Hz
- Line voltage: 198…264 V
- Dimming range: 3…100 % luminous flux
- Lamp start: within 0.6 s
- Lifetime: > 100,000 h (for T = 65 °C at Tc)
- Automatic shutdown of defective lamps and at end of life (EoL T.2)
- Energy Efficiency Index EEI: A1 BAT
- Overtemperature protection: Thermal management at high tc temperatures
- Safety: to EN 61347-2-3
- Lamp operation: to EN 60929
- RI suppression: to EN 55015:2006+A1:2007+A2:2009/CISPR 15
- Line harmonics according to EN 61000-3-2
- Immunity according to EN 61547
Ambient temperature range
-10…+50 °C
Approval marks – approval
V
Body material
Metal
Casing material
Metal
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Dimmable
Yes
Dimming interface
1…10 V
Dimming range
3…100 %
ECG lifetime
100000 h 1)
EEI – Energy Label
A1 BAT
End of lamp life safety shutdown
EOL T.2
Energy efficiency class
A1
GTIN
4008321060846
Height
33.00 mm
Input voltage DC
154…276 V
Inrush current
45 A
Length
123.00 mm
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1)
Mains frequency
50/60 Hz
Max. cable length to lamp/LED module
0,5 m
Max. ECG no. on circuit breaker 10 A (B)
8 1)
Max. ECG no. on circuit breaker 16 A (B)
13 1)
Max.housing temperature in case of fault
110 °C
Maximum temperature at tc test point
75 °C 1)
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting hole spacing, length
111,0 mm
Nominal voltage
220…240 V
Nominal wattage
90.00 W
Operating frequency
42…140 kHz
Packaging recyclability
Mostly recyclable packaging 1)
Permitted rel. humidity during operation
5…85 % 2)
Product recyclability
Mostly recyclable product 1)
Product remark
Optional cable clamp, see chapter ECG mountings - cable clamp
Product weight
250.00 g
Protection class
1
Quantity of precious metals
0 mg
Quantity of rare earths
0 mg
Standards
Acc. to EN 550
Starting time [PIM]
0.6 s
Suitable for fixtures with prot. class
I
Temperature range at storage
-40…+85 °C
Type of current
AC/DC
Type of protection
IP20
Width
79.00 mm
Wire preparation length, input side
8.5…9.5 mm 1)
Wire preparation length, output side
8.5…9.5 mm 1)
