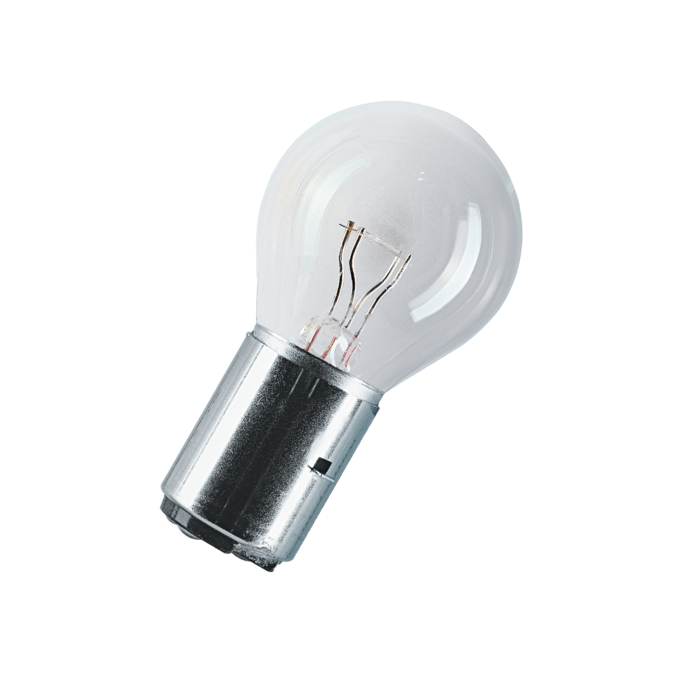

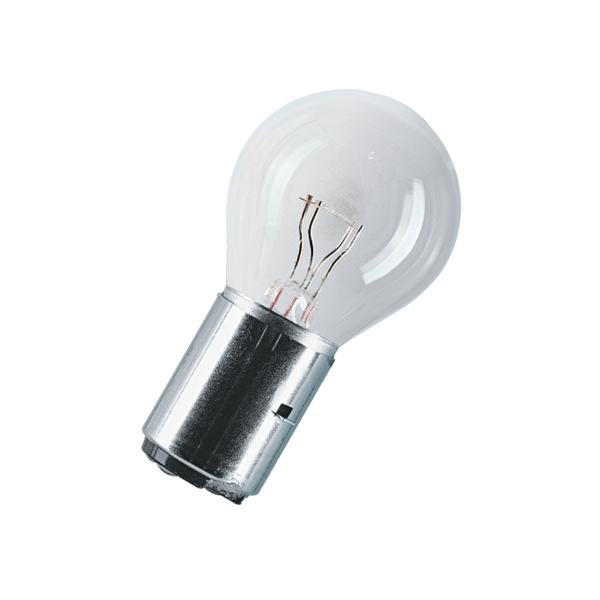

SIG 3015 LL
4050300831336
Product benefits
- Second filament takes over when the main filament fails
- Various wattages matched to specific needs of the relevant optical systems
Areas of application
- Railway traffic signalling systems
Product features
- Dual-coil lamps for higher operation safety of the signalling system
Safety advice
- Use only in signal equipment/luminaires that are specially designed for the purpose.
Protect the lamps against moisture during operation and installation.
Base (standard designation)
BA20d
Burning position
hs30
Construction wattage
15.00 W
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Design / version
Bulb
Diameter
36,0 mm
GTIN
4050300831336
Height
36,0 mm
Length
67.00 mm
Lifespan L70/B50 at 25 °C
8800 h
Light center length (LCL)
29,6 mm 1)
Light source cap-type (or other electric interface)
BA20d
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Luminous efficacy
10 lm/W
Luminous flux
160 lm
Mercury content
0.0 mg
Mercury-free
Yes
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Nominal voltage
30 V
Nominal wattage
15/15 W
Order reference
3015
Overall length
67.00 mm
Packaging recyclability
Mostly recyclable packaging 1)
Product recyclability
Mostly recyclable product 1)
Product weight
18.6 g
Starting time
0 s
Width
36,0 mm
