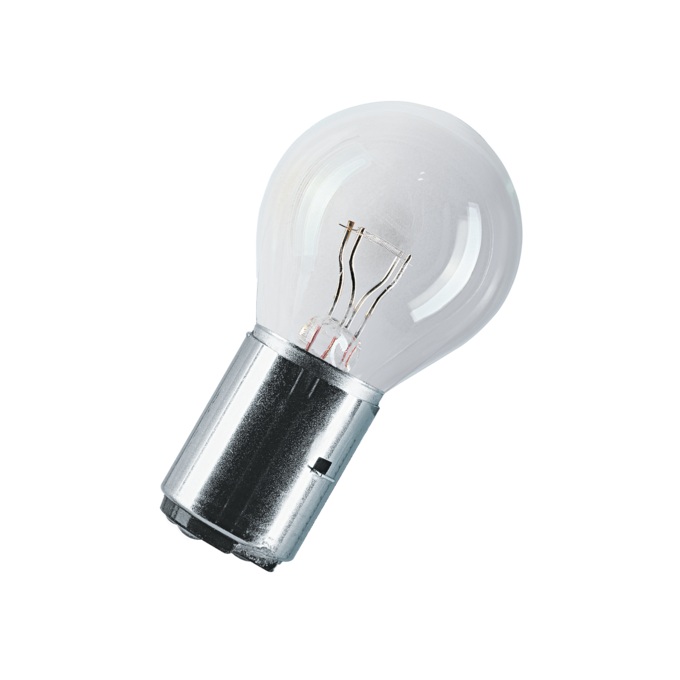

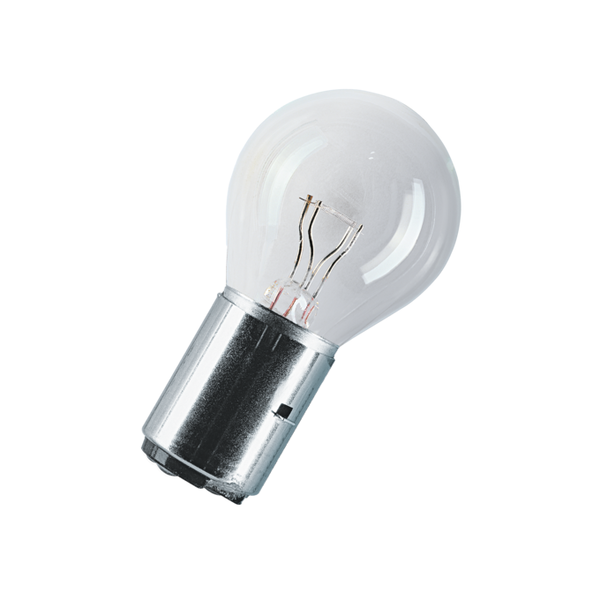

SIG 1210
4050300832173
Product benefits
- Second filament takes over when the main filament fails
- Various wattages matched to specific needs of the relevant optical systems
Areas of application
- Railway traffic signalling systems
Product features
- Dual-coil lamps for higher operation safety of the signalling system
Safety advice
- Use only in signal equipment/luminaires that are specially designed for the purpose.
Protect the lamps against moisture during operation and installation.
Base (standard designation)
BA20d
Burning position
hs30
Color rendering index Ra
100
Construction wattage
10.00 W
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Design / version
Bulb
Diameter
36,0 mm
GTIN
4050300832173
Height
36,0 mm
Length
67.00 mm
Lifespan L70/B50 at 25 °C
600 h
Light center length (LCL)
29,6 mm 1)
Light color
10
Light source cap-type (or other electric interface)
BA20d
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Luminous efficacy
13 lm/W
Luminous flux
137 lm
Mercury content
0.0 mg
Mercury-free
Yes
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Nominal voltage
12 V
Nominal wattage
10/10 W
Order reference
1210
Overall length
67.00 mm
Packaging recyclability
Mostly recyclable packaging 1)
Product recyclability
Mostly recyclable product 1)
Product weight
18.37 g
Starting time
0 s
Width
36,0 mm
