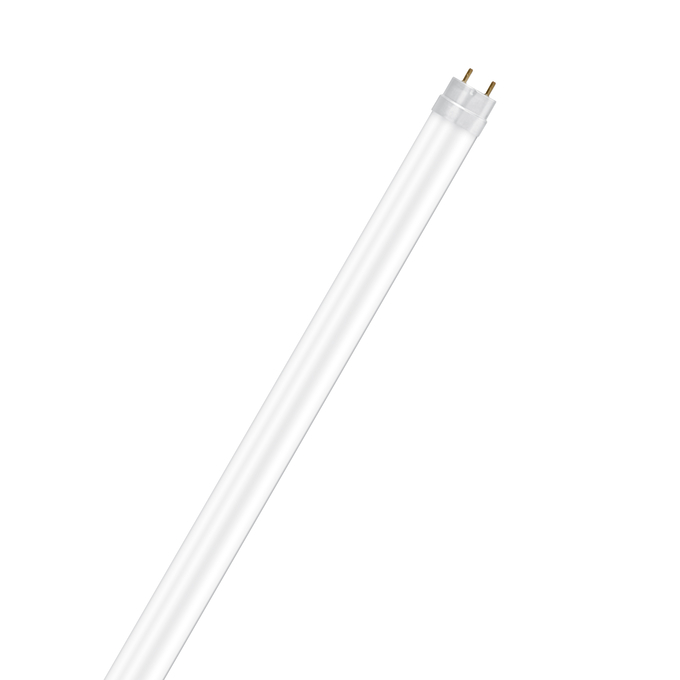

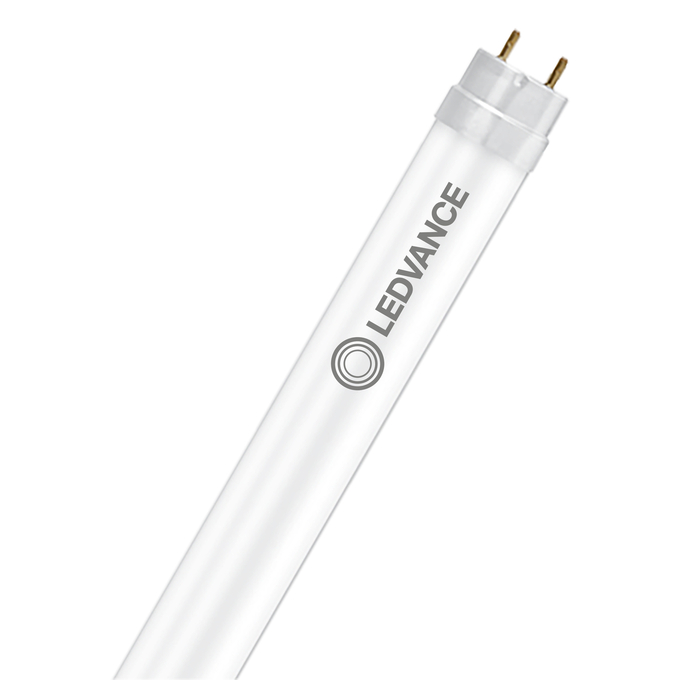

ST8E-AC 8 W/6500 K 600 mm
4099854075148
Product benefits
- No bending thanks to glass technology
- Quick, simple and safe replacement without rewiring
- Energy savings of up to 65 % (compared to T8 fluorescent lamp on CCG)
- Instant-on light, therefore ideally suitable in combination with sensor technology
- Also suitable for operation at low temperatures
Product features
- T8 LED tube made of glass with G13 base
- Mercury-free and RoHS compliant
- Type of protection: IP20
Legal advice
- When used to replace a T8 fluorescent lamp the total energy efficiency and light distribution depends on the design of the lighting system.
Safety advice
- Not suitable for operation with electronic control gear.
- Operation in outdoor applications in suitable damp-proof luminaires possible according to data sheet and installation instruction.
References / Links
- For current information see
Ambient temperature range
-20…+45 °C
Anti-glare shield
No
Base (standard designation)
G13
Beam angle
190 °
Beam angle correspondence
SPHERE_360
Chromaticity coordinate x
0.3123
Chromaticity coordinate y
0.3282
Claim of equivalent power
Yes
Color rendering index Ra
> 80
Color temperature
6500 K
Color-tuneable light source
No
Connected light source (CLS)
No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Additional info can be provided per individual request
Design / version
Frosted
Diameter
26.90 mm
Displacement factor
>=0.5
Envelope
No
EPREL ID
686640,2076153
Flickering metric (Pst LM)
1
GTIN
4099854075148
Height
26.90 mm
High luminance light source
No
LED light source replaces a fluorescent light source
Yes
Length
600.00 mm
Lifespan L70/B50 at 25 °C
30000 h
Light color
865
Light color (designation)
Cool Daylight
Light source cap-type (or other electric interface)
G13
Lighting technology used
LED
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Luminous efficacy
112 lm/W
Luminous flux
900 lm
Mains frequency
50…60 Hz
Mains or non-mains
MLS
Mercury-free
Yes
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Model number
AC32679,AC32679,AC66709
Networked standby power for CLS
0 W
Nominal current
65 mA
Nominal voltage
220…240 V
Nominal wattage
8 W
Non-directional or directional
NDLS
Operating frequency
50…60 Hz
Order reference
ST8E-0.6M 8W/86
Overall length
600.00 mm
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG0
Product recyclability
Mostly recyclable product 1)
Product weight
100.00 g
R9 Colour rendering index
>=0.00
Standby power
0 W
Stroboscope effect metric (SVM)
0.4
Survival factor
0.9
Temperature range at storage
-20…+80 °C
Total harmonic distortion
< 150 %
Type of current
AC
Type of protection
IP20
Width
26.90 mm
