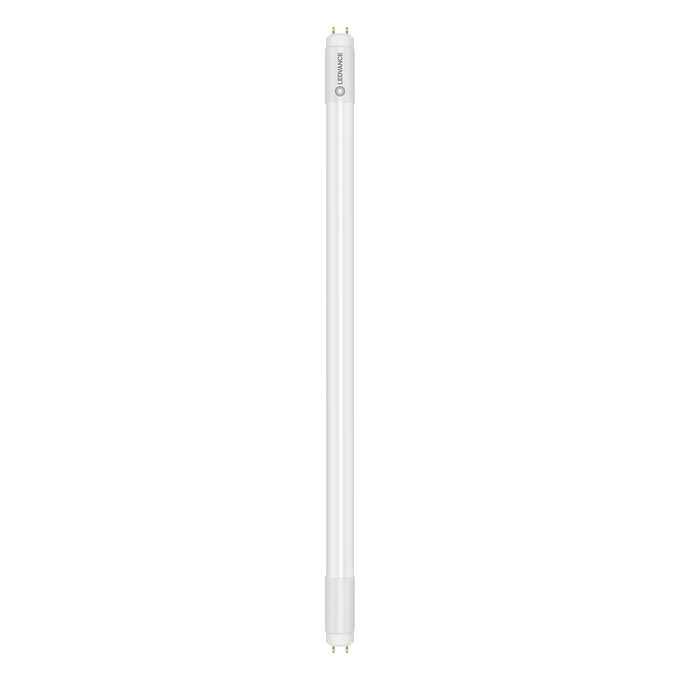

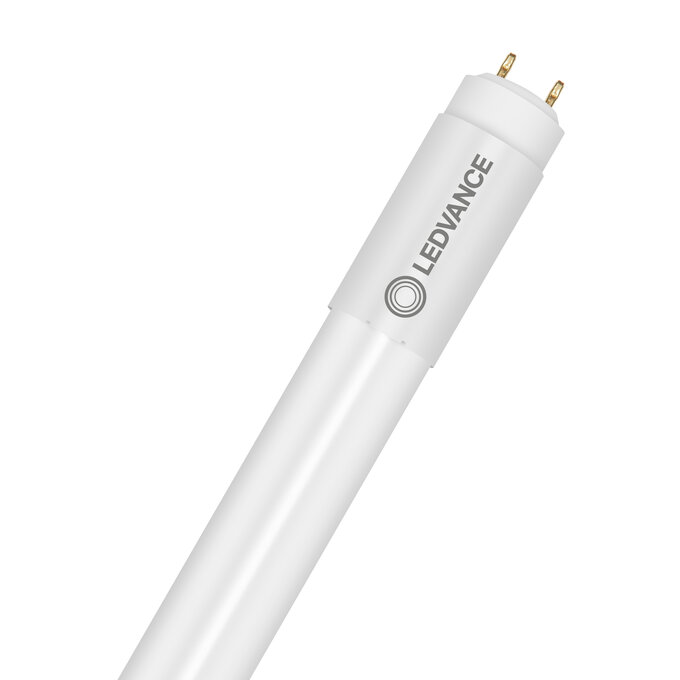

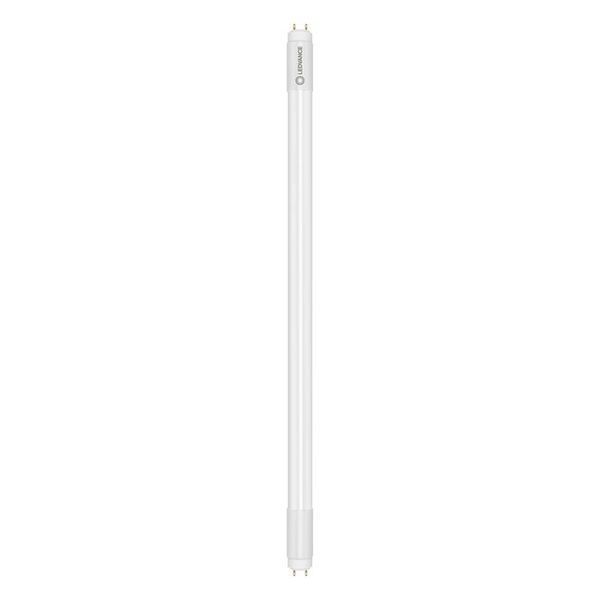

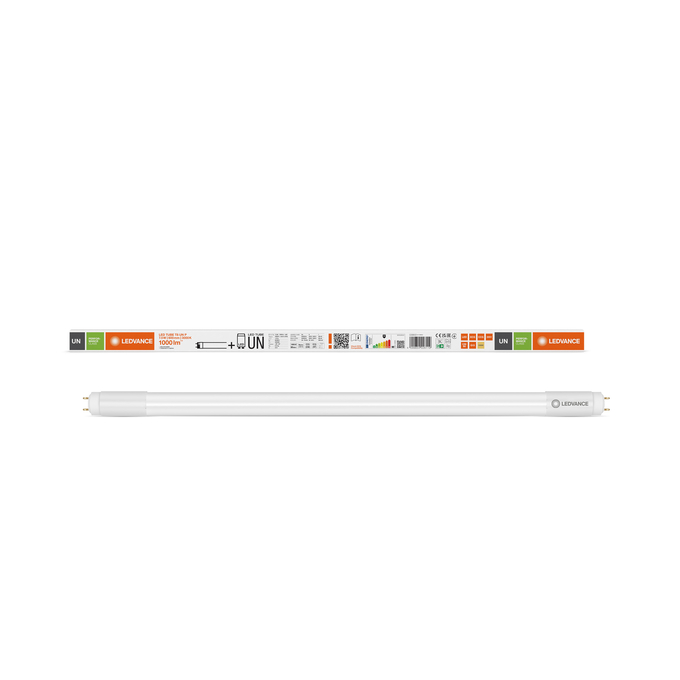

LED TUBE T8 UNIVERSAL PERFORMANCE 600 mm 7.5W 830
4099854026119
Product benefits
- No bending thanks to glass technology
- Quick, simple and safe replacement without rewiring
- Energy savings of up to 66 % (compared to T8 fluorescent lamp)
- Very high resistance to switching loads
- High luminous flux for sophisticated lighting tasks
- Support the implementation of the HACCP concepts from production through to presentation
- Also suitable for operation at low temperatures
Areas of application
- General illumination within ambient temperatures from -20…+45 °C
- Illumination of production areas
- Traffic zones and corridors
- Supermarkets and department stores
- Industry
Product features
- LED replacement for classic T8 fluorescent lamps with G13 socket for use in CCG, ECG luminaires or on AC mains
- Compatible with conventional and many common electronic control gears (see also ) and line voltage
- Low flicker according to EU 2019-2020 (SVM ≤ 0.4 / PstLM ≤ 1)
- Lamp tube made of glass with splinter protection
- For especially uniform illumination
- Mercury-free and RoHS compliant
- Type of protection: IP20
- Lifetime up to 60,000 h
Legal advice
- When used to replace a T8 fluorescent lamp the total energy efficiency and light distribution depends on the design of the lighting system.
Safety advice
- Operation in outdoor applications in suitable damp-proof luminaires possible according to data sheet and installation instruction.
- The operating temperature range of LED tube is restricted. In case of doubt regarding suitability of the application please measure Tc temperature on the product prior to installation.
- For operation of LED TUBE T8 UN with a conventional control gear, the existing starter must be exchanged with the including LED starter in the LED tube packaging.
- All electrical connections must be made by a qualified person.
- Not suitable for emergency lighting.
References / Links
- For current information see www.ledvance.com/ledtube
Ambient temperature range
-20…+45 °C 1)
Anti-glare shield
No
Base (standard designation)
G13
Beam angle
190 °
Beam angle correspondence
SPHERE_360
Chromaticity coordinate x
0.4339
Chromaticity coordinate y
0.4033
Claim of equivalent power
No
Color rendering index Ra
80
Color temperature
3000 K
Color-tuneable light source
No
Connected light source (CLS)
No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Correlated colour temperature type
SINGLE_VALUE
Diameter
27.80 mm
Dimmable
No
Displacement factor
0.8
Energy consumption
8.00 kWh/1000h
Energy efficiency class
E 1)
Envelope
No
EPREL ID
1317785
Flickering metric (Pst LM)
1.0
GTIN
4099854026119
Height
27.80 mm
High luminance light source
No
Inrush current
7 A
LED light source replaces a fluorescent light source
No
Length
603.00 mm
Length with base excl. base pins/connection
600.00 mm
Lifespan L70/B50 at 25 °C
60000 h
Lifespan L80/B50 at 25 °C
60000 h
Light color
830
Light color (designation)
Warm White
Light source cap-type (or other electric interface)
G13
Lighting technology used
LED
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1)
Lumen main.fact.at end of nom.life time
0.70
Lumen maintenance at end of service lifetime
0.70
Luminous efficacy
133 lm/W
Luminous flux
1000 lm
Mains frequency
50/60 Hz
Mains or non-mains
MLS
Max. lamp number on MCB B10 A
190
Max. lamp number on MCB B10 A - CCG with compensation
37
Max. lamp number on MCB B10 A - CCG without compensation
190
Max. lamp number on MCB B16 A
305
Max. lamp number on MCB B16 A - CCG with compensation
62
Max. lamp number on MCB B16 A - CCG without compensation
305
Maximum temperature at tc test point
60 °C
Mercury content
0.0 mg
Mercury-free
Yes
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Model number
AC42589,AC42589
Nominal current
38 mA
Nominal voltage
220…240 V
Nominal wattage
7.5 W
Non-directional or directional
NDLS
Number of switching cycles
200000
Operating frequency
50/60 Hz
Operating mode
ECG, CCG, AC Mains 1)
Order reference
LEDTUBE T8 UN P
Overall length
603.00 mm
Packaging recyclability
Mostly recyclable packaging 1)
Performance temp. acc. to IEC 62717
50 °C 2)
Photobiological safety group acc. to EN62778
RG0
Power factor λ
0.80
Product recyclability
Mostly recyclable product 1)
Product weight
153.00 g
Quantity of precious metals
Contains at least 10 mg
Quantity of rare earths
Contains at least 1 mg
R9 Colour rendering index
1
Rated lamp survival factor at 6,000 h
≥ 0.90
Rated LLMF at 6,000 h
0.90
Standard deviation of color matching
≤5 sdcm
Standards
CE
Starting time
< 0.5 s
Stroboscope effect metric (SVM)
≤0.4
Survival factor
˃0.9
Temperature range at storage
-20…+80 °C
Total harmonic distortion
< 30 %
Type of current
AC
Type of protection
IP20
Warm-up time (60 %)
‹ 0.50 s
Width
27.80 mm
