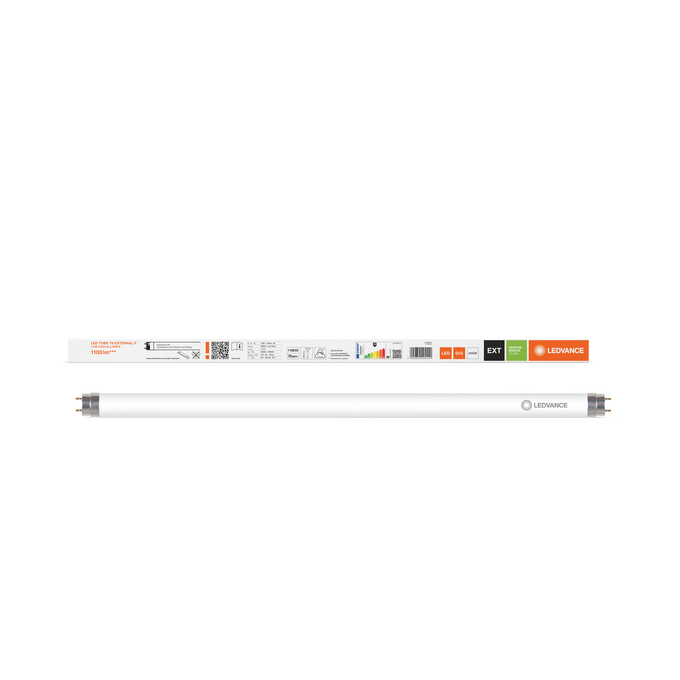

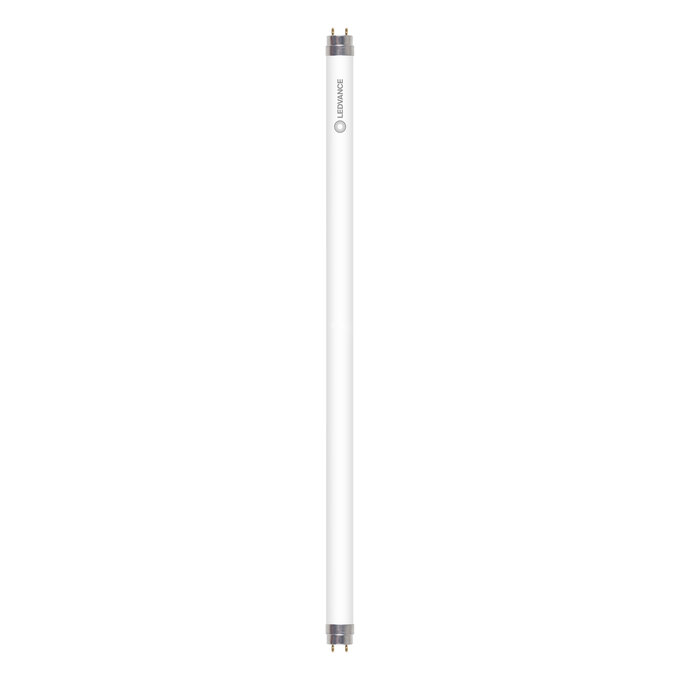

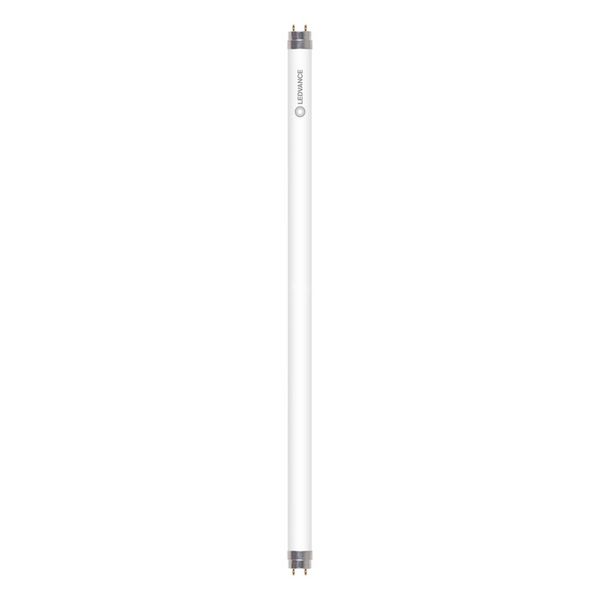

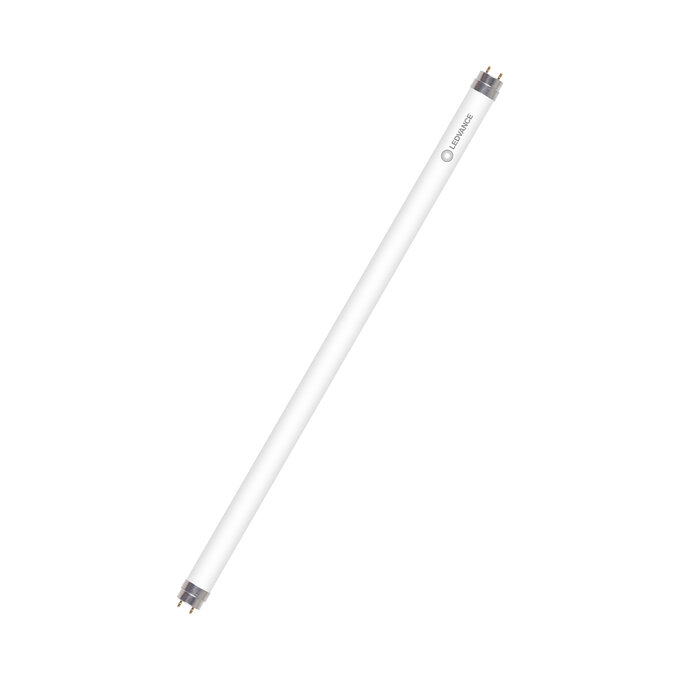

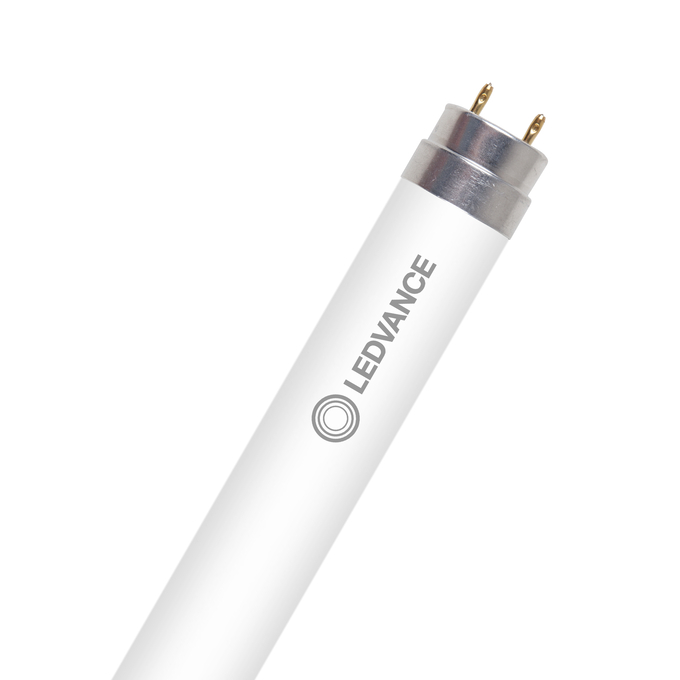

LED TUBE T8 EXTERNAL 600 mm 7.3W 840
4099854294440
Product benefits
- Simple upgrade to dimmable LED system
- Shatter protection thanks to special PET coating
- No bending thanks to glass tube
- 5 years guarantee
Areas of application
- Industrial lighting (e.g. manufacturing plants, logistic centers, warehouses)
- Linear lighting for office, education, storage areas and retail
- Shops, supermarkets
Product features
- Designed to power only with LED DRIVER LED TUBE EXTERNAL DALI
- Lamp tube made of glass with splinter protection
- Quality dimming of 1…100 %
- High resistance to switching loads
- Suitable for ambient temperatures from -20…+50 °C
Legal advice
- When used to replace a T8 fluorescent lamp the total energy efficiency and light distribution depends on the design of the lighting system.
Safety advice
- Operation in outdoor applications in suitable damp-proof luminaires possible according to data sheet and installation instruction.
- The operating temperature range of LED tube is restricted. In case of doubt regarding suitability of the application please measure Tc temperature on the product prior to installation.
- Disconnect mains before installation.
- All electrical connections must be made by a qualified person.
References / Links
- For current information see www.ledvance.com/ledtube
Ambient temperature range
-20…+50 °C 1)
Anti-glare shield
No
Base (standard designation)
G13
Beam angle
190 °
Beam angle correspondence
SPHERE_360
Chromaticity coordinate x
0,381
Chromaticity coordinate y
0,379
Claim of equivalent power
No
Color rendering index Ra
80
Color temperature
4000 K
Color-tuneable light source
No
Connected light source (CLS)
No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Correlated colour temperature type
SINGLE_VALUE
Diameter
27.00 mm
Dimmable
Yes
Displacement factor
0,90
Energy consumption
8.00 kWh/1000h
Energy efficiency class
D 1)
Envelope
No
EPREL ID
1939307
Flickering metric (Pst LM)
GTIN
4099854294440
Height
27.00 mm
High luminance light source
No
LED light source replaces a fluorescent light source
No
Length
603.00 mm
Length with base excl. base pins/connection
600.00 mm
Lifespan L70/B50 at 25 °C
75000 h
Light color
840
Light color (designation)
Cool White
Light source cap-type (or other electric interface)
G13
Lighting technology used
LED
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1)
Lumen main.fact.at end of nom.life time
0.70
Lumen maintenance at end of service lifetime
0.70
Luminous efficacy
150 lm/W
Luminous flux
1100 lm
Mains frequency
0 Hz
Mains or non-mains
NMLS
Maximum temperature at tc test point
65 °C
Mercury content
0.0 mg
Mercury-free
Yes
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Model number
AC59126,AC59126
Nominal current
350 mA
Nominal voltage
21 V
Nominal wattage
7.3 W
Non-directional or directional
NDLS
Number of switching cycles
200000
Operating frequency
0 Hz
Operating mode
EXT 1)
Order reference
LEDTUBE T8 EXT
Overall length
603.00 mm
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG0
Power factor λ
0.90
Product recyclability
Mostly recyclable product 1)
Product remark
Single sided LED TUBE (one-sided DC input ) complying with safety requirement acc. IEC 62776:2014. Safety protection against electrical shock in misuse (ECG/CCG/Mains operation).
Product weight
131.00 g
Quantity of precious metals
Contains at least 10 mg
Quantity of rare earths
Contains at least 1 mg
R9 Colour rendering index
1
Rated lamp survival factor at 6,000 h
≥ 0.90
Rated LLMF at 6,000 h
0.80
Standard deviation of color matching
≤5 sdcm
Standby power
0 W
Starting time
< 1.0 s
Stroboscope effect metric (SVM)
Survival factor
0,90
Temperature range at storage
-20…+80 °C
Total harmonic distortion
< 20 %
Type of current
DC
Type of protection
IP20
Warm-up time (60 %)
‹ 2.00 s
Width
27.00 mm
