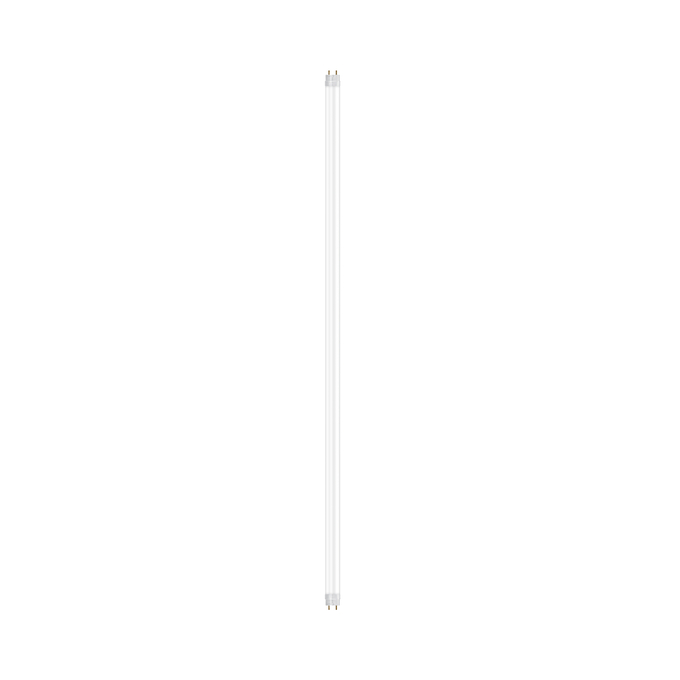

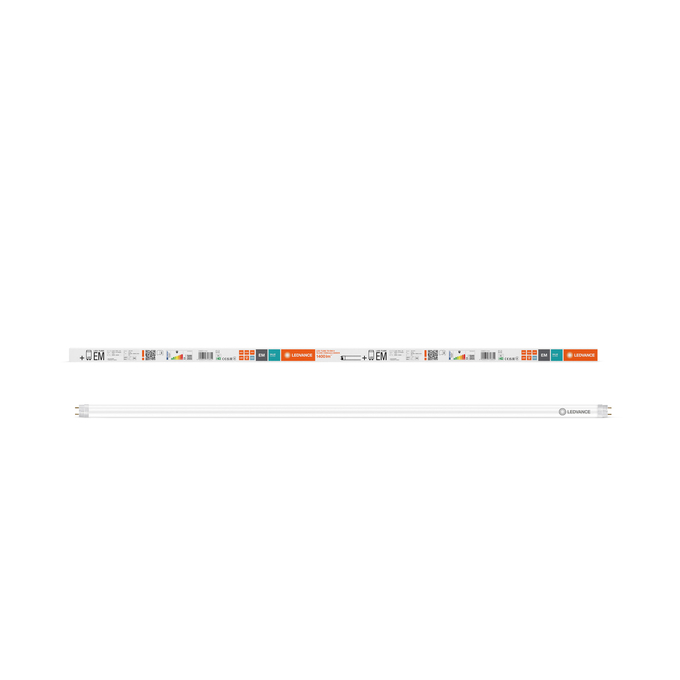

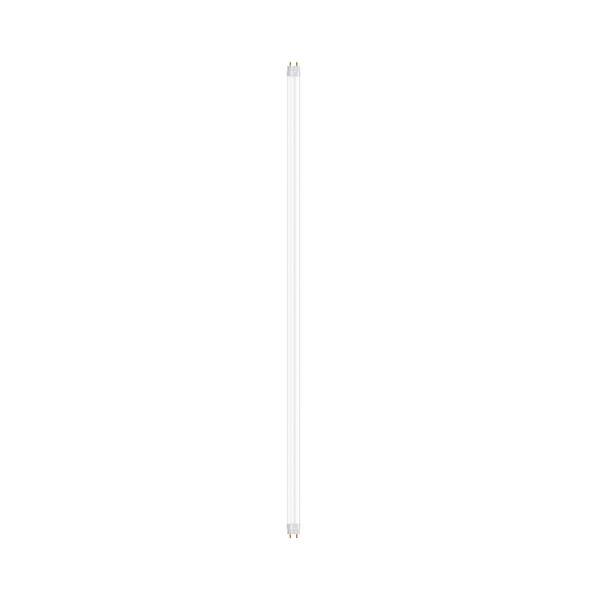

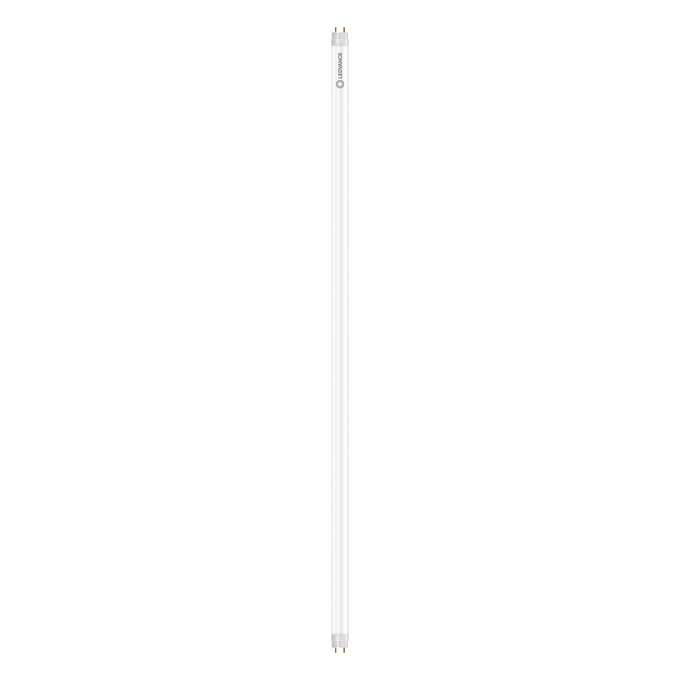

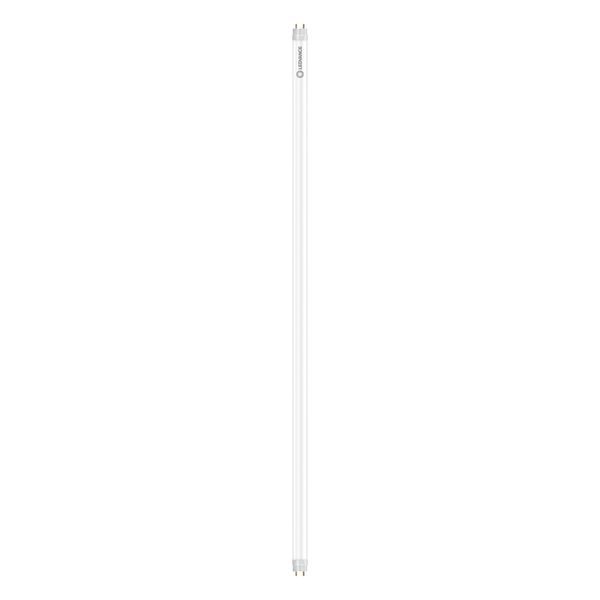

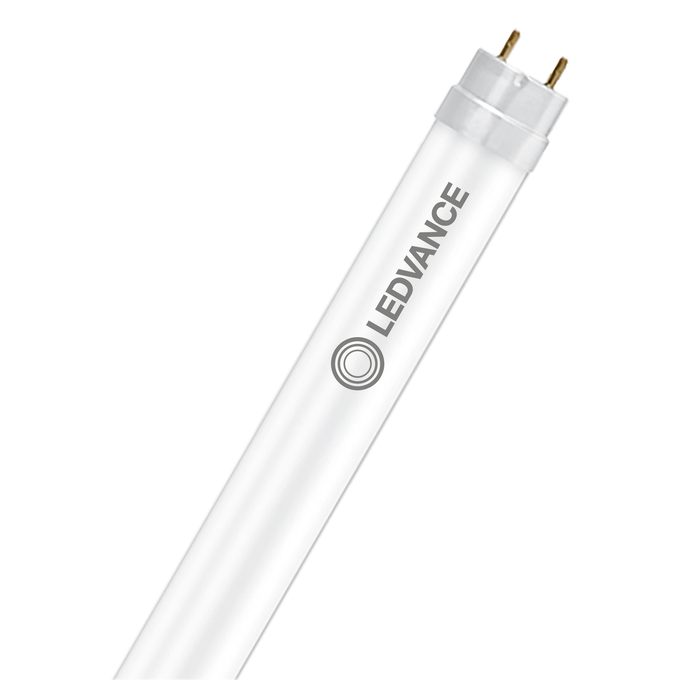

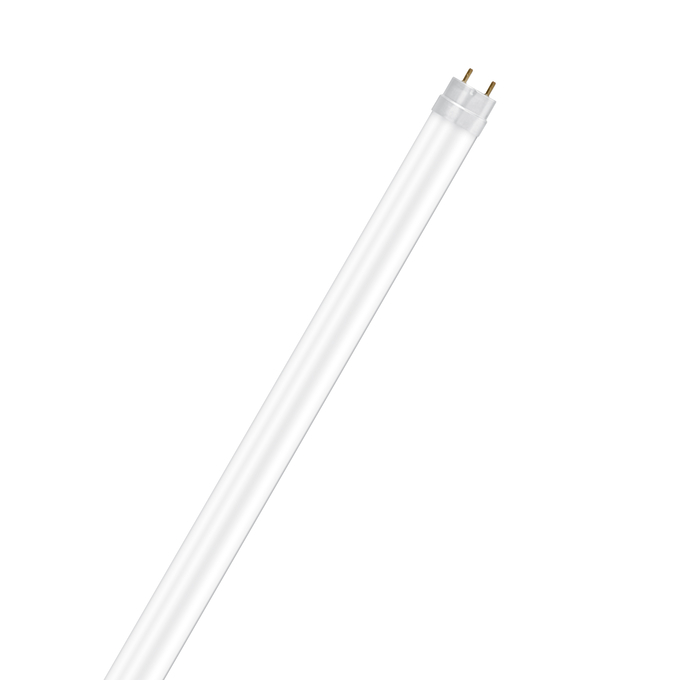

LED TUBE T8 EM VALUE 1050 mm 10.3W 865
4099854753855
Product benefits
- Energy savings of up to 72 % (compared to T8 fluorescent lamp)
- Quick, simple and safe replacement with or without rewiring
- No bending thanks to glass technology
- Very high resistance to switching loads
- Instant-on light, therefore ideally suitable in combination with sensor technology
- Also suitable for operation at low temperatures
Areas of application
- General illumination within ambient temperatures from -20…+45 °C
- Corridors, stairways, parking garages
- Warehouses
- Cooling and storage rooms
- Domestic applications
Product features
- LED replacement for classic T8 fluorescent lamps with G13 socket for use in CCG luminaires or on AC mains
- Single and tandem operation on conventional control gear (≤ 0.9 m versions)
- Tube made of glass
- Long lifetime up to 50,000 h
- Uniform illumination
- Mercury-free and RoHS compliant
- Type of protection: IP20
- Low flicker according to EU 2019-2020 (SVM ≤ 0.4 / PstLM ≤ 1)
Equipment / Accessories
- Suitable for operation with low-loss and conventional control gears
Legal advice
- When used to replace a T8 fluorescent lamp the total energy efficiency and light distribution depends on the design of the lighting system.
Safety advice
- Not suitable for operation with electronic control gear.
- Operation in outdoor applications in suitable damp-proof luminaires possible according to data sheet and installation instruction.
- Not suitable for emergency lighting.
- Disconnect mains before installation.
References / Links
- For Guarantee see
Ambient temperature range
-20…+45 °C 1)
Anti-glare shield
No
Base (standard designation)
G13
Beam angle
190 °
Beam angle correspondence
SPHERE_360
Chromaticity coordinate x
0.313
Chromaticity coordinate y
0.337
Claim of equivalent power
No
Color rendering index Ra
80
Color temperature
6500 K
Color-tuneable light source
No
Connected light source (CLS)
No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Correlated colour temperature type
SINGLE_VALUE
Diameter
26.00 mm
Dimmable
No
Displacement factor
0.9
Energy consumption
11.00 kWh/1000h
Energy efficiency class
D 1)
Envelope
No
EPREL ID
2497844
Flickering metric (Pst LM)
1
GTIN
4099854753855
Height
26.00 mm
High luminance light source
No
Input voltage DC
186…260 V
Inrush current
8.4 A
LED light source replaces a fluorescent light source
No
Length
1060.00 mm
Length with base excl. base pins/connection
1050.00 mm
Lifespan L70/B50 at 25 °C
50000 h
Light color
865
Light color (designation)
Cool Daylight
Light source cap-type (or other electric interface)
G13
Lighting technology used
LED
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1)
Lumen main.fact.at end of nom.life time
0.70
Lumen maintenance at end of service lifetime
0.70
Luminous efficacy
135 lm/W
Luminous flux
1400 lm
Mains frequency
50/60 Hz 1)
Mains or non-mains
MLS
Max. lamp number on MCB B10 A
71
Max. lamp number on MCB B10 A - CCG with compensation
31
Max. lamp number on MCB B10 A - CCG without compensation
72
Max. lamp number on MCB B16 A
89
Max. lamp number on MCB B16 A - CCG with compensation
39
Max. lamp number on MCB B16 A - CCG without compensation
90
Maximum temperature at tc test point
80 °C
Mercury content
0.0 mg
Mercury-free
Yes
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Model number
AC89807
Nominal current
45 mA
Nominal voltage
220…240 V
Nominal wattage
10.3 W
Non-directional or directional
NDLS
Number of switching cycles
200000
Operating frequency
50/60 Hz
Operating mode
CCG, AC Mains, DC
Order reference
LEDTUBE T8 EM V
Overall length
1060.00 mm
Packaging recyclability
Mostly recyclable packaging 1)
Performance temp. acc. to IEC 62717
54 °C 2)
Photobiological safety group acc. to EN62778
RG0
Power factor λ
0.90
Product recyclability
Mostly recyclable product 1)
Product remark
Available from June 2026
Product weight
155.00 g
R9 Colour rendering index
1
Rated lamp survival factor at 6,000 h
≥ 0.90
Rated LLMF at 6,000 h
0.80
Standard deviation of color matching
≤6 sdcm
Standby power
Starting time
< 0.5 s
Stroboscope effect metric (SVM)
0.4
Suitable for DC input
Yes
Survival factor
0.9
Temperature range at storage
-20…+80 °C
Total harmonic distortion
15.2 %
Type of current
AC
Type of protection
IP20
Warm-up time (60 %)
‹ 0.50 s
Width
26.00 mm
