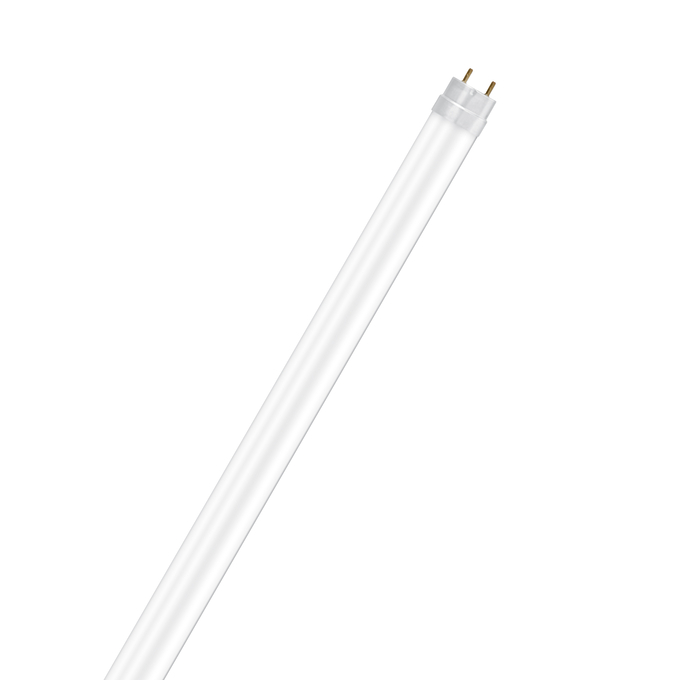

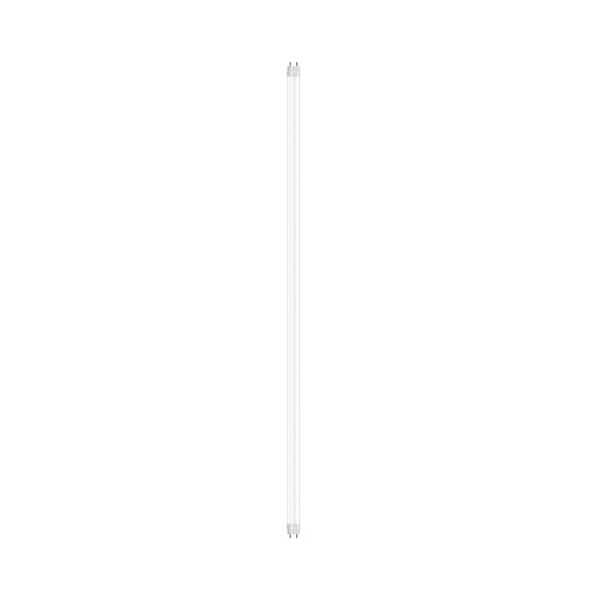

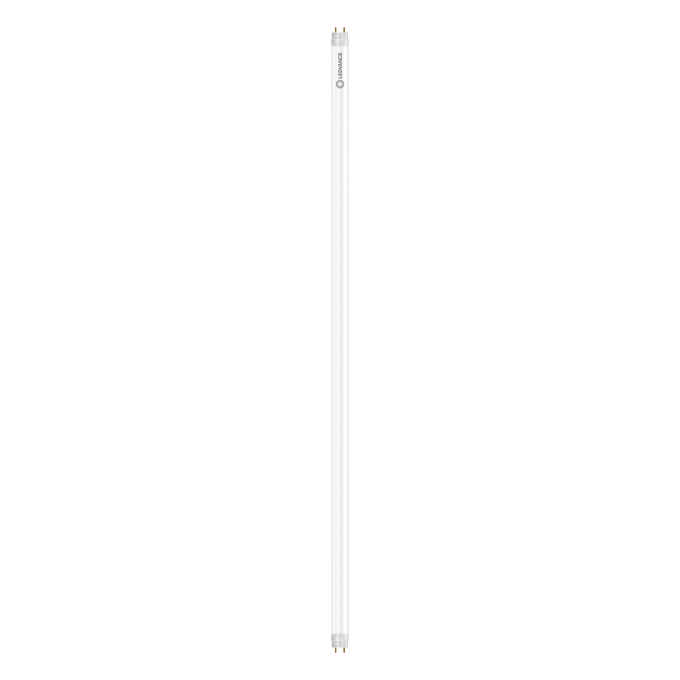

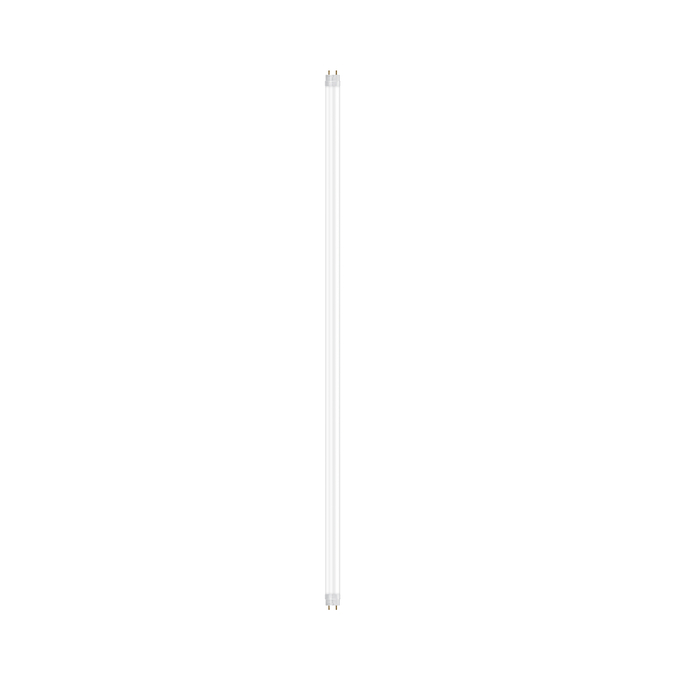

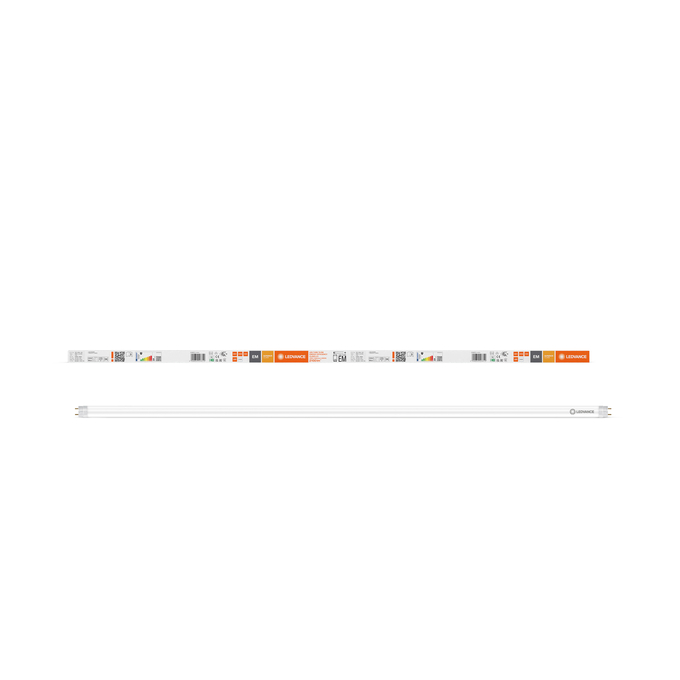

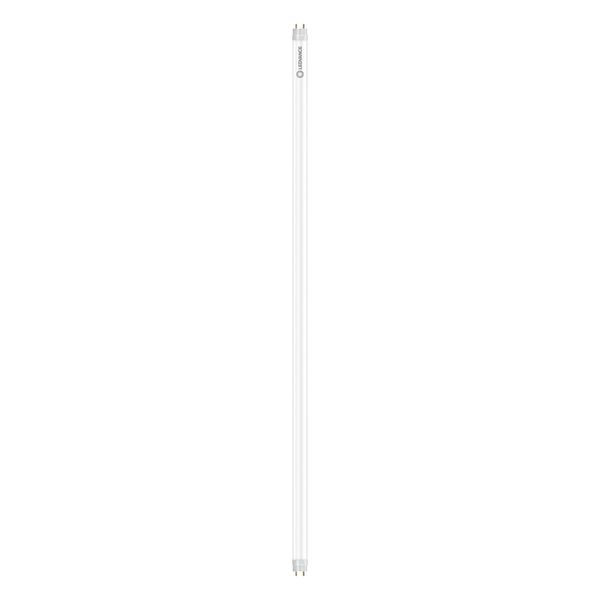

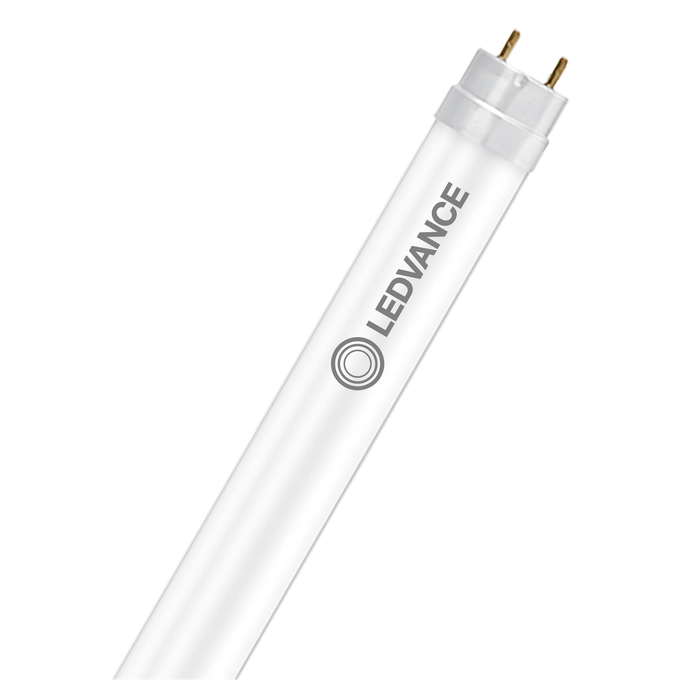

LED TUBE T8 EM ENERGY EFFICIENCY CLASS A 1200 mm 10W 840
4099854223310
Product benefits
- Highest energy savings possible thanks to energy efficiency class A
- No bending thanks to glass technology
- Very high resistance to switching loads
- Quick, simple and safe replacement without rewiring
- Energy savings of up to 72 % (compared to T8 fluorescent lamp)
- Instant-on light, therefore ideally suitable in combination with sensor technology
- Also suitable for operation at low temperatures
Areas of application
- General illumination within ambient temperatures from -20…+50 °C
- Illumination of production areas
- Traffic zones and corridors
- Supermarkets and department stores
- Industry
Product features
- LED replacement for classic T8 fluorescent lamps with G13 socket for use in CCG luminaires or on AC mains
- Extremly high efficiency of 210 lm/W
- Low flicker according to EU 2019-2020 (SVM ≤ 0.4 / PstLM ≤ 1)
- ENEC 10 VDE mark
- Lifetime up to 100,000 h
- Type of protection: IP20
- Mercury-free and RoHS compliant
Equipment / Accessories
- Suitable for operation with low-loss and conventional control gears
Legal advice
- When used to replace a T8 fluorescent lamp the total energy efficiency and light distribution depends on the design of the lighting system.
Safety advice
- Not suitable for operation with electronic control gear.
- Operation in outdoor applications in suitable damp-proof luminaires possible according to data sheet and installation instruction.
- Not suitable for emergency lighting.
- Disconnect mains before installation.
References / Links
- For current information see www.ledvance.com/ledtube
Ambient temperature range
-20…+50 °C 1)
Anti-glare shield
No
Base (standard designation)
G13
Beam angle
190 °
Beam angle correspondence
SPHERE_360
Chromaticity coordinate x
0,3818
Chromaticity coordinate y
0,3797
Claim of equivalent power
No
Color rendering index Ra
80
Color temperature
4000 K
Color-tuneable light source
No
Connected light source (CLS)
No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Correlated colour temperature type
SINGLE_VALUE
Diameter
26.70 mm
Dimmable
No
Displacement factor
0.9
Energy consumption
10.00 kWh/1000h
Energy efficiency class
A 1)
Envelope
No
EPREL ID
1791819
Flickering metric (Pst LM)
1
GTIN
4099854223310
Height
26.70 mm
High luminance light source
No
Input voltage DC
186…260 V
Inrush current
3 A
LED light source replaces a fluorescent light source
No
Length
1212.00 mm
Length with base excl. base pins/connection
1200.00 mm
Lifespan L70/B50 at 25 °C
100000 h
Light color
840
Light color (designation)
Cool White
Light source cap-type (or other electric interface)
G13
Lighting technology used
LED
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Lumen main.fact.at end of nom.life time
0.96
Lumen maintenance at end of service lifetime
0.96
Luminous efficacy
210 lm/W
Luminous flux
2100 lm
Mains frequency
50/60 Hz 1)
Mains or non-mains
MLS
Max. lamp number on MCB B10 A
85
Max. lamp number on MCB B10 A - CCG with compensation
14
Max. lamp number on MCB B10 A - CCG without compensation
85
Max. lamp number on MCB B16 A
125
Max. lamp number on MCB B16 A - CCG with compensation
22
Max. lamp number on MCB B16 A - CCG without compensation
125
Maximum temperature at tc test point
75 °C
Mercury content
0.0 mg
Mercury-free
Yes
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Model number
AC57040,AC57040,AC57040
Nominal current
47 mA
Nominal voltage
220…240 V
Nominal wattage
10 W
Non-directional or directional
NDLS
Number of switching cycles
200000
Operating frequency
50/60 Hz
Operating mode
CCG, AC Mains, DC
Order reference
LEDTUBE T8 EM E
Overall length
1212.00 mm
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG0
Power factor λ
0.90
Product recyclability
Mostly recyclable product 1)
Product weight
234.00 g
Quantity of precious metals
Contains at least 10 mg
Quantity of rare earths
Contains at least 1 mg
R9 Colour rendering index
1
Rated lamp survival factor at 6,000 h
≥ 0.90
Rated LLMF at 6,000 h
0.80
Standard deviation of color matching
≤6 sdcm
Standby power
Starting time
< 0.5 s
Stroboscope effect metric (SVM)
0,4
Suitable for DC input
Yes
Survival factor
0.9
Temperature range at storage
-20…+80 °C
Total harmonic distortion
22 %
Type of current
AC
Type of protection
IP20
Warm-up time (60 %)
‹ 0.50 s
Width
26.70 mm
