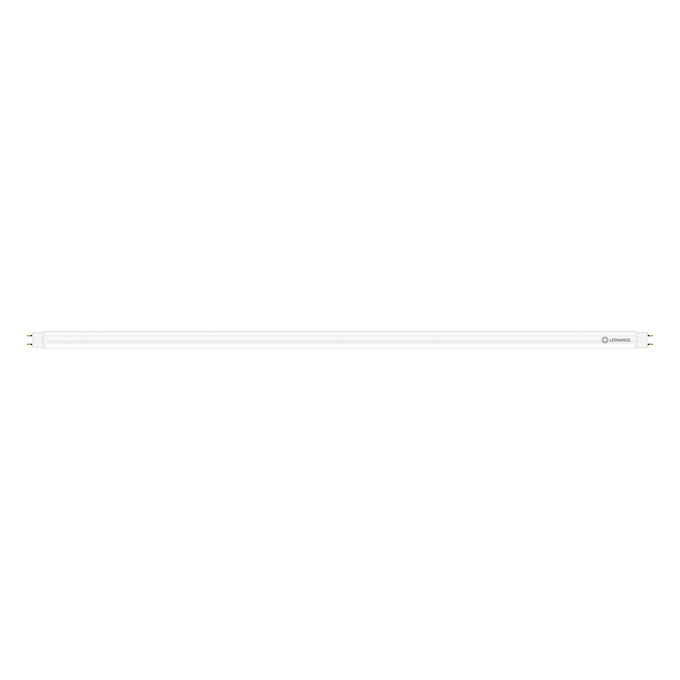

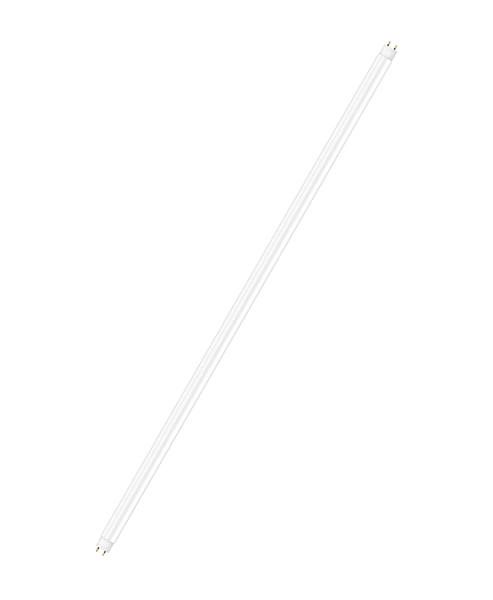

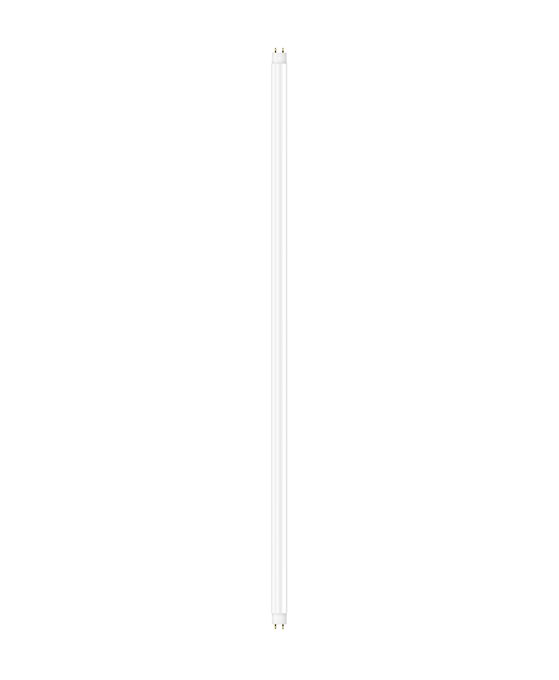

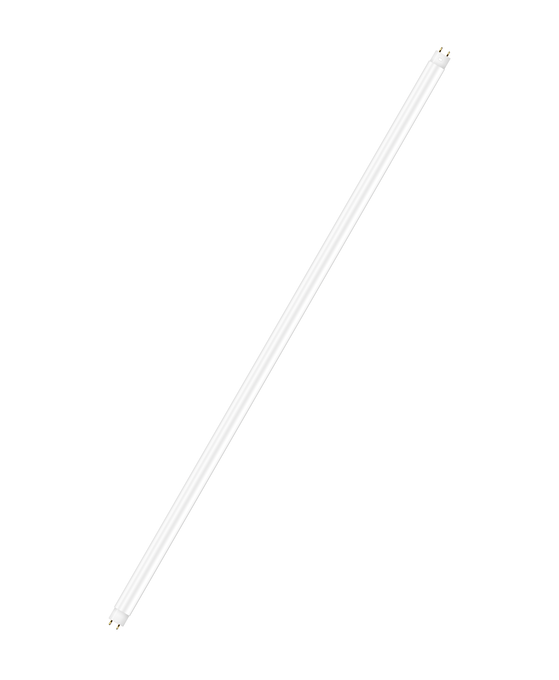

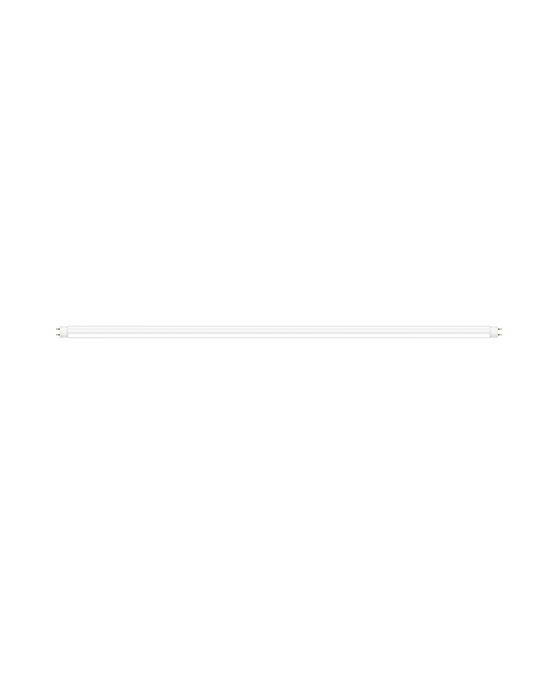

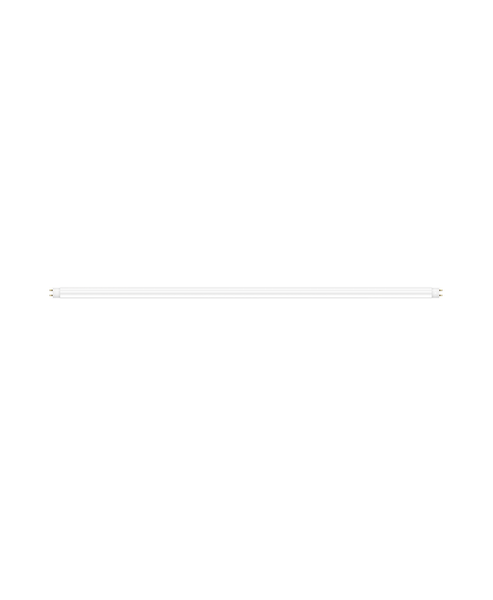

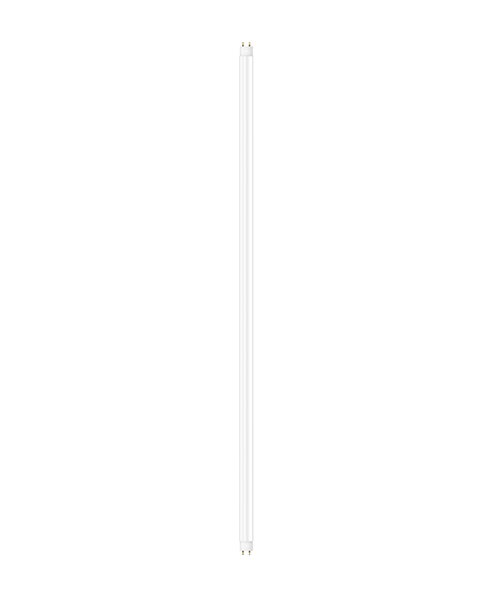

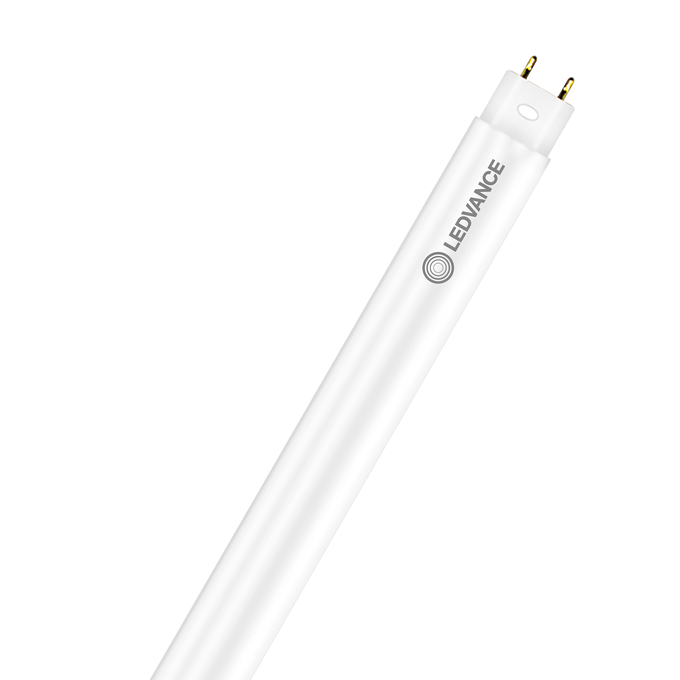

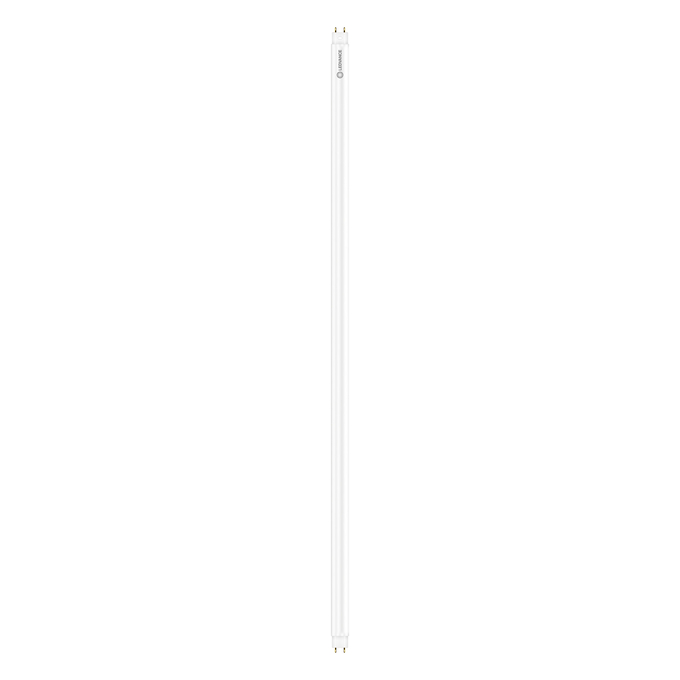

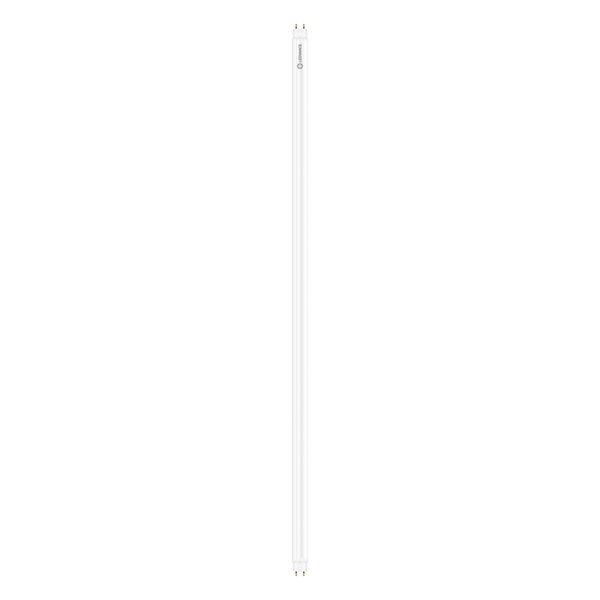

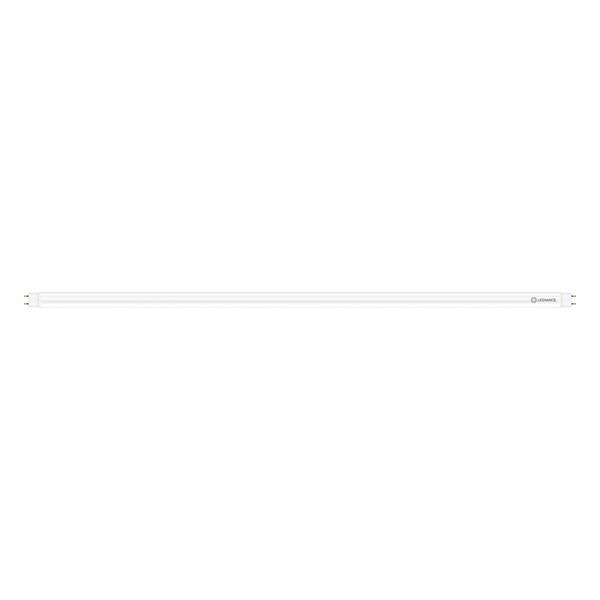

LED TUBE T8 EM CONNECTED 600 mm 7.5W 840
4058075823938
Product benefits
- No bending thanks to glass technology
- Shatter protection thanks to special PET coating
- Short payback period thanks to low energy consumption and maintenance costs
Areas of application
- General illumination within ambient temperatures from -20…+50 °C
- Parking lots, warehouses, production areas
- Industry
- Offices
Product features
- Network protocol: ZigBee 3.0 (2.4 GHz mesh network)
- LED TUBE T8 EM Connected can be only operated with LEDVANCE Connected Sensor
Legal advice
- When used to replace a T8 fluorescent lamp the total energy efficiency and light distribution depends on the design of the lighting system.
Safety advice
- Not suitable for operation with electronic control gear.
- Operation in outdoor applications in suitable damp-proof luminaires possible according to data sheet and installation instruction.
- The operating temperature range of LED tube is restricted. In case of doubt regarding suitability of the application please measure Tc temperature on the product prior to installation.
- All electrical connections must be made by a qualified person.
- Disconnect mains before installation.
- Not suitable for emergency lighting.
References / Links
- For current information see www.ledvance.com/ledtube
Ambient temperature range
-20…+50 °C 1)
Anti-glare shield
No
Base (standard designation)
G13
Base diameter
28 mm
Beam angle
190 °
Beam angle correspondence
SPHERE_360
Chromaticity coordinate x
0.382
Chromaticity coordinate y
0.,380
Claim of equivalent power
No
Color rendering index Ra
80
Color temperature
4000 K
Color-tuneable light source
No
Connected light source (CLS)
Yes
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Correlated colour temperature type
SINGLE_VALUE
Design / version
Frosted
Diameter
28.00 mm
Dimmable
Yes 1)
Displacement factor
0.9
Energy consumption
8.00 kWh/1000h
Energy efficiency class
D 1)
Envelope
No
EPREL ID
1399434
Flickering metric (Pst LM)
1
GTIN
4058075823938
Height
28.00 mm
High luminance light source
No
Input voltage DC
186…260 V 1)
Inrush current
3 A
LED light source replaces a fluorescent light source
No
Length
603.00 mm
Length with base excl. base pins/connection
600 mm
Lifespan L70/B50 at 25 °C
50000 h
Light color
840
Light color (designation)
Cool White
Light source cap-type (or other electric interface)
G13
Lighting technology used
LED
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1)
Lumen main.fact.at end of nom.life time
0.70
Lumen maintenance at end of service lifetime
0.70
Luminous efficacy
146 lm/W
Luminous flux
1100 lm
Mains frequency
50/60 Hz
Mains or non-mains
MLS
Max. lamp number on MCB B10 A
200
Max. lamp number on MCB B10 A - CCG with compensation
18
Max. lamp number on MCB B10 A - CCG without compensation
200
Max. lamp number on MCB B16 A
320
Max. lamp number on MCB B16 A - CCG with compensation
30
Max. lamp number on MCB B16 A - CCG without compensation
320
Maximum temperature at tc test point
65 °C
Mercury content
0.0 mg
Mercury-free
Yes
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Model number
AC46518
Nominal current
38 mA
Nominal voltage
220…240 V
Nominal wattage
7.5 W
Non-directional or directional
NDLS
Number of switching cycles
200000
Operating frequency
50/60 Hz
Operating mode
CCG, AC Mains
Order reference
LEDTUBE T8 EM C
Overall length
603.00 mm
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG0
Power factor λ
0.90
Product recyclability
Mostly recyclable product 1)
Product weight
117.00 g
Quantity of precious metals
Contains at least 10 mg
Quantity of rare earths
Contains at least 1 mg
R9 Colour rendering index
0.00
Rated lamp survival factor at 6,000 h
≥ 0.90
Rated LLMF at 6,000 h
0.90
Standard deviation of color matching
≤5 sdcm
Standby power
Starting time
< 0.5 s
Stroboscope effect metric (SVM)
0.4
Suitable for DC input
Yes
Survival factor
0.9
Temperature range at storage
-20…+80 °C
Total harmonic distortion
< 20 %
Type of current
AC
Type of protection
IP20
Warm-up time (60 %)
‹ 2.00 s
Width
28.00 mm
