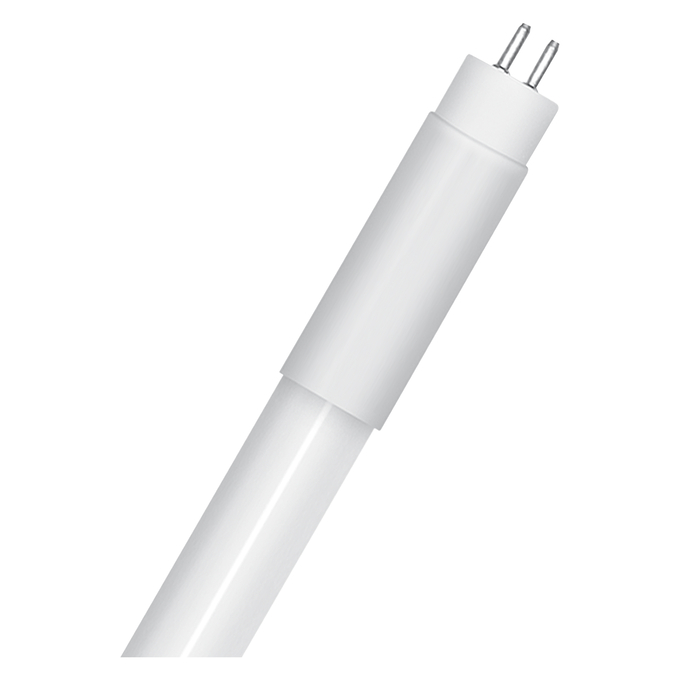

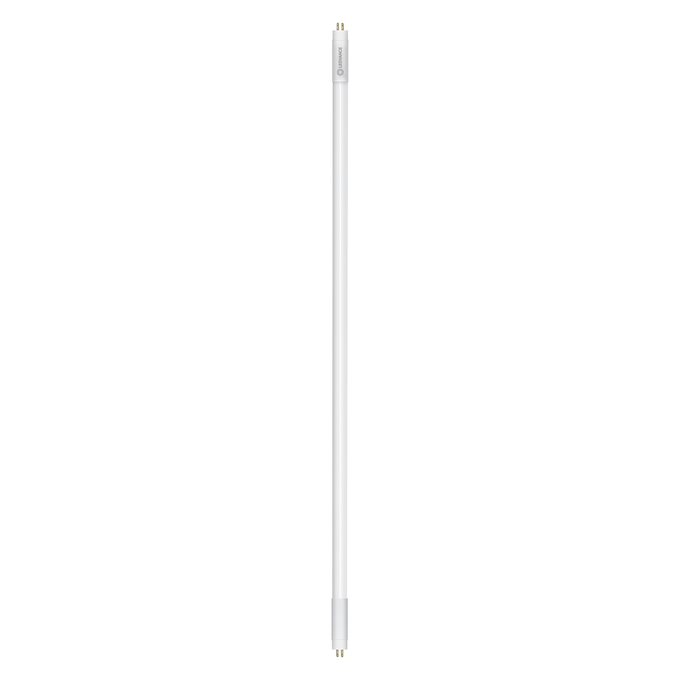

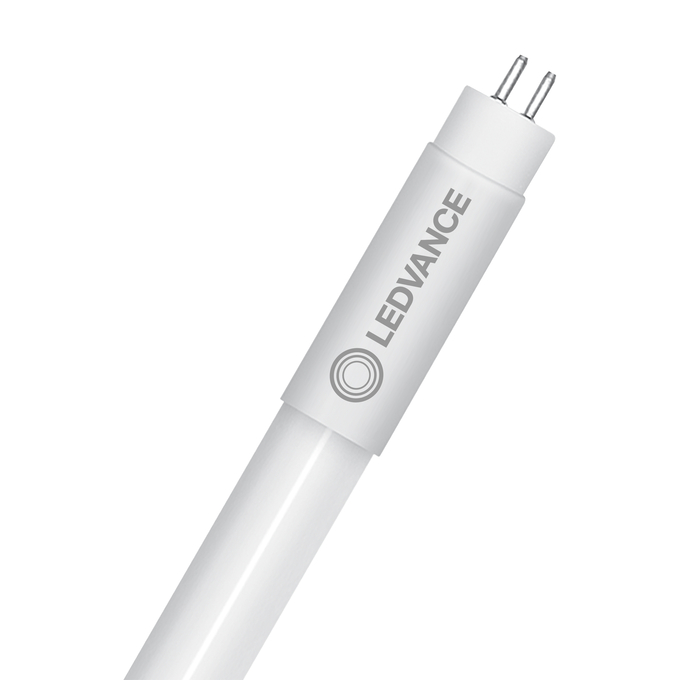

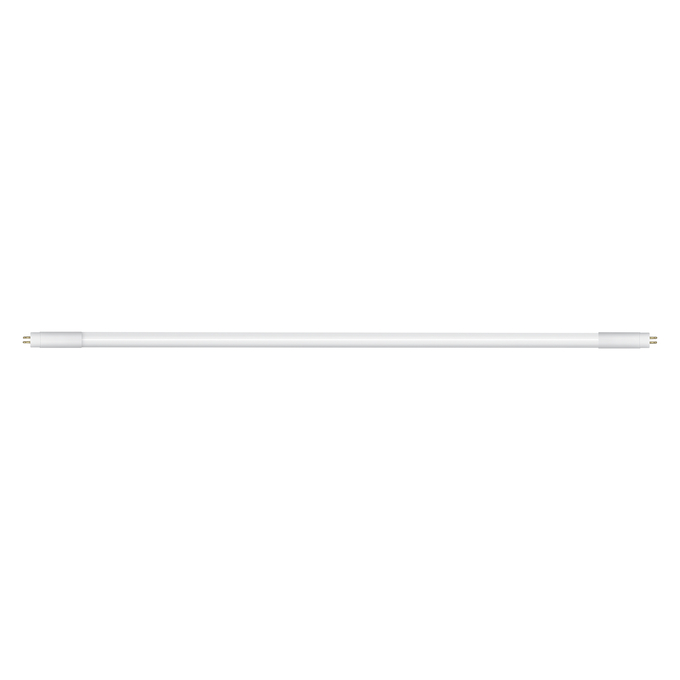

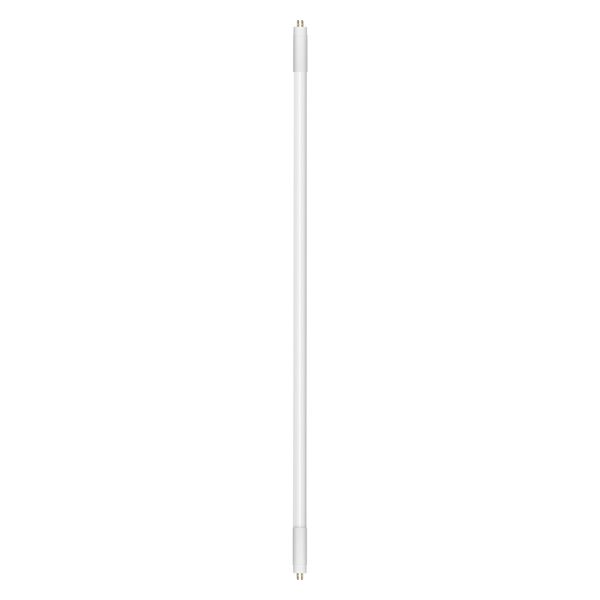

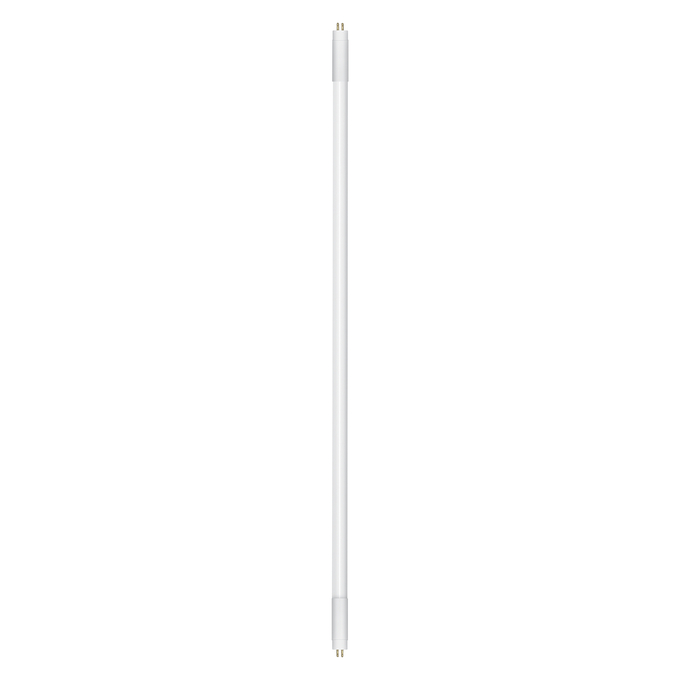

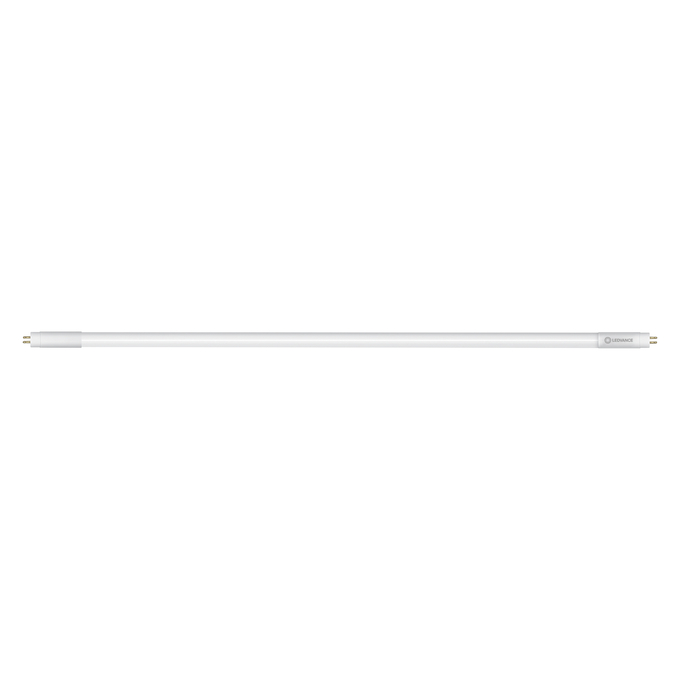

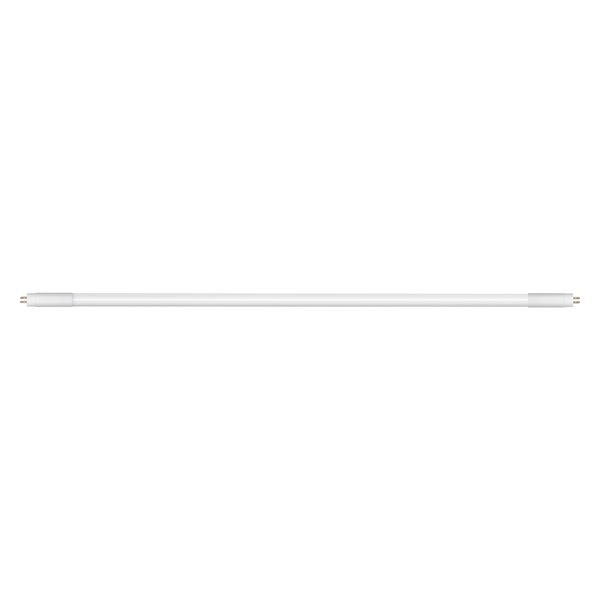

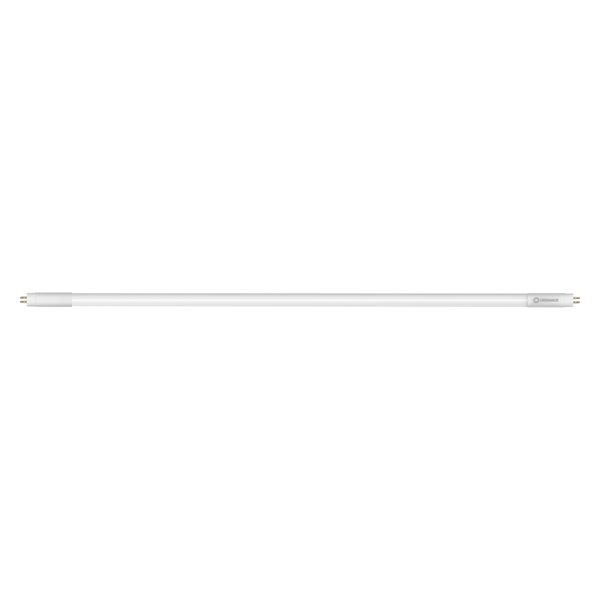

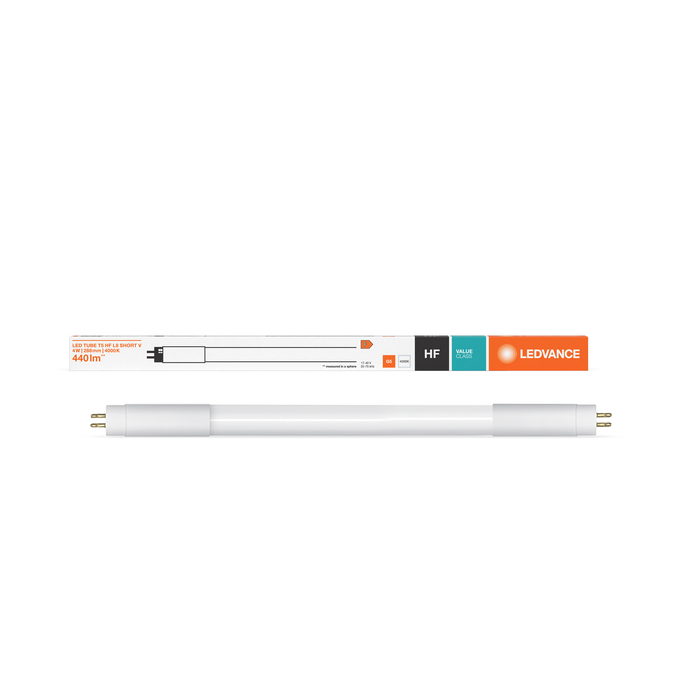

LED TUBE T5 HF L8 SHORT VALUE 288 mm 4W 840
4099854552427
Product benefits
- No bending thanks to glass technology
- Quick, simple and safe replacement without rewiring
- Also suitable for operation at low temperatures
- Please follow all safety advices
Areas of application
- General illumination within ambient temperatures from -20…+45 °C
- Public buildings
- Kitchens
- Under-cabinet lighting
Product features
- Retrofit replacement of existing T5 lamps on HF ballast installations
- Lamp tube made of glass with splinter protection
- High color consistency: ≤ 5 sdcm
- Lifetime up to 30,000 h
- Low flicker according to EU 2019-2020 (SVM ≤ 0.4 / PstLM ≤ 1)
- Type of protection: IP20
- Compatible with many common electronic control gears (see also )
Legal advice
- When used to replace a T5 fluorescent lamp the total energy efficiency and light distribution depends on the design of the lighting system.
Safety advice
- Operation in outdoor applications in suitable damp-proof luminaires possible according to data sheet and installation instruction.
- The operating temperature range of LED tube is restricted. In case of doubt regarding suitability of the application please measure Tc temperature on the product prior to installation.
- Not suitable for emergency lighting.
References / Links
- For current information see www.ledvance.com/ledtube
Ambient temperature range
-20…+45 °C 1)
Anti-glare shield
No
Base (standard designation)
G5
Beam angle
190 °
Beam angle correspondence
SPHERE_360
Chromaticity coordinate x
0.382
Chromaticity coordinate y
0.38
Claim of equivalent power
No
Color rendering index Ra
80
Color temperature
4000 K
Color-tuneable light source
No
Connected light source (CLS)
No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Correlated colour temperature type
SINGLE_VALUE
Design / version
Frosted
Diameter
18.50 mm
Dimmable
No
Displacement factor
0,89
Energy consumption
4.00 kWh/1000h
Energy efficiency class
F 1)
Envelope
No
EPREL ID
2199976
Flickering metric (Pst LM)
1
GTIN
4099854552427
Height
18.50 mm
High luminance light source
No
Inrush current
21 A
LED light source replaces a fluorescent light source
No
Length
302.00 mm
Length with base excl. base pins/connection
288.00 mm
Lifespan L70/B50 at 25 °C
30000 h
Light color
840
Light color (designation)
Cool White
Light source cap-type (or other electric interface)
G5
Lighting technology used
LED
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1)
Lumen main.fact.at end of nom.life time
0.70
Lumen maintenance at end of service lifetime
0.70
Luminous efficacy
110 lm/W
Luminous flux
400 lm
Mains frequency
25…75 kHz
Mains or non-mains
NMLS
Maximum temperature at tc test point
60 °C
Mercury content
0.0 mg
Mercury-free
Yes
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Model number
AC70918
Networked standby power for CLS
0 W
Nominal current
223 mA
Nominal useful luminous flux 90°
440 lm
Nominal voltage
17…40 V
Nominal wattage
4 W
Non-directional or directional
NDLS
Number of switching cycles
200000
Operating frequency
25…75 kHz
Operating mode
ECG 1)
Order reference
LEDTUBE T5HF L8
Overall length
302.00 mm
Packaging recyclability
Mostly recyclable packaging 1)
Performance temp. acc. to IEC 62717
40 °C 2)
Photobiological safety group acc. to EN62778
RG0
Power factor λ
0.55
Product recyclability
Mostly recyclable product 1)
Product weight
42.00 g
R9 Colour rendering index
1
Rated lamp survival factor at 6,000 h
≥ 0.90
Rated LLMF at 6,000 h
0.90
Standard deviation of color matching
≤5 sdcm
Standby power
0 W
Starting time
< 0.5 s
Stroboscope effect metric (SVM)
0.4
Survival factor
0.9
Temperature range at storage
-20…+80 °C
Total harmonic distortion
120 %
Type of current
AC
Type of protection
IP20
Warm-up time (60 %)
‹ 0.50 s
Width
18.50 mm
