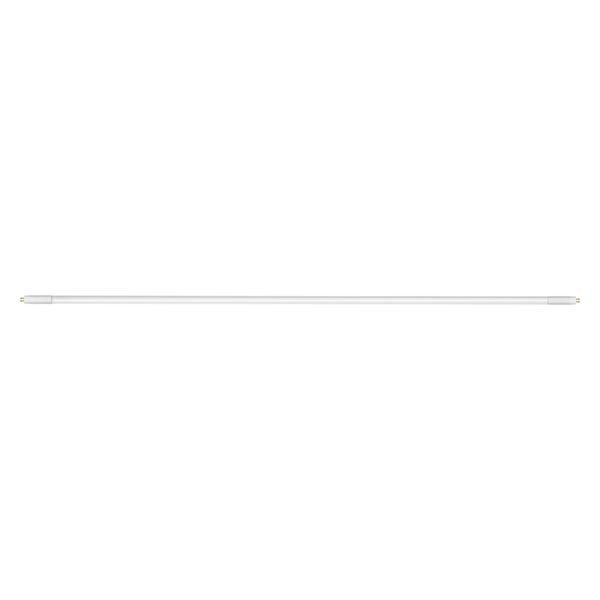

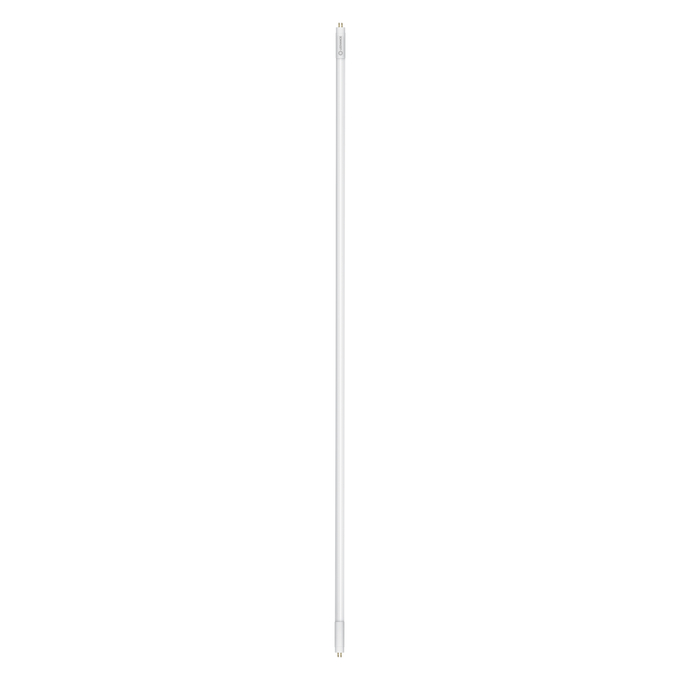

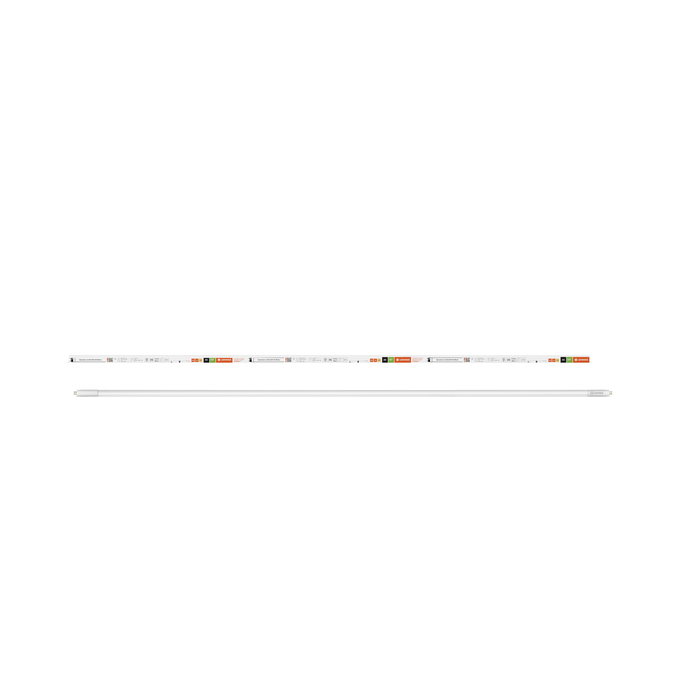

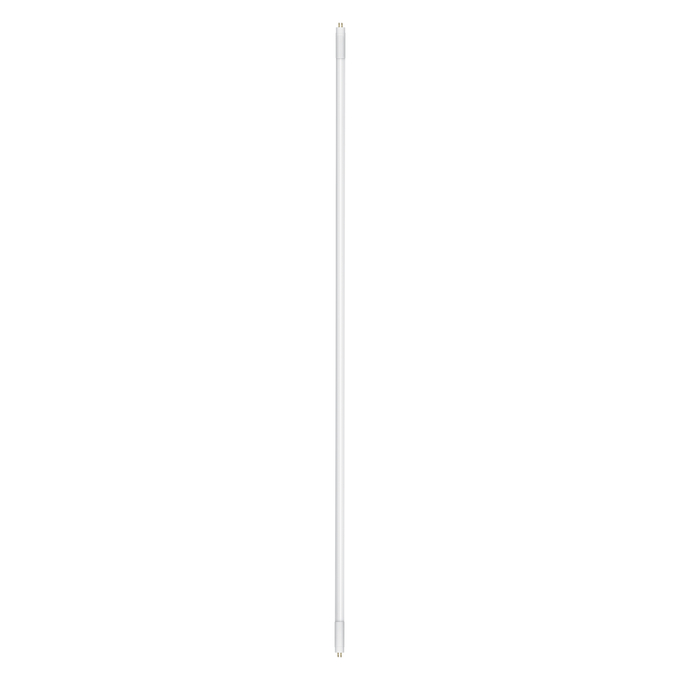

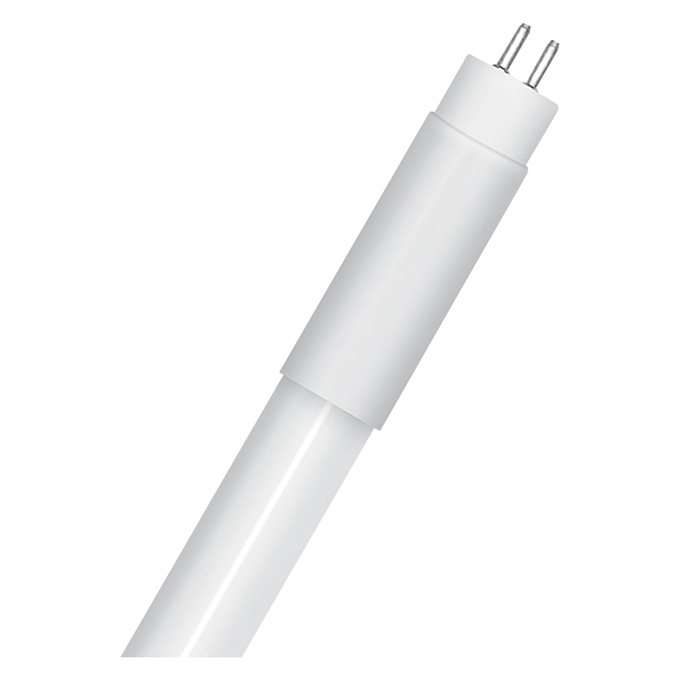

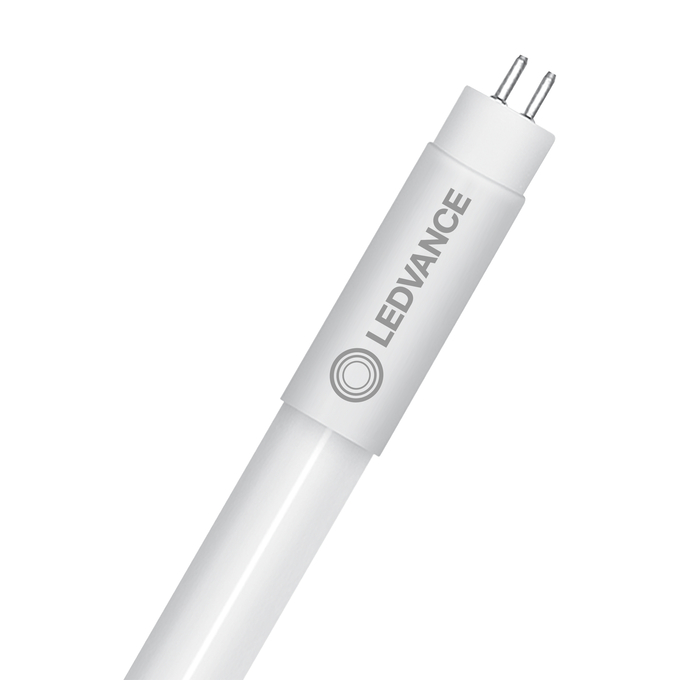

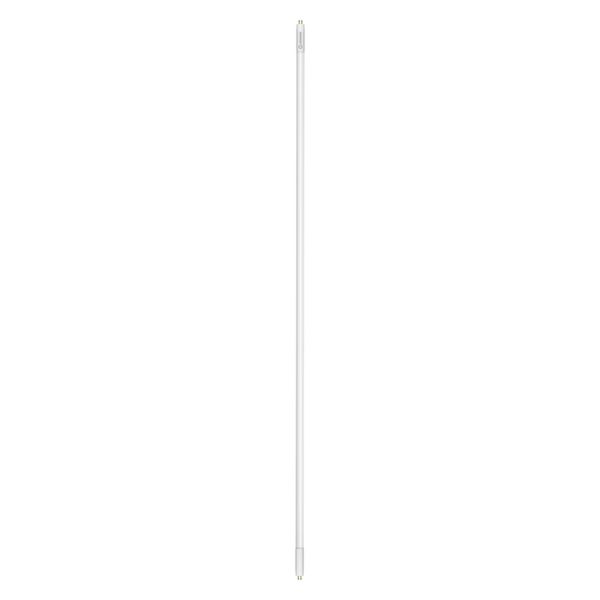

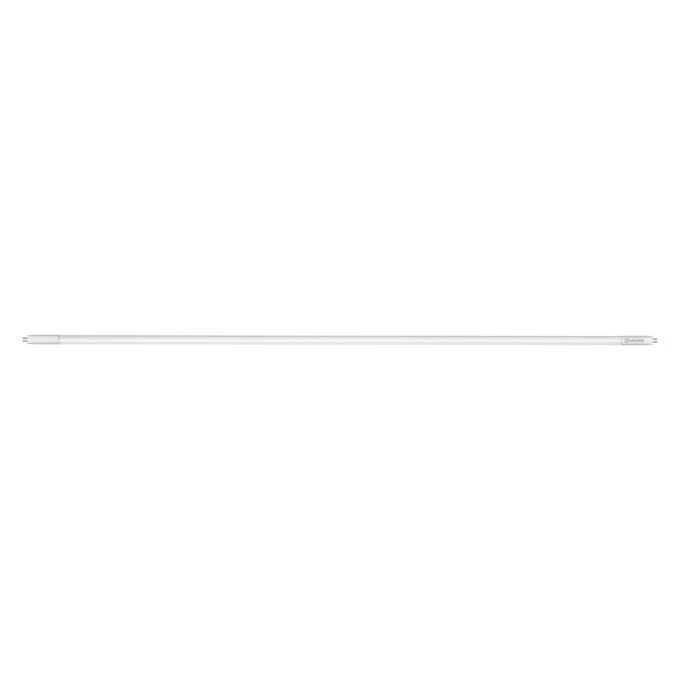

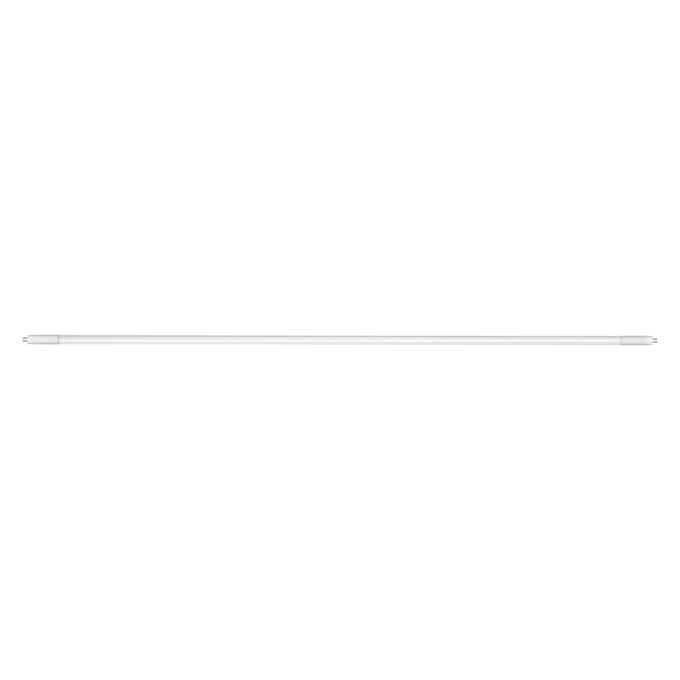

LED TUBE T5 AC HE28 PERFORMANCE 1149 mm 16W 830
4058075824294
Product benefits
- No bending thanks to glass technology
- Shatter protection thanks to special PET coating
- High luminous flux for sophisticated lighting tasks
Areas of application
- General illumination within ambient temperatures from -20…+45 °C
- Offices, public buildings
- Supermarkets and department stores
- Industry
Product features
- LED replacement for T5 fluorescent lamps with G5 base on AC mains
- Lamp tube made of glass with splinter protection e.g. for food industry applications
- High color consistency: ≤ 5 sdcm
- Lifetime up to 50,000 h
- Low flicker according to EU 2019-2020 (SVM ≤ 0.4 / PstLM ≤ 1)
- Type of protection: IP20
Legal advice
- When used to replace a T5 fluorescent lamp the total energy efficiency and light distribution depends on the design of the lighting system.
Safety advice
- Not suitable for operation with electronic control gear.
- Operation in outdoor applications in suitable damp-proof luminaires possible according to data sheet and installation instruction.
- The operating temperature range of LED tube is restricted. In case of doubt regarding suitability of the application please measure Tc temperature on the product prior to installation.
- After rewiring of a luminaire the installer will be responsible for all technical and safety consequences.
- All electrical connections must be made by a qualified person.
- Disconnect mains before installation.
- Lamp not suitable for emergency operation.
References / Links
- For current information see www.ledvance.com/ledtube
Ambient temperature range
-20…+45 °C 1)
Anti-glare shield
No
Base (standard designation)
G5
Beam angle
190 °
Beam angle correspondence
SPHERE_360
Chromaticity coordinate x
0.434
Chromaticity coordinate y
0.403
Claim of equivalent power
No
Color rendering index Ra
≥80
Color temperature
3000 K
Color-tuneable light source
No
Connected light source (CLS)
No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Additional info can be provided per individual request
Correlated colour temperature type
SINGLE_VALUE
Design / version
Frosted
Diameter
19.00 mm
Dimmable
No
Displacement factor
0.90
Energy consumption
16.00 kWh/1000h
Energy efficiency class
E 1)
Envelope
No
EPREL ID
1408603,2209902
Flickering metric (Pst LM)
1
GTIN
4058075824294
Height
19.00 mm
High luminance light source
No
Input voltage DC
186…260 V 1)
Inrush current
11 A
LED light source replaces a fluorescent light source
No
Length
1163.00 mm
Length with base excl. base pins/connection
1149.00 mm
Lifespan L70/B50 at 25 °C
50000 h
Lifespan L80/B50 at 25 °C
50000 h
Light color
830
Light color (designation)
Warm White
Light source cap-type (or other electric interface)
G5
Lighting technology used
LED
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Lumen main.fact.at end of nom.life time
0.70
Lumen maintenance at end of service lifetime
0.70
Luminous efficacy
134 lm/W
Luminous flux
2150 lm
Mains frequency
50/60 Hz
Mains or non-mains
MLS
Max. lamp number on MCB B10 A
40
Max. lamp number on MCB B16 A
48
Maximum temperature at tc test point
75 °C
Mercury content
0.0 mg
Mercury-free
Yes
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Model number
AC46715,AC71277
Networked standby power for CLS
0 W
Nominal current
75 mA
Nominal useful luminous flux 90°
2150 lm
Nominal voltage
220…240 V
Nominal wattage
16 W
Non-directional or directional
NDLS
Number of switching cycles
200000
Operating frequency
50/60 Hz
Operating mode
AC Mains
Order reference
LEDTUBE T5 AC H
Overall length
1163.00 mm
Packaging recyclability
Mostly recyclable packaging 1)
Performance temp. acc. to IEC 62717
60 °C 2)
Photobiological safety group acc. to EN62778
RG0
Power factor λ
> 0.90
Product recyclability
Mostly recyclable product 1)
Product weight
155.00 g
Quantity of precious metals
Contains at least 10 mg
Quantity of rare earths
Contains at least 1 mg
R9 Colour rendering index
1
Rated lamp survival factor at 6,000 h
≥ 0.90
Rated LLMF at 6,000 h
0.80
Standard deviation of color matching
≤5 sdcm
Standby power
0 W
Starting time
< 0.5 s
Stroboscope effect metric (SVM)
0.4
Suitable for DC input
Yes
Survival factor
0.9
Temperature range at storage
-20…+80 °C
Total harmonic distortion
20 %
Type of current
AC
Type of protection
IP20
Warm-up time (60 %)
‹ 2.00 s
Width
19.00 mm
