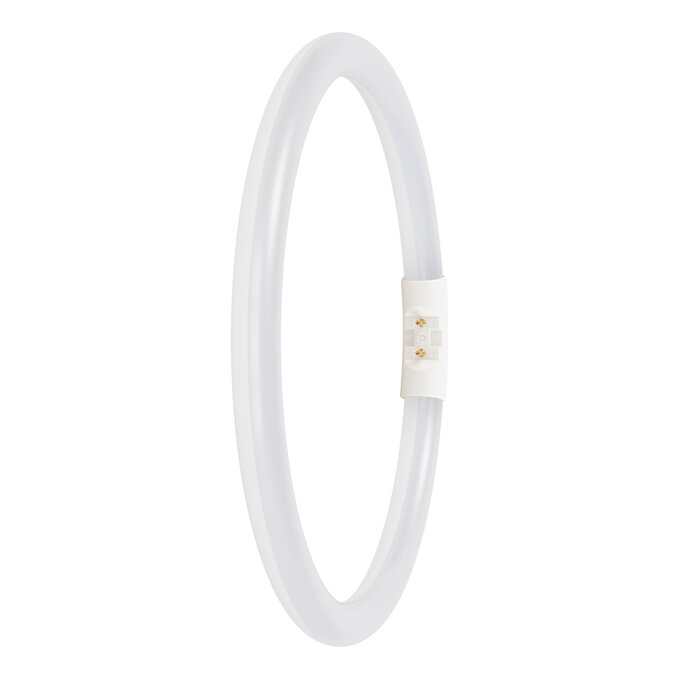

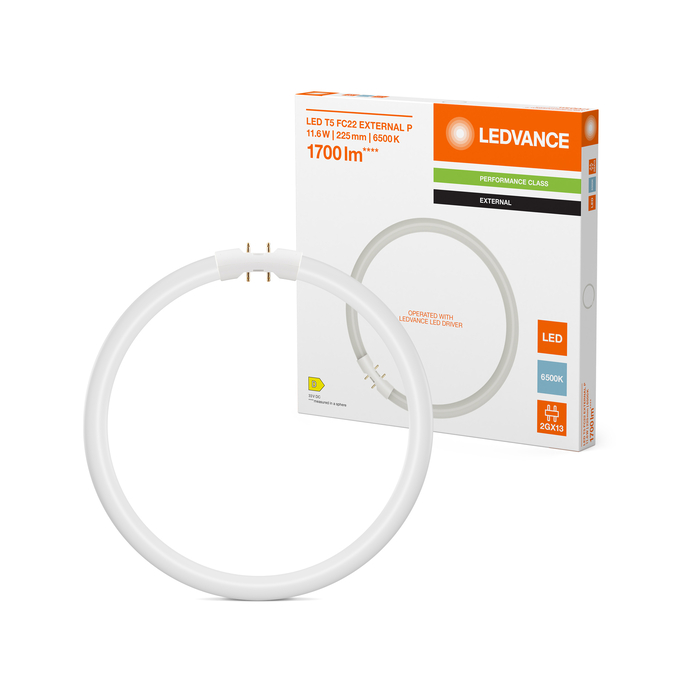

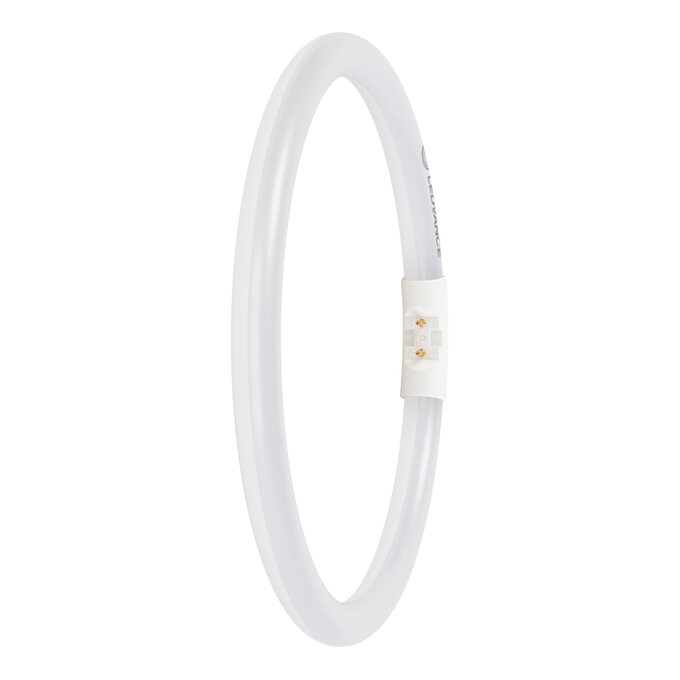

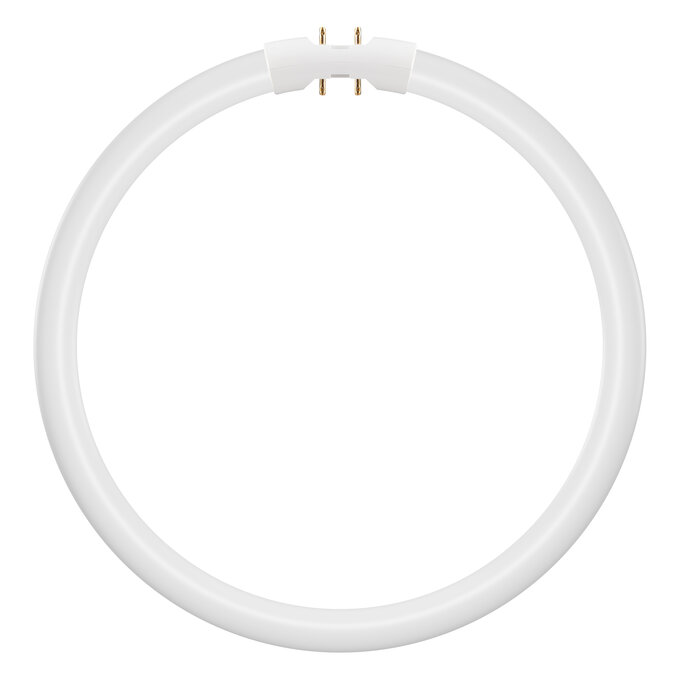

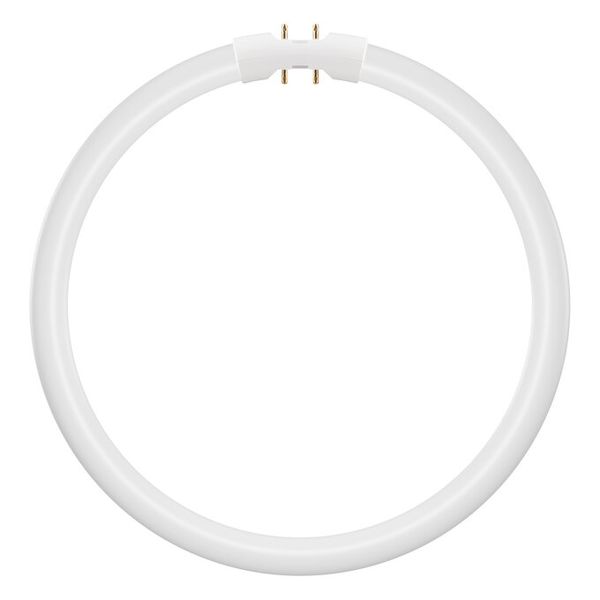

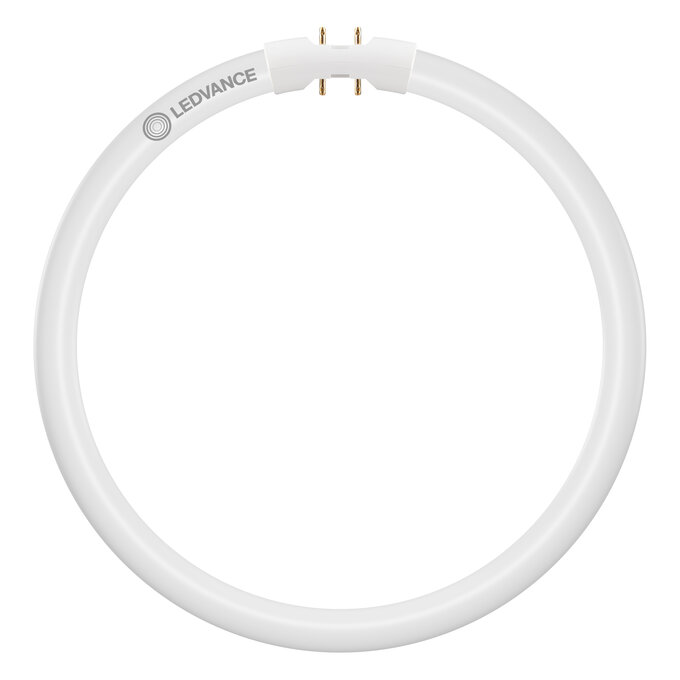

LED T5 FC 22 EXTERNAL 11.6W 865 2GX13
4099854300844
Product benefits
- Compatible with LED driver DR DALI-P -30/220-240/700 and DR DALI-P -42/220-240/1A0 (4058075845367, 4058075845381)
- Simple upgrade to dimmable LED system
- Hassle free application, no ballast compatibility check necessary
- 5 years guarantee
Areas of application
- Shops, hotels and restaurants
- Public buildings
Product features
- Designed to power with LED DRIVER DALI PERFORMANCE
- Single-ended round LED lamp
- Suitable illumination within ambient temperatures from -20…+45 °C
- Lifetime (L70/B50) up to 50,000 h (at 25 °C)
- LED replacement for traditional T5 fluorescent circular lamps
Legal advice
- When used to replace a T5 fluorescent lamp the total energy efficiency and light distribution depends on the design of the lighting system.
Safety advice
- Suitable for indoor applications
- The operating temperature range of LED tube is restricted. In case of doubt regarding suitability of the application please measure Tc temperature on the product prior to installation.
- Not suitable for operation with 230 V line voltage or electronic control gear.
- Disconnect mains before installation.
References / Links
- For current information see www.ledvance.com/ledtube
Ambient temperature range
-20…+45 °C 1)
Anti-glare shield
No
Base (standard designation)
2GX13
Beam angle
120 °
Beam angle correspondence
SPHERE_360
Chromaticity coordinate x
0,312
Chromaticity coordinate y
0,328
Claim of equivalent power
No
Color rendering index Ra
80
Color temperature
6500 K
Color-tuneable light source
No
Connected light source (CLS)
No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Correlated colour temperature type
SINGLE_VALUE
Diameter
16.50 mm
Dimmable
Yes
Displacement factor
0,90
Energy consumption
12.00 kWh/1000h
Energy efficiency class
D 1)
Envelope
No
EPREL ID
1956106
Flickering metric (Pst LM)
GTIN
4099854300844
Height
16.50 mm
High luminance light source
No
Inrush current
3.3 A 1)
LED light source replaces a fluorescent light source
No
Length
225.00 mm
Length with base excl. base pins/connection
225,00 mm
Lifespan L70/B50 at 25 °C
50000 h
Light color
865
Light color (designation)
Cool Daylight
Light source cap-type (or other electric interface)
2GX13
Lighting technology used
LED
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1)
Lumen main.fact.at end of nom.life time
0.70
Lumen maintenance at end of service lifetime
0.70
Luminous efficacy
146 lm/W
Luminous flux
1700 lm
Mains frequency
0 Hz
Mains or non-mains
NMLS
Maximum temperature at tc test point
63 °C
Mercury content
0.0 mg
Mercury-free
Yes
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Model number
AC63041
Nominal current
350 mA
Nominal voltage
33 V
Nominal wattage
11.6 W
Non-directional or directional
NDLS
Number of switching cycles
200000
Operating frequency
0 Hz
Operating mode
EXT
Order reference
LEDT5 FC22 EXT
Overall length
225.00 mm
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG0
Power factor λ
0.90
Product recyclability
Mostly recyclable product 1)
Product weight
93.00 g
Quantity of precious metals
Contains at least 10 mg
Quantity of rare earths
Contains at least 1 mg
R9 Colour rendering index
1
Rated lamp survival factor at 6,000 h
0.90
Rated LLMF at 6,000 h
0.90
Standard deviation of color matching
≤5 sdcm
Standby power
0 W
Starting time
< 1.0 s
Stroboscope effect metric (SVM)
Survival factor
0,90
Temperature range at storage
-20…+80 °C
Total harmonic distortion
< 20 %
Type of current
DC
Type of protection
IP20
Warm-up time (60 %)
‹ 2.00 s
Width
16.50 mm
