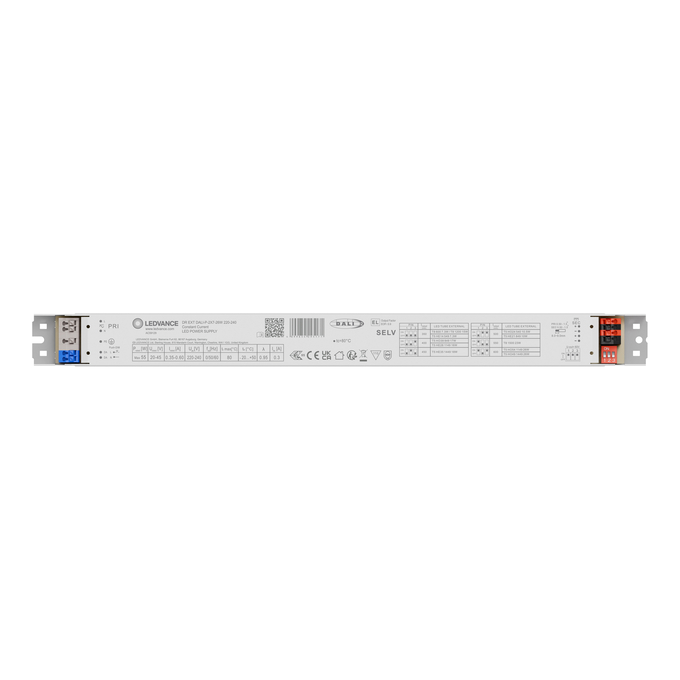

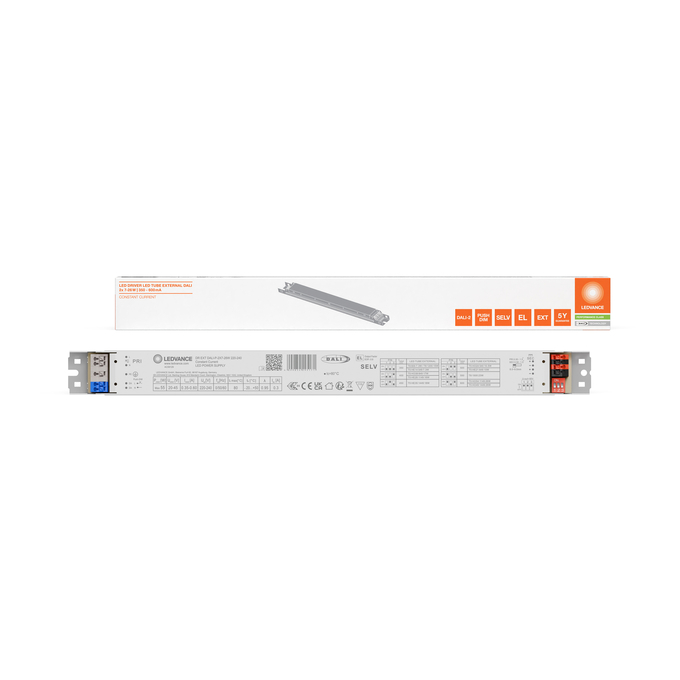

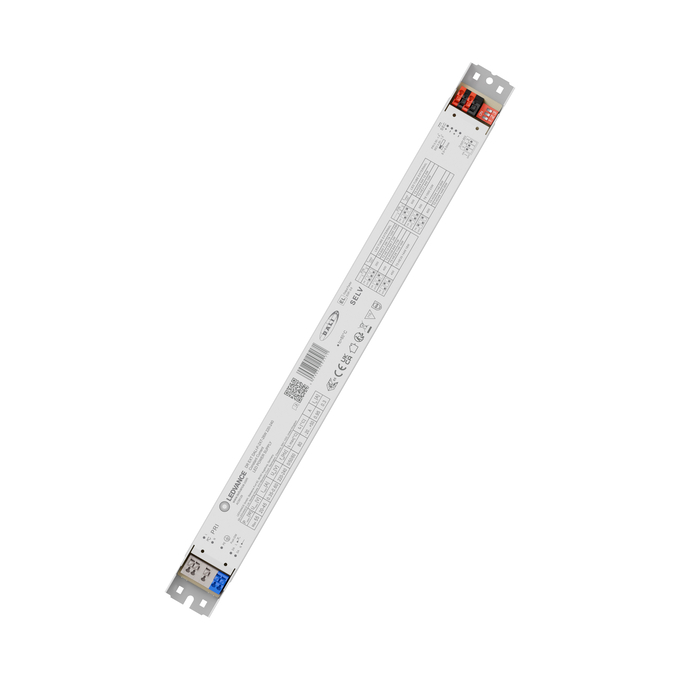

DR EXTERNAL DALI -2X7-26W 220-240
4099854295171
Product benefits
- Multiwatt LED driver for LED TUBE EXTERNAL T5 and T8
- DALI 2.0 interface for dimming and sensor operations
- Push-DIM application for easy control
- 5 years guarantee
Areas of application
- Suitable for luminaires of protection class I
- General illumination within ambient temperatures from -20…+50 °C
- Linear lighting for office, education, storage areas and retail
- Industrial lighting (e.g. manufacturing plants, logistic centers, warehouses)
- Shops, supermarkets
Product features
- Flexibility due to adjustable output currents via dip switch
- Quality dimming of 1…100 %
- Safety extra-low voltage (SELV) driver
- Lifetime 100,000 h (for Tc = 65 °C)
- ENEC-certified safety
- High resistance to switching loads
Safety advice
- Operation in outdoor applications in suitable damp-proof luminaires possible according to data sheet and installation instruction.
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Disconnect mains before installation.
- Do not open enclosure-housing.
References / Links
- For current information see www.ledvance.com/ledtube
Ambient temperature range
-20…+50 °C 1)
Body material
Metal
Cable cross-section, input side
0.5…1.5 mm²
Cable cross-section, output side
0.5…1.5 mm²
Casing material
Met
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Device power loss
10 W 9)
Dimmable
Yes
Dimming interface
DALI
Dimming range
1…100 %
ECG efficiency
86 % 8)
ECG lifetime
100000 h 1)
Encapsulated
Yes
Galvanic isolation
SELV
GTIN
4099854295171
Height
21.00 mm
Input voltage AC
198…264 V 3)
Input voltage DC
180…270 V
Input voltage range
220…240 V
Inrush current
20 A 5)
Length
360.00 mm
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1)
Mains frequency
0/50/60 Hz
Max. cable length to lamp/LED module
2,0 m
Max. ECG no. on circuit breaker 10 A (B)
16
Max. ECG no. on circuit breaker 16 A (B)
26
Max. ECG no. on circuit breaker 25 A (B)
42
Max.housing temperature in case of fault
110 °C
Maximum temperature at tc test point
80 °C
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting hole spacing, length
350 mm
Nominal current
0.3 A
Nominal output current
0.35…0.60 A 4)
Nominal output power
55 W 1)
Nominal output voltage
20…45 V 2)
Nominal voltage
220…240 V
Nominal wattage
65.00 W
Operating frequency
0/50/60 Hz
Output current tolerance
10 %
Output ripple current (100 Hz)
≤ 5 %
Overheating protection
Yes
Overload protection
Yes
Packaging recyclability
Mostly recyclable packaging 1)
Permitted rel. humidity during operation
10…85 % 2)
Power factor λ
0.95 7)
Power loss in stand-by mode
< 0.5 W
Prewired
No
Product color
White
Product recyclability
Mostly recyclable product 1)
Product weight
295.00 g
Protection class
I
Quantity of precious metals
0 mg
Quantity of rare earths
0 mg
Short-circuit protection
Yes
Standards
Acc. to EN 61347
Suitable for emergency lighting
Yes
Suitable for fixtures with prot. class
I,II
Surge capability (L-N)
1 kV
Surge capability (L/N-Ground)
2 kV
Temperature range at storage
-20…+80 °C
Temperature range in operation
-20…+50 °C
Total harmonic distortion
< 20 % 6)
Type of connection, output side
Push terminal
Type of current
DC
Type of protection
IP20
U-OUT (working voltage)
60 V
Width
31.00 mm
Wire preparation length, input side
8…9 mm
Wire preparation length, output side
8…9 mm
