Product benefits

Multiple sensors can be networked
Control of compatible products without Internet connection or smart devices
Easy to install and use

Areas of application

For indoor use only (IP54)
Passive infra red sensor for ambient temperatures between -20 and +50 °C
Parking lots, warehouses, production areas, stairways
Industry
Offices

Product features

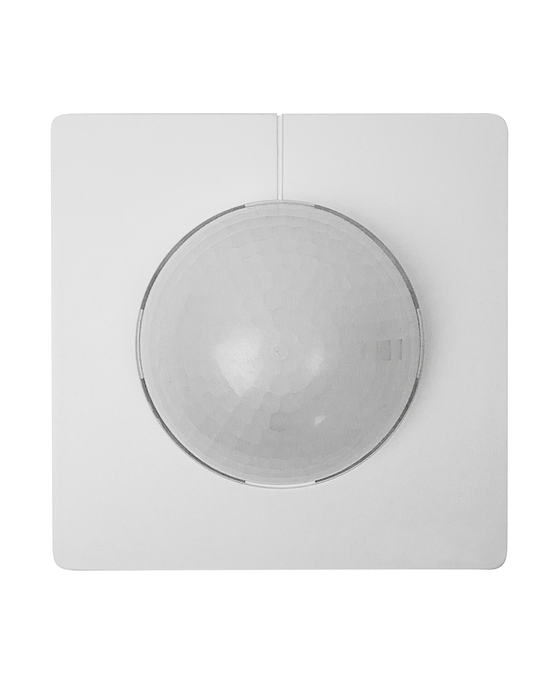

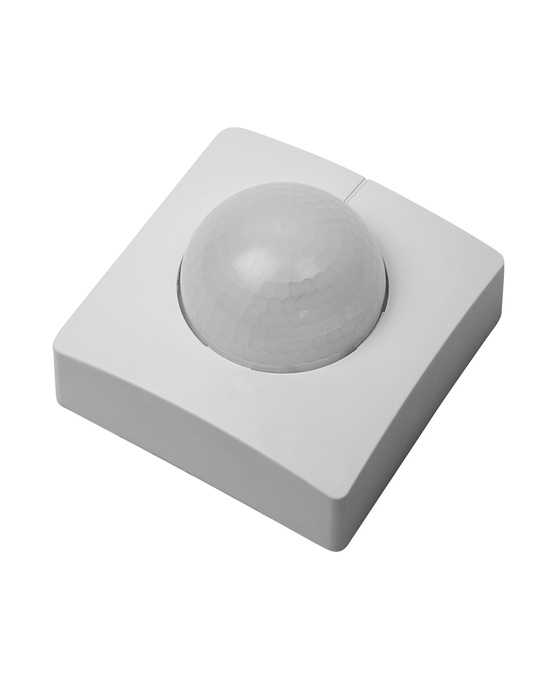

Wireless smart PIR motion sensor
Mounting height up to 4 m
Two step dimming: 20 % and 100 % light output
Network protocol: ZigBee 3.0 (2.4 GHz mesh network)
Connected tube can be only operated with Connected sensor

Safety advice

All electrical connections must be made by a qualified person.
Caution, risk of electric shock.
Disconnect mains before installation.

References / Links

For Guarantee see

Ambient temperature range

-20…+50 °C 1)

Beam angle

360 °

Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

Yes

Diameter

126,0 mm

GTIN

4058075232969

Height

65.0 mm

Length

95.0 mm

List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No

List of substances of very high concern in concentrations greater than 0.1% in mass percentage

Lead (7439-92-1) Tetrabromobisphenol A (79-94-7)

Mains frequency

50 Hz

Mercury-free

Yes

Minimum percentage of recycled content in the product

0 % 1)

Minimum rate of recycled material in packaging

80 % 1)

Nominal voltage

220…240 V

Nominal wattage

1 W

Operating frequency

50 Hz

Operating mode

AC Mains

Order reference

CONNECTED SENSO

Packaging recyclability

Mostly recyclable packaging 1)

Power factor λ

> 0.90

Product recyclability

Mostly recyclable product 1)

Product weight

375.00 g

Quantity of precious metals

0 mg

Quantity of rare earths

0 mg

Standards

CE

Temperature range at storage

-20…+50 °C

Type of current

AC

Type of protection

IP54

Width
