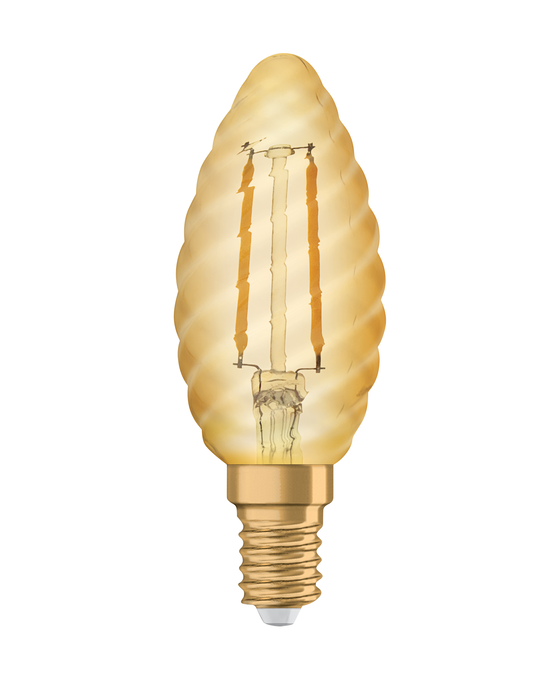

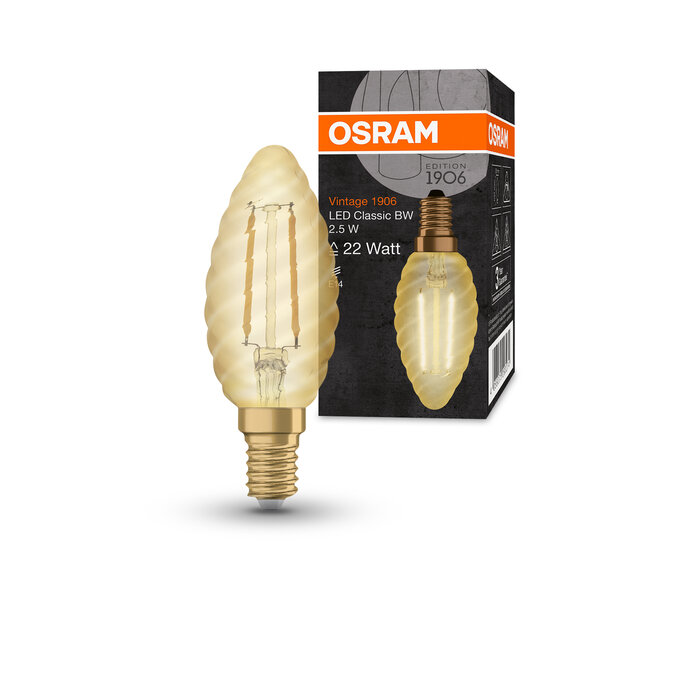

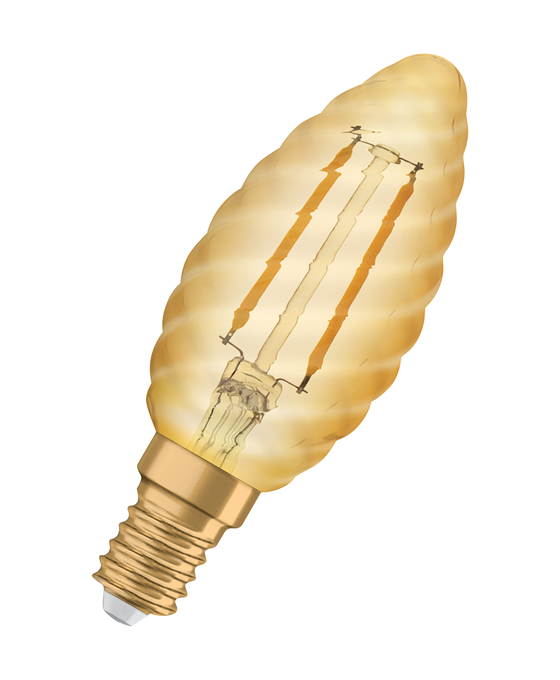

Vintage 1906 Classic BW 22 Filament 2.5W 824 Gold E14
4058075293274
Product benefits
- Lower energy consumption than incandescent or halogen lamps
- Instant 100 % light, no warm-up time
- Can be easily fitted instead of ordinary light bulbs
- Lamps with innovative LED "filament" technology
Areas of application
- Perfect for decorative installations
- Domestic applications
- General illumination
- Outdoor use in suitable outdoor luminaires only
Product features
- LED lamps for line voltage
- Lamp made of glass
- Lifetime up to 15,000 h
- Beam angle: up to 360°
- Good quality of light; color rendering index Ra: ≥ 80; constant chromaticity
Safety advice
- Do not touch the lamp if broken.
- Must not be used if outer bulb is defective.
Ambient temperature range
-20…+40 °C
Anti-glare shield
No
Base (standard designation)
E14
Beam angle
300 °
Beam angle correspondence
SPHERE_360
Chromaticity coordinate x
0.494
Chromaticity coordinate y
0.424
Claim of equivalent power
Yes
Claimed equiv. conventional lamp power
22 W
Color rendering index Ra
80
Color temperature
2400 K
Color-tuneable light source
No
Connected light source (CLS)
No
Construction wattage
2.50 W
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Correlated colour temperature type
SINGLE_VALUE
Design / version
Clear
Diameter
35.00 mm
Dimmable
No
Displacement factor
0,40
Energy consumption
3.00 kWh/1000h
Energy efficiency class
F 1)
Envelope
No
EPREL ID
1402996,523195
Flickering metric (Pst LM)
1.0
GTIN
4058075293274
Height
35.00 mm
High luminance light source
No
Inrush current
1.8 A
LED light source replaces a fluorescent light source
No
Length
100.00 mm
Lifespan L70/B50 at 25 °C
15000 h
Light color
824
Light color (designation)
Warm Comfort Light
Light source cap-type (or other electric interface)
E14
Lighting technology used
LED
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Lumen main.fact.at end of nom.life time
0.70
Lumen maintenance at end of service lifetime
0.70
Luminous efficacy
88 lm/W
Luminous flux
220 lm
Mains frequency
50…60 Hz
Mains or non-mains
MLS
Max. lamp number on MCB B10 A
250
Max. lamp number on MCB B16 A
400
Maximum diameter
35 mm
Maximum temperature at tc test point
60 °C
Mercury content
0.0 mg
Mercury-free
Yes
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Model number
AC32424,AC17526
Networked standby power for CLS
0 W
Nominal current
19 mA
Nominal useful luminous flux 90°
220 lm
Nominal voltage
220…240 V
Nominal wattage
2.5 W
Non-directional or directional
NDLS
Number of switching cycles
100000
Operating frequency
50…60 Hz
Order reference
1906LEDCBW222,5
Overall length
100.00 mm
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG0
Power factor λ
> 0.50
Product recyclability
Mostly recyclable product 1)
Product remark
All technical parameters apply to the entire la
Product weight
15.00 g
Quantity of precious metals
Contains at least 10 mg
Quantity of rare earths
Contains at least 1 mg
R9 Colour rendering index
1
Rated lamp survival factor at 6,000 h
≥ 0.90
Rated LLMF at 6,000 h
0.80
Standard deviation of color matching
≤6 sdcm
Standby power
0 W
Starting time
< 0.5 s
Stroboscope effect metric (SVM)
0.9
Survival factor
0,90
Type of current
AC
Type of protection
IP20
Warm-up time (60 %)
‹ 0.50 s
Width
35.00 mm
