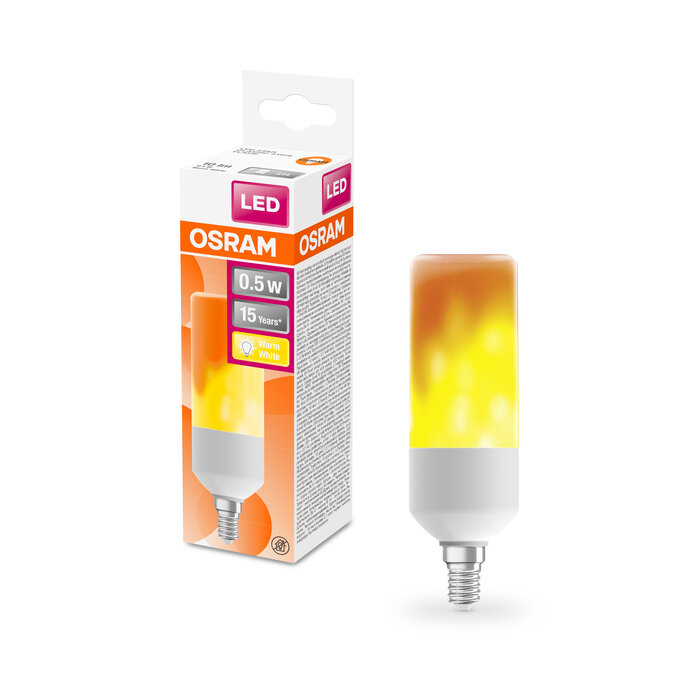

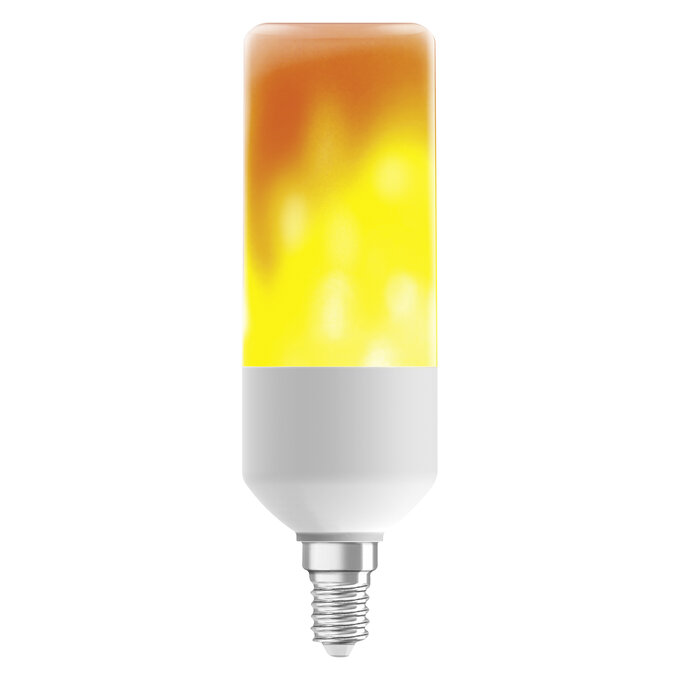

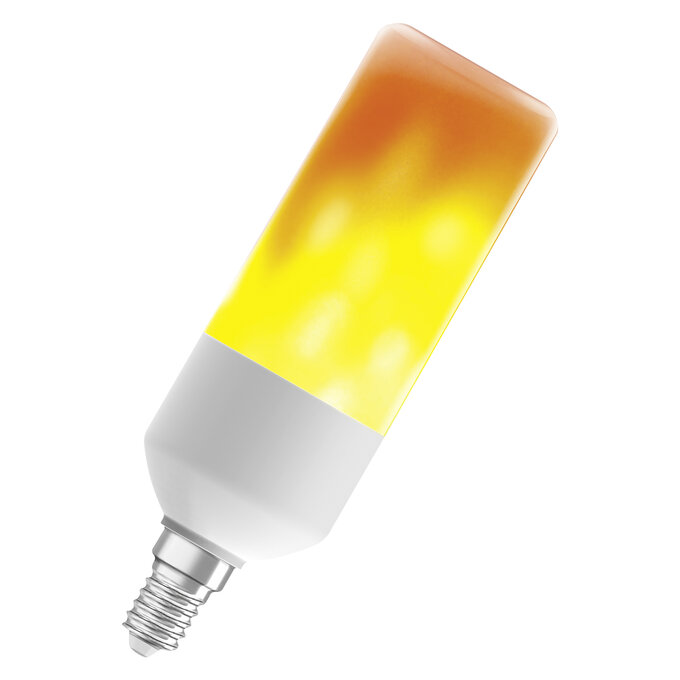

LED Star Classic Stick Flame 0.5W 515 Frosted E14
4058075389885
Product benefits
- Lower energy consumption than incandescent or halogen lamps
- Attractive lamp appearance
Areas of application
- All domestic rooms, especially where the lamps are visible
- Wherever compact and efficient lamps are needed
- Where the lamps need to last a long time or have to withstand frequent on/off switching
- Outdoor use in suitable outdoor luminaires only
Product features
- LED alternative to conventional lamps
- Good quality of light; color rendering index Ra: ≥ 80; constant chromaticity
Safety advice
- Do not touch the lamp if broken.
- Must not be used if outer bulb is defective.
Ambient temperature range
-20…+40 °C
Anti-glare shield
No
Base (standard designation)
E14
Beam angle
330 °
Chromaticity coordinate x
0.586
Chromaticity coordinate y
0.403
Claim of equivalent power
No
Color rendering index Ra
55
Color temperature
1500 K
Color-tuneable light source
No
Connected light source (CLS)
No
Construction wattage
0.50 W
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Design / version
Frosted
Diameter
45.00 mm
Dimmable
No
Displacement factor
not applicable
Energy consumption
1.00 kWh/1000h
Envelope
No
Flickering metric (Pst LM)
not applicable
GTIN
4058075389885
Height
45.00 mm
High luminance light source
No
Inrush current
10 A
LED light source replaces a fluorescent light source
No
Length
145.00 mm
Lifespan L70/B50 at 25 °C
15000 h
Light color
515
Light color (designation)
Warm Comfort Light
Light source cap-type (or other electric interface)
E14
Lighting technology used
LED
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1)
Lumen main.fact.at end of nom.life time
0.70
Lumen maintenance at end of service lifetime
0.70
Luminous efficacy
20 lm/W
Luminous flux
10 lm
Mains frequency
50/60 Hz
Mains or non-mains
MLS
Max. lamp number on MCB B10 A
166
Max. lamp number on MCB B16 A
266
Maximum diameter
45 mm
Maximum temperature at tc test point
50 °C
Mercury content
0.0 mg
Mercury-free
Yes
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Networked standby power for CLS
0 W
Nominal current
12 mA
Nominal useful luminous flux 90°
10 lm
Nominal voltage
220…240 V
Nominal wattage
0.5 W
Non-directional or directional
NDLS
Number of switching cycles
100000
Operating frequency
50/60 Hz
Operating mode
AC Mains
Order reference
LEDSSTICK FLAME
Overall length
145.00 mm
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG1
Power factor λ
> 0.50
Product recyclability
Mostly recyclable product 1)
Product remark
All technical parameters apply to the entire la
Product weight
55.00 g
Quantity of precious metals
Contains at least 10 mg
Quantity of rare earths
Contains at least 1 mg
R9 Colour rendering index
not applicable
Rated lamp survival factor at 6,000 h
≥ 0.90
Rated LLMF at 6,000 h
0.80
Standard deviation of color matching
≤6 sdcm
Standards
CE
Standby power
0 W
Starting time
< 0.5 s
Stroboscope effect metric (SVM)
not applicable
Survival factor
not applicable
Total harmonic distortion
< 180 %
Type of current
AC
Type of protection
IP20
Warm-up time (60 %)
‹ 1.00 s
Width
45.00 mm
