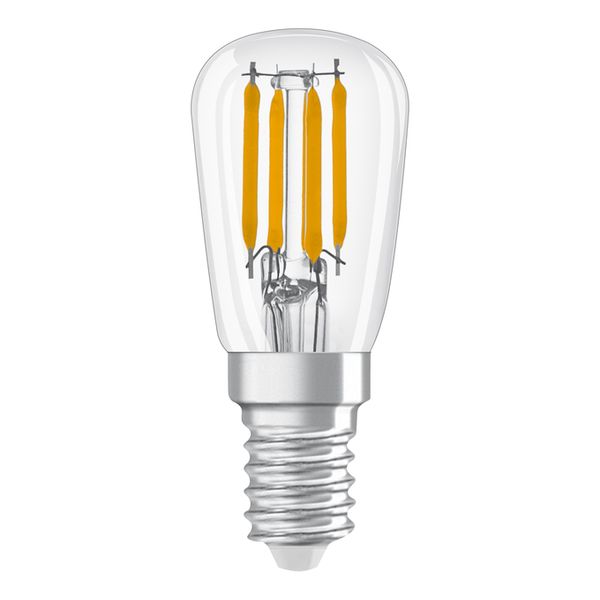

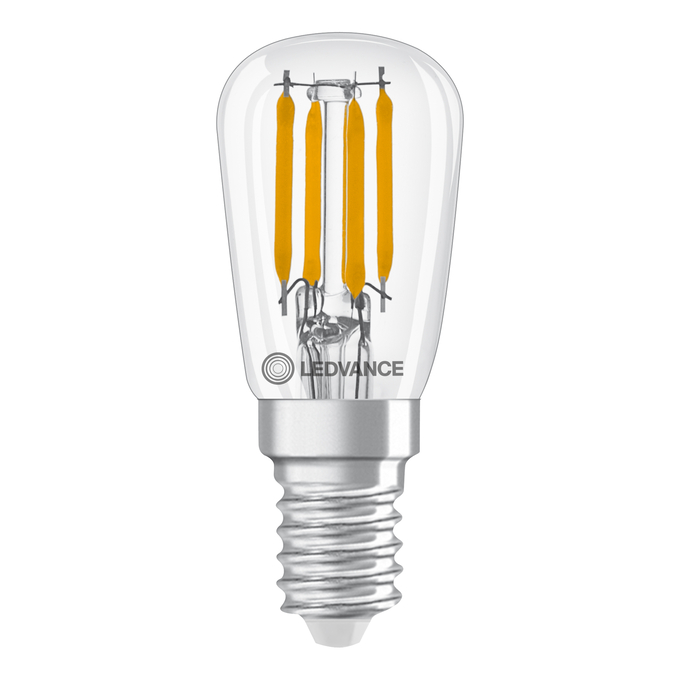

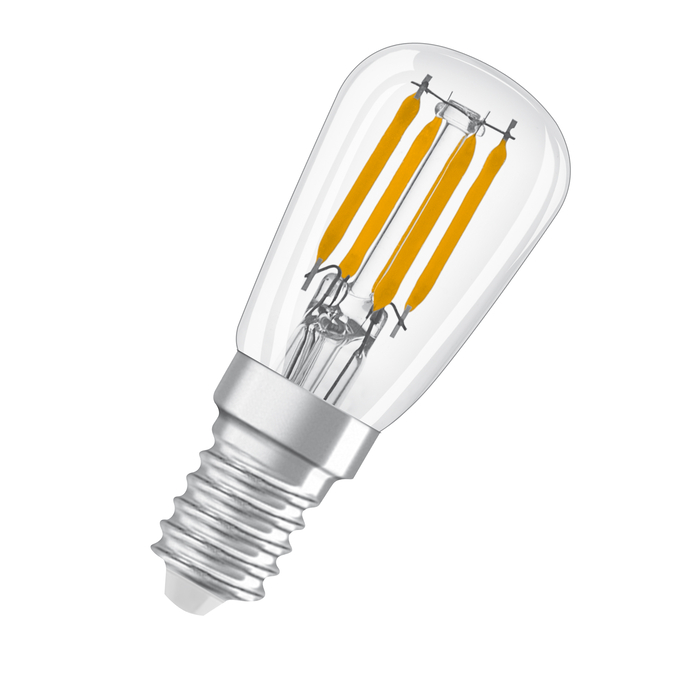

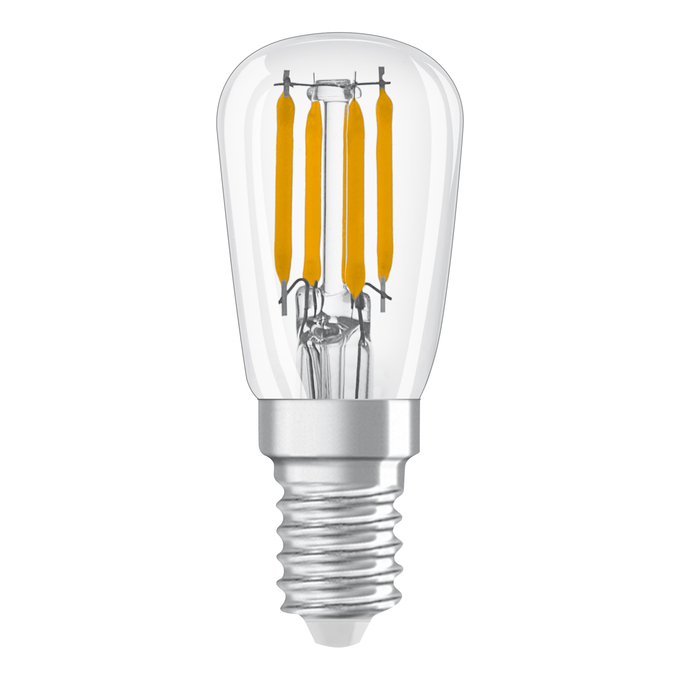

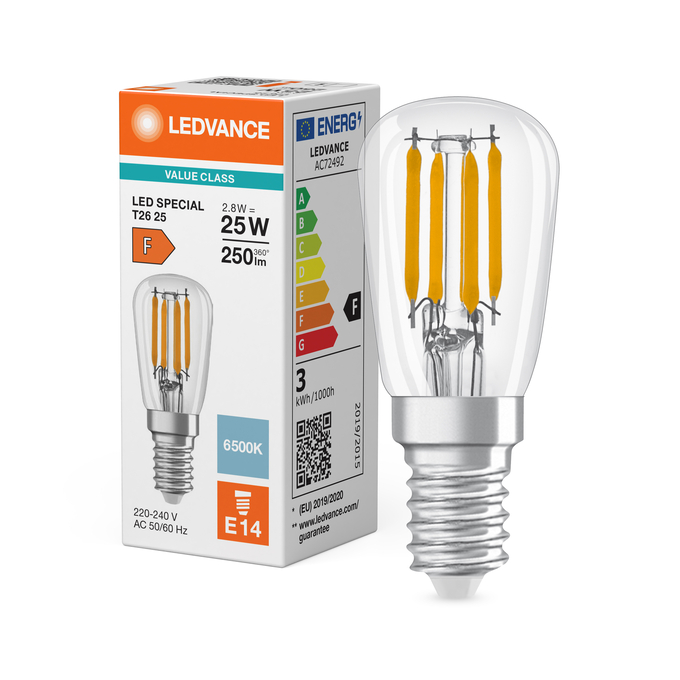

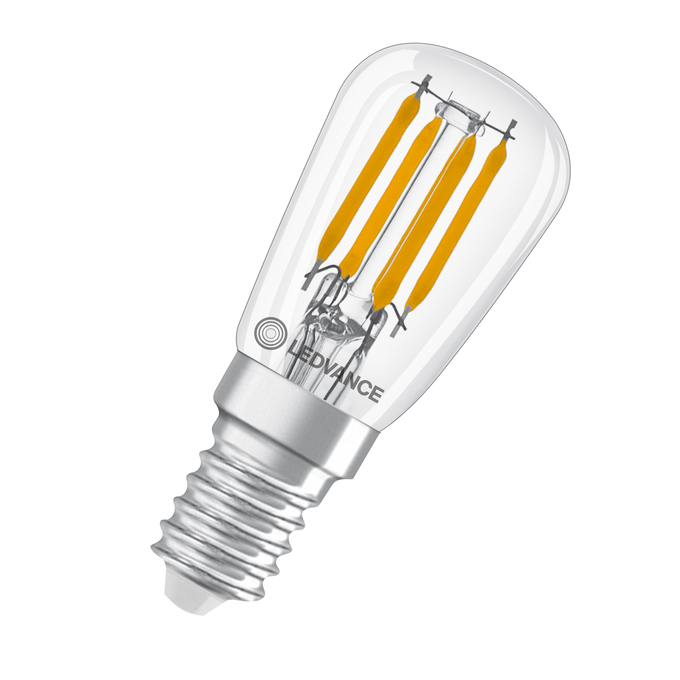

LED Special T26 25 300° Filament V 2.8W 865 Clear E14
4099854066498
Product benefits
- Extremely small dimensions
- Good all-around light emission
- Ideal for decorative and free-burning applications
- Long lifetime of up to 15,000 h
- Four year guarantee
- Lower energy consumption than incandescent or halogen lamps
Areas of application
- Small designer luminaires
- Domestic refrigerators
- Sewing machines
- Outdoor use in suitable outdoor luminaires only
Product features
- LED alternative to conventional high voltage lamps
- Good quality of light; color rendering index Ra: ≥ 80; constant chromaticity
Safety advice
- Do not touch the lamp if broken.
- Must not be used if outer bulb is defective.
References / Links
- For Guarantee see
Ambient temperature range
-20…+40 °C
Anti-glare shield
No
Base (standard designation)
E14
Beam angle
300 °
Beam angle correspondence
SPHERE_360
Chromaticity coordinate x
0.312
Chromaticity coordinate y
0.328
Claim of equivalent power
Yes
Claimed equiv. conventional lamp power
25 W
Color rendering index Ra
80
Color temperature
6500 K
Color-tuneable light source
No
Connected light source (CLS)
No
Construction wattage
2.80 W
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Additional info can be provided per individual request
Correlated colour temperature type
SINGLE_VALUE
Design / version
Clear
Diameter
26.00 mm
Dimmable
No
Displacement factor
0.5
Energy consumption
3.00 kWh/1000h
Energy efficiency class
F 1)
Envelope
No
EPREL ID
1368320,2197775
Flickering metric (Pst LM)
1.0
GTIN
4099854066498
Height
26.00 mm
High luminance light source
No
Inrush current
0.6 A
LED light source replaces a fluorescent light source
No
Length
63.00 mm
Lifespan L70/B50 at 25 °C
15000 h
Light color
865
Light color (designation)
Cool Daylight
Light source cap-type (or other electric interface)
E14
Lighting technology used
LED
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Lumen main.fact.at end of nom.life time
0.93
Lumen maintenance at end of service lifetime
0.93
Luminous efficacy
89 lm/W
Luminous flux
250 lm
Mains frequency
50/60 Hz
Mains or non-mains
MLS
Max. lamp number on MCB B10 A
50
Max. lamp number on MCB B16 A
80
Maximum diameter
26 mm
Maximum temperature at tc test point
55 °C
Mercury content
0.0 mg
Mercury-free
Yes
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Model number
AC45889,AC72492,AC72492
Nominal current
17 mA
Nominal useful luminous flux 90°
250 lm
Nominal voltage
220…240 V
Nominal wattage
2.8 W
Non-directional or directional
NDLS
Number of switching cycles
100000
Operating frequency
50/60 Hz
Operating mode
AC Mains
Order reference
LED T26 25 2.8W
Overall length
63.00 mm
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG1
Power factor λ
> 0.40
Product recyclability
Mostly recyclable product 1)
Product remark
All technical parameters apply to the entire la
Product weight
8.00 g
Quantity of precious metals
Contains at least 10 mg
Quantity of rare earths
Contains at least 1 mg
R9 Colour rendering index
1
Standard deviation of color matching
≤6 sdcm
Standby power
0 W
Starting time
< 0.5 s
Stroboscope effect metric (SVM)
0.4
Survival factor
0.90
Temperature range at storage
-20…+80 °C
Total harmonic distortion
< 160 %
Type of current
AC
Type of protection
IP20
Warm-up time (60 %)
‹ 0.50 s
Width
26.00 mm
