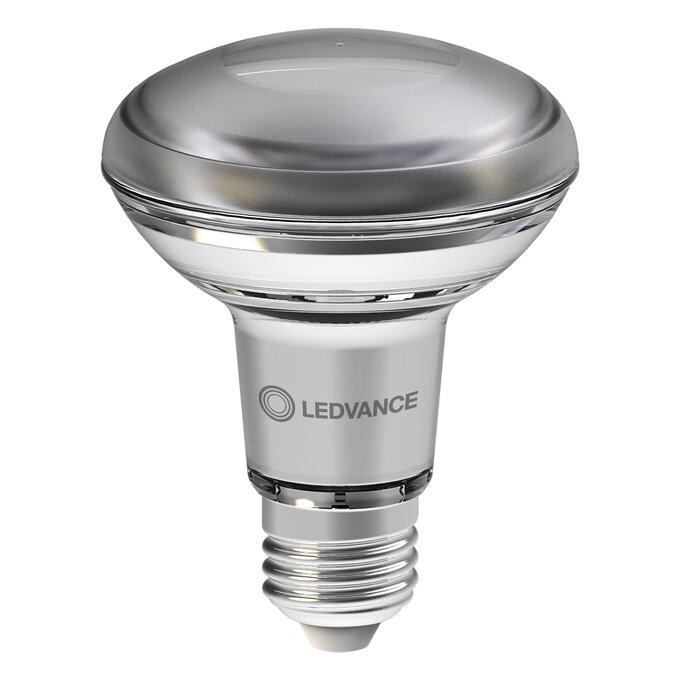

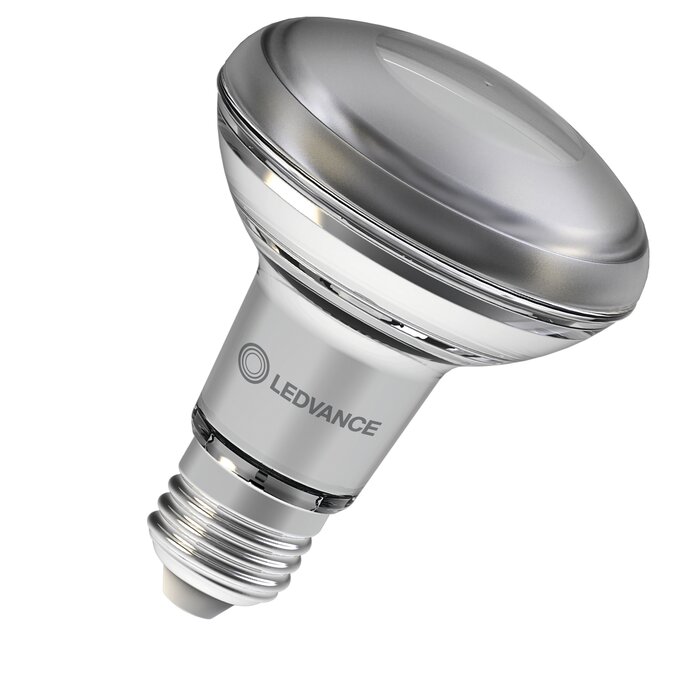

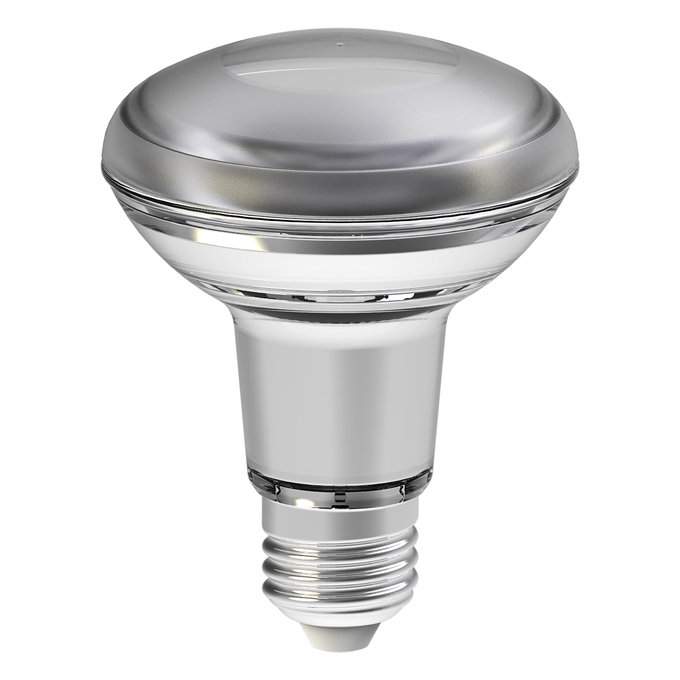

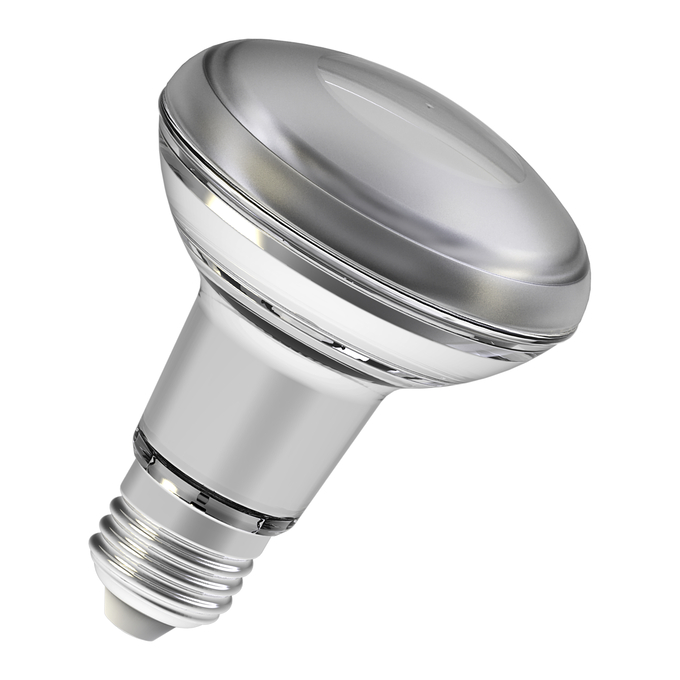

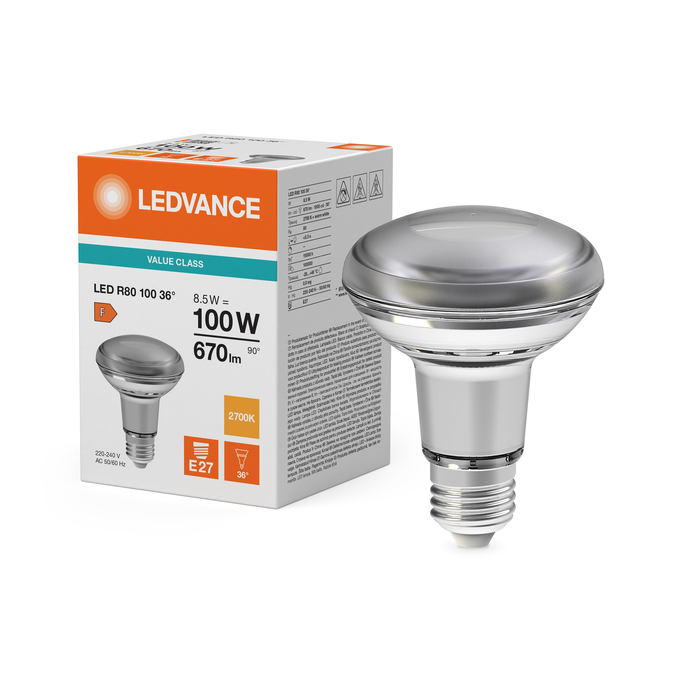

LED R80 100 36° V 8.5W 827 E27
4099854050114
Product benefits
- Quick, simple and safe replacement without rewiring
- Design, dimensions, luminous flux comparable to an incandescent or halogen lamp
- Low maintenance costs thanks to long lifetime
- No UV and near-IR radiation in the light beam
- Instant 100 % light, no warm-up time
- Lower energy consumption than incandescent or halogen lamps
Areas of application
- Shops and exhibition rooms
- Domestic applications
- Commercial applications
- Accent lighting
- Outdoor use in suitable outdoor luminaires only
Product features
- LED alternative to high voltage halogen lamps
- Not dimmable
- Base: E27
- Lamp made of glass
- Good quality of light; color rendering index CRI ≥ 80
- Lifetime up to 15,000 h
Safety advice
- Do not touch the lamp if broken.
- Must not be used if outer bulb is defective.
References / Links
- For further products and actual information concerning LED lamps see
- For Guarantee see
Ambient temperature range
-20…+40 °C
Anti-glare shield
No
Base (standard designation)
E27
Beam angle
36 °
Beam angle correspondence
NARROW_CONE_90
Chromaticity coordinate x
0.4578
Chromaticity coordinate y
0.4101
Claim of equivalent power
Yes
Claimed equiv. conventional lamp power
100 W
Color rendering index Ra
80
Color temperature
2700 K
Color-tuneable light source
No
Connected light source (CLS)
No
Construction wattage
8.50 W
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Additional info can be provided per individual request
Correlated colour temperature type
SINGLE_VALUE
Design / version
Spot
Diameter
80.00 mm
Dimmable
No
Displacement factor
≥0.5
Energy consumption
9.00 kWh/1000h
Energy efficiency class
F 1)
Envelope
No
EPREL ID
1368216,2363525
Flickering metric (Pst LM)
1,0
GTIN
4099854050114
Height
80.00 mm
High luminance light source
No
Inrush current
9.12 A
LED light source replaces a fluorescent light source
No
Length
105.00 mm
Lifespan L70/B50 at 25 °C
15000 h
Light color
827
Light color (designation)
Warm White
Light source cap-type (or other electric interface)
E27
Lighting technology used
LED
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Lumen main.fact.at end of nom.life time
0.96
Lumen maintenance at end of service lifetime
0.96
Luminous efficacy
78 lm/W
Luminous flux
670 lm
Luminous intensity
1000 cd
Mains frequency
50/60 Hz
Mains or non-mains
MLS
Max. lamp number on MCB B10 A
65
Max. lamp number on MCB B16 A
82
Maximum diameter
80 mm
Maximum temperature at tc test point
105 °C
Mercury content
0.0 mg
Mercury-free
Yes
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Model number
AC45624,AC45624,AC83985,AC83985
Nominal current
55 mA
Nominal useful luminous flux 90°
670 lm
Nominal voltage
220…240 V
Nominal wattage
8.5 W
Non-directional or directional
DLS
Number of switching cycles
100000
Operating frequency
50/60 Hz
Operating mode
AC Mains
Order reference
LED R8010036 8.
Overall length
105.00 mm
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG1
Power factor λ
> 0.50
Product recyclability
Mostly recyclable product 1)
Product remark
All technical parameters apply to the entire la
Product weight
108.00 g
Quantity of precious metals
Contains at least 10 mg
Quantity of rare earths
Contains at least 1 mg
R9 Colour rendering index
1
Rated peak intensity
1000 cd
Standard deviation of color matching
≤6 sdcm
Standby power
0 W
Starting time
< 0.5 s
Stroboscope effect metric (SVM)
0,4
Survival factor
0.9
Temperature range at storage
-20…+80 °C
Total harmonic distortion
≤ 150 %
Type of current
AC
Type of protection
IP20
Warm-up time (60 %)
‹ 0.50 s
Width
80.00 mm
