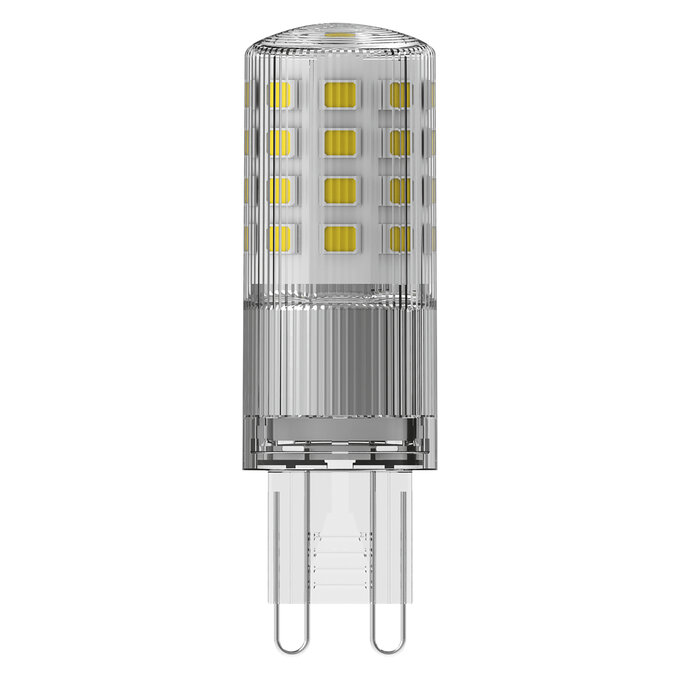

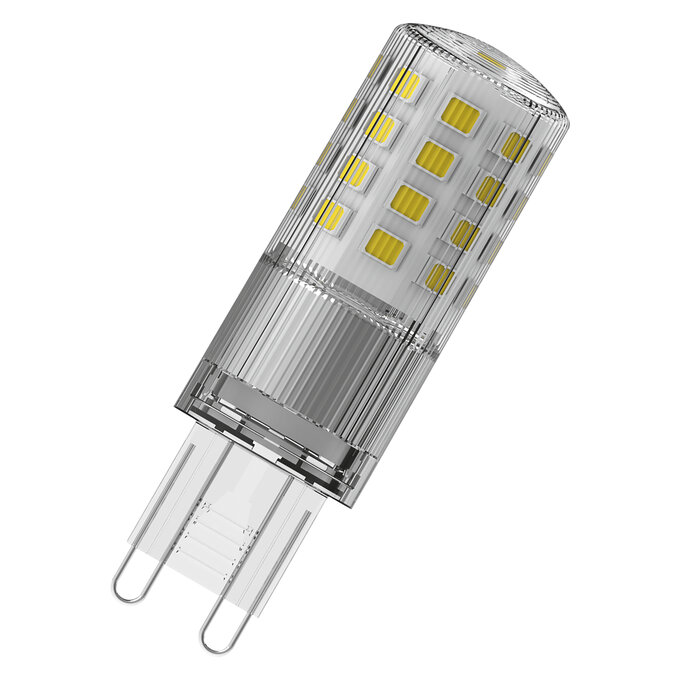

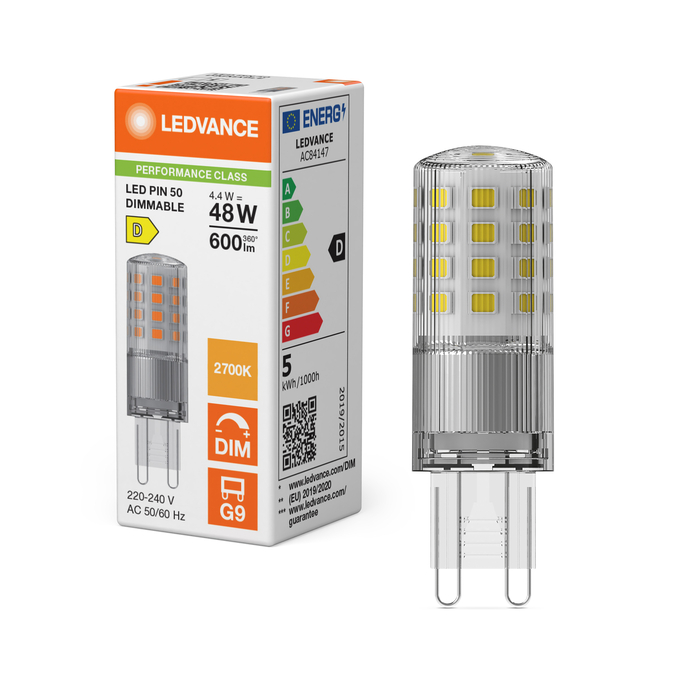

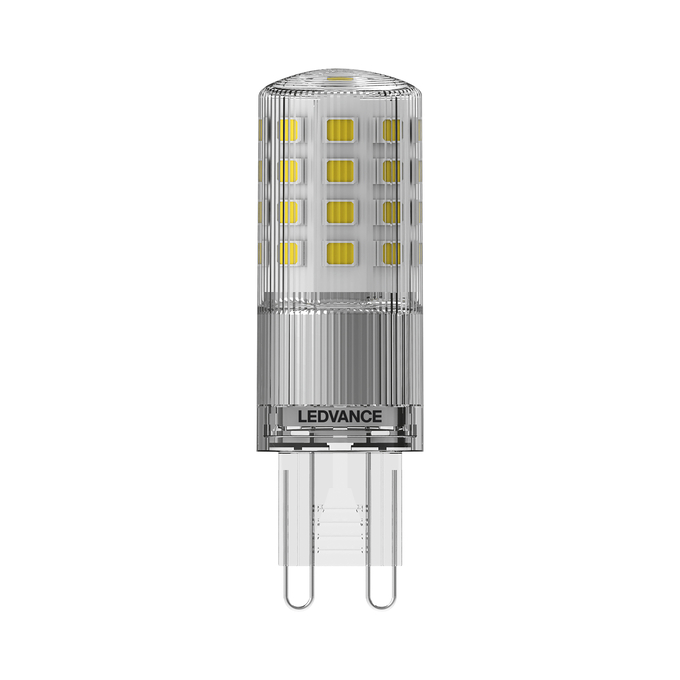

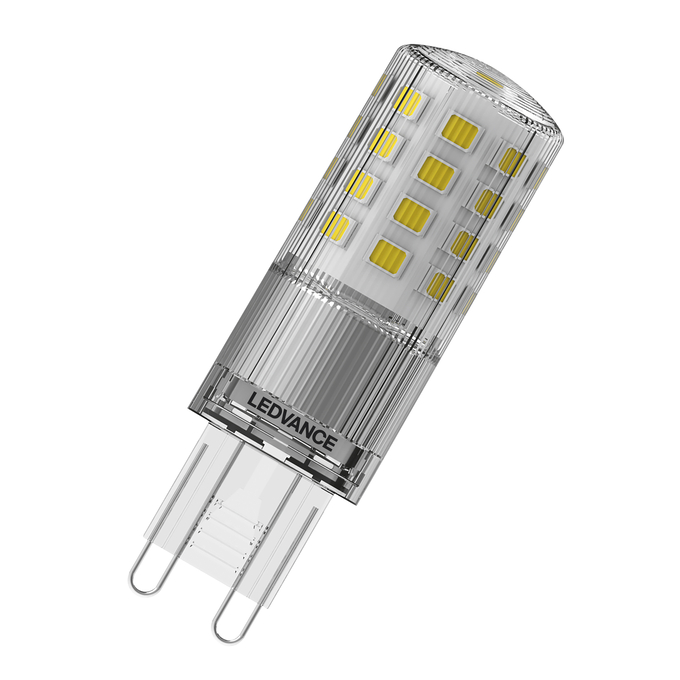

LED PIN 50 320° DIM P 4.4W 827 Clear G9
4099854248849
Product benefits
- Good all-around light emission
- Very long lifetime of up to 25,000 h
- Ideal for decorative and free-burning applications
- Five year guarantee
- Lower energy consumption than incandescent or halogen lamps
Areas of application
- Atmospheric accent lighting throughout the home
- Shops, hotels and restaurants
- Outdoor use in suitable outdoor luminaires only
Product features
- Dimmable (with many common dimmers, see also )
- LED alternative to high voltage halogen lamps
Safety advice
- Do not touch the lamp if broken.
- Must not be used if outer bulb is defective.
- To ensure full light efficiency and product lifetime, it is recommended to detach any glass or cover of the luminaire.
References / Links
- For dimming conformity see
- For Guarantee see
Ambient temperature range
-20…+40 °C
Anti-glare shield
No
Base (standard designation)
G9
Beam angle
320 °
Beam angle correspondence
SPHERE_360
Chromaticity coordinate x
0.4578
Chromaticity coordinate y
0.4101
Claim of equivalent power
Yes
Claimed equiv. conventional lamp power
48 W
Color rendering index Ra
80
Color temperature
2700 K
Color-tuneable light source
No
Connected light source (CLS)
No
Construction wattage
4.40 W
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Additional info can be provided per individual request
Correlated colour temperature type
SINGLE_VALUE
Design / version
Clear
Diameter
18.00 mm
Dimmable
Yes 1)
Displacement factor
>0.5
Energy consumption
5.00 kWh/1000h
Energy efficiency class
D 1)
Envelope
No
EPREL ID
1856546,2365054
Flickering metric (Pst LM)
1.0
GTIN
4099854248849
Height
18.00 mm
High luminance light source
No
Inrush current
0.2 A
LED light source replaces a fluorescent light source
No
Length
59.00 mm
Lifespan L70/B50 at 25 °C
25000 h
Light color
827
Light color (designation)
Warm White
Light source cap-type (or other electric interface)
G9
Lighting technology used
LED
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Lumen main.fact.at end of nom.life time
0.96
Lumen maintenance at end of service lifetime
0.96
Luminous efficacy
136 lm/W
Luminous flux
600 lm
Mains frequency
50/60 Hz
Mains or non-mains
MLS
Max. lamp number on MCB B10 A
296
Max. lamp number on MCB B16 A
474
Maximum diameter
18 mm
Maximum temperature at tc test point
89.6 °C
Mercury content
0.0 mg
Mercury-free
Yes
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Model number
AC58973,AC58973,AC84147
Nominal current
27 mA
Nominal voltage
220…240 V
Nominal wattage
4.4 W
Non-directional or directional
NDLS
Number of switching cycles
100000
Operating frequency
50/60 Hz
Operating mode
AC Mains
Order reference
LED PIN50 DIM 4
Overall length
59.00 mm
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG1
Power factor λ
> 0.40
Product recyclability
Mostly recyclable product 1)
Product remark
All technical parameters apply to the entire la
Product weight
11.00 g
Quantity of precious metals
Contains at least 10 mg
Quantity of rare earths
Contains at least 1 mg
R9 Colour rendering index
1
Standard deviation of color matching
≤6 sdcm
Standby power
0 W
Starting time
< 0.5 s
Stroboscope effect metric (SVM)
0.4
Survival factor
0.9
Temperature range at storage
-20…+80 °C
Total harmonic distortion
110 %
Type of current
AC
Type of protection
IP20
Warm-up time (60 %)
‹ 0.50 s
Width
18.00 mm
