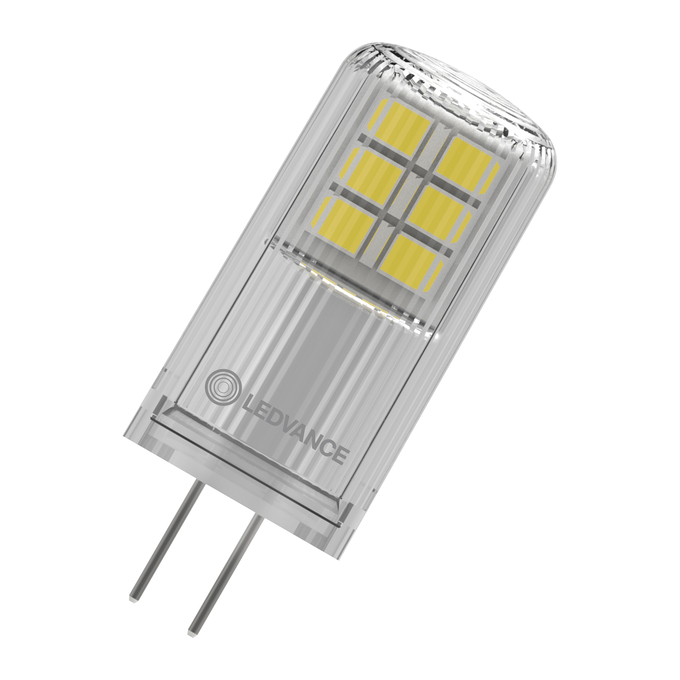

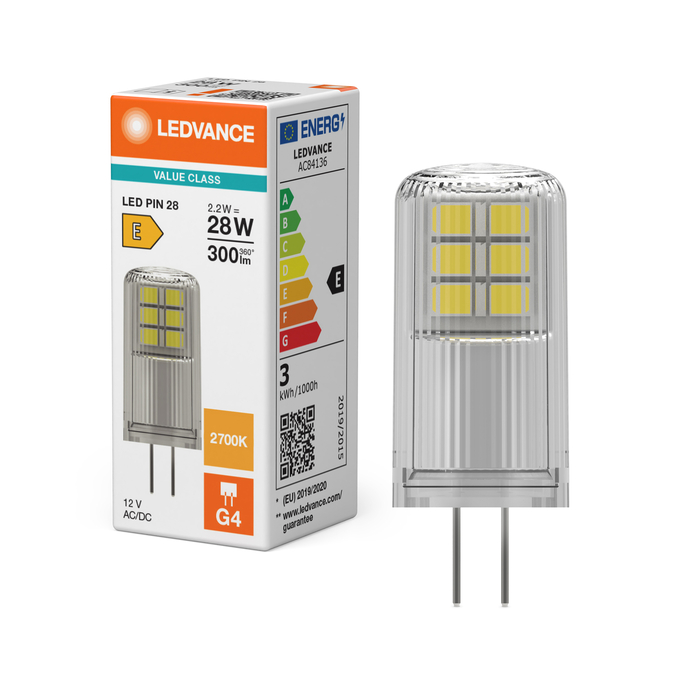

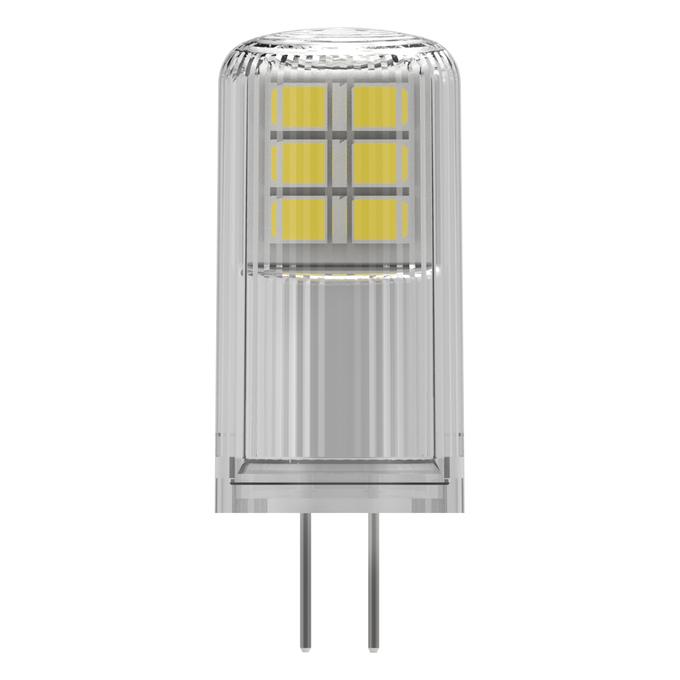

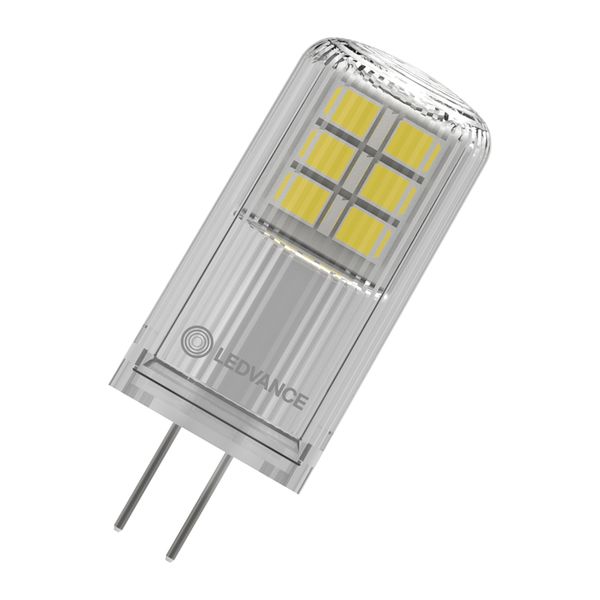

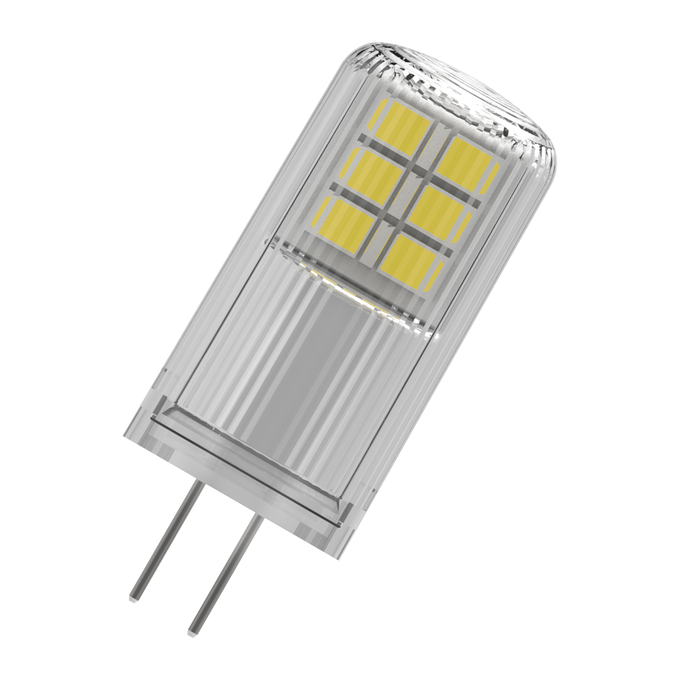

LED PIN 28 320° V 2.2W 827 Clear G4
4099854248726
Product benefits
- Variable use at Direct Current and Alternating Current
- Good all-around light emission
- Ideal for decorative and free-burning applications
- Long lifetime of up to 15,000 h
- Four year guarantee
- Lower energy consumption than incandescent or halogen lamps
Areas of application
- Decorative applications
- Atmospheric accent lighting throughout the home
- Shops, hotels and restaurants
- Outdoor use in suitable outdoor luminaires only
Product features
- Compatible with many common conventional and electronic control gears (see also )
- LED alternative to low voltage halogen lamps
- Base: G4
- Base: G4, GY6.35
Safety advice
- Do not touch the lamp if broken.
- Must not be used if outer bulb is defective.
- To ensure full light efficiency and product lifetime, it is recommended to detach any glass or cover of the luminaire.
References / Links
- For Guarantee see
Ambient temperature range
-20…+40 °C
Anti-glare shield
No
Base (standard designation)
G4
Beam angle
320 °
Beam angle correspondence
SPHERE_360
Chromaticity coordinate x
0.4578
Chromaticity coordinate y
0.4101
Claim of equivalent power
Yes
Claimed equiv. conventional lamp power
28 W
Color rendering index Ra
80
Color temperature
2700 K
Color-tuneable light source
No
Connected light source (CLS)
No
Construction wattage
2.20 W
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Additional info can be provided per individual request
Correlated colour temperature type
SINGLE_VALUE
Design / version
Clear
Diameter
14.00 mm
Dimmable
No
Displacement factor
>0.5
Energy consumption
3.00 kWh/1000h
Energy efficiency class
E 1)
Envelope
No
EPREL ID
1856530,2365050
Flickering metric (Pst LM)
1.0
GTIN
4099854248726
Height
14.00 mm
High luminance light source
No
Inrush current
1.86 A
LED light source replaces a fluorescent light source
No
Length
36.00 mm
Lifespan L70/B50 at 25 °C
15000 h
Light color
827
Light color (designation)
Warm White
Light source cap-type (or other electric interface)
G4
Lighting technology used
LED
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Lumen main.fact.at end of nom.life time
0.93
Lumen maintenance at end of service lifetime
0.93
Luminous efficacy
136 lm/W
Luminous flux
300 lm
Mains or non-mains
NMLS
Max. lamp number on MCB B10 A
28
Max. lamp number on MCB B16 A
45
Maximum diameter
14 mm
Maximum temperature at tc test point
80.5 °C
Mercury content
0.0 mg
Mercury-free
Yes
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Model number
AC58933,AC58933,AC84136,AC84136
Nominal current
280 mA
Nominal voltage
12 V
Nominal wattage
2.2 W
Non-directional or directional
NDLS
Number of switching cycles
100000
Operating mode
12V AC/DC 1)
Order reference
LED PIN28 2.2W
Overall length
36.00 mm
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG1
Power factor λ
> 0.50
Product recyclability
Mostly recyclable product 1)
Product remark
All technical parameters apply to the entire la
Product weight
4.5 g
Quantity of precious metals
Contains at least 10 mg
Quantity of rare earths
Contains at least 1 mg
R9 Colour rendering index
1
Standard deviation of color matching
≤6 sdcm
Standby power
0 W
Starting time
< 0.5 s
Stroboscope effect metric (SVM)
0.4
Survival factor
0.9
Temperature range at storage
-20…+80 °C
Total harmonic distortion
85.6 %
Type of current
AC/DC
Type of protection
IP20
Warm-up time (60 %)
‹ 0.50 s
Width
14.00 mm
