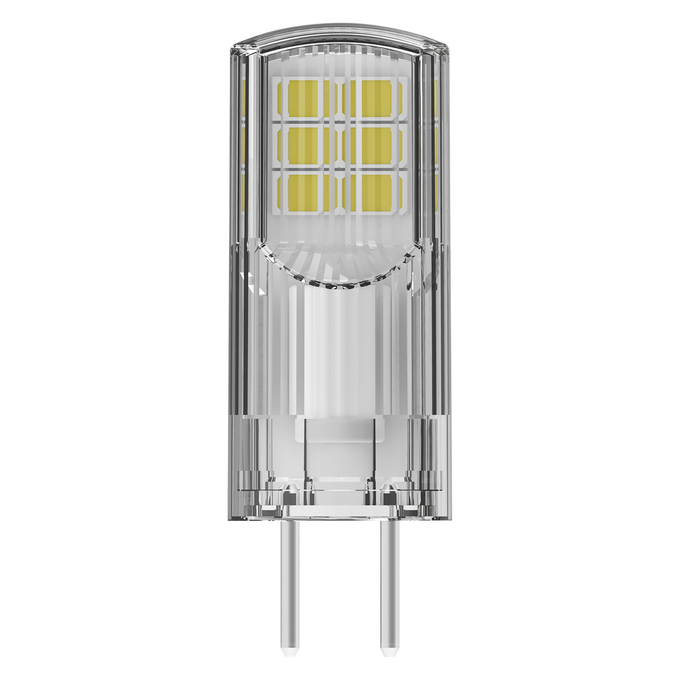

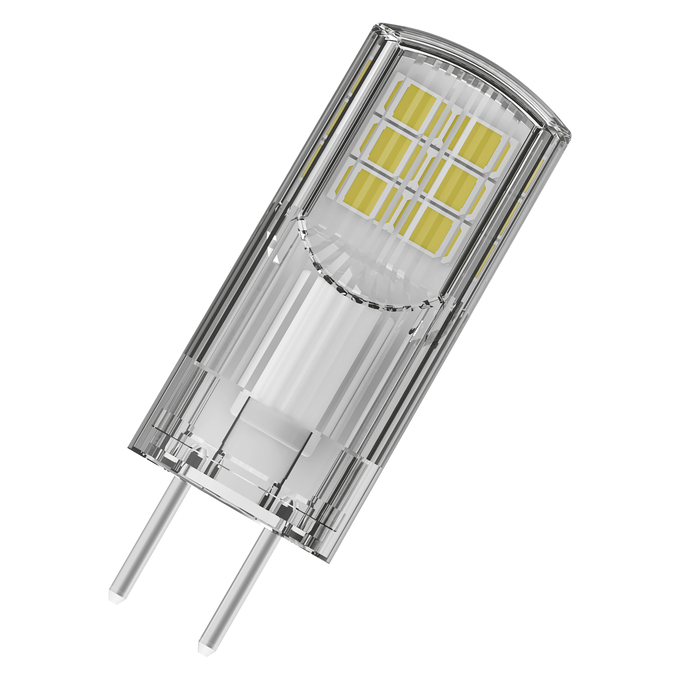

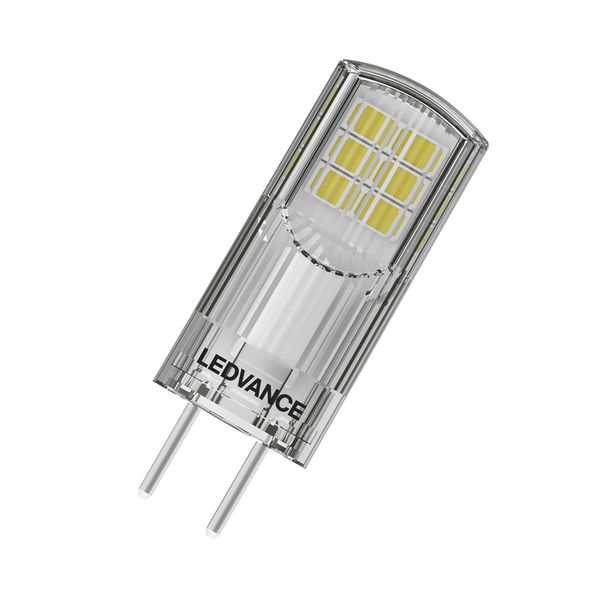

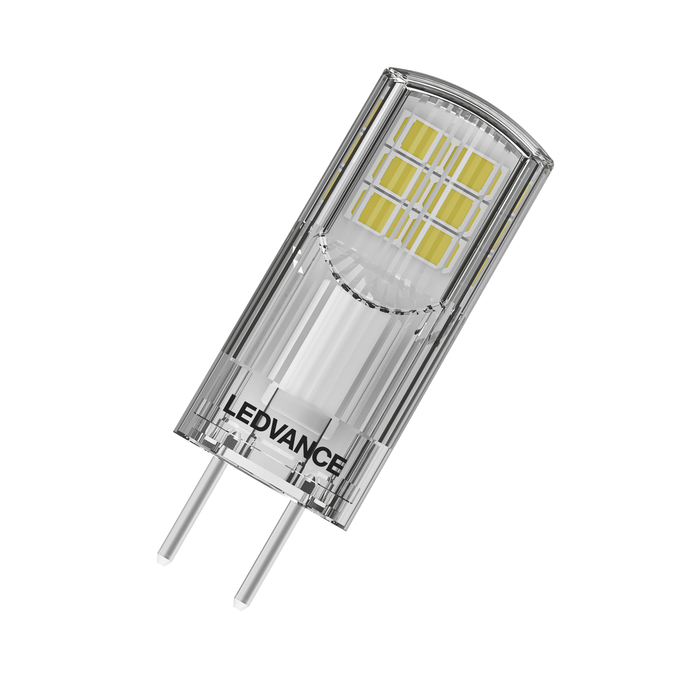

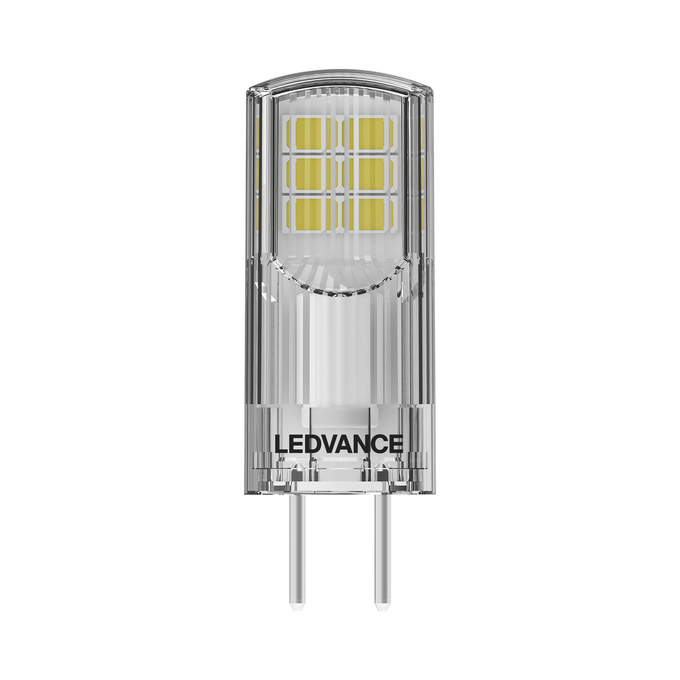

LED PIN 28 320° P 2.6W 827 Clear GY6.35
4099854048470
Product benefits
- Variable use at Direct Current and Alternating Current
- Good all-around light emission
- Ideal for decorative and free-burning applications
- Long lifetime of up to 15,000 h
- Four year guarantee
- Lower energy consumption than incandescent or halogen lamps
Areas of application
- Decorative applications
- Atmospheric accent lighting throughout the home
- Shops, hotels and restaurants
- Outdoor use in suitable outdoor luminaires only
Product features
- Compatible with many common conventional and electronic control gears (see also )
- LED alternative to low voltage halogen lamps
- Base: G4, GY6.35
Safety advice
- Do not touch the lamp if broken.
- Must not be used if outer bulb is defective.
- To ensure full light efficiency and product lifetime, it is recommended to detach any glass or cover of the luminaire.
References / Links
- For Guarantee see
Ambient temperature range
-20…+40 °C
Anti-glare shield
No
Base (standard designation)
GY6.35
Beam angle
320 °
Beam angle correspondence
SPHERE_360
Chromaticity coordinate x
0,458
Chromaticity coordinate y
0,410
Claim of equivalent power
Yes
Claimed equiv. conventional lamp power
28 W
Color rendering index Ra
80
Color temperature
2700 K
Color-tuneable light source
No
Connected light source (CLS)
No
Construction wattage
2.60 W
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Correlated colour temperature type
SINGLE_VALUE
Design / version
Clear
Diameter
15.00 mm
Dimmable
No
Displacement factor
0.5
Energy consumption
3.00 kWh/1000h
Energy efficiency class
F 1)
Envelope
No
EPREL ID
1368310
Flickering metric (Pst LM)
≤1
GTIN
4099854048470
Height
15.00 mm
High luminance light source
No
Inrush current
18 A
LED light source replaces a fluorescent light source
No
Length
40.00 mm
Lifespan L70/B50 at 25 °C
15000 h
Light color
827
Light color (designation)
Warm White
Light source cap-type (or other electric interface)
GY6.35
Lighting technology used
LED
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1)
Lumen main.fact.at end of nom.life time
0.93
Lumen maintenance at end of service lifetime
0.93
Luminous efficacy
115 lm/W
Luminous flux
300 lm
Mains frequency
50/60 Hz
Mains or non-mains
NMLS
Max. lamp number on MCB B10 A
33
Max. lamp number on MCB B16 A
41
Maximum diameter
15 mm
Maximum temperature at tc test point
87 °C
Mercury content
0.0 mg
Mercury-free
Yes
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Model number
AC45790
Networked standby power for CLS
0 W
Nominal current
350 mA
Nominal useful luminous flux 90°
300 lm
Nominal voltage
12 V
Nominal wattage
2.6 W
Non-directional or directional
NDLS
Number of switching cycles
100000
Operating frequency
50/60 Hz
Operating mode
12V AC/DC
Order reference
LED PIN28 2.6W
Overall length
40.00 mm
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG1
Power factor λ
> 0.50
Product recyclability
Mostly recyclable product 1)
Product remark
All technical parameters apply to the entire la
Product weight
4.00 g
Quantity of precious metals
Contains at least 10 mg
Quantity of rare earths
Contains at least 1 mg
R9 Colour rendering index
1
Rated lamp survival factor at 6,000 h
≥ 0.90
Rated LLMF at 6,000 h
0.80
Standard deviation of color matching
≤6 sdcm
Standby power
0.00
Starting time
< 0.5 s
Stroboscope effect metric (SVM)
≤0.4
Survival factor
0,90
Temperature range at storage
-20…+80 °C
Total harmonic distortion
< 120 %
Type of current
AC/DC
Type of protection
IP20
Warm-up time (60 %)
‹ 0.50 s
Width
15.00 mm
