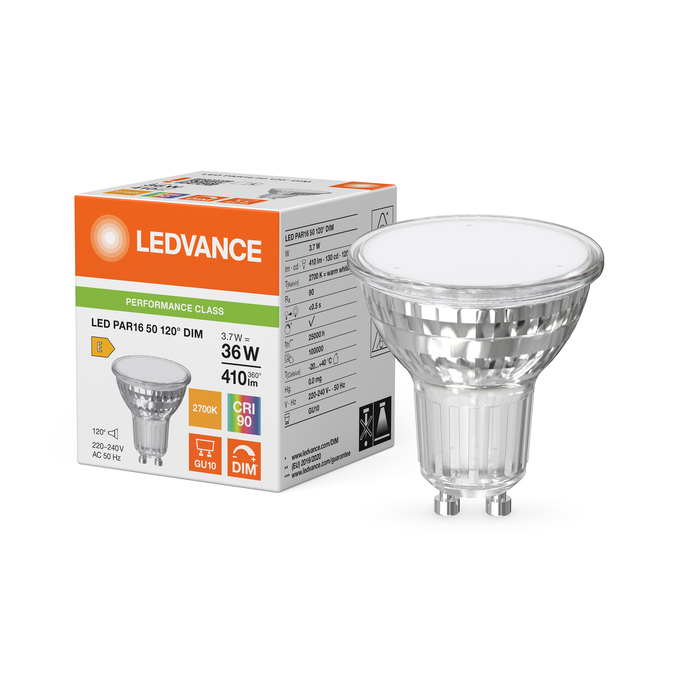

LED PAR16 50 120° DIM P 3.7W 927 GU10
4099854786389
Product benefits
- Quick, simple and safe replacement without rewiring
- Design, dimensions, luminous flux comparable to an incandescent or halogen lamp
- Low maintenance costs thanks to long lifetime
- No UV and near-IR radiation in the light beam
- Stepless dimming
- Very high dimmer compatibility, see also
- Instant 100 % light, no warm-up time
- Lower energy consumption than incandescent or halogen lamps
Areas of application
- Shops and exhibition rooms
- Domestic applications
- Commercial applications
- Accent lighting
- Outdoor use in suitable outdoor luminaires only
Product features
- LED alternative to high voltage halogen lamps
- High color consistency: ≤ 5 sdcm
- Dimmable
- Lamp made of glass
Safety advice
- Do not touch the lamp if broken.
- Must not be used if outer bulb is defective.
References / Links
- For dimming conformity see
- For Guarantee see
Ambient temperature range
-20…+40 °C
Anti-glare shield
No
Base (standard designation)
GU10
Beam angle
120 °
Beam angle correspondence
SPHERE_360
Chromaticity coordinate x
0.4578
Chromaticity coordinate y
0.4101
Claim of equivalent power
Yes
Claimed equiv. conventional lamp power
36 W
Color rendering index Ra
90
Color temperature
2700 K
Color-tuneable light source
No
Connected light source (CLS)
No
Construction wattage
3.70 W
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Correlated colour temperature type
SINGLE_VALUE
Design / version
Spot
Diameter
50.00 mm
Dimmable
Yes 1)
Displacement factor
>0.5
Energy consumption
4.00 kWh/1000h
Energy efficiency class
E 1)
Envelope
No
EPREL ID
2537357
Flickering metric (Pst LM)
1.0
GTIN
4099854786389
Height
50.00 mm
High luminance light source
No
Inrush current
2.48 A
LED light source replaces a fluorescent light source
No
Length
54.00 mm
Lifespan L70/B50 at 25 °C
25000 h
Light color
927
Light color (designation)
Warm White
Light source cap-type (or other electric interface)
GU10
Lighting technology used
LED
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1)
Lumen main.fact.at end of nom.life time
0.96
Lumen maintenance at end of service lifetime
0.96
Luminous efficacy
110 lm/W
Luminous flux
410 lm
Luminous intensity
130 cd
Mains frequency
50 Hz
Mains or non-mains
MLS
Max. lamp number on MCB B10 A
104
Max. lamp number on MCB B16 A
135
Maximum diameter
50 mm
Maximum temperature at tc test point
94.2 °C
Mercury content
0.0 mg
Mercury-free
Yes
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Model number
AC94723
Nominal current
40 mA
Nominal voltage
220…240 V
Nominal wattage
3.7 W
Non-directional or directional
NDLS
Number of switching cycles
100000
Operating frequency
50 Hz
Operating mode
AC Mains
Order reference
LED PAR1650120
Overall length
54.00 mm
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG1
Power factor λ
> 0.50
Product recyclability
Mostly recyclable product 1)
Product remark
All technical parameters apply to the entire la
Product weight
39.00 g
R9 Colour rendering index
1
Rated peak intensity
130 cd
Standard deviation of color matching
≤6 sdcm
Standby power
0 W
Starting time
< 0.5 s
Stroboscope effect metric (SVM)
0.4
Survival factor
0.90
Temperature range at storage
-20…+80 °C
Total harmonic distortion
150 %
Type of current
AC
Type of protection
IP20
Warm-up time (60 %)
‹ 0.50 s
Width
50.00 mm
