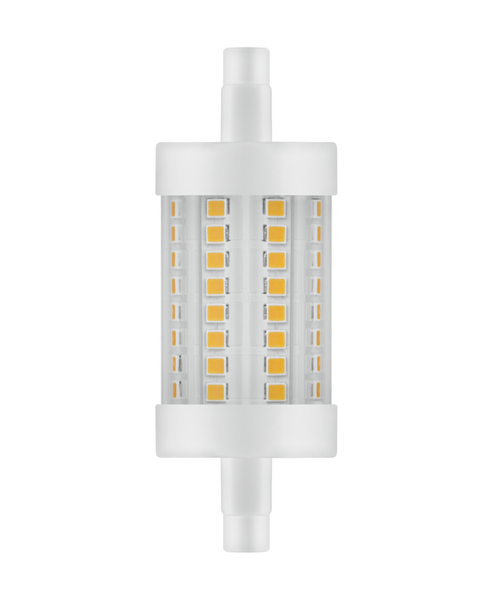

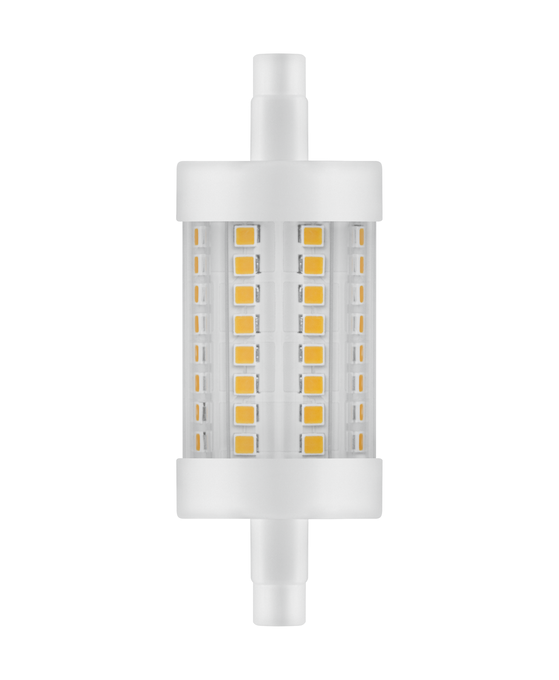

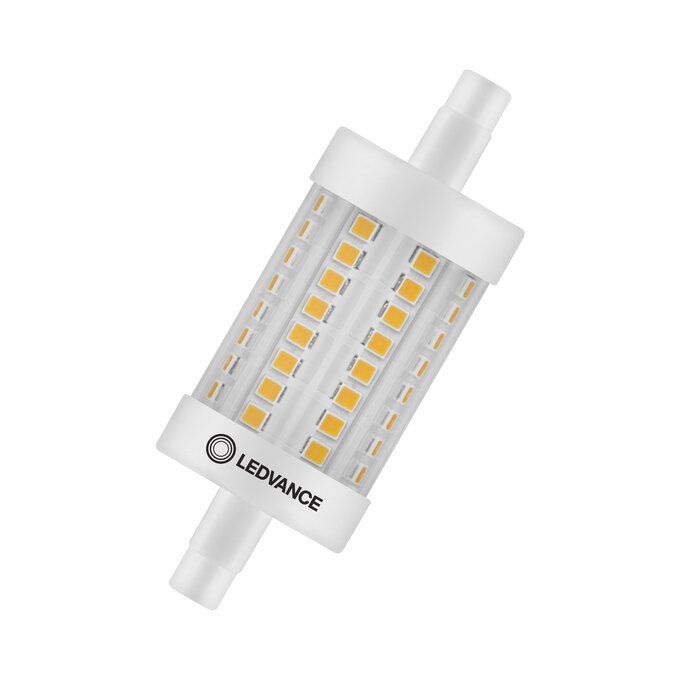

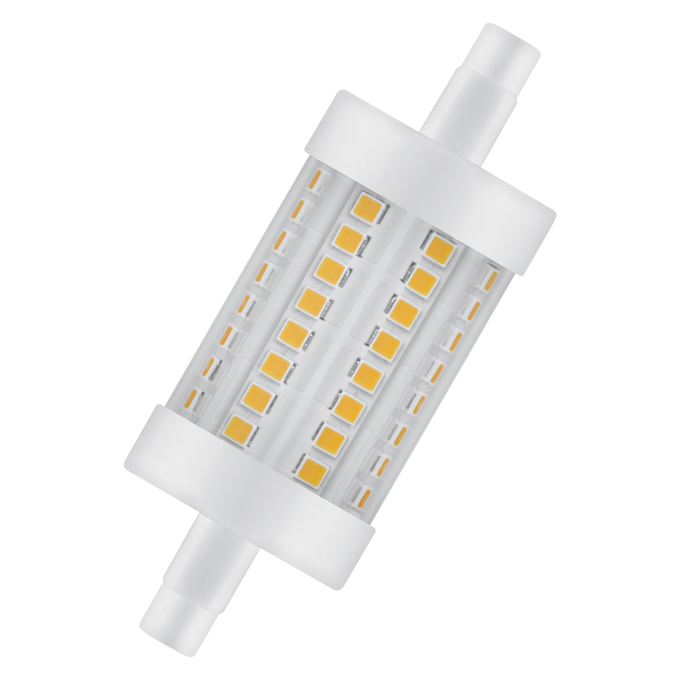

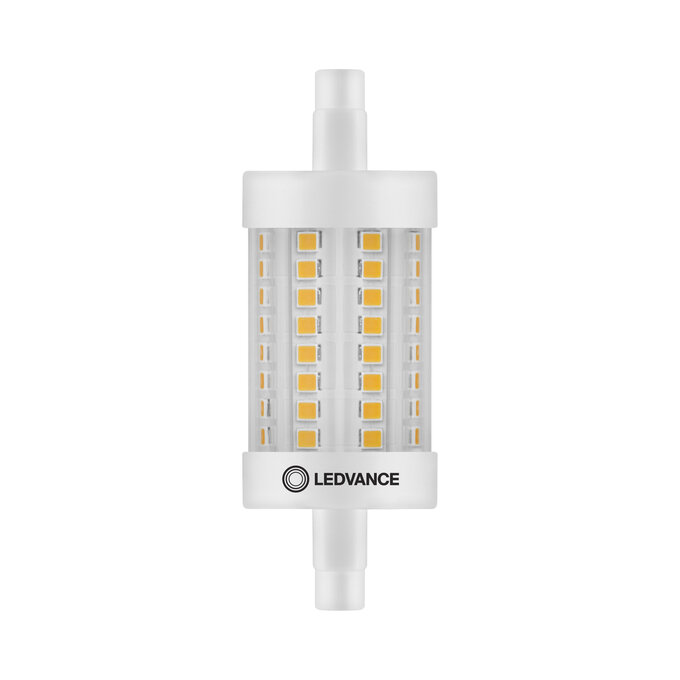

LED Line 78 75 330° P 8W 827 Clear R7s
4099854049736
Product benefits
- Fits into most R7s luminaires thanks to excentric base
- Good all-around light emission
- Long lifetime of up to 15,000 h
- Lower thermal output (compared with the standard reference product)
- Four year guarantee
- Lower energy consumption than incandescent or halogen lamps
Areas of application
- General illumination within ambient temperatures from -20…+40 °C
- Hospitality
- Domestic applications
- Outdoor use in suitable outdoor luminaires only
Product features
- LED alternative to conventional R7s lamps
- Good quality of light; color rendering index Ra: ≥ 80; constant chromaticity
Safety advice
- Do not touch the lamp if broken.
- Must not be used if outer bulb is defective.
- To ensure full light efficiency and product lifetime, it is recommended to detach any glass or cover of the luminaire.
References / Links
- For Guarantee see
Ambient temperature range
-20…+40 °C
Anti-glare shield
No
Base (standard designation)
R7s
Beam angle
330 °
Beam angle correspondence
SPHERE_360
Chromaticity coordinate x
0,458
Chromaticity coordinate y
0,410
Claim of equivalent power
Yes
Claimed equiv. conventional lamp power
75 W
Color rendering index Ra
80
Color temperature
2700 K
Color-tuneable light source
No
Connected light source (CLS)
No
Construction wattage
8.00 W
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Correlated colour temperature type
SINGLE_VALUE
Design / version
Clear
Diameter
28.00 mm
Dimmable
No
Displacement factor
0.50
Energy consumption
8.00 kWh/1000h
Energy efficiency class
E 1)
Envelope
No
EPREL ID
1368309
Flickering metric (Pst LM)
≤1
GTIN
4099854049736
Height
28.00 mm
High luminance light source
No
Inrush current
3.25 A
LED light source replaces a fluorescent light source
No
Length
78.00 mm
Lifespan L70/B50 at 25 °C
15000 h
Light color
827
Light color (designation)
Warm White
Light source cap-type (or other electric interface)
R7s
Lighting technology used
LED
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1)
Lumen main.fact.at end of nom.life time
0.70
Lumen maintenance at end of service lifetime
0.70
Luminous efficacy
131 lm/W
Luminous flux
1055 lm
Mains frequency
50/60 Hz
Mains or non-mains
MLS
Max. lamp number on MCB B10 A
100
Max. lamp number on MCB B16 A
125
Maximum diameter
28 mm
Maximum temperature at tc test point
93 °C
Mercury content
0.0 mg
Mercury-free
Yes
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Model number
AC45783
Networked standby power for CLS
0 W
Nominal current
54 mA
Nominal useful luminous flux 90°
1055 lm
Nominal voltage
220…240 V
Nominal wattage
8 W
Non-directional or directional
NDLS
Number of switching cycles
100000
Operating frequency
50/60 Hz
Operating mode
AC Mains
Order reference
LED LINE78 75 8
Overall length
78.00 mm
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG0
Power factor λ
0.50
Product recyclability
Mostly recyclable product 1)
Product remark
All technical parameters apply to the entire la
Product weight
36.00 g
Quantity of precious metals
Contains at least 10 mg
Quantity of rare earths
Contains at least 1 mg
R9 Colour rendering index
1
Rated lamp survival factor at 6,000 h
≥ 0.90
Rated LLMF at 6,000 h
0.80
Standard deviation of color matching
≤6 sdcm
Standby power
0.00
Starting time
< 0.5 s
Stroboscope effect metric (SVM)
≤0.4
Survival factor
0,90
Temperature range at storage
-20…+80 °C
Total harmonic distortion
110 %
Type of current
AC
Type of protection
IP20
Warm-up time (60 %)
‹ 0.50 s
Width
28.00 mm
