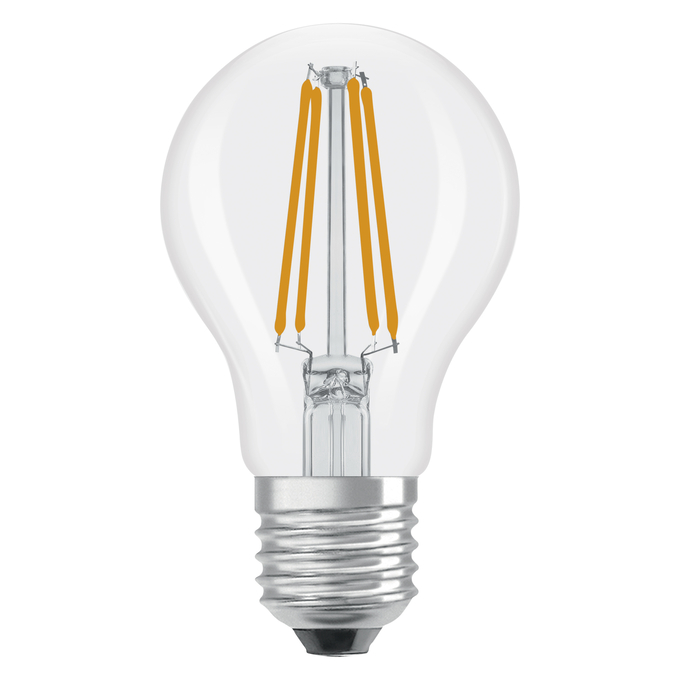

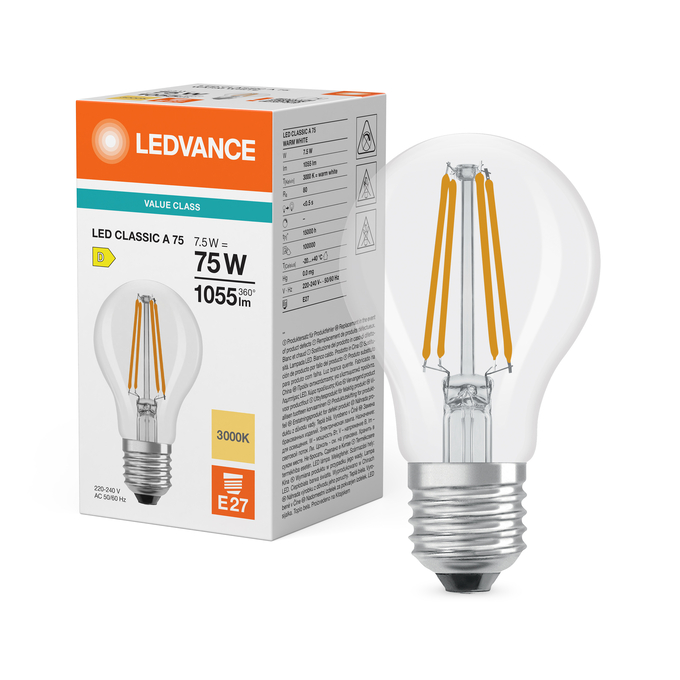

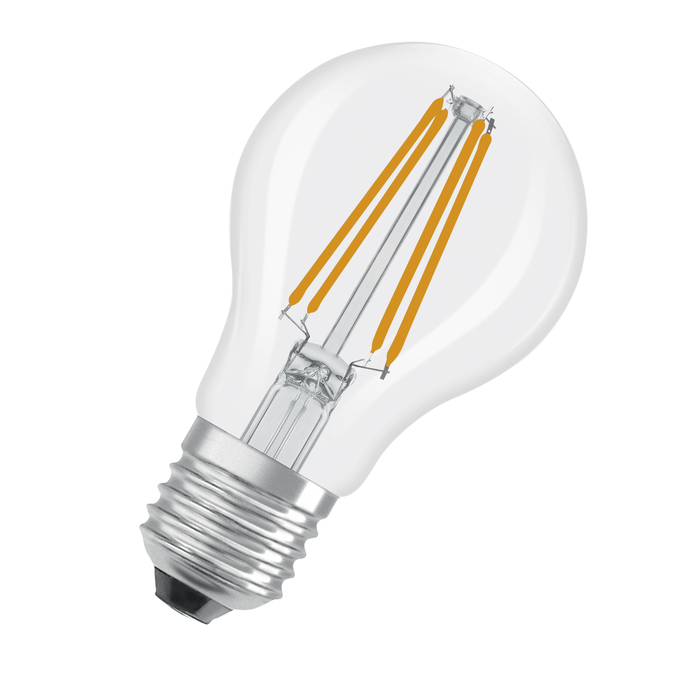

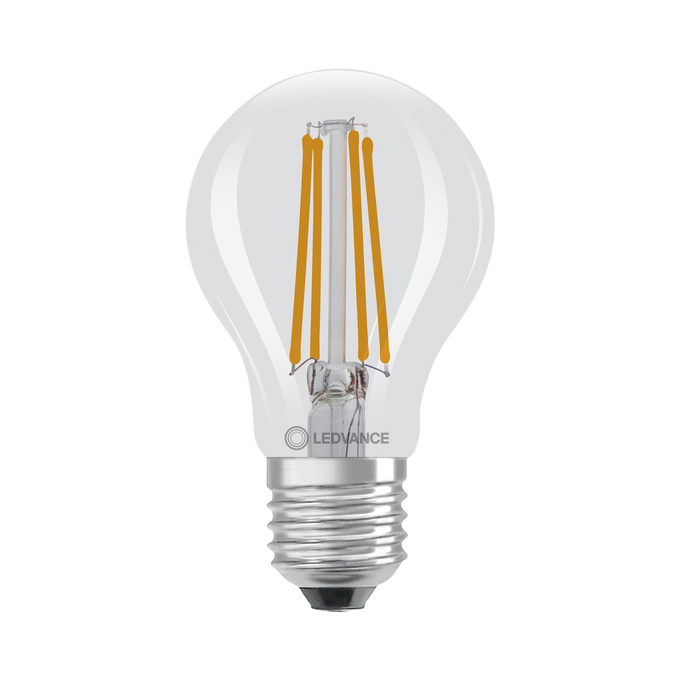

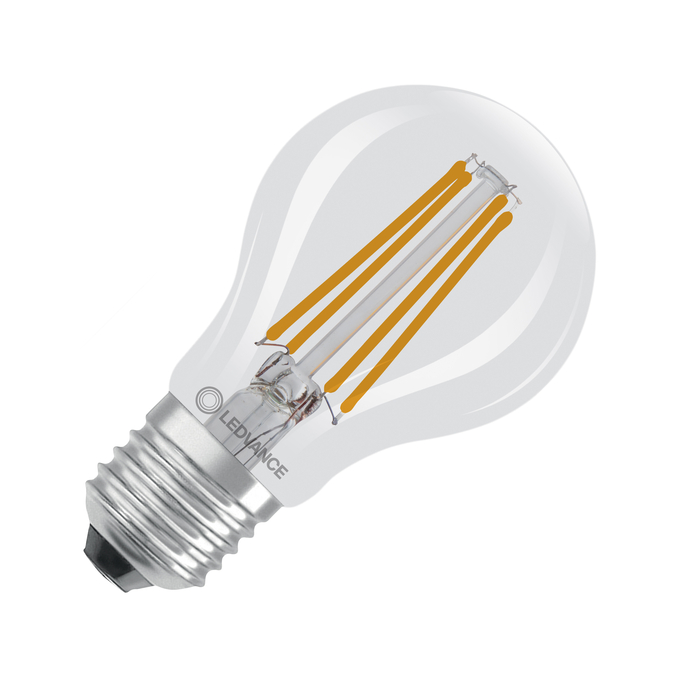

LED Classic A 75 Filament V 7.5W 830 Clear E27
4099854482663
Product benefits
- Can be easily fitted instead of ordinary light bulbs
Areas of application
- Domestic applications
- General illumination
- Outdoor use in suitable outdoor luminaires only
Product features
- LED alternative to conventional lamps
- Not dimmable
- Good color rendering CRI ≥ 80 and color stability throughout the life of the lamp
Safety advice
- Do not touch the lamp if broken.
- Must not be used if outer bulb is defective.
References / Links
- For dimming conformity see
- For Guarantee see
Ambient temperature range
-20…+40 °C
Anti-glare shield
No
Base (standard designation)
E27
Beam angle
300 °
Beam angle correspondence
SPHERE_360
Chromaticity coordinate x
0.4339
Chromaticity coordinate y
0.4033
Claim of equivalent power
Yes
Claimed equiv. conventional lamp power
75 W
Color rendering index Ra
80
Color temperature
3000 K
Color-tuneable light source
No
Connected light source (CLS)
No
Construction wattage
7.50 W
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Additional info can be provided per individual request
Correlated colour temperature type
SINGLE_VALUE
Design / version
Clear
Diameter
60.00 mm
Dimmable
No
Displacement factor
＞0.5
Energy consumption
8.00 kWh/1000h
Energy efficiency class
D 1)
Envelope
No
EPREL ID
2191347,2537324
Flickering metric (Pst LM)
≤1.0
GTIN
4099854482663
Height
60.00 mm
High luminance light source
No
Inrush current
1.18 A
LED light source replaces a fluorescent light source
No
Length
105.00 mm
Lifespan L70/B50 at 25 °C
15000 h
Light color
830
Light color (designation)
Warm White
Light source cap-type (or other electric interface)
E27
Lighting technology used
LED
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Lumen main.fact.at end of nom.life time
0.93
Lumen maintenance at end of service lifetime
0.93
Luminous efficacy
140 lm/W
Luminous flux
1055 lm
Mains frequency
50/60 Hz
Mains or non-mains
MLS
Max. lamp number on MCB B10 A
184
Max. lamp number on MCB B16 A
219
Maximum diameter
60 mm
Maximum temperature at tc test point
70 °C
Mercury content
0.0 mg
Mercury-free
Yes
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Model number
AC70273,AC92675
Nominal current
49 mA
Nominal voltage
220…240 V
Nominal wattage
7.5 W
Non-directional or directional
NDLS
Number of switching cycles
100000
Operating frequency
50/60 Hz
Operating mode
AC Mains
Order reference
LED CLA75 7.5W
Overall length
105.00 mm
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG1
Power factor λ
> 0.50
Product recyclability
Mostly recyclable product 1)
Product remark
All technical parameters apply to the entire la
Product weight
31.00 g
R9 Colour rendering index
1
Standard deviation of color matching
≤6 sdcm
Standby power
0 W
Starting time
< 0.5 s
Stroboscope effect metric (SVM)
≤0.4
Survival factor
0.90
Temperature range at storage
-20…+80 °C
Total harmonic distortion
115 %
Type of current
AC
Type of protection
IP20
Warm-up time (60 %)
‹ 0.50 s
Width
60.00 mm
