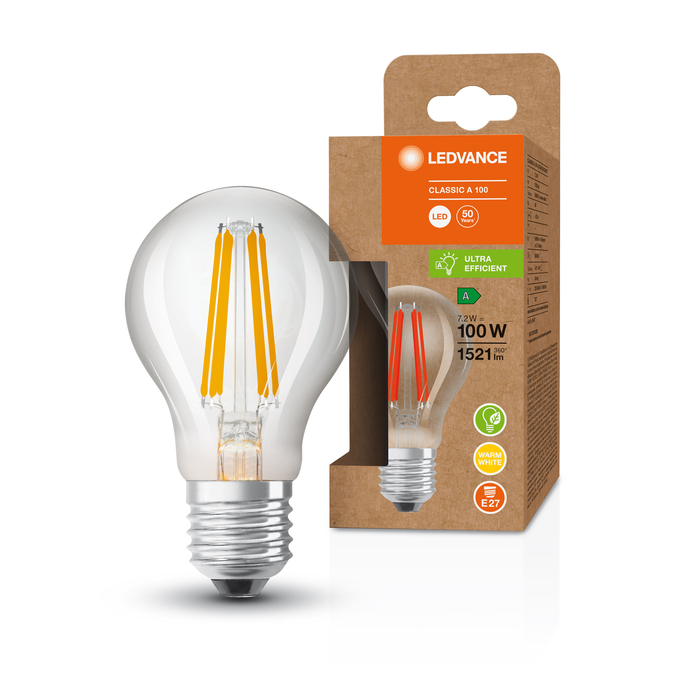

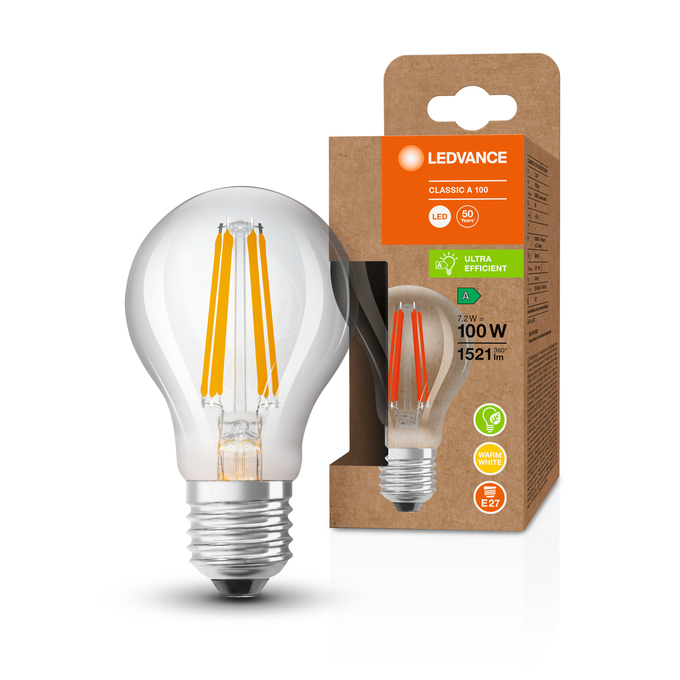

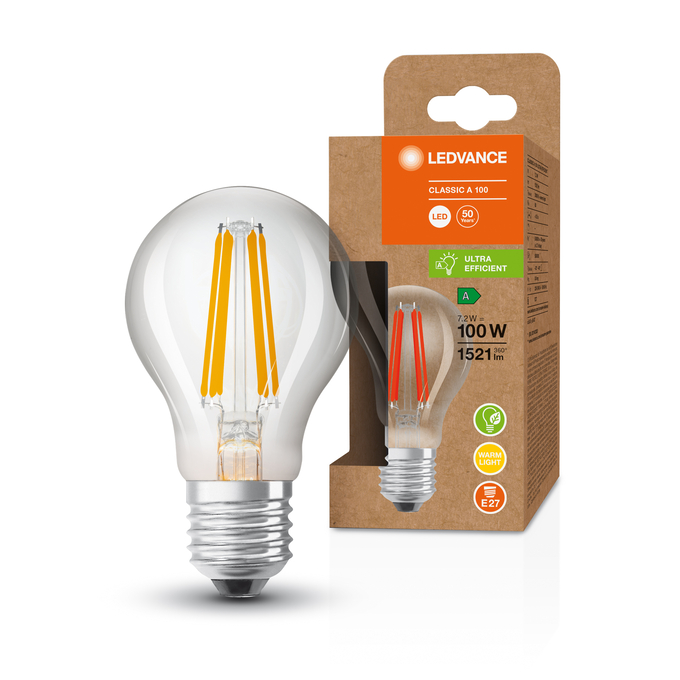

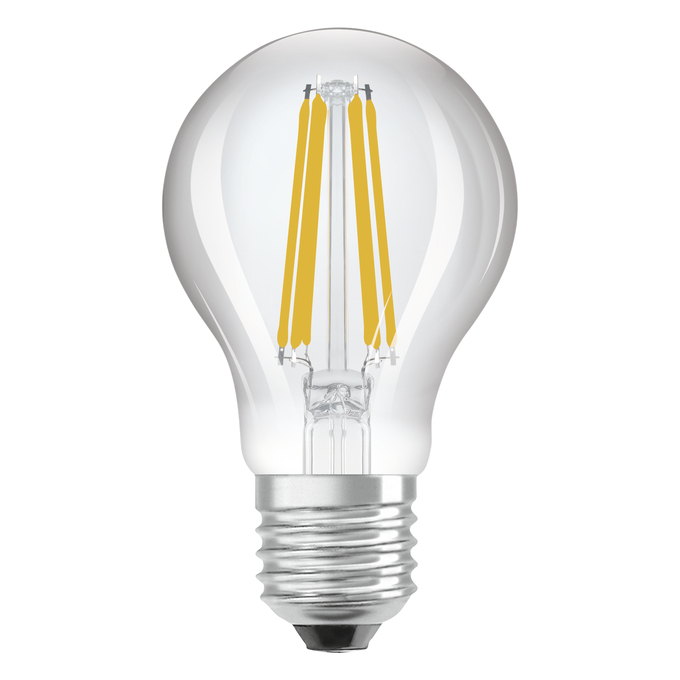

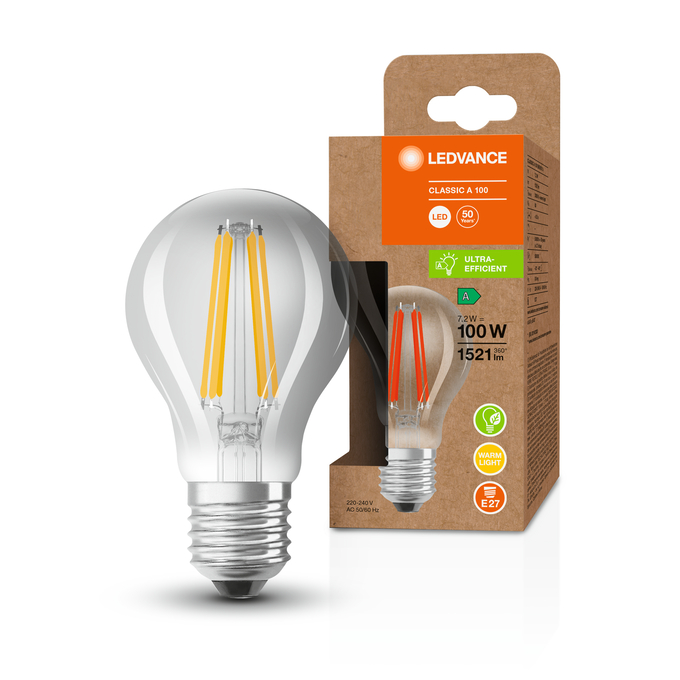

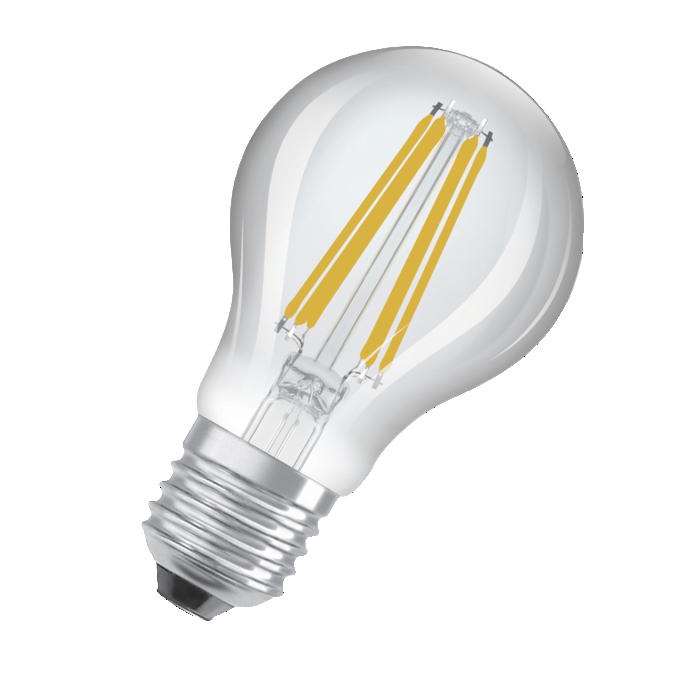

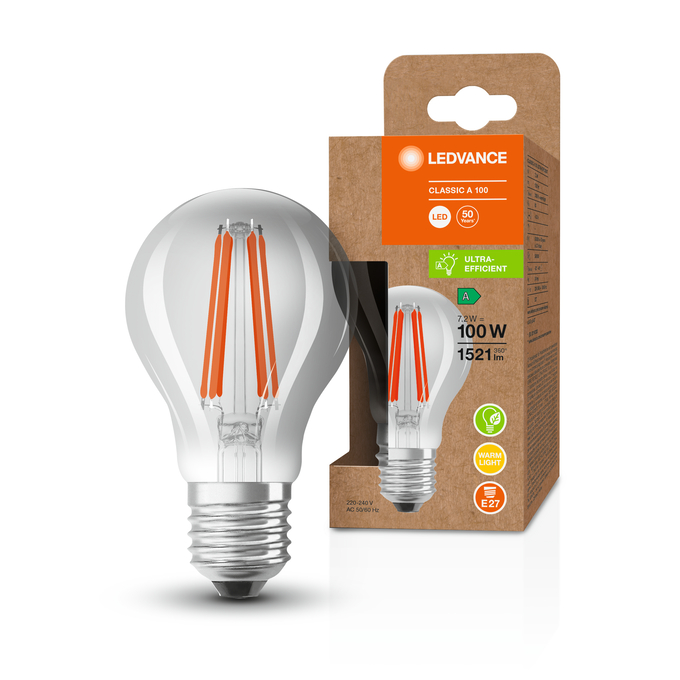

LED Classic A 100 Filament Energy efficiency class A S 7.2W 830 Clear E27
4099854002861
Product benefits
- Lamps with innovative LED "filament" technology
- Low energy consumption
- Design, dimensions, luminous flux comparable to a halogen lamp
- Instant 100 % light, no warm-up time
- Low flickering
Areas of application
- Perfect for decorative installations
- Domestic applications
- General illumination
- Outdoor use in suitable outdoor luminaires only
Product features
- LED lamps for line voltage
- Luminous efficacy: up to 210 lm/W
- Beam angle: up to 300°
- Very long lifetime of up to 50,000 h
- Very high number of switching cycles 500,000
Safety advice
- Do not touch the lamp if broken.
- Must not be used if outer bulb is defective.
References / Links
- For dimming conformity see
- For Guarantee see
Ambient temperature range
-20…+40 °C
Anti-glare shield
No
Base (standard designation)
E27
Beam angle
300 °
Beam angle correspondence
SPHERE_360
Chromaticity coordinate x
0,45
Chromaticity coordinate y
0,437
Claim of equivalent power
Yes
Claimed equiv. conventional lamp power
100 W
Color rendering index Ra
≥80
Color temperature
3000 K
Color-tuneable light source
No
Connected light source (CLS)
No
Construction wattage
7.20 W
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Correlated colour temperature type
SINGLE_VALUE
Design / version
Clear
Diameter
60.00 mm
Dimmable
No
Displacement factor
≥0.7
Energy consumption
8.00 kWh/1000h
Energy efficiency class
A
Envelope
No
EPREL ID
1260026
Flickering metric (Pst LM)
≤1
GTIN
4099854002861
Height
60.00 mm
High luminance light source
No
Inrush current
5.12 A
LED light source replaces a fluorescent light source
No
Length
105.00 mm
Lifespan L70/B50 at 25 °C
50000 h
Light color
830
Light color (designation)
Warm White
Light source cap-type (or other electric interface)
E27
Lighting technology used
LED
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Lumen main.fact.at end of nom.life time
0.96
Lumen maintenance at end of service lifetime
0.96
Luminous efficacy
211 lm/W
Luminous flux
1521 lm
Mains frequency
50/60 Hz
Mains or non-mains
MLS
Max. lamp number on MCB B10 A
87
Max. lamp number on MCB B16 A
140
Maximum diameter
60 mm
Maximum temperature at tc test point
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Model number
AC43727,AC43727
Networked standby power for CLS
not applicable
Nominal current
59 mA
Nominal useful luminous flux 90°
1521 lm
Nominal voltage
220…240 V
Nominal wattage
7.2 W
Non-directional or directional
NDLS
Number of switching cycles
500000
Operating frequency
50/60 Hz
Operating mode
AC Mains
Order reference
LED CLA100 7,2W
Overall length
105.00 mm
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG0
Power factor λ
≥ 0.53
Product recyclability
Mostly recyclable product 1)
Product weight
31.00 g
Quantity of precious metals
Contains at least 10 mg
Quantity of rare earths
Contains at least 1 mg
R9 Colour rendering index
1
Rated lamp survival factor at 6,000 h
≥ 0.90
Standard deviation of color matching
≤6 sdcm
Standby power
0 W
Starting time
< 0.5 s
Stroboscope effect metric (SVM)
≤0.4
Survival factor
0,90
Temperature range at storage
-20…+80 °C
Total harmonic distortion
125,60 %
Type of current
AC
Type of protection
IP20
Warm-up time (60 %)
‹ 0.50 s
Width
60.00 mm
