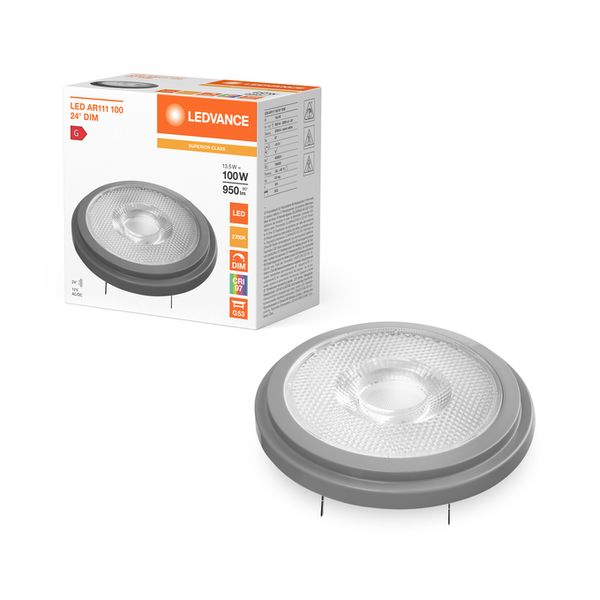

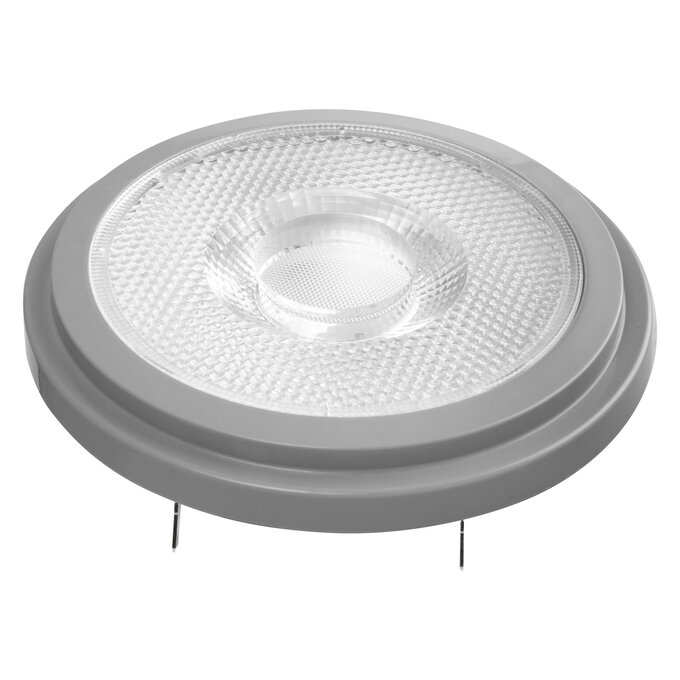

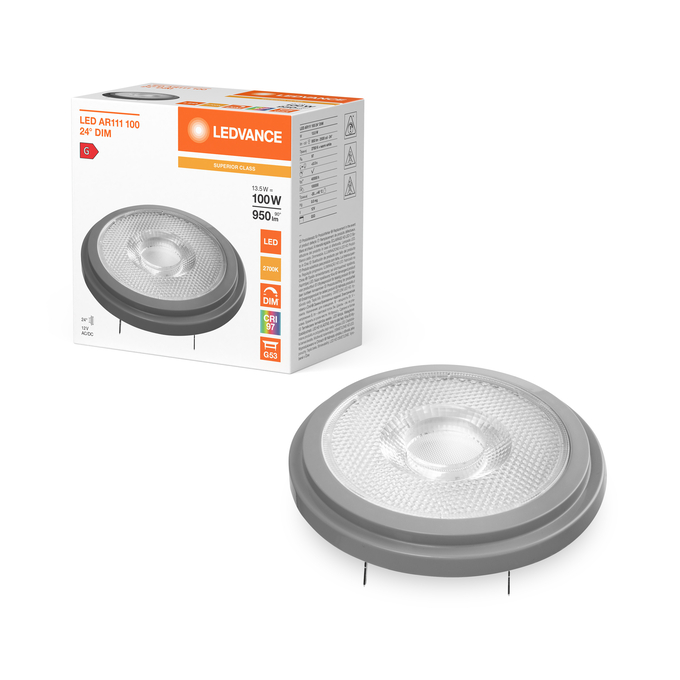

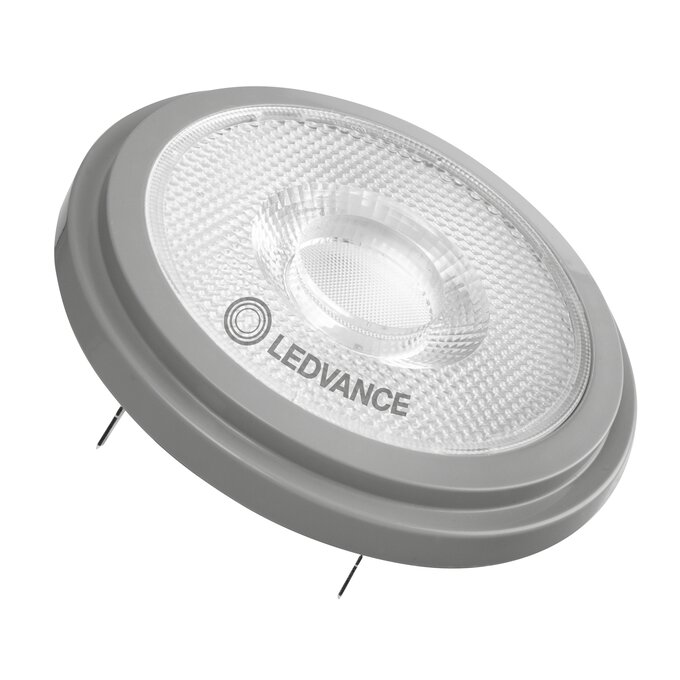

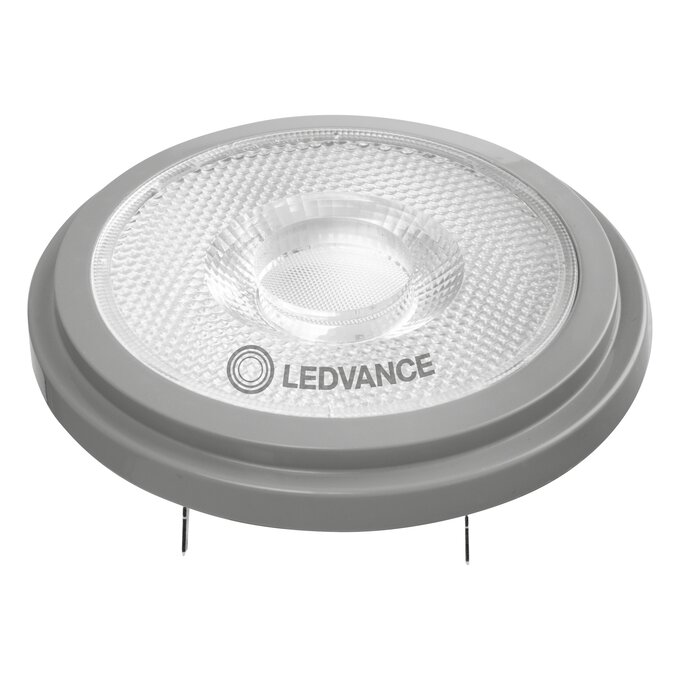

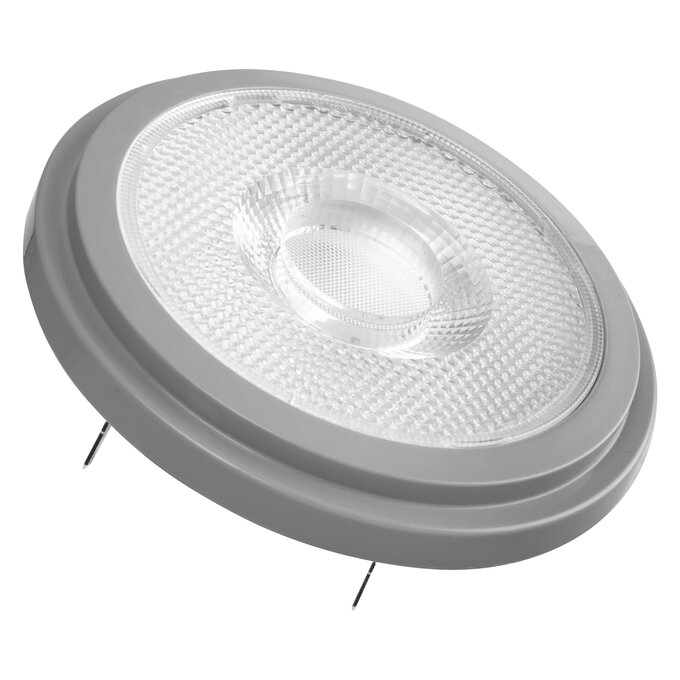

LED AR111 100 24° DIM S 13.5W 927 G53
4099854070655
Product benefits
- Quick, simple and safe replacement without rewiring
- Design, dimensions, luminous flux comparable to an incandescent or halogen lamp
- Low maintenance costs thanks to long lifetime
- No UV and near-IR radiation in the light beam
- Stepless dimming
- Very high dimmer compatibility, see also
- Compatible with many common conventional and electronic control gears (see also )
- Instant 100 % light, no warm-up time
- Lower energy consumption than incandescent or halogen lamps
Areas of application
- Shops and exhibition rooms
- Domestic applications
- Commercial applications
- Accent lighting
- Outdoor use in suitable outdoor luminaires only
Product features
- LED alternative to low voltage halogen lamps
- High color consistency: ≤ 4 SDCM
- Dimmable
- Base: G53
- Excellent color rendering CRI > 97
- Lifetime up to 40,000 h
Safety advice
- Do not touch the lamp if broken.
- Must not be used if outer bulb is defective.
References / Links
- For dimming conformity see
- For further products and actual information concerning LED lamps see
- Further information see
Ambient temperature range
-20…+40 °C
Anti-glare shield
No
Base (standard designation)
G53
Beam angle
24 °
Beam angle correspondence
NARROW_CONE_90
Chromaticity coordinate x
0.4578
Chromaticity coordinate y
0.4101
Claim of equivalent power
Yes
Claimed equiv. conventional lamp power
100 W
Color rendering index Ra
97
Color temperature
2700 K
Color-tuneable light source
No
Connected light source (CLS)
No
Construction wattage
13.50 W
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Additional info can be provided per individual request
Correlated colour temperature type
SINGLE_VALUE
Design / version
Spot
Diameter
110.70 mm
Dimmable
Yes 1)
Displacement factor
＞0.5
Energy consumption
14.00 kWh/1000h
Energy efficiency class
G 1)
Envelope
No
EPREL ID
522963,2366026
Flickering metric (Pst LM)
1.0
GTIN
4099854070655
Height
110.70 mm
High luminance light source
No
Inrush current
23.5 A
LED light source replaces a fluorescent light source
No
Length
55.00 mm
Lifespan L70/B50 at 25 °C
40000 h
Light color
927
Light color (designation)
Warm White
Light source cap-type (or other electric interface)
G53
Lighting technology used
LED
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Lumen main.fact.at end of nom.life time
0.97
Lumen maintenance at end of service lifetime
0.97
Luminous efficacy
70 lm/W
Luminous flux
950 lm
Luminous intensity
2500 cd
Mains or non-mains
NMLS
Max. lamp number on MCB B10 A
25
Max. lamp number on MCB B16 A
32
Maximum diameter
111 mm
Maximum temperature at tc test point
79 °C
Mercury content
0.0 mg
Mercury-free
Yes
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Model number
AC32794,AC32794,AC84506
Nominal current
1200 mA
Nominal useful luminous flux 90°
950 lm
Nominal voltage
12 V
Nominal wattage
13.5 W
Non-directional or directional
DLS
Number of switching cycles
100000
Operating mode
ECG, CCG 1)
Order reference
LED AR11110024
Overall length
55.00 mm
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG1
Power factor λ
≥ 0.50
Product recyclability
Mostly recyclable product 1)
Product remark
All technical parameters apply to the entire la
Product weight
135.00 g
Quantity of precious metals
Contains at least 10 mg
Quantity of rare earths
Contains at least 1 mg
R9 Colour rendering index
1
Rated peak intensity
2500 cd
Standard deviation of color matching
≤4 sdcm
Standby power
0 W
Starting time
< 0.5 s
Stroboscope effect metric (SVM)
0.4
Survival factor
0.90
Temperature range at storage
-20…+80 °C
Total harmonic distortion
< 50 %
Type of current
AC/DC
Type of protection
IP20
Warm-up time (60 %)
‹ 0.50 s
Width
110.70 mm
