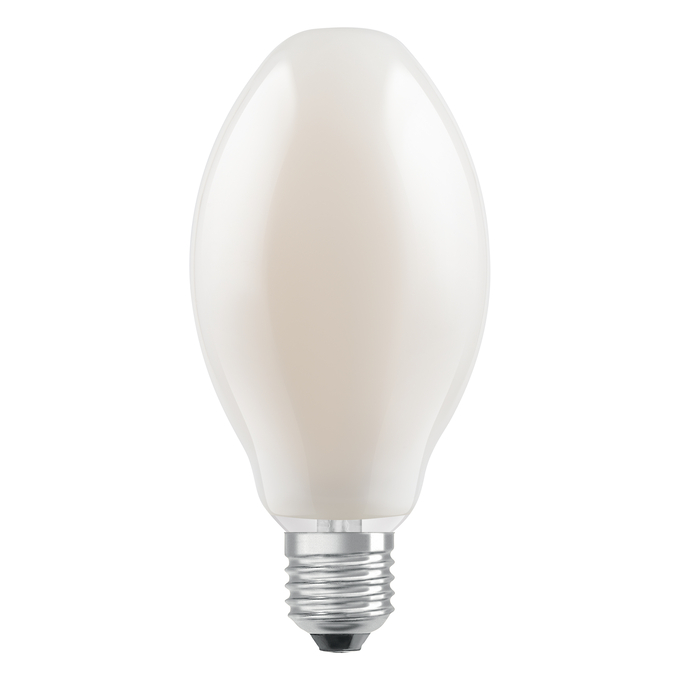

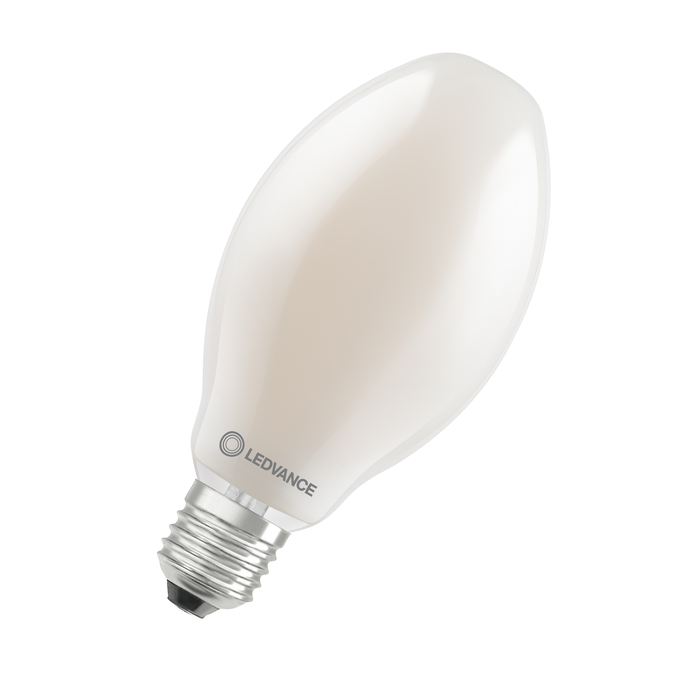

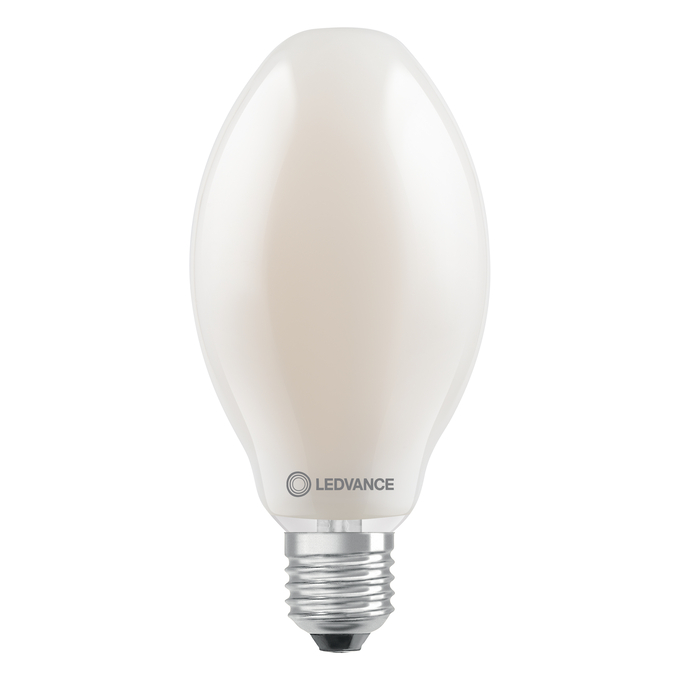

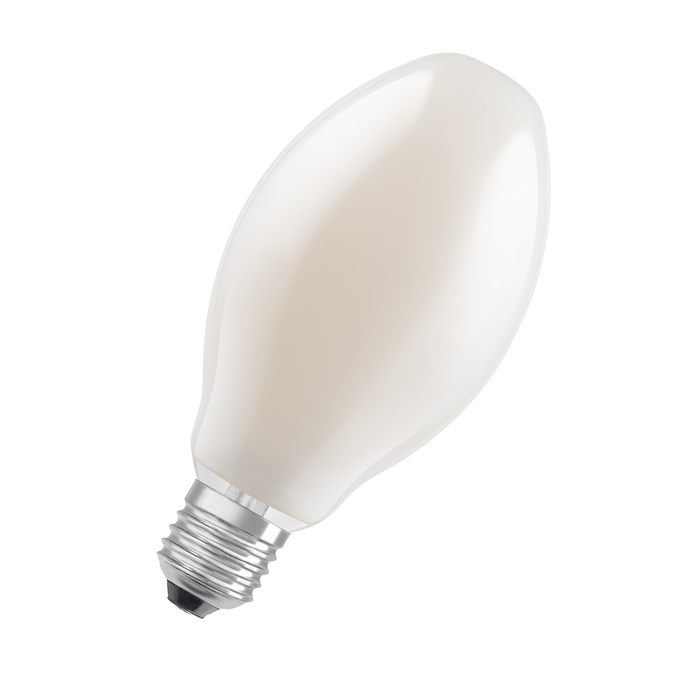

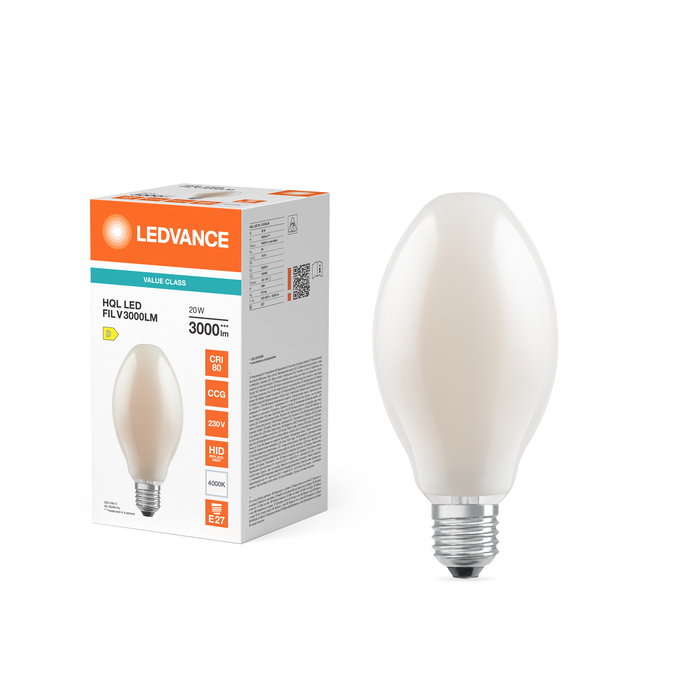

HQL LED FILAMENT VALUE 3000LM 20W 840 E27
4099854071799
Product benefits
- Same design as traditional HQL lamps with frosted, ellipsoid full glass bulb
- Full use of reflector of existing luminaire thanks to 360 degree beam angle
- Saves up to 78 % energy when used as replacement for mercury vapor lamps (HQL)
- Instant 100 % light, no warm-up time
Areas of application
- Streets
- Area lighting
- Pedestrian zones
- Parks
- Outdoor applications only in suitable luminaires
Product features
- Replacement for HQL: Suitable for operation with conventional control gear (CCG) for HQL or 230 V mains
- Replacement for other HID: Suitable for operation with line voltage without control gear
- Power factor: 0.9
- Type of protection: IP65
- Surge protection: up to 2 kV (L-N)
- ENEC-certified safety
Safety advice
- Not suitable for operation with ignitors.
- Operation on the capacitor can lead to a reduction of the power factor of the system.
- When installed horizontally, the tc point of the lamp is located on the top side of the lamp.
- 38W/60W: do not use in enclosed luminaires in indoor applications.
- Only suitable for temperatures of up to 50 °C inside of the luminaire. Use in tight luminaires and luminaires with tight reflectors not recommended.
- All electrical connections must be made by a qualified person.
Ambient temperature range
-20…+50 °C 1)
Anti-glare shield
No
Base (standard designation)
E27
Beam angle
360 °
Beam angle correspondence
SPHERE_360
Chromaticity coordinate x
0.382
Chromaticity coordinate y
0,38
Claim of equivalent power
No
Claimed equiv. conventional lamp power
80 W
Color rendering index Ra
80
Color temperature
4000 K
Color-tuneable light source
No
Connected light source (CLS)
No
Construction wattage
20.00 W
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Correlated colour temperature type
SINGLE_VALUE
Diameter
75.00 mm
Dimmable
No
Displacement factor
0.9
Energy consumption
20.00 kWh/1000h
Energy efficiency class
D 1)
Envelope
No
EPREL ID
1371164
Flickering metric (Pst LM)
1
GTIN
4099854071799
Height
75.00 mm
High luminance light source
No
Inrush current
4.6 A
LED light source replaces a fluorescent light source
No
Length
151.00 mm
Lifespan L70/B50 at 25 °C
25000 h
Light color
840
Light color (designation)
Cool White
Light source cap-type (or other electric interface)
E27
Lighting technology used
LED
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Lumen main.fact.at end of nom.life time
0.70
Lumen maintenance at end of service lifetime
0.70
Luminous efficacy
150 lm/W
Luminous flux
3000 lm
Luminous intensity
Not relevant
Mains frequency
50/60 Hz
Mains or non-mains
MLS
Max. lamp number on MCB B10 A
20
Max. lamp number on MCB B10 A - CCG with compensation
8
Max. lamp number on MCB B10 A - CCG without compensation
20
Max. lamp number on MCB B16 A
25
Max. lamp number on MCB B16 A - CCG with compensation
14
Max. lamp number on MCB B16 A - CCG without compensation
25
Maximum diameter
75 mm
Maximum temperature at tc test point
80 °C
Mercury content
0.0 mg
Mercury-free
Yes
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Model number
AC46351,AC46351,AC46351
Nominal current
89 mA
Nominal useful luminous flux 90°
3000 lm
Nominal voltage
220…240 V
Nominal wattage
20 W
Non-directional or directional
NDLS
Number of switching cycles
100000
Operating frequency
50/60 Hz
Operating mode
CCG, AC Mains
Order reference
HQL LED FIL V 3
Overall length
151.00 mm
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG1
Power factor λ
> 0.90
Product recyclability
Mostly recyclable product 1)
Product weight
83.00 g
Quantity of precious metals
Contains at least 10 mg
Quantity of rare earths
Contains at least 1 mg
R9 Colour rendering index
1
Rated lamp survival factor at 6,000 h
≥ 0.90
Rated LLMF at 6,000 h
0.80
Standard deviation of color matching
≤6 sdcm
Starting time
< 0.5 s
Stroboscope effect metric (SVM)
0,4
Surge capability (L-N)
2 kV
Survival factor
0.9
Temperature range at storage
-20…+80 °C
Total harmonic distortion
15 %
Type of current
AC
Type of protection
IP65
Warm-up time (60 %)
‹ 0.50 s
Width
75.00 mm
