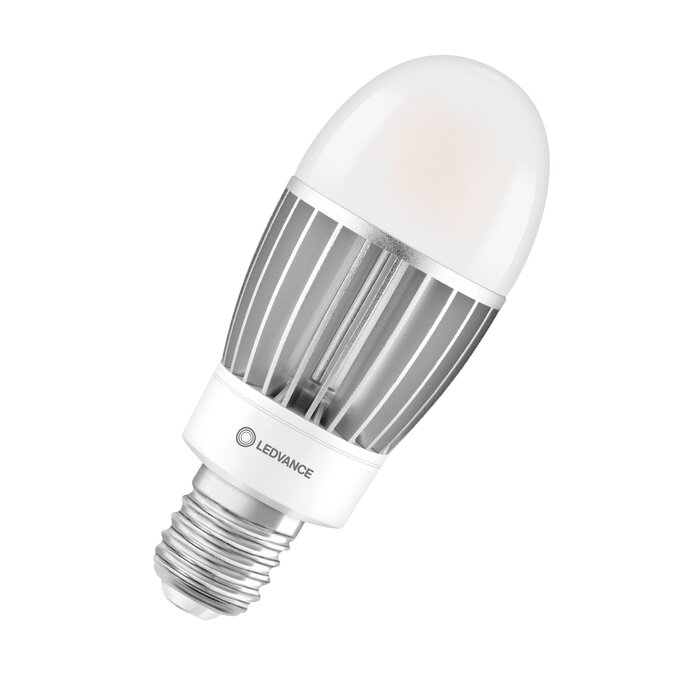

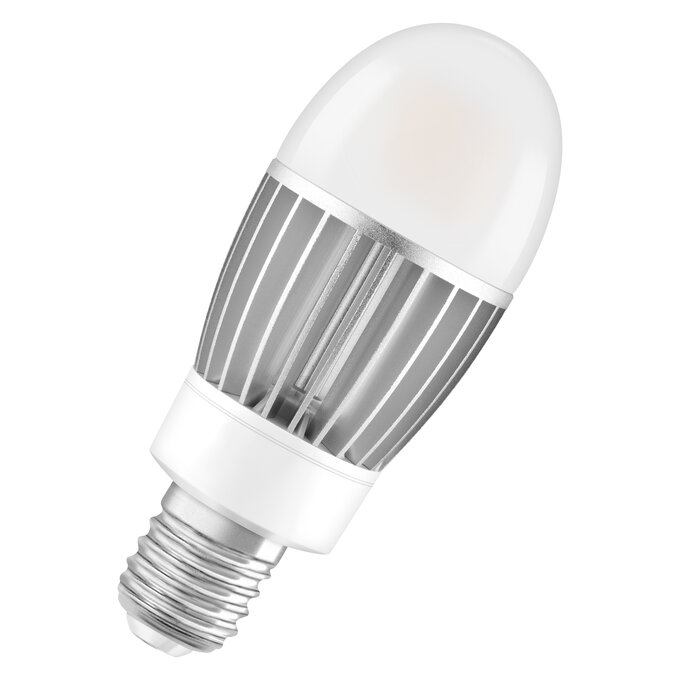

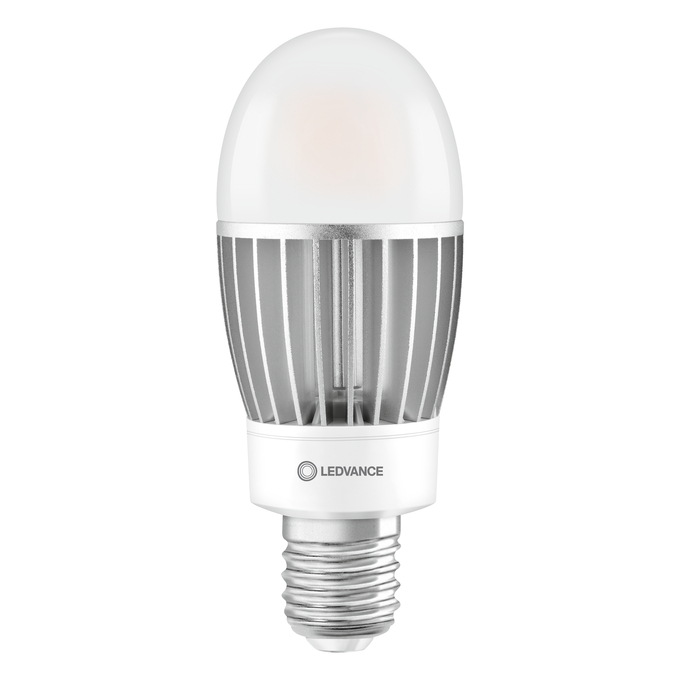

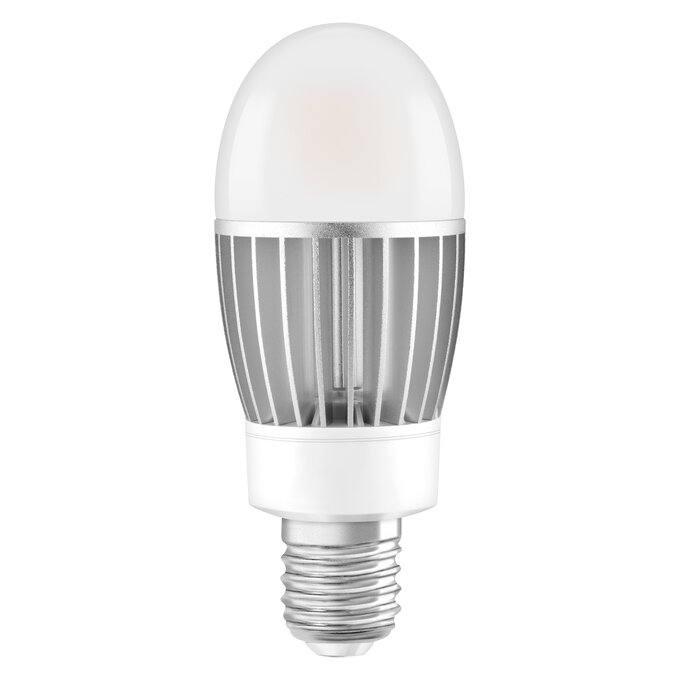

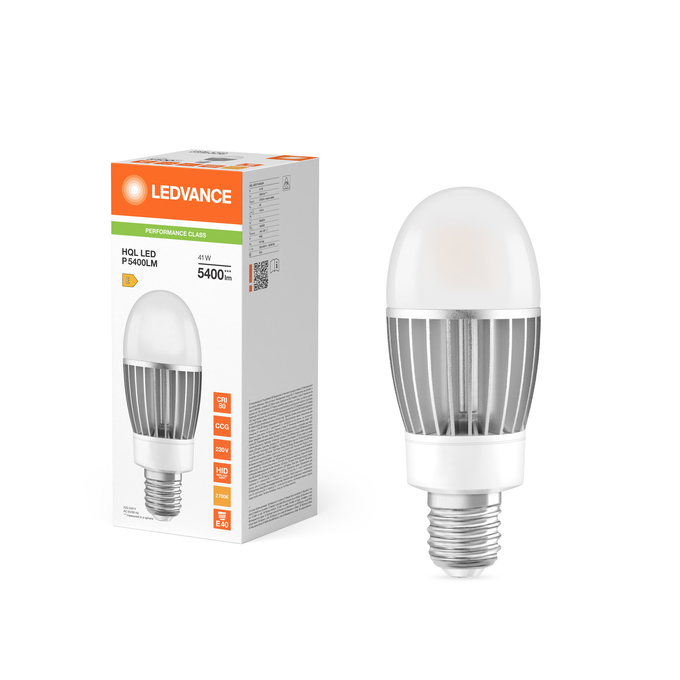

HQL LED ALU PERFORMANCE 5400LM 41W 827 E40
4099854040764
Product benefits
- Saves up to 78 % energy when used as replacement for mercury vapor lamps (HQL)
- Low maintenance costs thanks to long lifetime
- Instant 100 % light, no warm-up time
Areas of application
- Streets
- Area lighting
- Pedestrian zones
- Parks
- Outdoor applications only in suitable luminaires
Product features
- Replacement for HQL: Suitable for operation with conventional control gear (CCG) for HQL or 230 V mains
- Replacement for other HID: Suitable for operation with line voltage without control gear
- Power factor: 0.9
- Type of protection: IP65
- High surge protection: up to 6 kV (L-N)
- ENEC-certified safety
Safety advice
- The bulb may be larger and heavier than the replaced bulb. Before installation it must be checked, if the luminaire and especially the holder is capable of carrying the weight of the lamp. For 90 W types the safety rope included in the packaging needs to be installed.
- Not suitable for operation with ignitors.
- Operation on the capacitor can lead to a reduction of the power factor of the system.
- When installed horizontally, the tc point of the lamp is located on the top side of the lamp.
- Use in tight luminaires and luminaires with tight reflectors not recommended.
- All electrical connections must be made by a qualified person.
Ambient temperature range
-40…+60 °C 1)
Anti-glare shield
No
Base (standard designation)
E40
Beam angle
360 °
Beam angle correspondence
SPHERE_360
Chromaticity coordinate x
0.458
Chromaticity coordinate y
0.,410
Claim of equivalent power
No
Claimed equiv. conventional lamp power
125 W
Color rendering index Ra
80
Color temperature
2700 K
Color-tuneable light source
No
Connected light source (CLS)
No
Construction wattage
41.00 W
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Correlated colour temperature type
SINGLE_VALUE
Diameter
80.00 mm
Dimmable
No
Displacement factor
0.9
Energy consumption
41.00 kWh/1000h
Energy efficiency class
E 1)
Envelope
No
EPREL ID
1157793
Flickering metric (Pst LM)
1
GTIN
4099854040764
Height
80.00 mm
High luminance light source
No
Inrush current
16.8 A
LED light source replaces a fluorescent light source
No
Length
202.00 mm
Lifespan L70/B50 at 25 °C
60000 h
Light color
827
Light color (designation)
Warm White
Light source cap-type (or other electric interface)
E40
Lighting technology used
LED
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1)
Lumen main.fact.at end of nom.life time
0.70
Lumen maintenance at end of service lifetime
0.70
Luminous efficacy
131 lm/W
Luminous flux
5400 lm
Luminous intensity
Not relevant
Mains frequency
50/60 Hz
Mains or non-mains
MLS
Max. lamp number on MCB B10 A
33
Max. lamp number on MCB B10 A - CCG with compensation
23
Max. lamp number on MCB B10 A - CCG without compensation
26
Max. lamp number on MCB B16 A
52
Max. lamp number on MCB B16 A - CCG with compensation
37
Max. lamp number on MCB B16 A - CCG without compensation
42
Maximum temperature at tc test point
105 °C
Mercury content
0.0 mg
Mercury-free
Yes
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Model number
AC41495,AC41495
Nominal current
190 mA
Nominal useful luminous flux 90°
5400 lm
Nominal voltage
220…240 V
Nominal wattage
41 W
Non-directional or directional
NDLS
Number of switching cycles
100000
Operating frequency
50/60 Hz
Operating mode
CCG, AC Mains
Order reference
HQL LED P 5400L
Overall length
202.00 mm
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG0
Power factor λ
> 0.90
Product recyclability
Mostly recyclable product 1)
Product weight
470.00 g
Quantity of precious metals
Contains at least 10 mg
Quantity of rare earths
Contains at least 1 mg
R9 Colour rendering index
0.00
Rated lamp survival factor at 6,000 h
≥ 0.90
Rated LLMF at 6,000 h
0.80
Standard deviation of color matching
≤6 sdcm
Starting time
< 0.5 s
Stroboscope effect metric (SVM)
0.4
Surge capability (L-N)
6 kV
Survival factor
0.9
Temperature range at storage
-40…+80 °C
Total harmonic distortion
20 %
Type of current
AC
Type of protection
IP65
Warm-up time (60 %)
‹ 0.50 s
Width
80.00 mm
