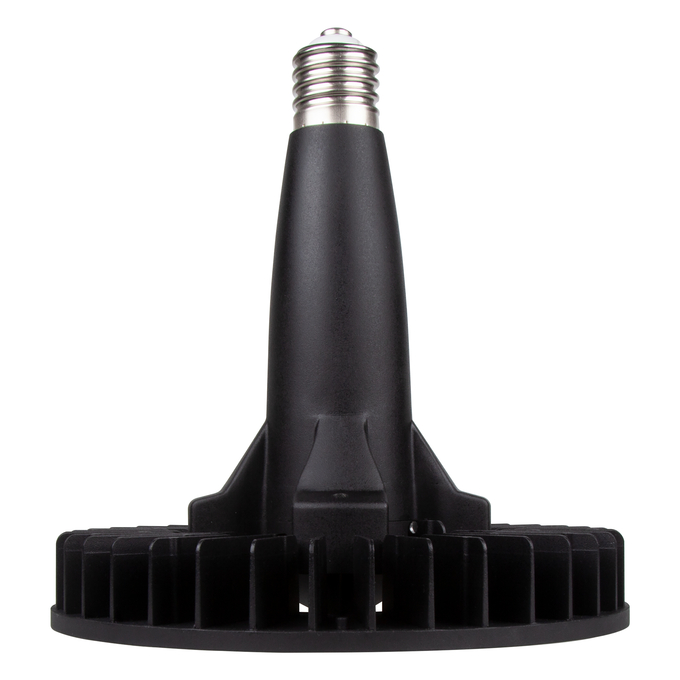

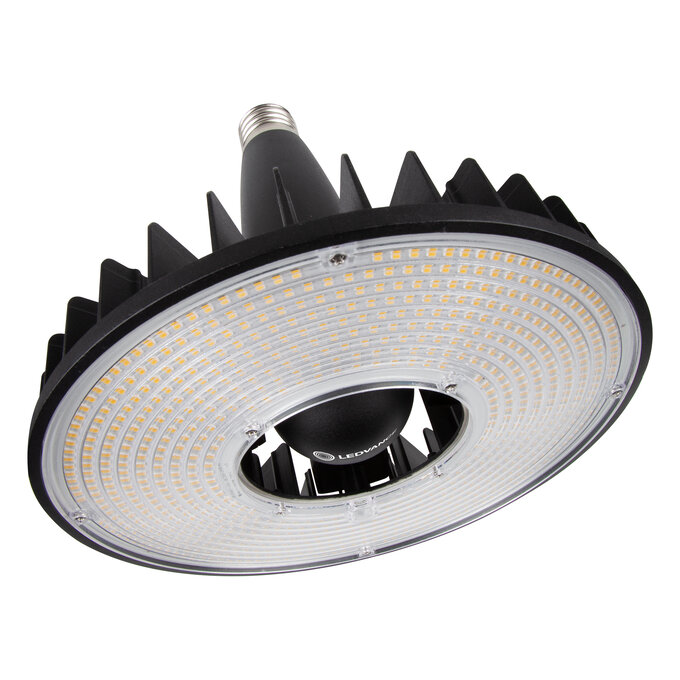

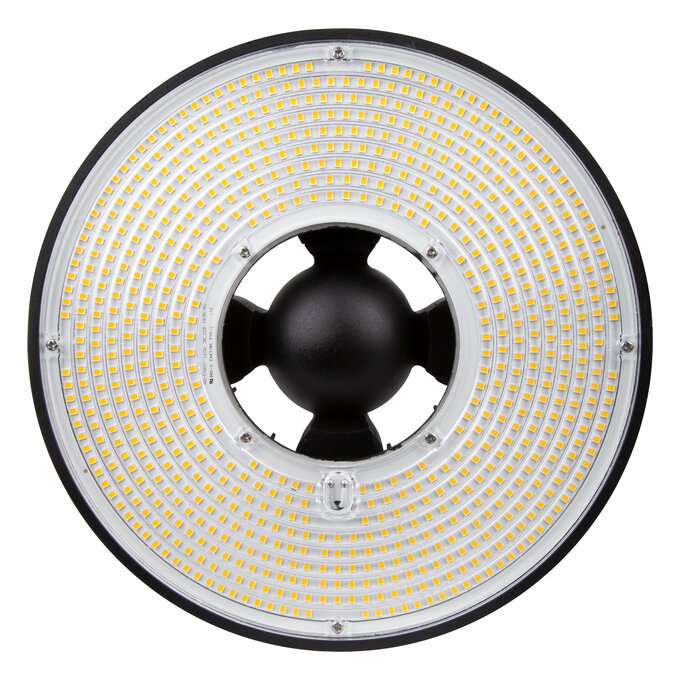

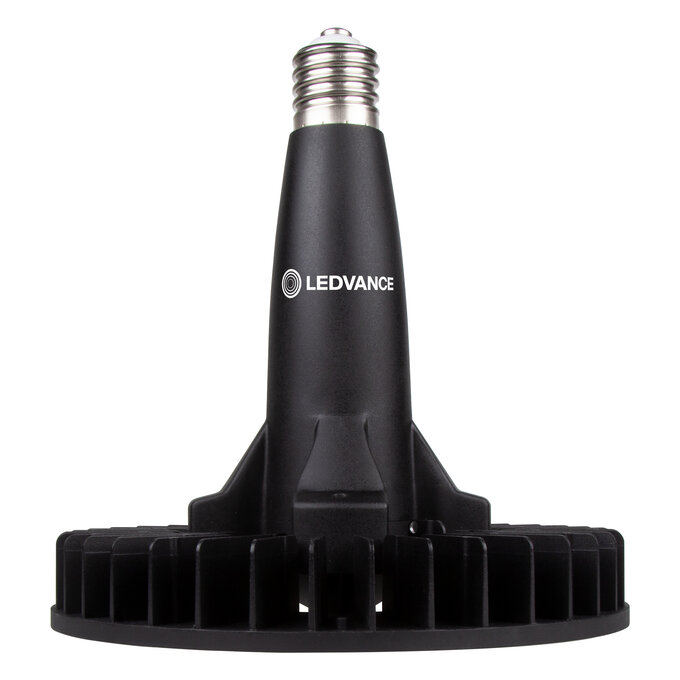

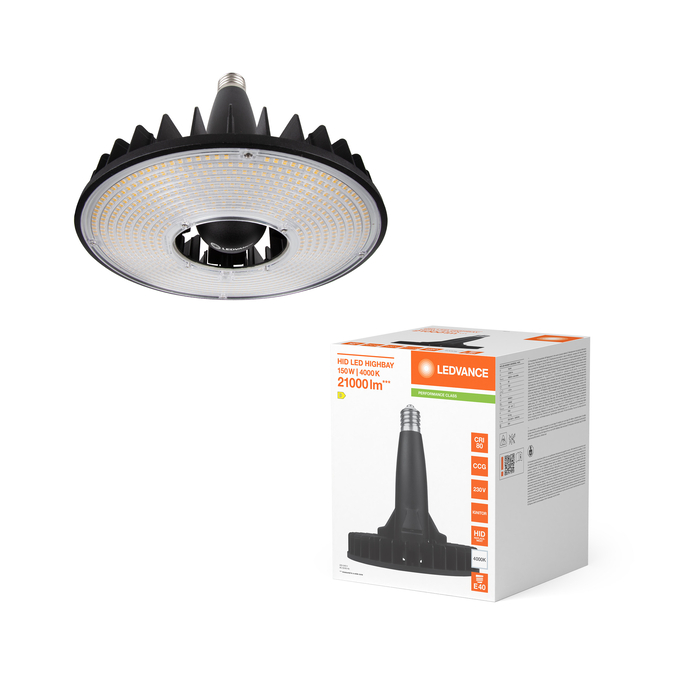

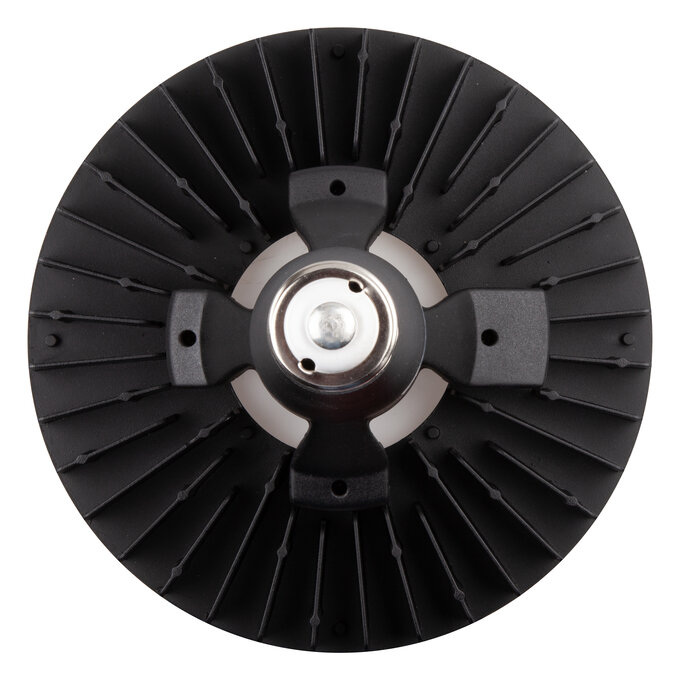

HID LED HIGHBAY UNIVERSAL PERFORMANCE 21000 LM 150W 840 E40
4058075780408
Product benefits
- Direct replacement for traditional HID lamps thanks to CCG and ignitor compatibility
- Operation on AC mains for highest energy efficiency possible
- Energy savings of up to 68 % when replacing traditional HQI lamps
- Effective thermal management for wide operating temperature range
- Low maintenance costs thanks to long lifetime
- Instant 100 % light, no warm-up time
Areas of application
- LED alternative for applications requiring a high luminous flux
- Industrial and storage facilities
- Outdoor applications only in suitable luminaires
Product features
- Type of protection: IP40
- High surge protection: up to 4 kV (L-N)
Equipment / Accessories
- Safety sling for lamp included
Safety advice
- The bulb may be larger and heavier than the replaced bulb. Before installation it must be checked, if the luminaire and especially the holder is capable of carrying the weight of the lamp. Safety sling has to be installed.
- To ensure full light efficiency and product lifetime, it is recommended to detach any glass or cover of the luminaire.
- Only suitable for temperatures of up to 50 °C inside of the luminaire.
- Not suitable for operation with electronic control gear.
- All electrical connections must be made by a qualified person.
Ambient temperature range
-40…+50 °C 1)
Anti-glare shield
No
Base (standard designation)
E40
Beam angle
100 °
Beam angle correspondence
WIDE_CONE_120
Chromaticity coordinate x
0.382
Chromaticity coordinate y
0.38
Claim of equivalent power
No
Claimed equiv. conventional lamp power
400 W
Color rendering index Ra
80
Color temperature
4000 K
Color-tuneable light source
No
Connected light source (CLS)
No
Construction wattage
150.00 W
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Correlated colour temperature type
SINGLE_VALUE
Diameter
250.00 mm
Dimmable
No
Displacement factor
0.9
Energy consumption
150.00 kWh/1000h
Energy efficiency class
D 1)
Envelope
No
EPREL ID
1160650
Flickering metric (Pst LM)
1
GTIN
4058075780408
Height
250.00 mm
High luminance light source
No
Inrush current
5.84 A
LED light source replaces a fluorescent light source
No
Length
263.00 mm
Lifespan L70/B50 at 25 °C
50000 h
Light color
840
Light color (designation)
Cool White
Light source cap-type (or other electric interface)
E40
Lighting technology used
LED
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1)
Lumen main.fact.at end of nom.life time
0.70
Lumen maintenance at end of service lifetime
0.70
Luminous efficacy
140 lm/W
Luminous flux
21000 lm
Luminous intensity
9402 cd
Mains frequency
50/60 Hz
Mains or non-mains
MLS
Max. lamp number on MCB B10 A
8
Max. lamp number on MCB B10 A - CCG with compensation
6
Max. lamp number on MCB B10 A - CCG without compensation
7
Max. lamp number on MCB B16 A
15
Max. lamp number on MCB B16 A - CCG with compensation
10
Max. lamp number on MCB B16 A - CCG without compensation
11
Maximum temperature at tc test point
90 °C
Mercury content
0.0 mg
Mercury-free
Yes
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Model number
AC41485,AC41485
Nominal current
700 mA
Nominal useful luminous flux 90°
21000 lm
Nominal voltage
220…240 V
Nominal wattage
150 W
Non-directional or directional
DLS
Number of switching cycles
100000
Operating frequency
50/60 Hz
Operating mode
CCG, AC Mains, ignitor
Order reference
HID LED HB 150W
Overall length
263.00 mm
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG1
Power factor λ
> 0.90
Product recyclability
Mostly recyclable product 1)
Product weight
1380.00 g
Quantity of precious metals
Contains at least 10 mg
Quantity of rare earths
Contains at least 1 mg
R9 Colour rendering index
1
Rated lamp survival factor at 6,000 h
≥ 0.90
Rated LLMF at 6,000 h
0.80
Rated peak intensity
9402 cd
Standard deviation of color matching
≤6 sdcm
Standby power
0.00 W
Starting time
< 0.5 s
Stroboscope effect metric (SVM)
0,4
Surge capability (L-N)
4 kV
Survival factor
0,90
Temperature range at storage
-40…+80 °C
Total harmonic distortion
20 %
Type of current
AC
Type of protection
IP40
Warm-up time (60 %)
‹ 0.50 s
Width
250.00 mm
