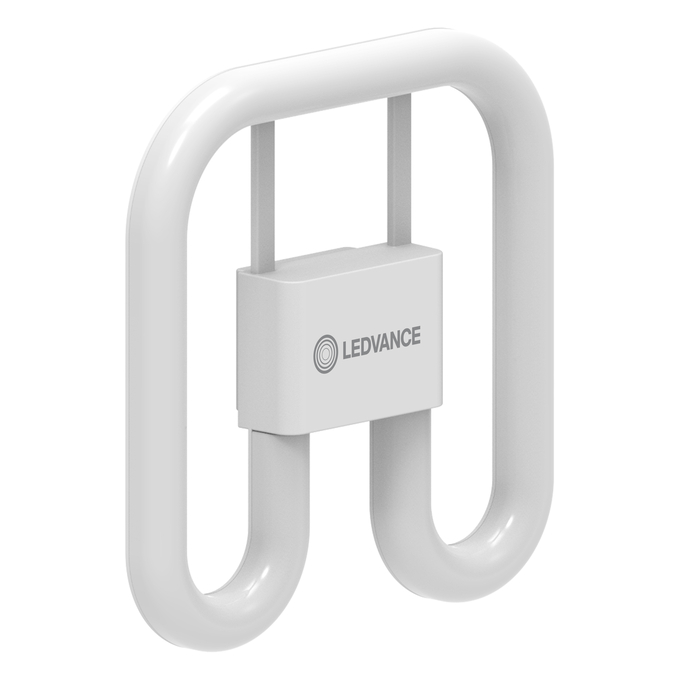

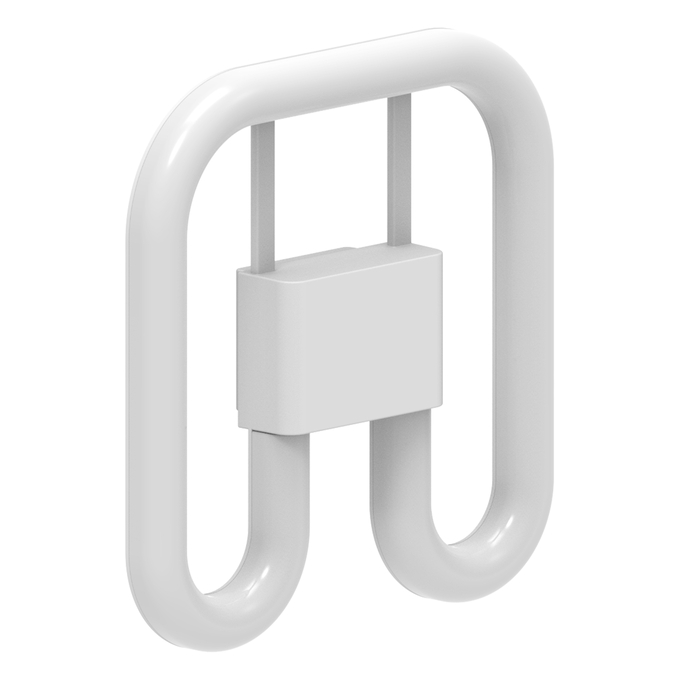

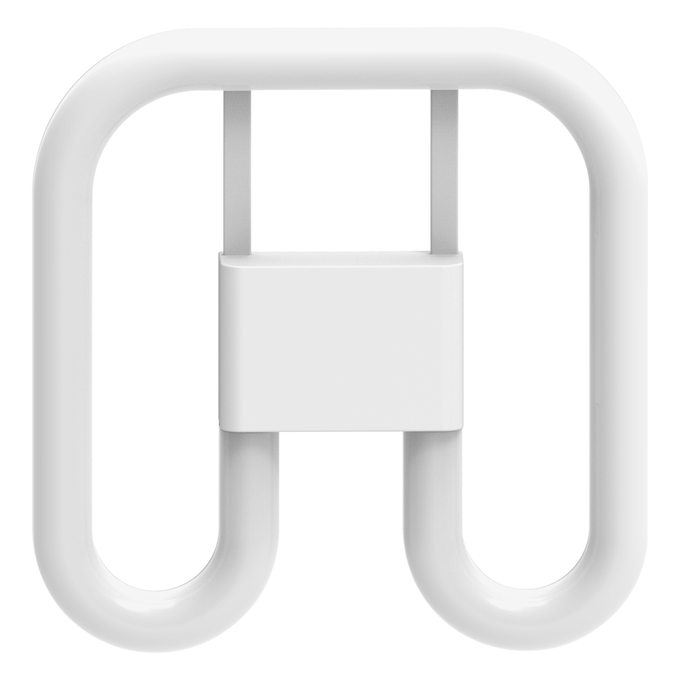

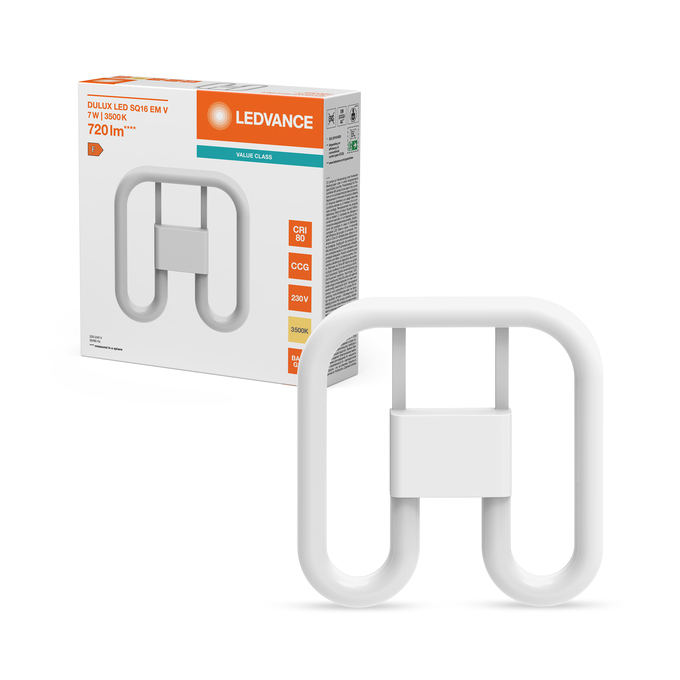

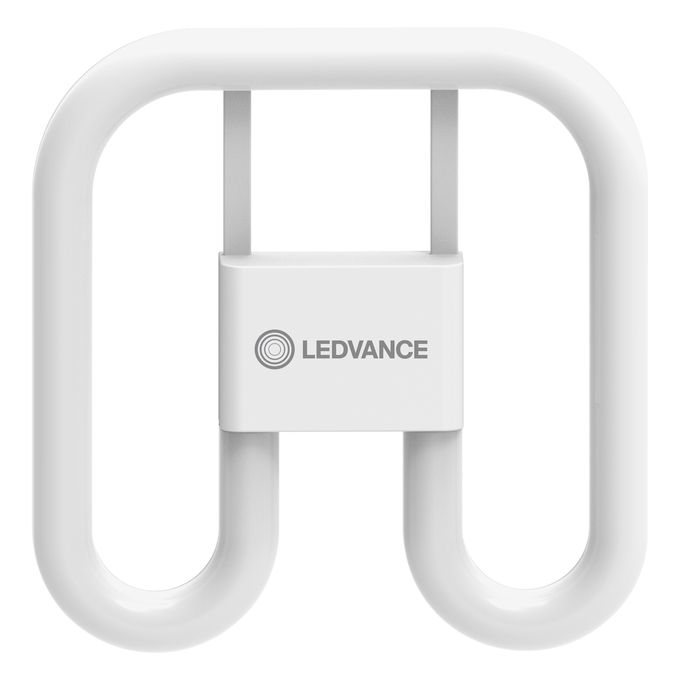

DULUX LED SQ16 EM 2 PINS VALUE 7W 835 GR8
4058075822559
Product benefits
- Easy installation
- Low energy consumption
- Easy relamping thanks to compact design
- Operation directly on 230 V AC mains possible
Areas of application
- General illumination within ambient temperatures from -20…+45 °C
- Supermarkets and department stores
- Walkways and corridors
- Hotels, restaurants
Product features
- LED replacement for conventional compact fluorescent lamps for use in CCG luminaires or on AC mains
- Lifetime up to 30,000 h
- Single-ended two-pin plug-in GR8 base
- Type of protection: IP20
- Mercury-free lamps
Safety advice
- Not suitable for tandem operation.
- The operating temperature range of DULUX LED is restricted. In case of doubt regarding suitability of the application please measure Tc temperature on the product prior to installation.
- All electrical connections must be made by a qualified person.
- Do not touch the lamp with bare fingers.
- Must not be used if outer bulb is defective.
- Lamp not suitable for emergency operation.
Ambient temperature range
-20…+45 °C 1)
Anti-glare shield
No
Base (standard designation)
GR8
Beam angle
130 °
Beam angle correspondence
SPHERE_360
Chromaticity coordinate x
0.407
Chromaticity coordinate y
0.392
Claim of equivalent power
No
Claimed equiv. conventional lamp power
16 W
Color rendering index Ra
80
Color temperature
3500 K
Color-tuneable light source
No
Connected light source (CLS)
No
Construction wattage
7.00 W
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Additional info can be provided per individual request
Correlated colour temperature type
SINGLE_VALUE
Design / version
Frosted
Diameter
134.00 mm
Dimmable
No
Displacement factor
0.90
Energy consumption
7.00 kWh/1000h
Energy efficiency class
F 1)
Envelope
No
EPREL ID
1404785,2059897
Flickering metric (Pst LM)
1.0
GTIN
4058075822559
Height
134.00 mm
High luminance light source
No
Input voltage DC
186…260 V 1)
Inrush current
4 A
LED light source replaces a fluorescent light source
No
Length
137.10 mm
Lifespan L70/B50 at 25 °C
30000 h
Light color
835
Light color (designation)
Warm White
Light source cap-type (or other electric interface)
GR8
Lighting technology used
LED
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Lumen main.fact.at end of nom.life time
0.70
Lumen maintenance at end of service lifetime
0.70
Luminous efficacy
102 lm/W
Luminous flux
720 lm
Mains frequency
50/60 Hz
Mains or non-mains
MLS
Max. lamp number on MCB B10 A
112
Max. lamp number on MCB B10 A - CCG with compensation
30
Max. lamp number on MCB B10 A - CCG without compensation
45
Max. lamp number on MCB B16 A
180
Max. lamp number on MCB B16 A - CCG with compensation
48
Max. lamp number on MCB B16 A - CCG without compensation
72
Maximum diameter
13 mm
Maximum temperature at tc test point
70 °C
Mercury content
0.0 mg
Mercury-free
Yes
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Model number
AC46463,AC64989,AC64989
Nominal current
30 mA
Nominal voltage
220…240 V
Nominal wattage
7 W
Non-directional or directional
NDLS
Number of switching cycles
200000
Operating frequency
50/60 Hz
Operating mode
CCG, AC Mains
Order reference
DULUX LED SQ16
Overall length
137.10 mm
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG0
Product recyclability
Mostly recyclable product 1)
Product weight
71.00 g
Quantity of precious metals
Contains at least 10 mg
Quantity of rare earths
Contains at least 1 mg
R9 Colour rendering index
1
Standard deviation of color matching
≤6 sdcm
Standby power
0 W
Starting time
< 0.5 s
Stroboscope effect metric (SVM)
0.4
Suitable for DC input
Yes
Survival factor
0.90
Temperature range at storage
-20…+80 °C
Total harmonic distortion
≤ 30 %
Tube diameter
13 mm
Type of current
AC
Type of protection
IP20
Width
134.00 mm
