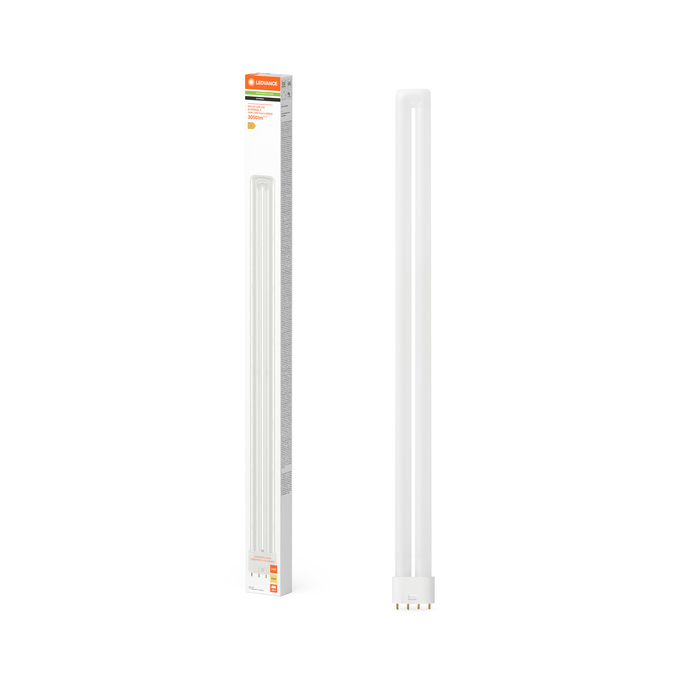

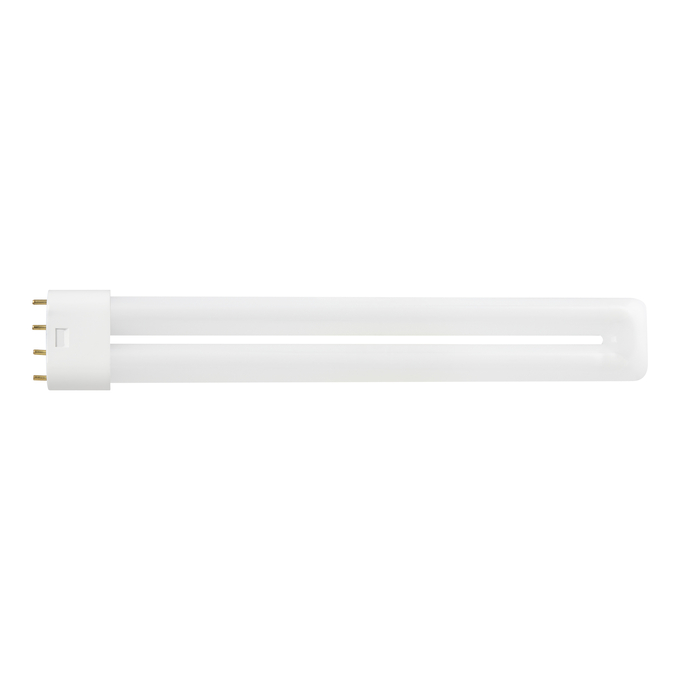

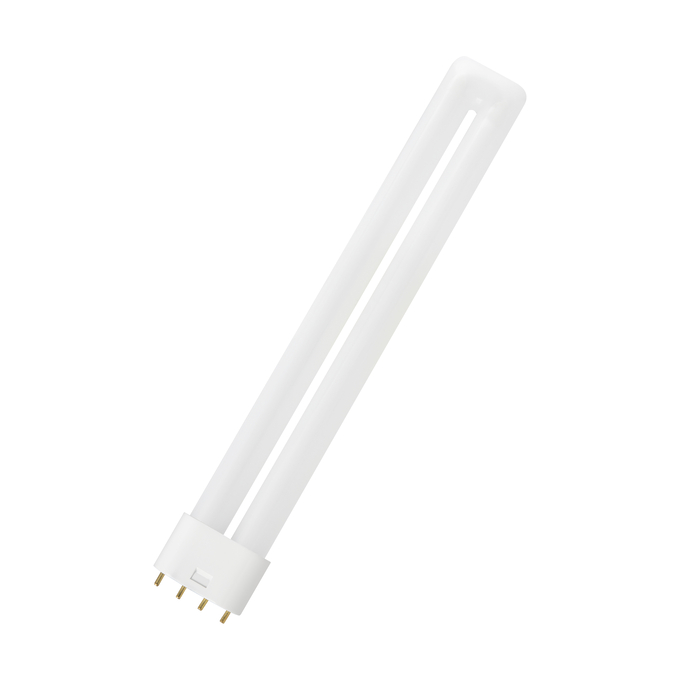

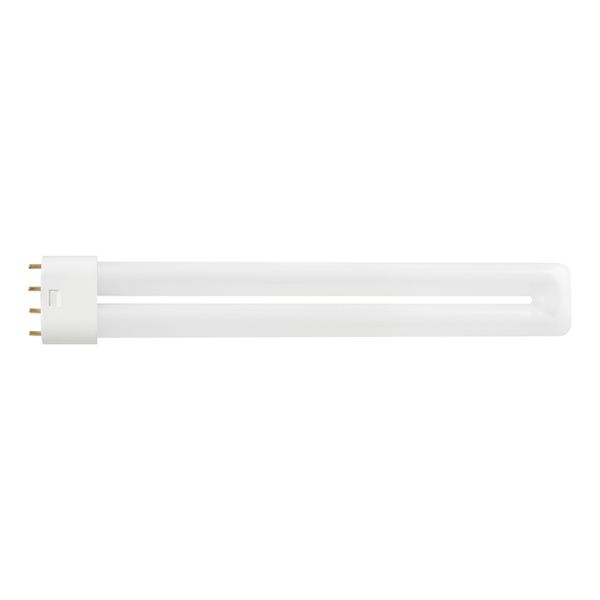

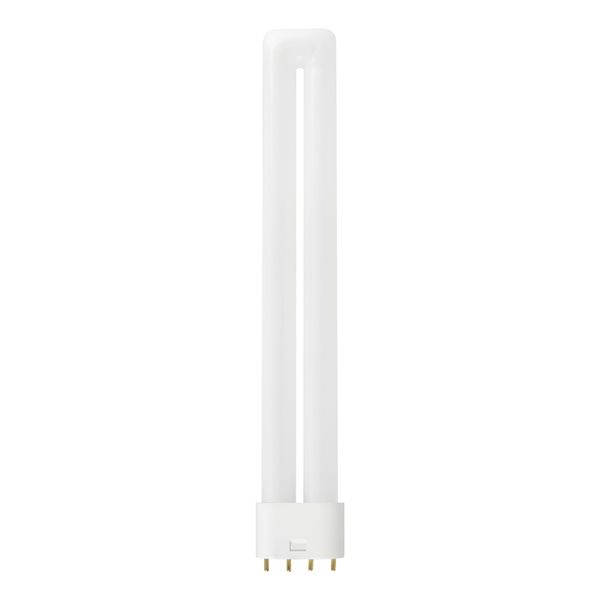

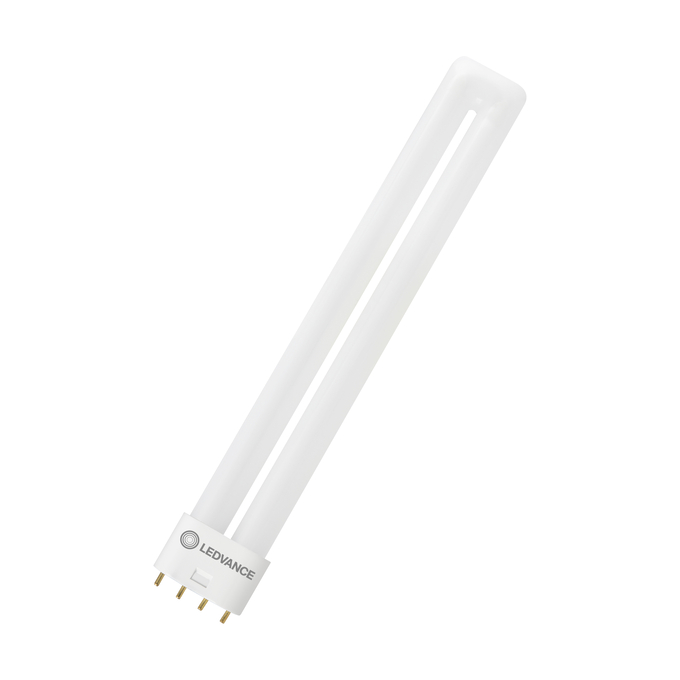

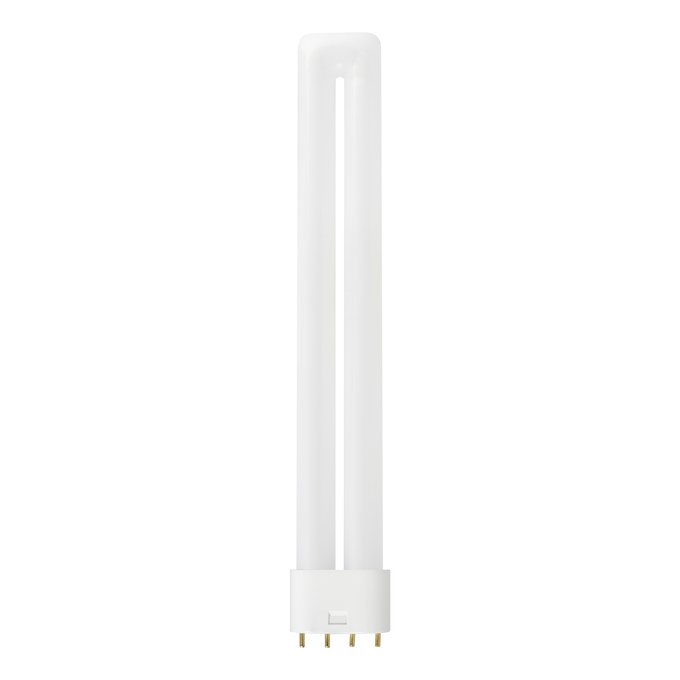

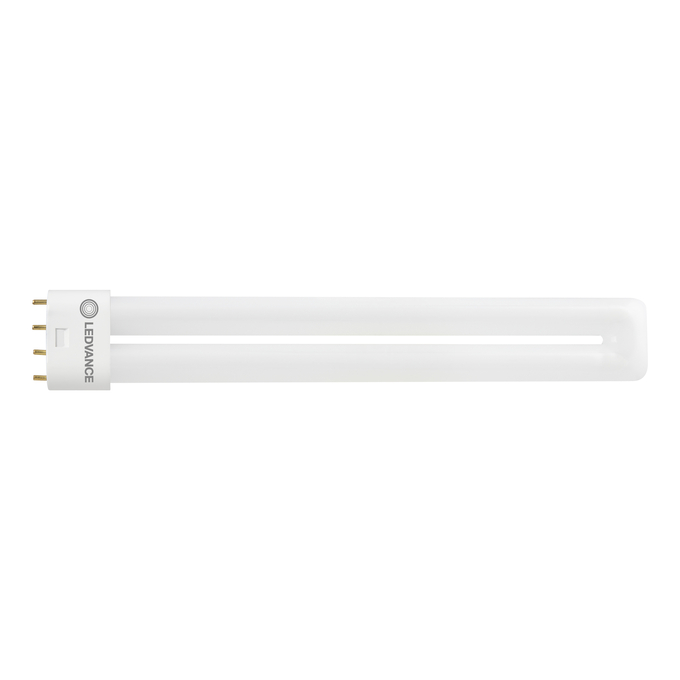

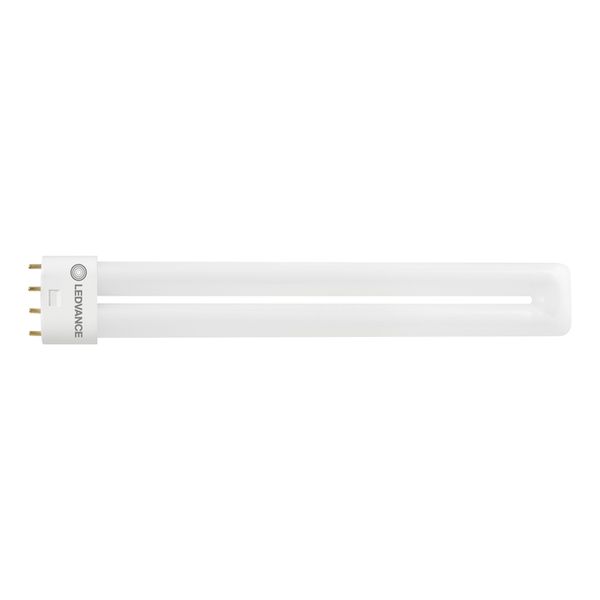

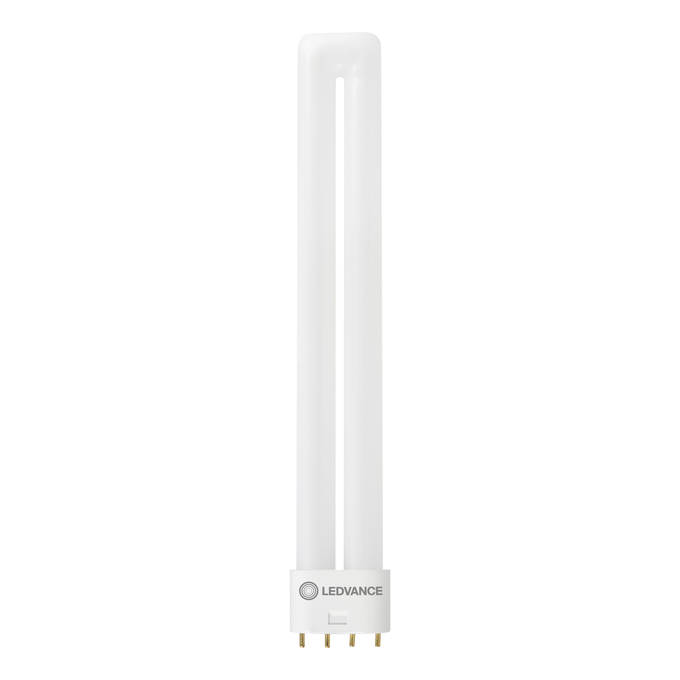

DULUX LED L55 EXTERNAL PERFORMANCE 24W 830 2G11
4099854495571
Product benefits
- Simple and quick upgrade to dimmable LED system
- Hassle free application, no ballast compatibility check necessary
- Easy installation with fast connection
Areas of application
- Shops, hotels and restaurants
- Public buildings
Product features
- LED replacement for conventional compact fluorescent lamps 2G11 base
- Conventional form factor fits into existing luminaires
- Long lifetime up to 50,000 h
- Compatible with LED driver DR DALI-P -30/220-240/700 (4058075845367)
- Compatible with LED DRIVER LED TUBE EXTERNAL DALI P (4099854295157, 4099854295171)
- Quality dimming of 1…100 %
Safety advice
- Operation in outdoor applications in suitable damp-proof luminaires possible according to data sheet and installation instruction.
- In case of doubt regarding suitability of the application please measure Tc max temperature on the product prior to installation.
- Disconnect mains before installation.
References / Links
- For Guarantee see
Ambient temperature range
-20…+50 °C 1)
Anti-glare shield
No
Base (standard designation)
2G11
Beam angle
140 °
Beam angle correspondence
SPHERE_360
Chromaticity coordinate x
0,433
Chromaticity coordinate y
0,403
Claim of equivalent power
No
Claimed equiv. conventional lamp power
55 W
Color rendering index Ra
80
Color temperature
3000 K
Color-tuneable light source
No
Connected light source (CLS)
No
Construction wattage
24.00 W
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Correlated colour temperature type
SINGLE_VALUE
Diameter
43.60 mm
Dimmable
Yes
Displacement factor
0.90
Energy consumption
24.00 kWh/1000h
Energy efficiency class
E 1)
Envelope
No
EPREL ID
2200747
Flickering metric (Pst LM)
GTIN
4099854495571
Height
43.60 mm
High luminance light source
No
Input voltage DC
< 60 V
LED light source replaces a fluorescent light source
No
Length
537.00 mm
Length with base excl. base pins/connection
530.5 mm
Lifespan L70/B50 at 25 °C
50000 h
Light color
830
Light color (designation)
Warm White
Light source cap-type (or other electric interface)
2G11
Lighting technology used
LED
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1)
Lumen main.fact.at end of nom.life time
0.96
Lumen maintenance at end of service lifetime
0.70
Luminous efficacy
127 lm/W
Luminous flux
3050 lm
Mains frequency
0 Hz
Mains or non-mains
NMLS
Maximum diameter
44 mm
Maximum temperature at tc test point
75 °C
Mercury content
0.0 mg
Mercury-free
Yes
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Model number
AC70743
Nominal current
600 mA
Nominal voltage
60 V
Nominal wattage
24 W
Non-directional or directional
NDLS
Number of switching cycles
200000
Operating frequency
0 Hz
Operating mode
EXT 1)
Order reference
DULUX LED L55 E
Overall length
537.00 mm
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG0
Power factor λ
0.90
Product recyclability
Mostly recyclable product 1)
Product weight
144.00 g
R9 Colour rendering index
1
Rated lamp survival factor at 6,000 h
0.90
Rated LLMF at 6,000 h
0.90
Standard deviation of color matching
≤6 sdcm
Standby power
0 W
Starting time
< 0.5 s
Stroboscope effect metric (SVM)
Survival factor
0.90
Temperature range at storage
-20…+80 °C
Tube diameter
17,0 mm
Type of current
DC
Type of protection
IP20
Warm-up time (60 %)
‹ 0.50 s
Width
43.60 mm
