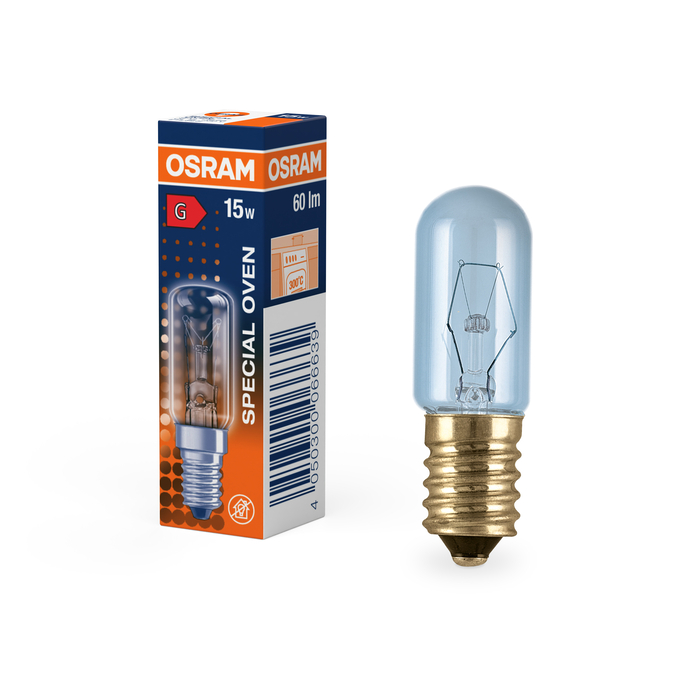

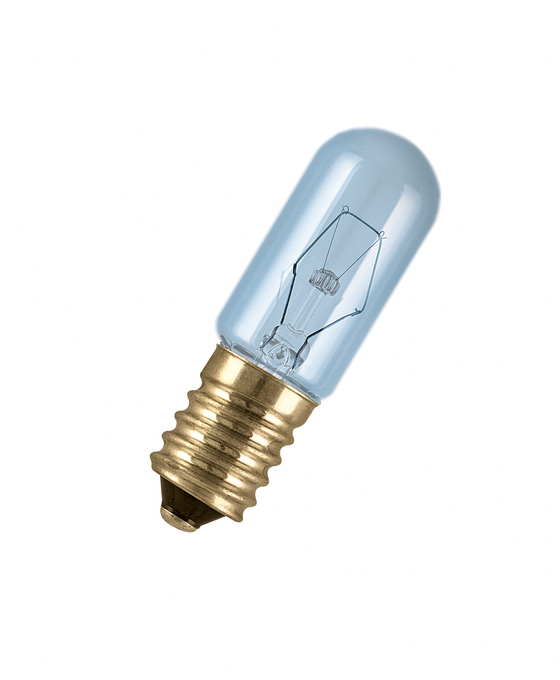

SPC.T CL 15 W 230 V E14
4050300066639
Areas of application
- Domestic baking ovens
Product features
- Ambient temperature: up to 300 °C
Safety advice
- Do not touch the lamp if broken.
- Must not be used if outer bulb is defective.
- Lamp to be used only in a closed luminaire.
- Not designed as a replacement for conventional lighting in private household.
Ambient temperature range
-20…+300 °C
Anti-glare shield
No
Base (standard designation)
E14
Beam angle correspondence
SPHERE_360
Chromaticity coordinate x
0.4168
Chromaticity coordinate y
0.4970
Claim of equivalent power
No
Color rendering index Ra
100
Color temperature
2700 K
Color-tuneable light source
No
Connected light source (CLS)
No
Construction wattage
15.00 W
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Correlated colour temperature type
SINGLE_VALUE
Diameter
17,0 mm
Dimmable
Yes
Displacement factor
1.00
Energy consumption
15.00 kWh/1000h
Energy efficiency class
G
Envelope
No
EPREL ID
714465
GTIN
4050300066639
Height
17,0 mm
High luminance light source
No
ILCOS
IBT/C-15-230-E14-17
Length
54.00 mm
Length with base excl. base pins/connection
55.00 mm
Lifespan L70/B50 at 25 °C
1000 h
Light color
1027
Light source cap-type (or other electric interface)
E14
Lighting technology used
OTHER
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1)
Luminous efficacy
4 lm/W
Luminous flux
60 lm
Mains frequency
50/60 Hz
Mains or non-mains
MLS
Maximum temperature at tc test point
300 °C
Mercury-free
Yes
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Model number
AC35389,AC35389
Nominal current
65 mA
Nominal voltage
230 V
Nominal wattage
15 W
Non-directional or directional
NDLS
Number of switching cycles
1000
Operating frequency
50/60 Hz
Order reference
SPECIAL. CL 15W
Overall length
54.00 mm
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG0
Power factor λ
1.00
Product recyclability
Mostly recyclable product 1)
Product weight
5.9 g
Quantity of precious metals
0 mg
Quantity of rare earths
0 mg
Standby power
0 W
Starting time
< 0.5 s
Temperature range at storage
-20…+80 °C
Type of protection
IP50
Width
17,0 mm
