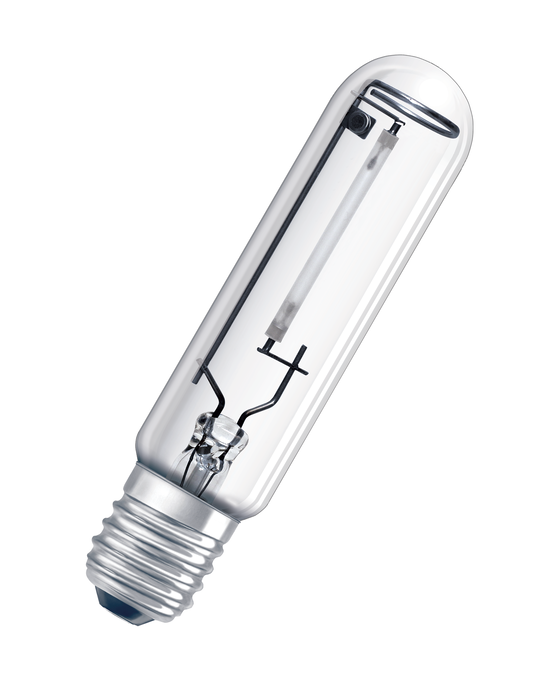

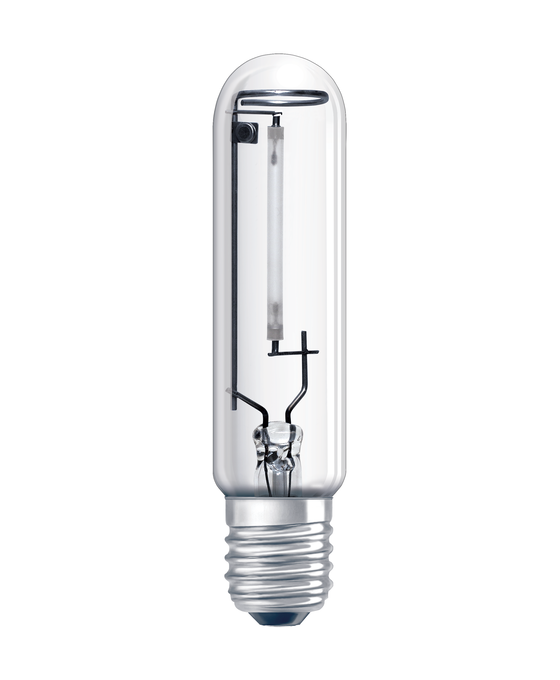

NAV-T 50 W SUPER 4Y
4052899415379
Product benefits
- Very high luminous efficacy
- Very good luminous flux maintenance throughout the life of the lamp
- Energy savings of up to 50 % when replacing mercury vapor lamps (HQL)
- Optimum energy efficiency on POWERTRONIC® PTo 3DIM ECGs
Areas of application
- Streets
- Outdoor lighting
- Industrial installations
- Suitable for use in open and enclosed luminaires
- Outdoor applications only in suitable luminaires
Product features
- Lamp survival factor: 95 % after 16,000 h burning time
- Lamp maintenance factor: ≥ 80 % after 16,000 h burning time (according to DIN 13201)
- Service lifetime: 4 years (at approx. 11 h/day)
- Dimmable on conventional control gears and electronic control gears
Safety advice
- Disconnect mains before installation.
- Must not be used if outer bulb is defective.
- Protect from spray water.
Anti-glare shield
No
Base (standard designation)
E27
Beam angle correspondence
SPHERE_360
Burning position
Any
Chromaticity coordinate x
0,535
Chromaticity coordinate y
0,420
Claim of equivalent power
No
Color rendering index Ra
≤25
Color temperature
2000 K
Color-tuneable light source
No
Connected light source (CLS)
No
Construction wattage
56.00 W
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Additional info can be provided per individual request
Correlated colour temperature type
SINGLE_VALUE
Design / version
Clear
Diameter
36,0 mm
Dimmable
Yes 1)
Enclosed luminaire required
No
Energy consumption
56.00 kWh/1000h
Energy efficiency class
G
Envelope
SECOND
EPREL ID
546577
GTIN
4052899415379
Height
36,0 mm
High luminance light source
No
ILCOS
ST-50-H/E/SL-E27-39/156
Length
155.00 mm
Lifespan B10
18000 h
Lifespan B5
16000 h
Lifespan B50
28000 h
Light center length (LCL)
104,0 mm
Light color
220
Light source cap-type (or other electric interface)
E27
Lighting technology used
HPS
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Luminous efficacy
75 lm/W
Luminous flux
4200 lm
Mains frequency
50/60 Hz
Mains or non-mains
NMLS
Maximum permitted base edge temperature
210 °C
Maximum permitted outer bulb temperature
310 °C
Mercury content
10.8 mg 1)
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Model number
AC34369,AC34369
Nominal current
750 mA
Nominal voltage
86 V
Nominal wattage
50 W
Non-directional or directional
NDLS
Operating frequency
50/60 Hz
Operating mode
Conventional control gear (CCG) and ignitor, Electronic control gear (ECG)
Order reference
NAV-T 50W SUPER
Overall length
155.00 mm
Packaging recyclability
Mostly recyclable packaging 1)
Product recyclability
Mostly recyclable product 1)
Product remark
Important: Before replacing for NAV Standard lamps in existing installations, check that the igniters are suitable
Product weight
60.00 g
Quantity of precious metals
0 mg
Quantity of rare earths
0 mg
Rated lamp survival factor at 12,000 h
0.96
Rated lamp survival factor at 16,000
0.95
Rated lamp survival factor at 2,000 h
0.99
Rated lamp survival factor at 20,000 h
0.85
Rated lamp survival factor at 4,000 h
0.98
Rated lamp survival factor at 6,000 h
0.98
Rated lamp survival factor at 8,000 h
0.97
Rated LLMF at 12,000 h
0.84
Rated LLMF at 16,000 h
0.83
Rated LLMF at 2,000 h
0.92
Rated LLMF at 20,000 h
0.79
Rated LLMF at 4,000 h
0.90
Rated LLMF at 6,000 h
0.88
Rated LLMF at 8,000 h
0.86
UV protection
No
Width
36,0 mm
