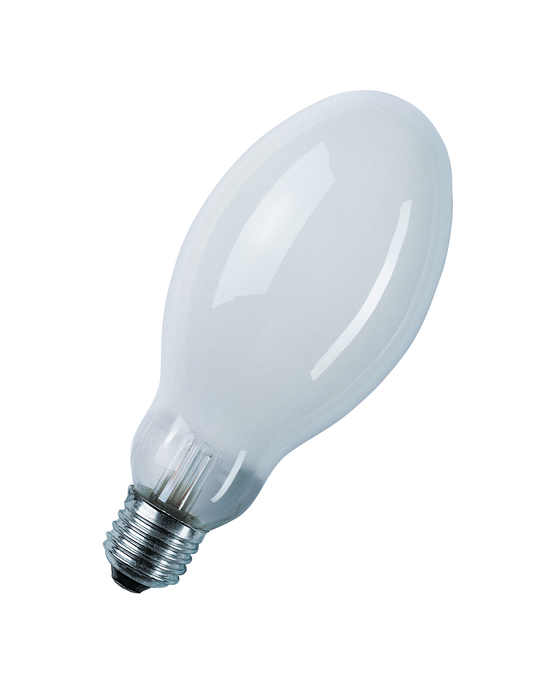

NAV-E 50 W/I E27
4050300015583
Product benefits
- High luminous efficacy
Areas of application
- Streets
- Outdoor lighting
- Industrial installations
- Suitable for use in open and enclosed luminaires
- Outdoor applications only in suitable luminaires
Product features
- Service lifetime: 3 years (at approx. 11 h/day)
Safety advice
- Do not stare at the operating light source: The luminaire should be positioned so that prolonged staring into the luminaire at a distance closer that 4 m is not expected.
- Disconnect mains before installation.
- Must not be used if outer bulb is defective.
- Protect from spray water.
Anti-glare shield
No
Base (standard designation)
E27
Beam angle correspondence
SPHERE_360
Burning position
Any
Chromaticity coordinate x
0,535
Chromaticity coordinate y
0,420
Claim of equivalent power
No
Color rendering index Ra
≤25
Color temperature
2000 K
Color-tuneable light source
No
Connected light source (CLS)
No
Construction wattage
53.60 W
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Additional info can be provided per individual request
Correlated colour temperature type
SINGLE_VALUE
Design / version
Coated
Diameter
71 mm
Dimmable
No
Enclosed luminaire required
No
Energy consumption
54.00 kWh/1000h
Energy efficiency class
G
Envelope
SECOND
EPREL ID
546570
GTIN
4050300015583
Height
71 mm
High luminance light source
No
Ignition voltage
0.198 kVp
ILCOS
SE-50-H/I/S-E27-71/156
Length
155.00 mm
Lifespan B10
12000 h
Lifespan B5
9000 h
Lifespan B50
24000 h
Light color
220
Light source cap-type (or other electric interface)
E27
Lighting technology used
HPS
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Luminous efficacy
69 lm/W
Luminous flux
3700 lm
Mains or non-mains
NMLS
Maximum permitted base edge temperature
210 °C
Maximum permitted outer bulb temperature
310 °C
Mercury content
10.8 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Model number
AC34362,AC34362
Nominal current
770 mA
Nominal voltage
85 V
Nominal wattage
50 W
Non-directional or directional
NDLS
Operating mode
Conventional control gear (CCG) without ignitor, Electronic control gear (ECG)
Order reference
NAV-E 50W/I E27
Overall length
155.00 mm
Packaging recyclability
Mostly recyclable packaging 1)
PFC capacitor at 50 Hz
10 µF
Product recyclability
Mostly recyclable product 1)
Product remark
Operate only with NAV control gear. No igniter required
Product weight
50.00 g
Quantity of precious metals
0 mg
Quantity of rare earths
0 mg
Rated lamp survival factor at 12,000 h
0.90
Rated lamp survival factor at 16,000
0.83
Rated lamp survival factor at 2,000 h
0.98
Rated lamp survival factor at 20,000 h
0.70
Rated lamp survival factor at 4,000 h
0.97
Rated lamp survival factor at 6,000 h
0.97
Rated lamp survival factor at 8,000 h
0.96
Rated LLMF at 12,000 h
0.81
Rated LLMF at 16,000 h
0.79
Rated LLMF at 2,000 h
0.89
Rated LLMF at 20,000 h
0.72
Rated LLMF at 4,000 h
0.85
Rated LLMF at 6,000 h
0.83
Rated LLMF at 8,000 h
0.82
UV protection
No
Width
71 mm
