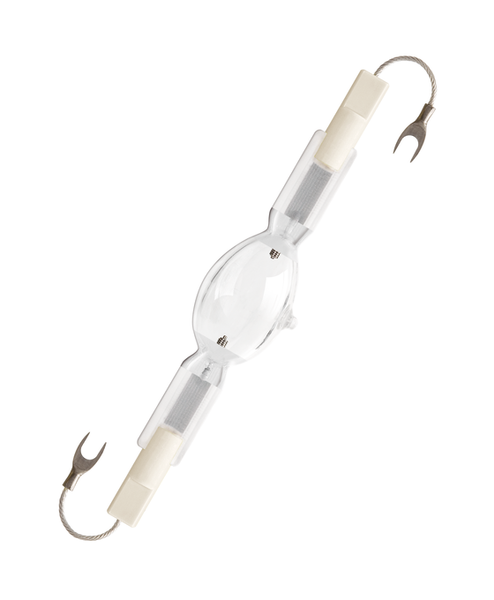

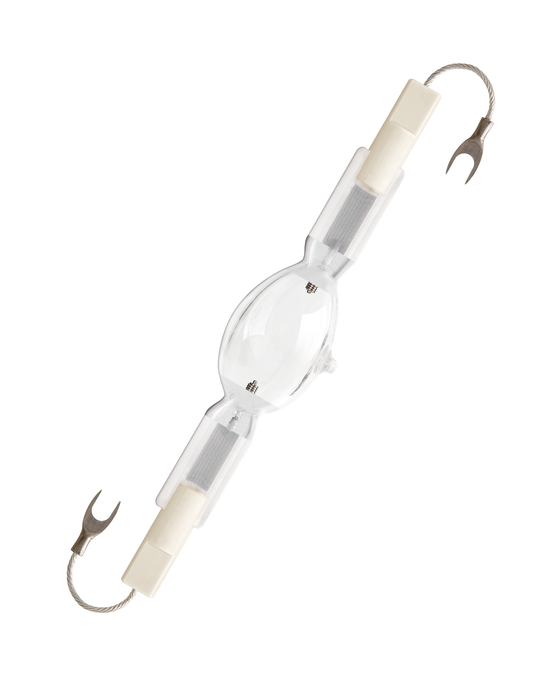

HQI-TS 2000 W/NDL/S
4008321525499
Product benefits
- Excellent color rendering
- Excellent color stability
- Small loss of luminous flux over the life of the lamp
- Hot restrike capable
- Compact dimensions for small spotlights
- Good positioning thanks to K12s base
Areas of application
- Sports stadiums and floodlight systems
- Sports halls and multi-purpose halls
- Airports
- Solar simulation, material testing
- Approved only for use in enclosed luminaires
- Outdoor applications only in suitable luminaires
Product features
- POWERSTAR® quartz technology
- Light colors: neutral white (NDL), daylight (D)
Base (standard designation)
K12s-36
Burning position
p15
Color rendering index Ra
90
Color temperature
4650 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Design / version
Clear
Diameter
41.00 mm
Dimmable
No
Enclosed luminaire required
Yes
Energy consumption
2123.00 kWh/1000h
GTIN
4008321525499
Hot restart
Yes
Ignition voltage
4.0/36 kVp 1)
ILCOS
MN-2000/844-E/E/SL-K12s=36-41/187/H
Length
187.00 mm
Lifespan B50
6000 h
Light center length (LCL)
93,0 mm
Light color
946
Light color (designation)
Neutral White DE LUXE
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Luminous efficacy
115 lm/W
Luminous flux
215000 lm
Maximum diameter
41 mm
Maximum permitted outer bulb temperature
950 °C
Maximum permitted pinch temperature
390 °C
Mercury content
150.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Nominal current
11300 mA
Nominal voltage
200 V
Nominal wattage
2000 W
Operating mode
Conventional control gear (CCG) and ignitor
Order reference
HQI-TS 2000W/ND
Overall length
187.00 mm
Packaging recyclability
Mostly recyclable packaging 1)
PFC capacitor at 50 Hz
60 µF
Product recyclability
Mostly recyclable product 1)
Product remark
Not for general lighting
Product weight
63.00 g
Quantity of precious metals
0 mg
Quantity of rare earths
0 mg
Rated lamp efficacy (standard co.)
112 lm/W
Rated lamp survival factor at 2,000 h
0.95
Rated lamp survival factor at 4,000 h
0.76
Rated lamp survival factor at 6,000 h
0.50
Rated LLMF at 2,000 h
0.89
Rated LLMF at 4,000 h
0.76
Rated LLMF at 6,000 h
0.72
UV protection
No
