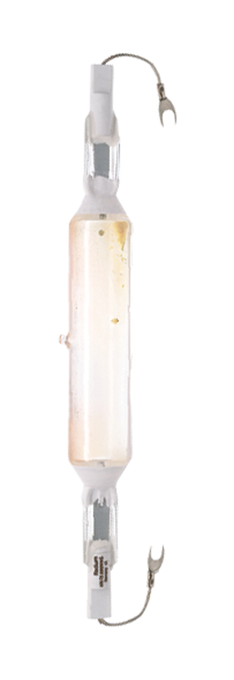

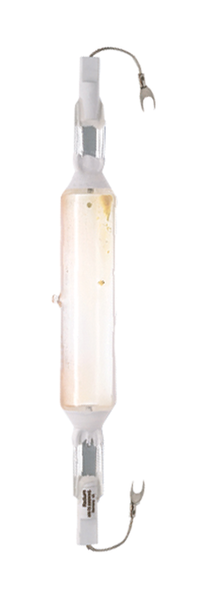

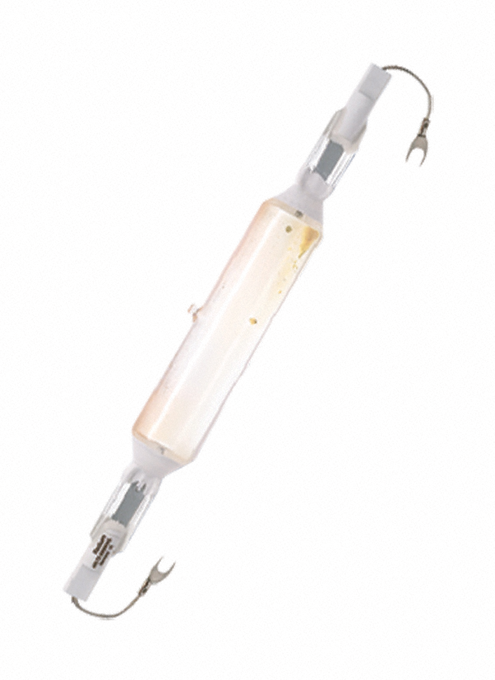

HQI-TS 2000 W/N/L
4008321530660
Product benefits
- Very high efficiency
- Very high luminous flux
- Ideal for compact floodlights
- Good positioning thanks to K12s base
Areas of application
- Sports stadiums and floodlight systems
- Industrial installations
- Airports
- Docks and port facilities
- Marshaling yards, container transshipment facilities
- Approved only for use in enclosed luminaires
- Outdoor applications only in suitable luminaires
Product features
- POWERSTAR® quartz technology
Base (standard designation)
K12s-36
Burning position
p15
Color rendering index Ra
65
Color temperature
4100 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Design / version
Clear
Diameter
40 mm
Dimmable
No
Enclosed luminaire required
Yes
Energy consumption
2365.00 kWh/1000h
GTIN
4008321530660
Hot restart
Yes
Ignition voltage
4.0/36 kVp 1)
ILCOS
MN-2000/842-E/E/SL-K12s=36-40/274/H
Length
274.00 mm
Lifespan B50
8000 h
Light center length (LCL)
137,0 mm
Light color
641
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Luminous efficacy
107 lm/W
Luminous flux
230000 lm
Maximum permitted outer bulb temperature
950 °C
Maximum permitted pinch temperature
390 °C
Mercury content
220.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Nominal current
10400 mA
Nominal voltage
200 V
Nominal wattage
2000 W
Operating mode
Conventional control gear (CCG) and ignitor
Order reference
HQI-TS 2000W/N/
Overall length
274.00 mm
Packaging recyclability
Mostly recyclable packaging 1)
PFC capacitor at 50 Hz
60 µF
Product recyclability
Mostly recyclable product 1)
Product remark
Not for general lighting
Product weight
88.7 g
Quantity of precious metals
0 mg
Quantity of rare earths
0 mg
Rated lamp efficacy (standard co.)
107 lm/W
Rated lamp survival factor at 2,000 h
0.95
Rated lamp survival factor at 4,000 h
0.83
Rated lamp survival factor at 6,000 h
0.67
Rated lamp survival factor at 8,000 h
0.50
Rated LLMF at 2,000 h
0.91
Rated LLMF at 4,000 h
0.85
Rated LLMF at 6,000 h
0.82
Rated LLMF at 8,000 h
0.80
Starting time
120 s
UV protection
No
