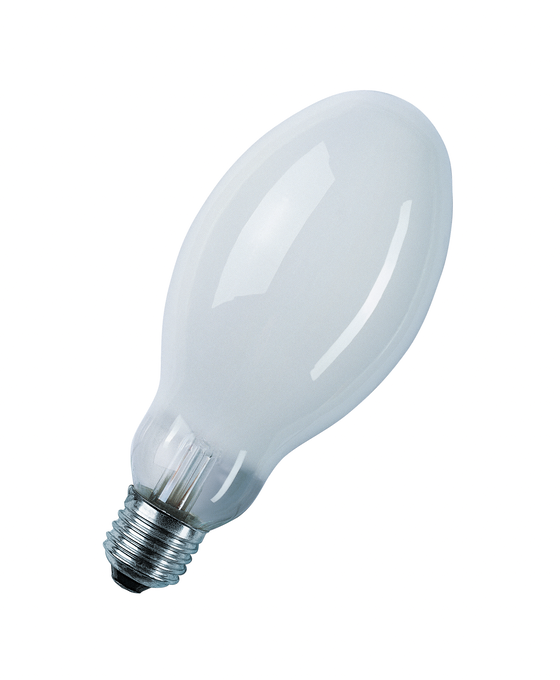

NAV-E 68 W E27
4008321345462
Product benefits
- No modifications to existing luminaire components required
Areas of application
- Streets
- Outdoor lighting
- Industrial installations
- Luminaires that use mercury vapor lamps HQL® 80 W, 125 W, 250 W, 400 W
- Suitable for use in open and enclosed luminaires
- Outdoor applications only in suitable luminaires
Safety advice
- Control gear must be suitable for the higher operating current of the NAV® Plug-in lamps. The maximum permissible winding temperature as defined in VDE and IEC specifications must not be exceeded. In case of doubt, consult the manufacturer of the luminaire or control gear.
- Do not stare at the operating light source: The luminaire should be positioned so that prolonged staring into the luminaire at a distance closer that 4 m is not expected.
- Disconnect mains before installation.
- Must not be used if outer bulb is defective.
- Protect from spray water.
Anti-glare shield
No
Base (standard designation)
E27
Beam angle correspondence
SPHERE_360
Burning position
Any
Chromaticity coordinate x
0,535
Chromaticity coordinate y
0,420
Claim of equivalent power
No
Color rendering index Ra
≤25
Color temperature
2000 K
Color-tuneable light source
No
Connected light source (CLS)
No
Construction wattage
70.00 W
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Additional info can be provided per individual request
Correlated colour temperature type
SINGLE_VALUE
Design / version
Coated
Diameter
71 mm
Dimmable
No
Enclosed luminaire required
No
Energy consumption
70.00 kWh/1000h
Energy efficiency class
G
Envelope
SECOND
EPREL ID
546568
GTIN
4008321345462
Height
71 mm
High luminance light source
No
Ignition voltage
0.198 kVp
ILCOS
SEQ-68-H/I/S-E27-71/152
Length
155.00 mm
Lifespan B10
12000 h
Lifespan B5
9000 h
Lifespan B50
20000 h
Light color
220
Light source cap-type (or other electric interface)
E27
Lighting technology used
HPS
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Luminous efficacy
77 lm/W
Luminous flux
5400 lm
Mains or non-mains
NMLS
Maximum permitted base edge temperature
210 °C
Maximum permitted outer bulb temperature
400 °C
Mercury content
14.7 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Model number
AC34360,AC34360
Nominal current
850 mA
Nominal voltage
102 V
Nominal wattage
68 W
Non-directional or directional
NDLS
Operating mode
Conventional control gear (CCG) without ignitor
Order reference
NAV-E 68W E27
Overall length
155.00 mm
Packaging recyclability
Mostly recyclable packaging 1)
PFC capacitor at 50 Hz
8 µF
Product recyclability
Mostly recyclable product 1)
Product weight
50.00 g
Quantity of precious metals
0 mg
Quantity of rare earths
0 mg
Rated lamp survival factor at 12,000 h
0.90
Rated lamp survival factor at 16,000
0.80
Rated lamp survival factor at 2,000 h
0.98
Rated lamp survival factor at 20,000 h
0.50
Rated lamp survival factor at 4,000 h
0.98
Rated lamp survival factor at 6,000 h
0.97
Rated lamp survival factor at 8,000 h
0.96
Rated LLMF at 12,000 h
0.83
Rated LLMF at 16,000 h
0.80
Rated LLMF at 2,000 h
0.92
Rated LLMF at 20,000 h
0.75
Rated LLMF at 4,000 h
0.88
Rated LLMF at 6,000 h
0.85
Rated LLMF at 8,000 h
0.84
UV protection
No
Width
71 mm
