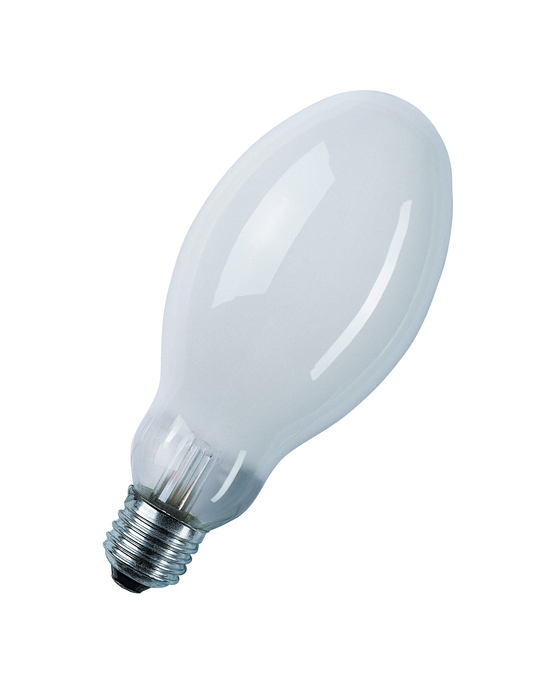

NAV-E 50 W/E E27
4050300015750
Product benefits
- High luminous efficacy
Areas of application
- Streets
- Outdoor lighting
- Industrial installations
- Suitable for use in open and enclosed luminaires
- Outdoor applications only in suitable luminaires
Product features
- Service lifetime: 3 years (at approx. 11 h/day)
Safety advice
- Disconnect mains before installation.
- Must not be used if outer bulb is defective.
- Protect from spray water.
Anti-glare shield
No
Base (standard designation)
E27
Beam angle correspondence
SPHERE_360
Burning position
Any
Chromaticity coordinate x
0,535
Chromaticity coordinate y
0,420
Claim of equivalent power
No
Color rendering index Ra
≤25
Color temperature
2000 K
Color-tuneable light source
No
Connected light source (CLS)
No
Construction wattage
53.60 W
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Additional info can be provided per individual request
Correlated colour temperature type
SINGLE_VALUE
Design / version
Coated
Diameter
71 mm
Dimmable
Yes 1)
Enclosed luminaire required
No
Energy consumption
54.00 kWh/1000h
Energy efficiency class
G
Envelope
SECOND
EPREL ID
546569
GTIN
4050300015750
Height
71 mm
High luminance light source
No
Ignition voltage
1.8/5.0 kVp 1)
ILCOS
SE-50-H/E/SL-E27-71/156
Length
155.00 mm
Lifespan B10
13000 h
Lifespan B5
9000 h
Lifespan B50
28000 h
Light color
220
Light source cap-type (or other electric interface)
E27
Lighting technology used
HPS
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Luminous efficacy
69 lm/W
Luminous flux
3700 lm
Mains or non-mains
NMLS
Maximum permitted base edge temperature
210 °C
Maximum permitted outer bulb temperature
310 °C
Mercury content
10.8 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Model number
AC34361,AC34361
Nominal current
770 mA
Nominal voltage
85 V
Nominal wattage
50 W
Non-directional or directional
NDLS
Operating mode
Conventional control gear (CCG) and ignitor
Order reference
NAV-E 50W/E E27
Overall length
155.00 mm
Packaging recyclability
Mostly recyclable packaging 1)
PFC capacitor at 50 Hz
10 µF
Product recyclability
Mostly recyclable product 1)
Product weight
50.00 g
Quantity of precious metals
0 mg
Quantity of rare earths
0 mg
Rated lamp survival factor at 12,000 h
0.91
Rated lamp survival factor at 16,000
0.85
Rated lamp survival factor at 2,000 h
0.99
Rated lamp survival factor at 20,000 h
0.75
Rated lamp survival factor at 4,000 h
0.98
Rated lamp survival factor at 6,000 h
0.97
Rated lamp survival factor at 8,000 h
0.96
Rated LLMF at 12,000 h
0.82
Rated LLMF at 16,000 h
0.81
Rated LLMF at 2,000 h
0.91
Rated LLMF at 20,000 h
0.80
Rated LLMF at 4,000 h
0.89
Rated LLMF at 6,000 h
0.84
Rated LLMF at 8,000 h
0.83
UV protection
No
Width
71 mm
