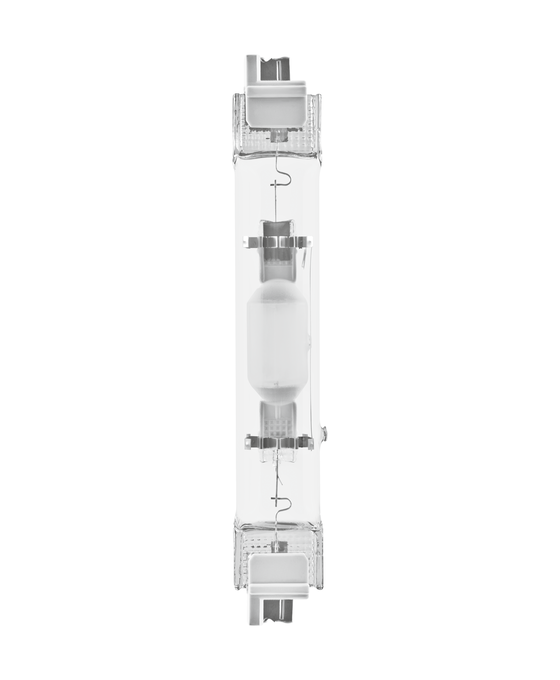

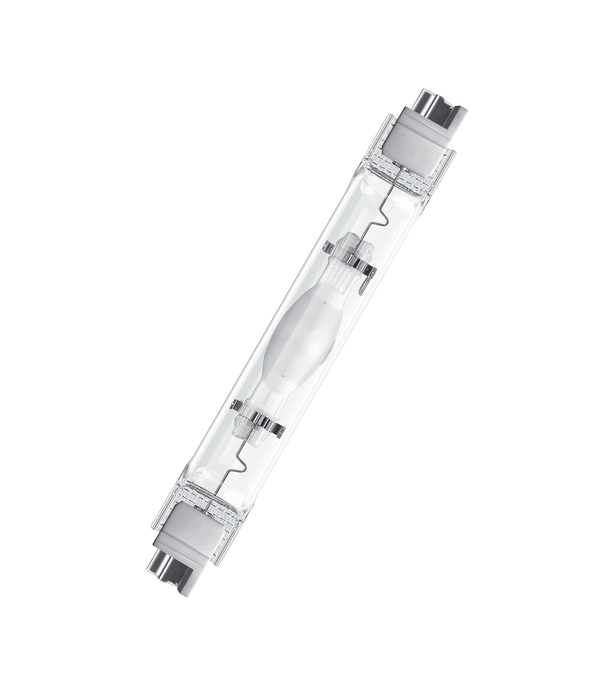

HQI-TS 250 W/D UVS
4008321689139
Product benefits
- High efficiency
- Uniform distribution of light
- Good to excellent color rendering
- Hot restrike capable
- UV values significantly below the maximum permitted thresholds to IEC 61167 thanks to UV filter
Areas of application
- Foyers, reception areas
- Factory and hall lighting with low-cost installations
- Exhibition halls and trade fairs
- Sports halls and multi-purpose halls
- Pedestrian zones, public squares
- Parks and gardens
- Buildings, monuments, bridges
- Approved only for use in enclosed luminaires
- Outdoor applications only in suitable luminaires
Product features
- POWERSTAR® quartz technology
- Light colors: warm white (WDL), neutral white (NDL), daylight (D)
Anti-glare shield
No
Base (standard designation)
Fc2
Beam angle correspondence
SPHERE_360
Burning position
P45
Chromaticity coordinate x
0.332
Chromaticity coordinate y
0.342
Claim of equivalent power
No
Color rendering index Ra
93
Color temperature
5500 K
Color-tuneable light source
No
Connected light source (CLS)
No
Construction wattage
250.00 W
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Additional info can be provided per individual request
Correlated colour temperature type
SINGLE_VALUE
Design / version
Clear
Diameter
25,0 mm
Dimmable
No
Enclosed luminaire required
Yes
Energy consumption
275.00 kWh/1000h
Energy efficiency class
G
Envelope
SECOND
EPREL ID
1535169
GTIN
4008321689139
Height
25,0 mm
High luminance light source
No
Hot restart
Yes
Ignition voltage
4.0/25 kVp 1)
ILCOS
MD/UB-250/951-H/E/SL-Fc2-25/162/H
Length
162.00 mm
Lifespan B50
12000 h
Light center length (LCL)
81,0 mm
Light color
955
Light color (designation)
Daylight
Light source cap-type (or other electric interface)
Fc2
Lighting technology used
MH
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Luminous efficacy
82 lm/W
Luminous flux
21500 lm
Mains or non-mains
NMLS
Maximum permitted pinch temperature
300 °C
Mercury content
13.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Model number
AA35052
Nominal current
3 A
Nominal voltage
98 V
Nominal wattage
250 W
Non-directional or directional
NDLS
Operating mode
Conventional control gear (CCG) and ignitor
Order reference
HQI-TS 250W/D U
Overall length
162.00 mm
Packaging recyclability
Mostly recyclable packaging 1)
PFC capacitor at 50 Hz
32 µF
Product recyclability
Mostly recyclable product 1)
Product weight
52.00 g
Quantity of precious metals
0 mg
Quantity of rare earths
0 mg
Rated lamp efficacy (standard co.)
86 lm/W
Rated lamp survival factor at 12,000 h
0.50
Rated lamp survival factor at 2,000 h
0.95
Rated lamp survival factor at 4,000 h
0.90
Rated lamp survival factor at 6,000 h
0.85
Rated lamp survival factor at 8,000 h
0.80
Rated LLMF at 12,000 h
0.50
Rated LLMF at 2,000 h
0.70
Rated LLMF at 4,000 h
0.60
Rated LLMF at 6,000 h
0.55
Rated LLMF at 8,000 h
0.52
UV protection
Yes
Width
25,0 mm
