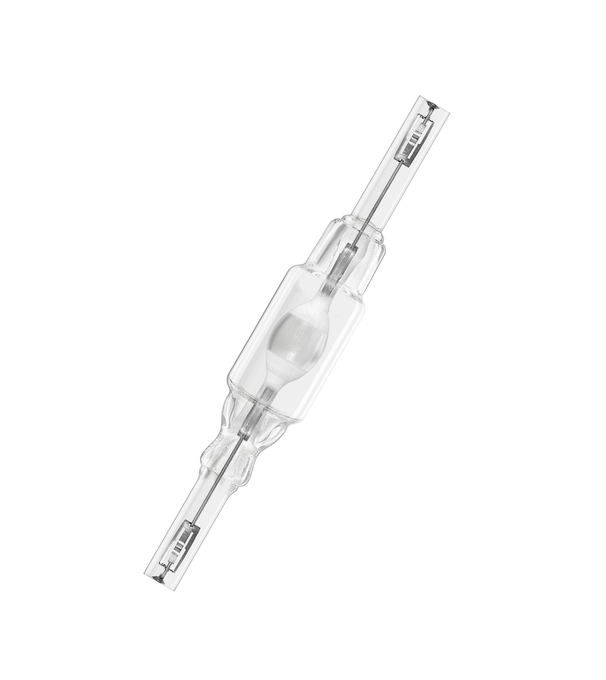

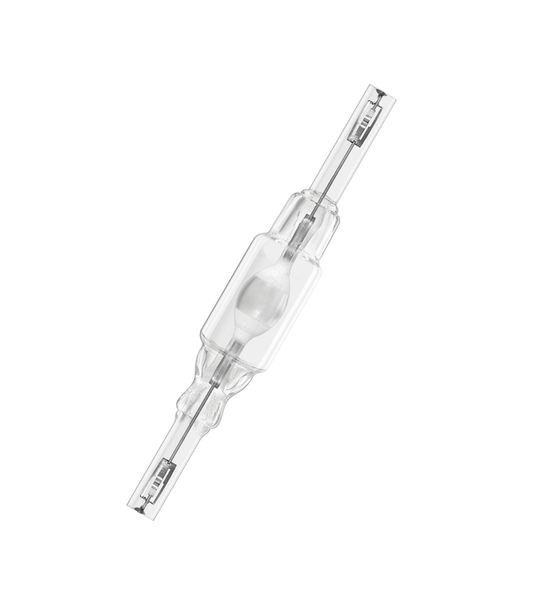

HQI-TS 150 W/WDL
4008321678362
Product benefits
- High efficiency
- Uniform distribution of light
- Good to excellent color rendering
- Hot restrike capable
- UV values significantly below the maximum permitted thresholds to IEC 61167 thanks to UV filter
Areas of application
- Shop interiors, shop windows
- Shopping arcades
- Foyers, reception areas
- Buildings, monuments, bridges
- Museums, exhibitions
- Exhibition halls and trade fairs
- Pedestrian zones, public squares
- Parks and gardens
- Approved only for use in enclosed luminaires
- Outdoor applications only in suitable luminaires
Product features
- POWERSTAR® quartz technology
- Light colors: warm white (WDL), neutral white (NDL), daylight (D), cool daylight (CD)
Safety advice
- Do not stare at the operating light source: The luminaire should be positioned so that prolonged staring into the luminaire at a distance closer that 4 m is not expected.
- Disconnect mains before installation.
- Must not be used if outer bulb is defective.
- Lamp to be used only in a closed luminaire.
Anti-glare shield
No
Base (standard designation)
RX7s-24
Beam angle correspondence
SPHERE_360
Burning position
P45
Chromaticity coordinate x
0,427
Chromaticity coordinate y
0,398
Claim of equivalent power
No
Color rendering index Ra
≤ 70
Color temperature
3100 K
Color-tuneable light source
No
Connected light source (CLS)
No
Construction wattage
154.70 W
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Additional info can be provided per individual request
Correlated colour temperature type
SINGLE_VALUE
Design / version
Clear
Diameter
23.0 mm
Dimmable
No
Enclosed luminaire required
Yes
Energy consumption
155.00 kWh/1000h
Energy efficiency class
G
Envelope
SECOND
EPREL ID
546552
GTIN
4008321678362
Height
23.0 mm
High luminance light source
No
Hot restart
Yes
Ignition voltage
13.3 kVp 1)
ILCOS
MD/UB-150/730-H/E/SL-RX7s=24-23/135/H
Length
135.00 mm
Lifespan B50
12000 h
Light center length (LCL)
66.00 mm
Light color
731
Light source cap-type (or other electric interface)
RX7s-24
Lighting technology used
MH
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Luminous efficacy
78 lm/W
Luminous flux
12000 lm
Mains or non-mains
NMLS
Maximum permitted outer bulb temperature
500 °C
Maximum permitted pinch temperature
350 °C
Mercury content
17.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Model number
AC34326
Nominal current
1.8 A
Nominal voltage
95 V
Nominal wattage
150 W
Non-directional or directional
NDLS
Operating mode
Conventional control gear (CCG) and ignitor, Electronic control gear (ECG)
Order reference
HQI-TS 150W/WDL
Overall length
135.00 mm
Packaging recyclability
Mostly recyclable packaging 1)
PFC capacitor at 50 Hz
20 µF
Product recyclability
Mostly recyclable product 1)
Product weight
22.00 g
Quantity of precious metals
0 mg
Quantity of rare earths
0 mg
Rated lamp survival factor at 12,000 h
0.50
Rated lamp survival factor at 2,000 h
0.95
Rated lamp survival factor at 4,000 h
0.90
Rated lamp survival factor at 6,000 h
0.85
Rated lamp survival factor at 8,000 h
0.80
Rated LLMF at 12,000 h
0.50
Rated LLMF at 2,000 h
0.79
Rated LLMF at 4,000 h
0.75
Rated LLMF at 6,000 h
0.67
Rated LLMF at 8,000 h
0.60
UV protection
Yes
Width
23.0 mm
