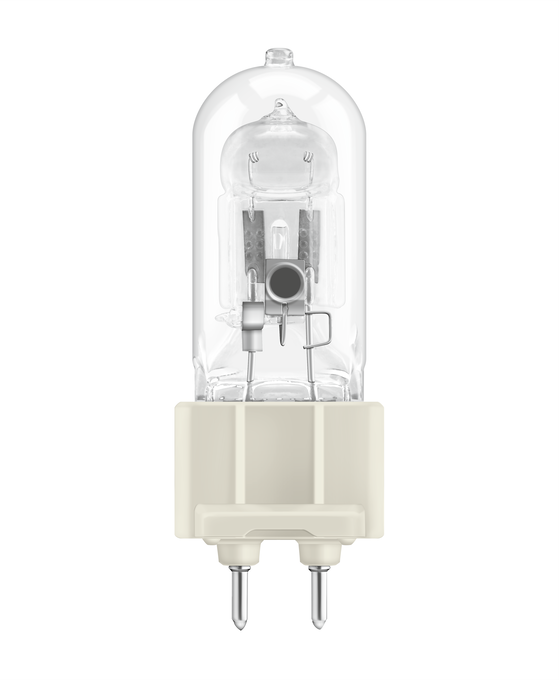

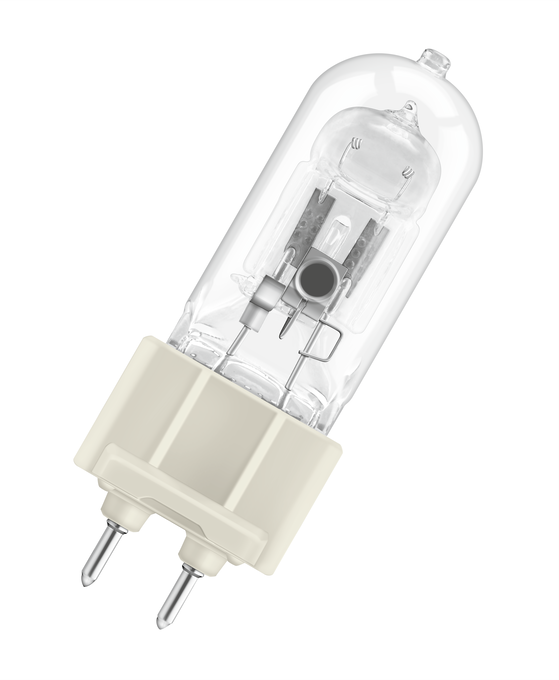

HQI-T 70 W/WDL
4008321974341
Product benefits
- High efficiency
- UV values significantly below the maximum permitted thresholds to IEC 61167 thanks to UV filter
Areas of application
- Shopping arcades
- Exhibition halls and trade fairs
- Factories and workshops
- Pedestrian zones, public squares
- Buildings, monuments, bridges
- Approved only for use in enclosed luminaires
- Outdoor applications only in suitable luminaires
Product features
- POWERSTAR® quartz technology
- Light colors: warm white (WDL), neutral white (NDL)
Safety advice
- Disconnect mains before installation.
- Must not be used if outer bulb is defective.
- Lamp to be used only in a closed luminaire.
Anti-glare shield
No
Base (standard designation)
G12
Beam angle correspondence
SPHERE_360
Burning position
Any
Claim of equivalent power
No
Color rendering index Ra
73
Color temperature
3075 K
Color-tuneable light source
No
Connected light source (CLS)
No
Construction wattage
75.00 W
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Additional info can be provided per individual request
Correlated colour temperature type
SINGLE_VALUE
Design / version
Clear
Diameter
25,0 mm
Dimmable
No
Enclosed luminaire required
Yes
Energy consumption
76.00 kWh/1000h
Energy efficiency class
G
Envelope
SECOND
EPREL ID
666225
GTIN
4008321974341
Height
25,0 mm
High luminance light source
No
Hot restart
No
Ignition voltage
3.6/5.0 kVp 1)
ILCOS
MT/UB-70/730-H/E/SL-G12-25/84
Length
84.00 mm
Lifespan B50
9000 h
Light center length (LCL)
56,0 mm
Light color
730
Light source cap-type (or other electric interface)
G12
Lighting technology used
MH
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Luminous efficacy
72 lm/W
Luminous flux
5400 lm
Mains or non-mains
NMLS
Maximum permitted pinch temperature
280 °C
Mercury content
13.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Model number
AM42352
Nominal current
0.95 A
Nominal voltage
101 V
Nominal wattage
70 W
Non-directional or directional
NDLS
Operating mode
Conventional control gear (CCG) and ignitor, Electronic control gear (ECG)
Order reference
HQI-T 70W/WDL U
Overall length
84.00 mm
Packaging recyclability
Mostly recyclable packaging 1)
PFC capacitor at 50 Hz
12 µF
Product recyclability
Mostly recyclable product 1)
Product weight
30.00 g
Quantity of precious metals
0 mg
Quantity of rare earths
0 mg
Rated lamp survival factor at 2,000 h
0.87
Rated lamp survival factor at 4,000 h
0.85
Rated lamp survival factor at 6,000 h
0.75
Rated lamp survival factor at 8,000 h
0.60
Rated LLMF at 2,000 h
0.85
Rated LLMF at 4,000 h
0.80
Rated LLMF at 6,000 h
0.75
Rated LLMF at 8,000 h
0.70
UV protection
Yes
Width
25,0 mm
