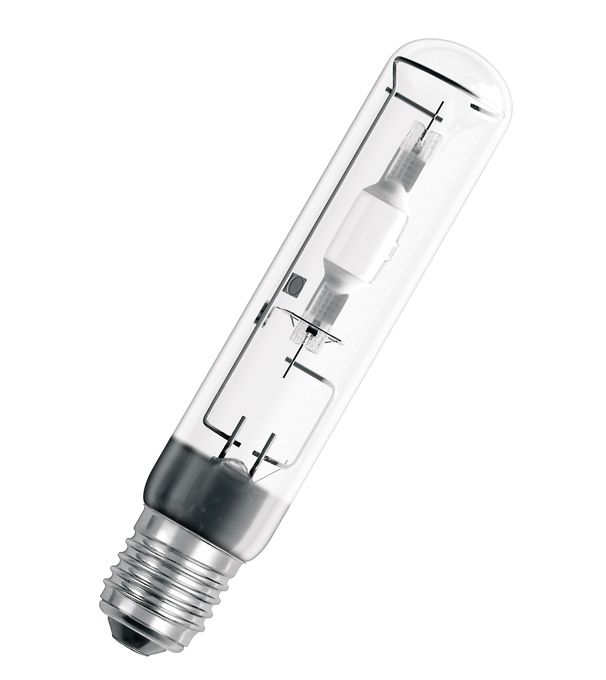

HQI-T 250 W/D PRO
4008321677846
Product benefits
- E40 screw base for simple lamp handling
- UV values significantly below the maximum permitted thresholds to IEC 61167 thanks to UV filter
Areas of application
- Factories and workshops
- Sports halls and multi-purpose halls
- Industrial installations
- Docks and port facilities
- Marshaling yards, container transshipment facilities
- Buildings, monuments, bridges
- Approved only for use in enclosed luminaires
- Outdoor applications only in suitable luminaires
Product features
- POWERSTAR® quartz technology
- Light colors: neutral white (N), daylight (D)
Safety advice
- Disconnect mains before installation.
- Must not be used if outer bulb is defective.
- Lamp to be used only in a closed luminaire.
Anti-glare shield
No
Base (standard designation)
E40
Beam angle correspondence
SPHERE_360
Burning position
Any
Chromaticity coordinate x
0,333
Chromaticity coordinate y
0,340
Claim of equivalent power
No
Color rendering index Ra
≤ 87
Color temperature
5500 K
Color-tuneable light source
No
Connected light source (CLS)
No
Construction wattage
260.00 W
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Additional info can be provided per individual request
Correlated colour temperature type
SINGLE_VALUE
Design / version
Clear
Diameter
46 mm
Dimmable
No
Enclosed luminaire required
Yes
Energy consumption
260.00 kWh/1000h
Energy efficiency class
G
Envelope
SECOND
EPREL ID
546555
GTIN
4008321677846
Height
46 mm
High luminance light source
No
Hot restart
No
Ignition voltage
4.0/5.0 kVp 1)
ILCOS
MT/UB-250/952-H/E/SL-E40-46/226
Length
226.00 mm
Lifespan B50
16000 h
Light center length (LCL)
150 mm
Light color
855
Light source cap-type (or other electric interface)
E40
Lighting technology used
MH
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Luminous efficacy
69 lm/W
Luminous flux
18000 lm
Mains or non-mains
NMLS
Maximum permitted base edge temperature
250 °C
Maximum permitted outer bulb temperature
500 °C
Mercury content
21.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Model number
AC34329
Nominal current
3 A
Nominal voltage
105 V
Nominal wattage
250 W
Non-directional or directional
NDLS
Operating mode
Conventional control gear (CCG) and ignitor
Order reference
HQI-T 250W/D PR
Overall length
226.00 mm
Packaging recyclability
Mostly recyclable packaging 1)
PFC capacitor at 50 Hz
32 µF
Product recyclability
Mostly recyclable product 1)
Product weight
150.00 g
Quantity of precious metals
0 mg
Quantity of rare earths
0 mg
Rated lamp survival factor at 12,000 h
0.88
Rated lamp survival factor at 16,000
0.81
Rated lamp survival factor at 2,000 h
0.98
Rated lamp survival factor at 4,000 h
0.96
Rated lamp survival factor at 6,000 h
0.94
Rated lamp survival factor at 8,000 h
0.92
Rated LLMF at 12,000 h
0.85
Rated LLMF at 16,000 h
0.81
Rated LLMF at 2,000 h
0.95
Rated LLMF at 4,000 h
0.92
Rated LLMF at 6,000 h
0.90
Rated LLMF at 8,000 h
0.87
UV protection
Yes
Width
46 mm
