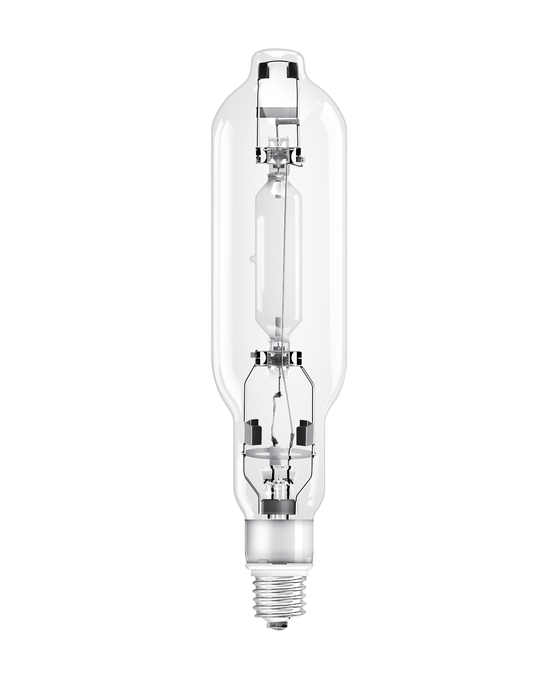

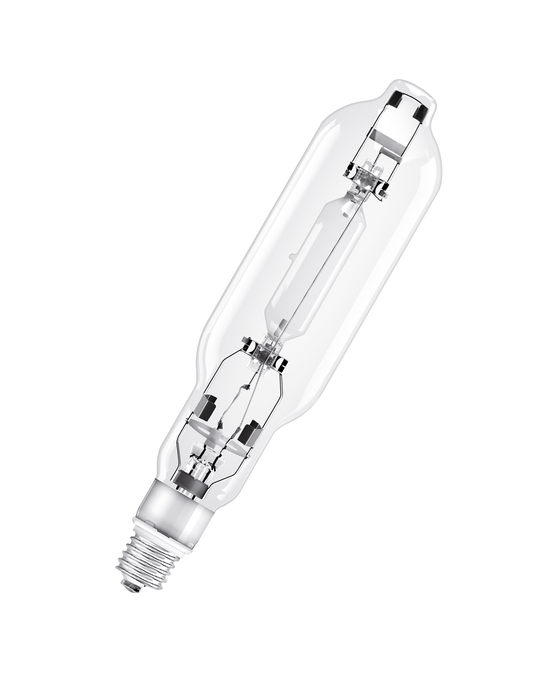

HQI-T 1000W/N E
4058075388413
Product benefits
- High efficiency
- E40 screw base for simple lamp handling
- UV values significantly below the maximum permitted thresholds to IEC 61167 thanks to UV filter
Areas of application
- Factories and workshops
- Sports halls and multi-purpose halls
- Industrial installations
- Airports
- Docks and port facilities
- Marshaling yards, container transshipment facilities
- Approved only for use in enclosed luminaires
- Outdoor applications only in suitable luminaires
Product features
- POWERSTAR® quartz technology
- Light colors: neutral white (N), daylight (D)
Base (standard designation)
E40
Burning position
p30
Color rendering index Ra
64
Color temperature
3350 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Design / version
Clear
Diameter
82.00 mm
Dimmable
No
Enclosed luminaire required
Yes
Energy consumption
1160.50 kWh/1000h
GTIN
4058075388413
Hot restart
No
Ignition voltage
4.0/5.0 kVp
ILCOS
MT/UB-1000/635-H/E/SL-E40-76/345/H
Length
345.00 mm
Lifespan B50
9000 h
Light center length (LCL)
220,0 mm
Light color
633
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Luminous efficacy
104 lm/W
Luminous flux
110000 lm
Maximum diameter
76 mm
Maximum permitted base edge temperature
250 °C
Maximum permitted outer bulb temperature
500 °C
Mercury content
110.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Nominal current
900 mA
Nominal voltage
130 V
Nominal wattage
1000 W
Operating mode
Conventional control gear (CCG) and ignitor
Order reference
HQI-T 1000W/N E
Overall length
345.00 mm
Packaging recyclability
Mostly recyclable packaging 1)
PFC capacitor at 50 Hz
85 µF
Product recyclability
Mostly recyclable product 1)
Product remark
Not for general lighting
Product weight
413.5 g
Quantity of precious metals
0 mg
Quantity of rare earths
0 mg
Rated lamp efficacy (standard co.)
104 lm/W
Rated lamp survival factor at 12,000 h
0.16
Rated lamp survival factor at 2,000 h
0.99
Rated lamp survival factor at 4,000 h
0.95
Rated lamp survival factor at 6,000 h
0.83
Rated lamp survival factor at 8,000 h
0.62
Rated LLMF at 12,000 h
0.70
Rated LLMF at 2,000 h
0.91
Rated LLMF at 4,000 h
0.86
Rated LLMF at 6,000 h
0.82
Rated LLMF at 8,000 h
0.78
UV protection
Yes
