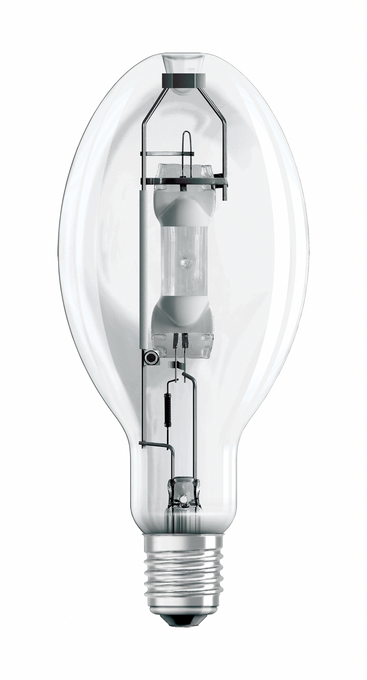

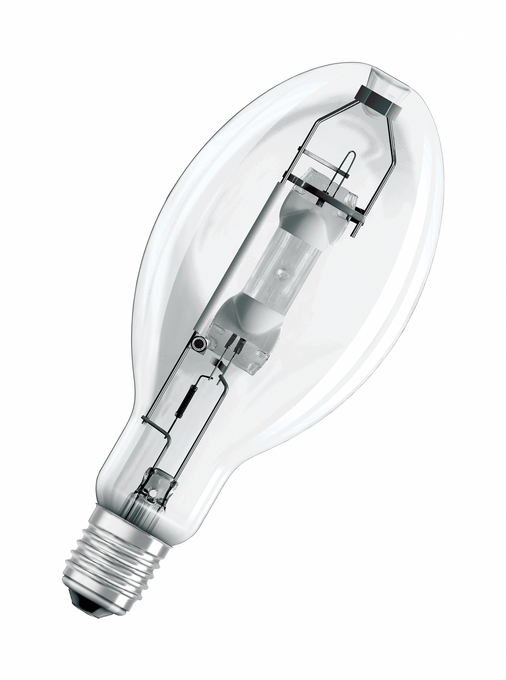

HQI-E 400 W/N CL
4058075039780
Product benefits
- E40 screw base for simple lamp handling
- UV values significantly below the maximum permitted thresholds to IEC 61167 thanks to UV filter
Areas of application
- Factories and workshops
- Exhibition halls and trade fairs
- Sports halls and multi-purpose halls
- Approved only for use in enclosed luminaires
- Outdoor applications only in suitable luminaires
Product features
- POWERSTAR® quartz technology
- Light color: neutral white (N)
Anti-glare shield
No
Base (standard designation)
E40
Beam angle correspondence
SPHERE_360
Burning position
h45
Chromaticity coordinate x
0,380
Chromaticity coordinate y
0,395
Claim of equivalent power
No
Color rendering index Ra
60
Color temperature
4000 K
Color-tuneable light source
No
Connected light source (CLS)
No
Construction wattage
450.00 W
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Correlated colour temperature type
SINGLE_VALUE
Design / version
Clear
Diameter
120,0 mm
Dimmable
No
Enclosed luminaire required
Yes
Energy consumption
450.00 kWh/1000h
Energy efficiency class
F
Envelope
SECOND
EPREL ID
546560
GTIN
4058075039780
Height
120,0 mm
High luminance light source
No
Hot restart
No
Ignition voltage
4.0/5.0 kVp 1)
ILCOS
MC/UB-400/637-H/E/SL-E40-120/290
Length
290.00 mm
Lifespan B50
9000 h
Light center length (LCL)
198,0 mm
Light color
640
Light source cap-type (or other electric interface)
E40
Lighting technology used
MH
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Additional info can be provided per individual request
Luminous efficacy
93 lm/W
Luminous flux
42000 lm
Mains or non-mains
NMLS
Maximum permitted base edge temperature
250 °C
Maximum permitted outer bulb temperature
500 °C
Mercury content
60.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Model number
AC34334
Nominal current
3900 mA
Nominal voltage
124 V
Nominal wattage
440 W
Non-directional or directional
NDLS
Operating mode
Conventional control gear (CCG) and ignitor
Order reference
HQI-E 400/N E40
Overall length
290.00 mm
Packaging recyclability
Mostly recyclable packaging 1)
PFC capacitor at 50 Hz
45 µF
Product recyclability
Mostly recyclable product 1)
Product remark
With NAV® control gear
Product weight
248.7 g
Quantity of precious metals
0 mg
Quantity of rare earths
0 mg
Rated lamp survival factor at 2,000 h
0.99
Rated lamp survival factor at 4,000 h
0.99
Rated lamp survival factor at 6,000 h
0.70
Rated LLMF at 2,000 h
0.86
Rated LLMF at 4,000 h
0.75
Rated LLMF at 6,000 h
0.68
Rated LLMF at 8,000 h
0.64
UV protection
Yes
Width
120,0 mm
