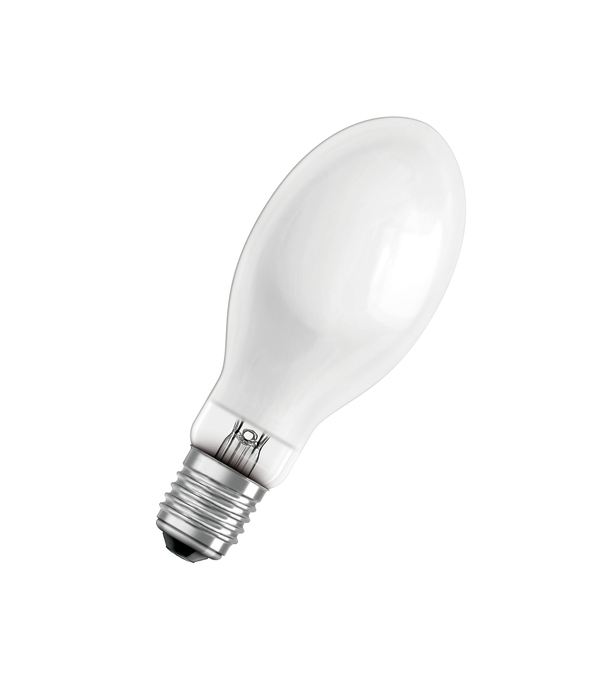

HQI-E 250 W/D PRO
4008321677907
Product benefits
- E40 screw base for simple lamp handling
- UV values significantly below the maximum permitted thresholds to IEC 61167 thanks to UV filter
Areas of application
- Factories and workshops
- Exhibition halls and trade fairs
- Sports halls and multi-purpose halls
- Approved only for use in enclosed luminaires
- Outdoor applications only in suitable luminaires
Product features
- POWERSTAR® quartz technology
- Light colors: neutral white (NDL), daylight (D)
Safety advice
- Do not stare at the operating light source: The luminaire should be positioned so that prolonged staring into the luminaire at a distance closer that 4 m is not expected.
- Disconnect mains before installation.
- Must not be used if outer bulb is defective.
- Lamp to be used only in a closed luminaire.
Anti-glare shield
No
Base (standard designation)
E40
Beam angle correspondence
SPHERE_360
Burning position
Any
Chromaticity coordinate x
0,340
Chromaticity coordinate y
0,345
Claim of equivalent power
No
Color rendering index Ra
≤ 90
Color temperature
5500 K
Color-tuneable light source
No
Connected light source (CLS)
No
Construction wattage
260.00 W
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Additional info can be provided per individual request
Correlated colour temperature type
SINGLE_VALUE
Design / version
Coated
Diameter
90,0 mm
Dimmable
No
Enclosed luminaire required
Yes
Energy consumption
260.00 kWh/1000h
Energy efficiency class
G
Envelope
NON_CLEAR
EPREL ID
546553
GTIN
4008321677907
Height
90,0 mm
High luminance light source
No
Hot restart
No
Ignition voltage
4.0/5.0 kVp 1)
ILCOS
ME/UB-250/952-H/E/SL-E40-91/226
Length
226.00 mm
Lifespan B50
16000 h
Light color
955
Light source cap-type (or other electric interface)
E40
Lighting technology used
MH
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Luminous efficacy
69 lm/W
Luminous flux
18000 lm
Mains or non-mains
NMLS
Maximum permitted base edge temperature
250 °C
Maximum permitted outer bulb temperature
400 °C
Mercury content
21.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Model number
AC34327
Nominal current
3000 mA
Nominal voltage
105 V
Nominal wattage
250 W
Non-directional or directional
NDLS
Operating mode
Conventional control gear (CCG) and ignitor
Order reference
HQI-E 250W/D PR
Overall length
226.00 mm
Packaging recyclability
Mostly recyclable packaging 1)
PFC capacitor at 50 Hz
32 µF
Product recyclability
Mostly recyclable product 1)
Product weight
160.00 g
Quantity of precious metals
0 mg
Quantity of rare earths
0 mg
Rated lamp survival factor at 12,000 h
0.81
Rated lamp survival factor at 2,000 h
0.96
Rated lamp survival factor at 4,000 h
0.94
Rated lamp survival factor at 6,000 h
0.93
Rated lamp survival factor at 8,000 h
0.88
Rated LLMF at 12,000 h
0.81
Rated LLMF at 2,000 h
0.92
Rated LLMF at 4,000 h
0.90
Rated LLMF at 6,000 h
0.87
Rated LLMF at 8,000 h
0.85
UV protection
Yes
Width
90,0 mm
