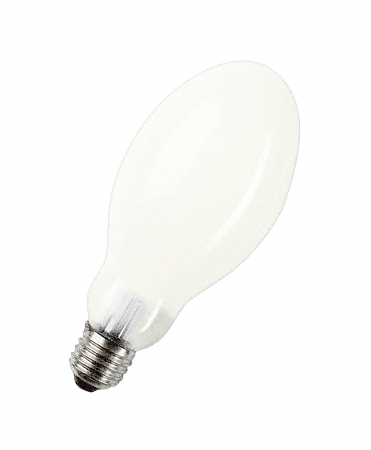

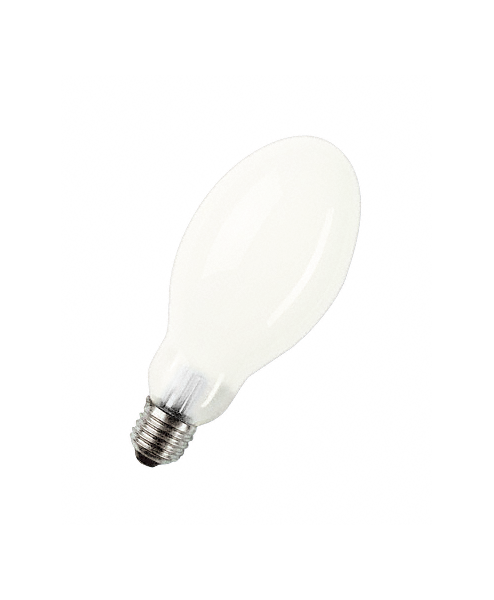

HQI-E 1000 W/N
4008321528261
Product benefits
- E40 screw base for simple lamp handling
- UV values significantly below the maximum permitted thresholds to IEC 61167 thanks to UV filter
Areas of application
- Factories and workshops
- Exhibition halls and trade fairs
- Sports halls and multi-purpose halls
- Approved only for use in enclosed luminaires
- Outdoor applications only in suitable luminaires
Product features
- POWERSTAR® quartz technology
- Light colors: neutral white (NDL), daylight (D)
Safety advice
- Do not stare at the operating light source: The luminaire should be positioned so that prolonged staring into the luminaire at a distance closer that 4 m is not expected.
- Disconnect mains before installation.
- Must not be used if outer bulb is defective.
- Lamp to be used only in a closed luminaire.
Base (standard designation)
E40
Burning position
h45
Color rendering index Ra
62
Color temperature
3700 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Design / version
Coated
Diameter
165 mm
Dimmable
No
Enclosed luminaire required
Yes
Energy consumption
1171.50 kWh/1000h
GTIN
4008321528261
Hot restart
No
Ignition voltage
4.0/5.0 kVp 1)
ILCOS
ME/UB-1000/638-H/E/SL-E40-165/380/V
Length
380.00 mm
Lifespan B50
9000 h
Light color
637
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Luminous efficacy
94 lm/W
Luminous flux
100000 lm
Maximum permitted base edge temperature
250 °C
Maximum permitted outer bulb temperature
500 °C
Mercury content
105.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Nominal current
9500 mA
Nominal voltage
125 V
Nominal wattage
1000 W
Operating mode
Conventional control gear (CCG) and ignitor
Order reference
HQI-E 1000W/N C
Overall length
380.00 mm
Packaging recyclability
Mostly recyclable packaging 1)
PFC capacitor at 50 Hz
85 µF
Product recyclability
Mostly recyclable product 1)
Product remark
Not for general lighting
Product weight
395.00 g
Quantity of precious metals
0 mg
Quantity of rare earths
0 mg
Rated lamp efficacy (standard co.)
94 lm/W
Rated lamp survival factor at 2,000 h
0.99
Rated lamp survival factor at 4,000 h
0.98
Rated lamp survival factor at 6,000 h
0.92
Rated lamp survival factor at 8,000 h
0.77
Rated LLMF at 2,000 h
0.85
Rated LLMF at 4,000 h
0.74
Rated LLMF at 6,000 h
0.67
Rated LLMF at 8,000 h
0.63
UV protection
Yes
