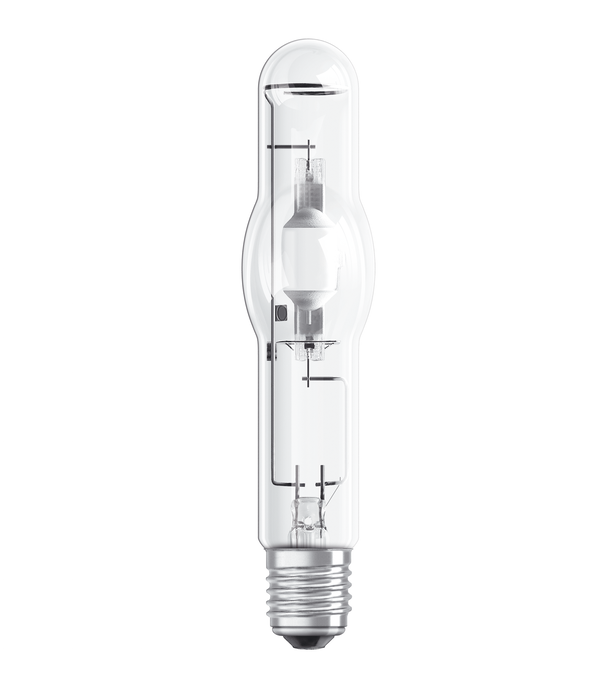

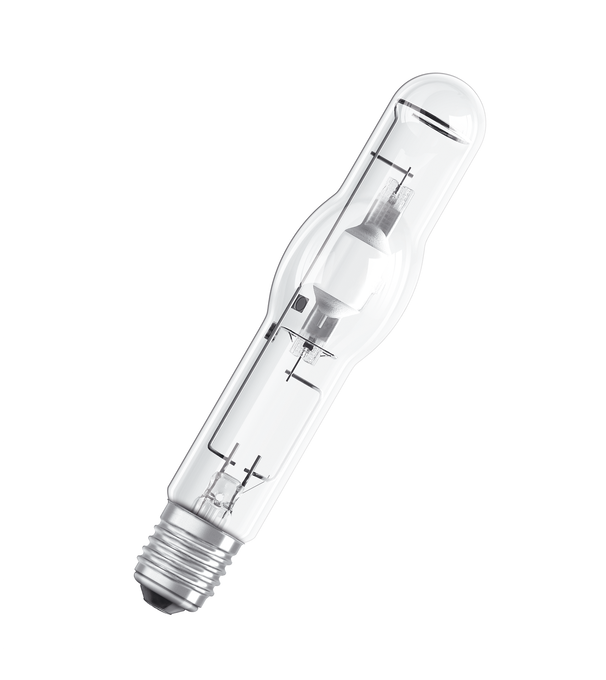

HQI-BT 400 W/N
4008321792341
Product benefits
- E40 screw base for simple lamp handling
- UV values significantly below the maximum permitted thresholds to IEC 61167 thanks to UV filter
Areas of application
- Factories and workshops
- Sports halls and multi-purpose halls
- Industrial installations
- Docks and port facilities
- Marshaling yards, container transshipment facilities
- Buildings, monuments, bridges
- Approved only for use in enclosed luminaires
- Outdoor applications only in suitable luminaires
Product features
- POWERSTAR® quartz technology
- Light colors: neutral white (N), daylight (D)
Safety advice
- Disconnect mains before installation.
- Must not be used if outer bulb is defective.
- Lamp to be used only in a closed luminaire.
Anti-glare shield
No
Base (standard designation)
E40
Beam angle correspondence
SPHERE_360
Burning position
P45
Chromaticity coordinate x
0,390
Chromaticity coordinate y
0,395
Claim of equivalent power
No
Color rendering index Ra
≤ 69
Color temperature
3900 K
Color-tuneable light source
No
Connected light source (CLS)
No
Construction wattage
430.00 W
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Correlated colour temperature type
SINGLE_VALUE
Design / version
Clear
Diameter
62.00 mm
Dimmable
No
Enclosed luminaire required
Yes
Energy consumption
430.00 kWh/1000h
Energy efficiency class
G
Envelope
SECOND
EPREL ID
546565
GTIN
4008321792341
Height
62.00 mm
High luminance light source
No
Hot restart
No
Ignition voltage
4.0/5.0 kVp 1)
ILCOS
MT/UB-400/742-H/E/SL-E40-46/273/H
Length
290.00 mm
Lifespan B50
12000 h
Light center length (LCL)
175,0 mm
Light color
639
Light source cap-type (or other electric interface)
E40
Lighting technology used
MH
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Luminous efficacy
91 lm/W
Luminous flux
39000 lm
Mains or non-mains
NMLS
Maximum permitted base edge temperature
250 °C
Maximum permitted outer bulb temperature
500 °C
Mercury content
69.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Model number
AC34339
Nominal current
4 A
Nominal voltage
115 V
Nominal wattage
400 W
Non-directional or directional
NDLS
Operating mode
Conventional control gear (CCG) and ignitor
Order reference
HQI-BT 400W/N P
Overall length
290.00 mm
Packaging recyclability
Mostly recyclable packaging 1)
PFC capacitor at 50 Hz
45 µF
Product recyclability
Mostly recyclable product 1)
Product remark
With NAV® control gear
Product weight
220.00 g
Quantity of precious metals
0 mg
Quantity of rare earths
0 mg
Rated lamp survival factor at 12,000 h
0.81
Rated lamp survival factor at 2,000 h
0.96
Rated lamp survival factor at 4,000 h
0.94
Rated lamp survival factor at 6,000 h
0.93
Rated lamp survival factor at 8,000 h
0.88
Rated LLMF at 12,000 h
0.81
Rated LLMF at 2,000 h
0.92
Rated LLMF at 4,000 h
0.90
Rated LLMF at 6,000 h
0.87
Rated LLMF at 8,000 h
0.85
UV protection
Yes
Width
62.00 mm
