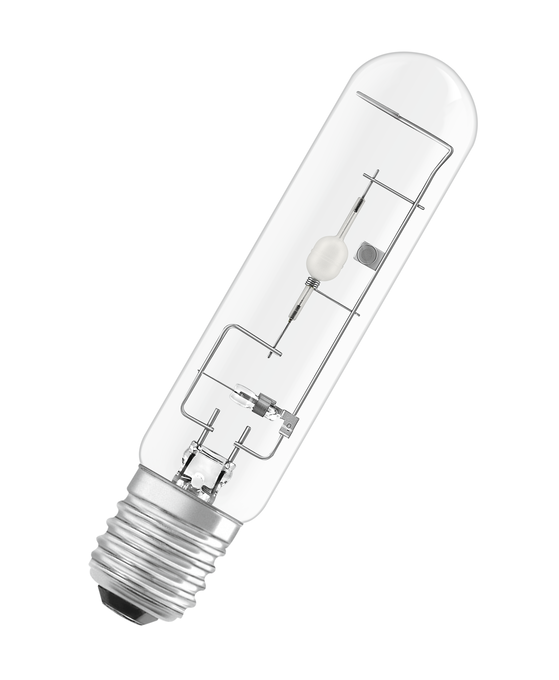

HCI-TT 70 W/830 SUPER 4Y
4052899378339
Product benefits
- Up to 15 % higher lumen maintenance factor compared to HCI-TT standard lamps
- Up to 30 % higher lum. efficacy for lamps ≤ 100 W (comp. to NAV-T Super 4Y/6Y)
- Good color rendering
- Operation in existing HPS installations as ignition voltage of IEC 60662 is met
- Energy savings of up to 70 % when replacing mercury vapor lamps (HQL)
- Optimum energy efficiency on POWERTRONIC® PTo 3DIM ECGs
- UV values significantly below the maximum permitted thresholds to IEC 61167 thanks to UV filter
Areas of application
- Streets
- Outdoor lighting
- Industrial installations
- Exhibition halls and trade fairs
- Approved only for use in enclosed luminaires
- Outdoor applications only in suitable luminaires
Product features
- White light due to POWERBALL® ceramic technology
- Light color: warm white (830 WDL)
- Extended service lifetime: 4 years (at approx. 11 h/day)
- Very high luminous efficacy: up to 125 lm/W
- Lamp survival factor: 95 % after 16,000 h burning time
- Average lifetime: up to 24,000 h
- ErP compliant according to EU Regulation 245/2009
- Dimmable on conventional control gears and electronic control gears
Safety advice
- Where possible, use a timer igniter (switch-off time of at least 15 minutes). Otherwise, switch off the luminaire for at least 15 minutes if a brief interruption has occurred to the mains voltage supply.
- Disconnect mains before installation.
- Must not be used if outer bulb is defective.
- Do not stare at the operating light source: The luminaire should be positioned so that prolonged staring into the luminaire at a distance closer that 4 m is not expected.
- Lamp to be used only in a closed luminaire.
References / Links
- For more information on the system guarantee and the terms and conditions of the guarantee visit
Anti-glare shield
No
Base (standard designation)
E27
Beam angle correspondence
SPHERE_360
Burning position
Any
Chromaticity coordinate x
0.420
Chromaticity coordinate y
0.394
Claim of equivalent power
No
Color rendering index Ra
80
Color temperature
3200 K
Color-tuneable light source
No
Connected light source (CLS)
No
Construction wattage
75.00 W
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Additional info can be provided per individual request
Correlated colour temperature type
SINGLE_VALUE
Design / version
Clear
Diameter
35.00 mm
Dimmable
Yes 1)
Enclosed luminaire required
Yes
Energy consumption
84.70 kWh/1000h
Energy efficiency class
F
Envelope
SECOND
EPREL ID
1535148
GTIN
4052899378339
Height
35.00 mm
High luminance light source
No
Ignition voltage
1.8/5.0 kVp 1)
ILCOS
MT/UB-70/830-H/E/SL-E27-32/155
Length
156.00 mm
Lifespan B10
18000 h
Lifespan B5
16000 h
Lifespan B50
24000 h
Light center length (LCL)
102,0 mm
Light color
832
Light source cap-type (or other electric interface)
E27
Lighting technology used
MH
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Luminous efficacy
107 lm/W
Luminous flux
8000 lm
Mains or non-mains
NMLS
Maximum permitted base edge temperature
210 °C
Maximum permitted outer bulb temperature
350 °C
Mercury content
8.0 mg
Mercury-free
No
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Model number
AC01721
Nominal current
1000 mA
Nominal voltage
95 V
Nominal wattage
70 W
Non-directional or directional
NDLS
Operating mode
Conventional control gear (CCG) and ignitor, Electronic control gear (ECG)
Operation mode LLMF/LSF
50 Hz
Order reference
HCI-TT 70W/830
Overall length
150.00 mm
Packaging recyclability
Mostly recyclable packaging 1)
PFC capacitor at 50 Hz
12 µF
Product recyclability
Mostly recyclable product 1)
Product weight
50.00 g
Quantity of precious metals
0 mg
Quantity of rare earths
0 mg
Rated lamp efficacy (standard co.)
104 lm/W
Rated lamp survival factor at 12,000 h
0.97
Rated lamp survival factor at 16,000
0.95
Rated lamp survival factor at 2,000 h
0.99
Rated lamp survival factor at 20,000 h
0.78
Rated lamp survival factor at 4,000 h
0.99
Rated lamp survival factor at 6,000 h
0.98
Rated lamp survival factor at 8,000 h
0.97
Rated LLMF at 12,000 h
0.85
Rated LLMF at 16,000 h
0.83
Rated LLMF at 2,000 h
0.92
Rated LLMF at 20,000 h
0.75
Rated LLMF at 4,000 h
0.90
Rated LLMF at 6,000 h
0.89
Rated LLMF at 8,000 h
0.88
System guarantee level
3 (2/5)
UV protection
Yes
Width
35.00 mm
