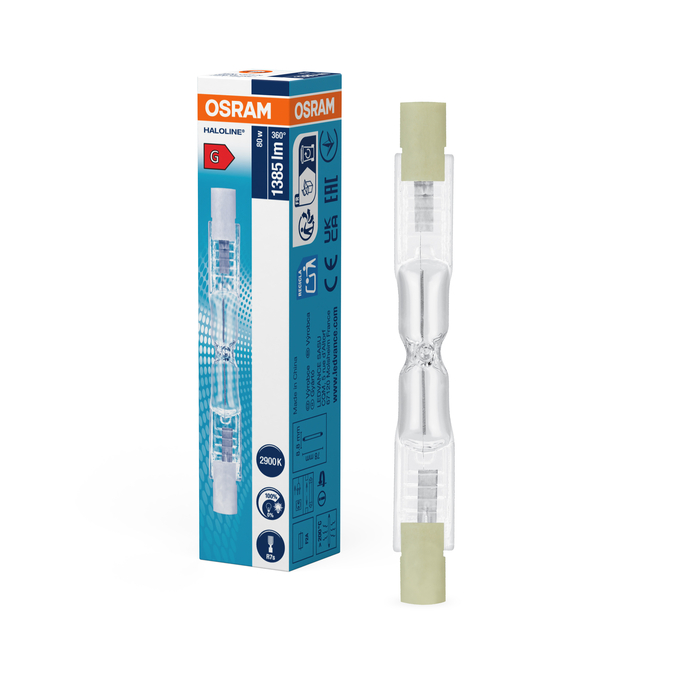

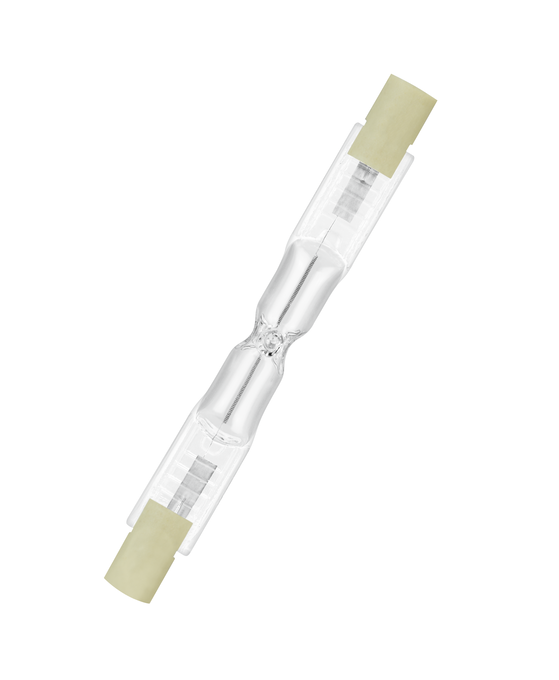

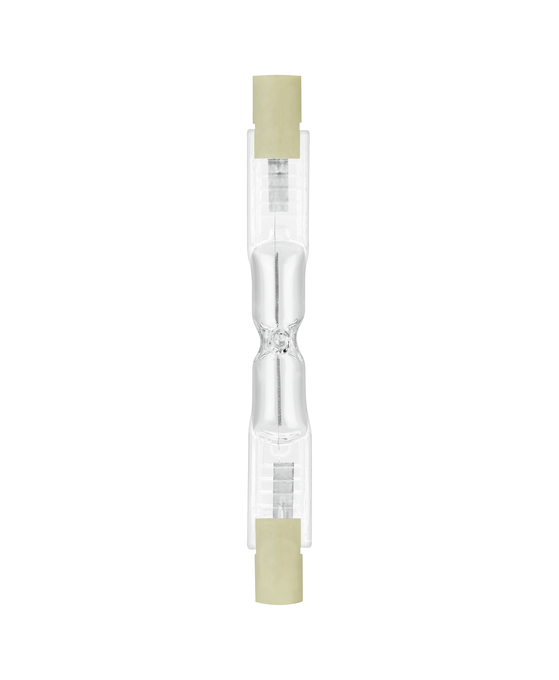

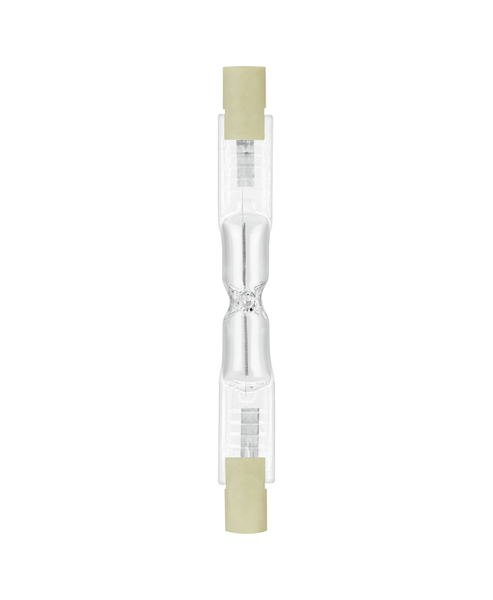

HALOLINE PRO 80 W 240 V R7S
4008321325396
Product benefits
- Brilliant accent lighting
- Direct replacement for standard tubular halogen lamps
- Significantly lower CO2 emissions compared to standard version
- Lower thermal output (compared with the standard reference product)
- No transformer required
- Contains no mercury
Areas of application
- General illumination
- Entrance lighting
- Pathway lighting
- Outdoor applications only in suitable luminaires
- Traffic areas
- Shops
- Restaurants, hotels and similar prestigious applications
- Offices, public buildings
- Ideal for emphasizing and accentuating the structure of a room
Product features
- Average life: 2,000 h
- Dimmable
- Color rendering index Ra: 100
Safety advice
- Do not touch the lamp if broken.
- Must not be used if outer bulb is defective.
- Lamp to be used only in a closed luminaire.
Anti-glare shield
No
Base (standard designation)
R7s
Beam angle correspondence
SPHERE_360
Burning position
Any
Chromaticity coordinate x
0.444
Chromaticity coordinate y
0.406
Claim of equivalent power
No
Color rendering index Ra
100
Color temperature
2900 K
Color-tuneable light source
No
Connected light source (CLS)
No
Construction wattage
80.00 W
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Design / version
Tube
Diameter
12.00 mm
Dimmable
Yes
Displacement factor
1
Energy consumption
80.00 kWh/1000h
Energy efficiency class
G
Envelope
No
EPREL ID
714452,1553998
GTIN
4008321325396
Height
12.00 mm
High luminance light source
No
ILCOS
HDG-80-240-R7s-74,9
Length
78.00 mm
Lifespan L70/B50 at 25 °C
2000 h
Light color
1029
Light color (designation)
Warm White
Light source cap-type (or other electric interface)
R7s
Lighting technology used
OTHER
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Additional info can be provided per individual request
Luminous efficacy
17 lm/W
Luminous flux
1385 lm
Mains or non-mains
MLS
Mercury-free
Yes
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Model number
AC35329,AC51813
Networked standby power for CLS
not applicable
Nominal current
330 mA
Nominal voltage
240 V
Nominal wattage
80 W
Non-directional or directional
NDLS
Order reference
64690 ECO
Overall length
78.00 mm
Packaging recyclability
Mostly recyclable packaging 1)
Power factor λ
1.00
Product recyclability
Mostly recyclable product 1)
Product remark
Fuse protection with indicated values recommended acc. to IEC60357, EN603
Product weight
5.5 g
Standby power
0 W
Starting time
0 s
UV protection
No
Width
12.00 mm
