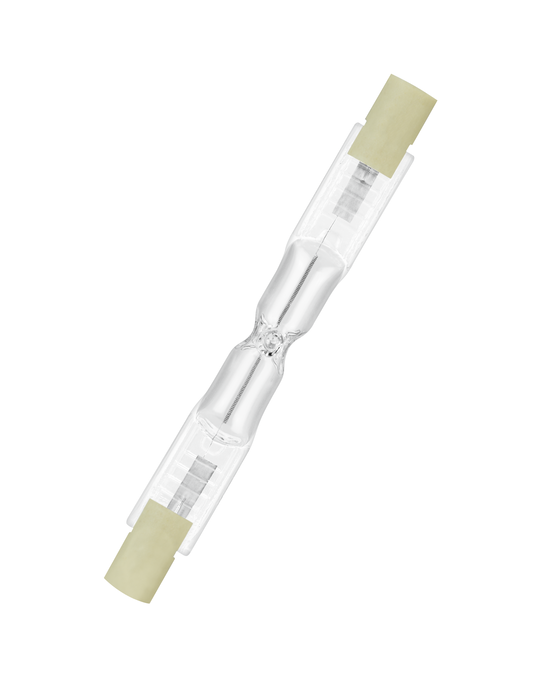

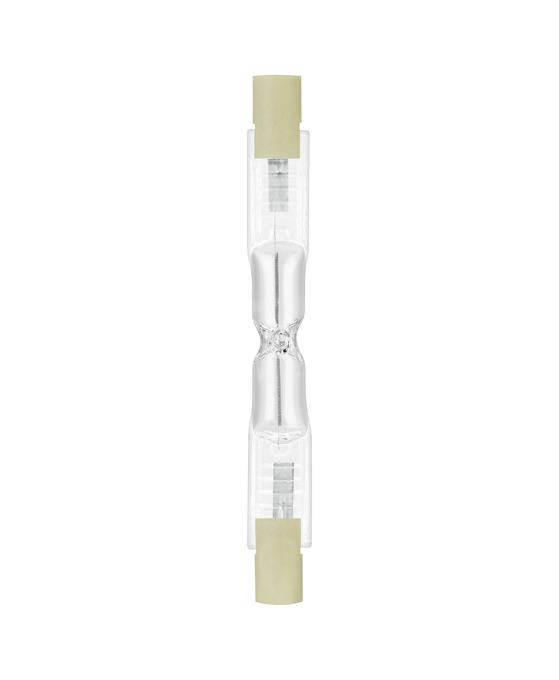

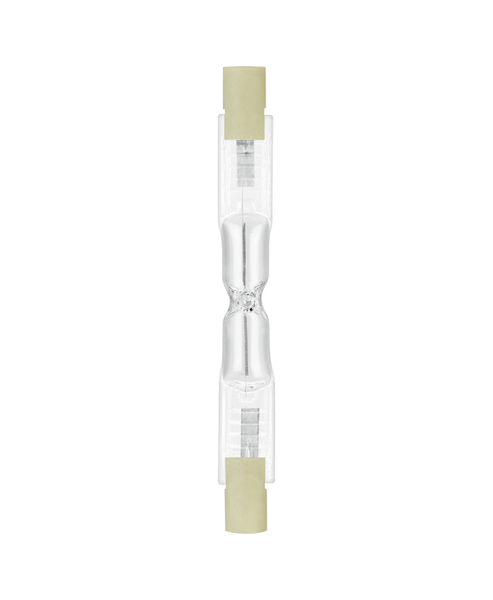

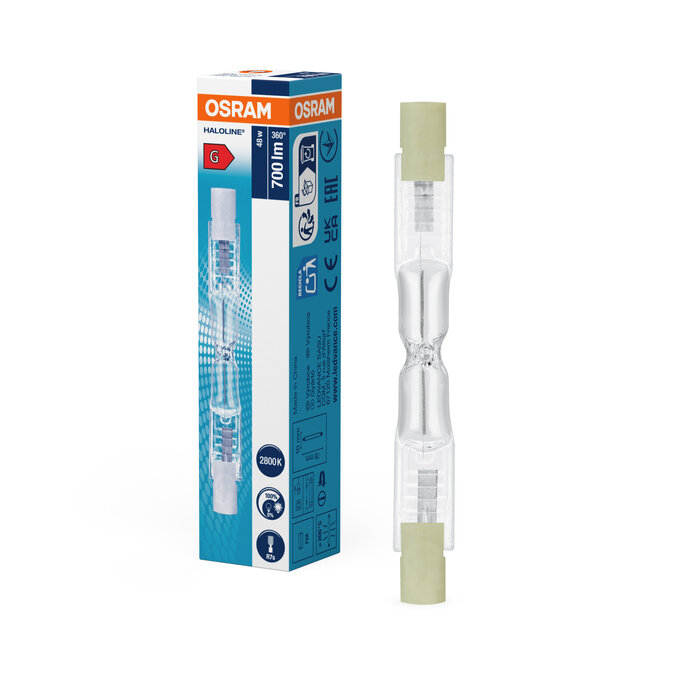

HALOLINE PRO 48 W 230 V R7S
4008321977595
Product benefits
- Brilliant accent lighting
- Direct replacement for standard tubular halogen lamps
- Significantly lower CO2 emissions compared to standard version
- Lower thermal output (compared with the standard reference product)
- No transformer required
- Contains no mercury
Areas of application
- General illumination
- Entrance lighting
- Pathway lighting
- Outdoor applications only in suitable luminaires
- Traffic areas
- Shops
- Restaurants, hotels and similar prestigious applications
- Offices, public buildings
- Ideal for emphasizing and accentuating the structure of a room
Product features
- Average life: 2,000 h
- Dimmable
- Color rendering index Ra: 100
Safety advice
- Do not touch the lamp if broken.
- Must not be used if outer bulb is defective.
- Lamp to be used only in a closed luminaire.
Anti-glare shield
No
Base (standard designation)
R7s
Beam angle correspondence
SPHERE_360
Burning position
Any
Chromaticity coordinate x
0.444
Chromaticity coordinate y
0.406
Claim of equivalent power
No
Claimed equiv. conventional lamp power
60 W
Color rendering index Ra
100
Color temperature
2800 K
Color-tuneable light source
No
Connected light source (CLS)
No
Construction wattage
48.00 W
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Design / version
Tube
Diameter
10.00 mm
Dimmable
Yes
Energy consumption
48.00 kWh/1000h
Energy efficiency class
G
Envelope
No
EPREL ID
714446,1635406
GTIN
4008321977595
Height
10.00 mm
High luminance light source
No
ILCOS
HDG-48-230-R7s-74,9
Length
78.00 mm
Light color
1028
Light color (designation)
Warm White
Light source cap-type (or other electric interface)
R7s
Lighting technology used
OTHER
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Additional info can be provided per individual request
Luminous efficacy
14 lm/W
Luminous flux
700 lm
Mains or non-mains
MLS
Mercury-free
Yes
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Model number
AC35327,AC54063
Nominal voltage
230 V
Nominal wattage
48 W
Non-directional or directional
NDLS
Order reference
64684 ECO
Overall length
78.00 mm
Packaging recyclability
Mostly recyclable packaging 1)
Product recyclability
Mostly recyclable product 1)
Product remark
Fuse protection with indicated values recommended acc. to IEC60357, EN603
Product weight
6.1 g
Quantity of precious metals
0 mg
Quantity of rare earths
0 mg
Starting time
0 s
UV protection
No
Width
10.00 mm
